  • Page 1 Safety regulations Operating instructions AVP 1240 H AVP 1250 AVP 1850 H AVP 1850 1B20...
  • Page 3 Fabr. No. regulations for the prevention of accidents. Service weight (kg) Power output (kW) Ammann Verdichtung GmbH is not liable for the function of Constr. year themachine when used in an improper manner and for other than the intended purpose.
  • Page 4: Safety Regulations

    1. Safety regulations This AMMANN machine has been built according to the Only load and transport the machine as specified in the operating state of the art in compliance with the pertinent rules. instructions. Nevertheless, these machines can still constitute a hazard...
  • Page 5 1. Safety regulations Always control the machine, so that hand injuries through hard Replace externally damaged hydraulic hoselines at regular objects are avoided! intervals (depending on time used), even when no safety-rele- vant faults are visible. Always ascend slopes carefully in a direct path. Inspect the electrical equipment of the machine at regular Reverse up steep slopes to prevent the machine from toppling intervals.
  • Page 6: Technical Data

    2. Technical Data AVP 1240 H AVP 1250 AVP 1850 H AVP 1850 1B20 1. Dimensions Length L 540 mm 523 mm 615 mm Length L1 340 mm 353 mm 398 mm Height H 980 mm 1110 mm Height H1...
  • Page 7 2. Technical Data AVP 1240 H AVP 1250 AVP 1850 H AVP 1850 1B20 4. Speed Speed max. 20 m/min 5. Vibration Vibration force 12 kN 18 kN Vibration frequency 98 Hz 85 Hz 6. Working surface Working surface 0.14 m²...
  • Page 8: Before Operation

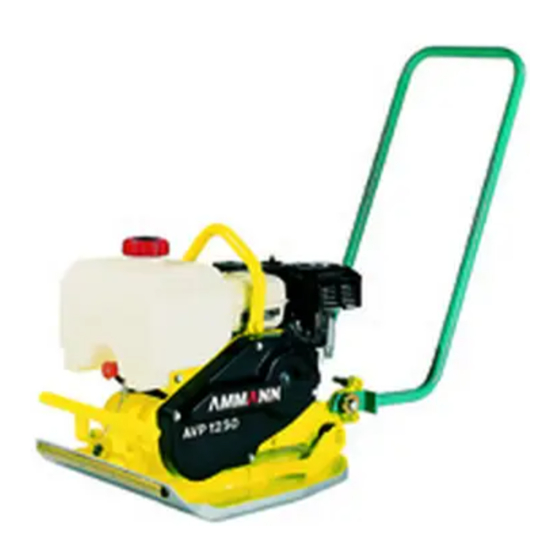

    3. Operation 3.1 Description 3.2 Before operation The AVP 1240 / 1250 / 1850 is a vibration plate which operates Danger according to the trailer vibratory system and moves only in one direction. – Wear personal sound of protection equipment. - Loss of hearing.
  • Page 9 3. Operation 3.3 Engine operation (Honda) 3.4 Engine operation (Hatz) 3.4.1 Starting the engine B1799302 3.3.1 Starting the engine Important To prevent engine damage through oil deficiency, the engine is provided with a low oil warning system. If the oil level is too low, the engine switches off automatically (the engine switch remains in the «ON»-position).
  • Page 10 3. Operation 3.4.2 Switching off the engine 3.5 Operation – The vibration plate can be operated as soon as the engine reacts to brief acceleration. – Move engine speed control lever to full load. – The vibration plate is steered by moving the towbar to the side.
  • Page 11: Loading And Transportation

    4. Transportation 4.1 Bogie 4.0 Loading and transportation Danger – Only use sufficiently strong and secure loading ramps when loading. – Check the contact points (frame, lifting rings) before use for damage and wear. Immediately replace damaged parts. – Secure the machine against rolling or slipping off and against tipping over.
  • Page 12: Maintenance

    5. Maintenance 5.1 General notes – Park the machine on a flat surface and secure it against rolling away and slipping. Careful maintenance: – Ensure that operating materials and replaced parts are disposed of safely and in an environmentally - friendly ð...
  • Page 13: Lubrication Schedule

    5. Maintenance 5.3 Lubrication schedule Change intervals Lubricant Order No. Quantity [l] Lubrication point [op. hrs.] 1. Engine AVP 1240 H Engine oil AVP 1250 100* API SG-CE 806 01 100 AVP 1850 H SAE 10W40 AVP 1850 250* 1B20 2.
  • Page 14: Maintenance Work (Honda-Engine)

    5. Maintenance 5.5.3 Cleaning the air filter element 5.5 Maintenance work (Honda-engine) max. 5 bar Attention – Never run the engine without the air cleaner. — Rapid engine wear will result. – Do not allow dust to enter into carburator. –...
  • Page 15: Maintenance Work (Hatz-Engine)

    5. Maintenance 5.6.3 Checking Cooling air-/combustion air-intake 5.6 Maintenance work (HATZ-engine) Attention Only the maintenance work which has to be performed daily is included in this operating manual. Please refer to the engine operating manual and to the maintenance in- structions and intervals listed therein.
  • Page 16: Maintenance Work On The Machine

    5. Maintenance 5.7.5 Checking V-belt 5.7 Maintenance work on the machine 5.7.1 Cleaning Clean the machine thoroughly daily. Attention – After cleaning, check all cables, hoses, pipes and screwed fittings for leaks, loose connections, chafe marks and other damage. – Any faults which are detected should be rectified immediately.
  • Page 17 5. Maintenance 5.7.6 Exciter: Oil level / Oil change Important Change the oil when its warm. – Unscrew oil measuring plug (1) and oil drain plug (2). Attention – Collect oil which flows out and dispose of oil without harm to the environment. –...
