Contents; Safety First - Unika Compact Hinge Jig Instructions

The jig can be used to recess 75mm and 100mm hinges in doors
and door frames. The recess will be 20mm for a 75mm hinge
and 30mm for 100mm hinge.
The jig will recess hinges by a minimum distance of 230mm (in
accordance with BS EN 1935) from the top and bottom edge of
the door. However, door manufacturers' instructions should be
consulted before hinge heights are set.

CONTENTS

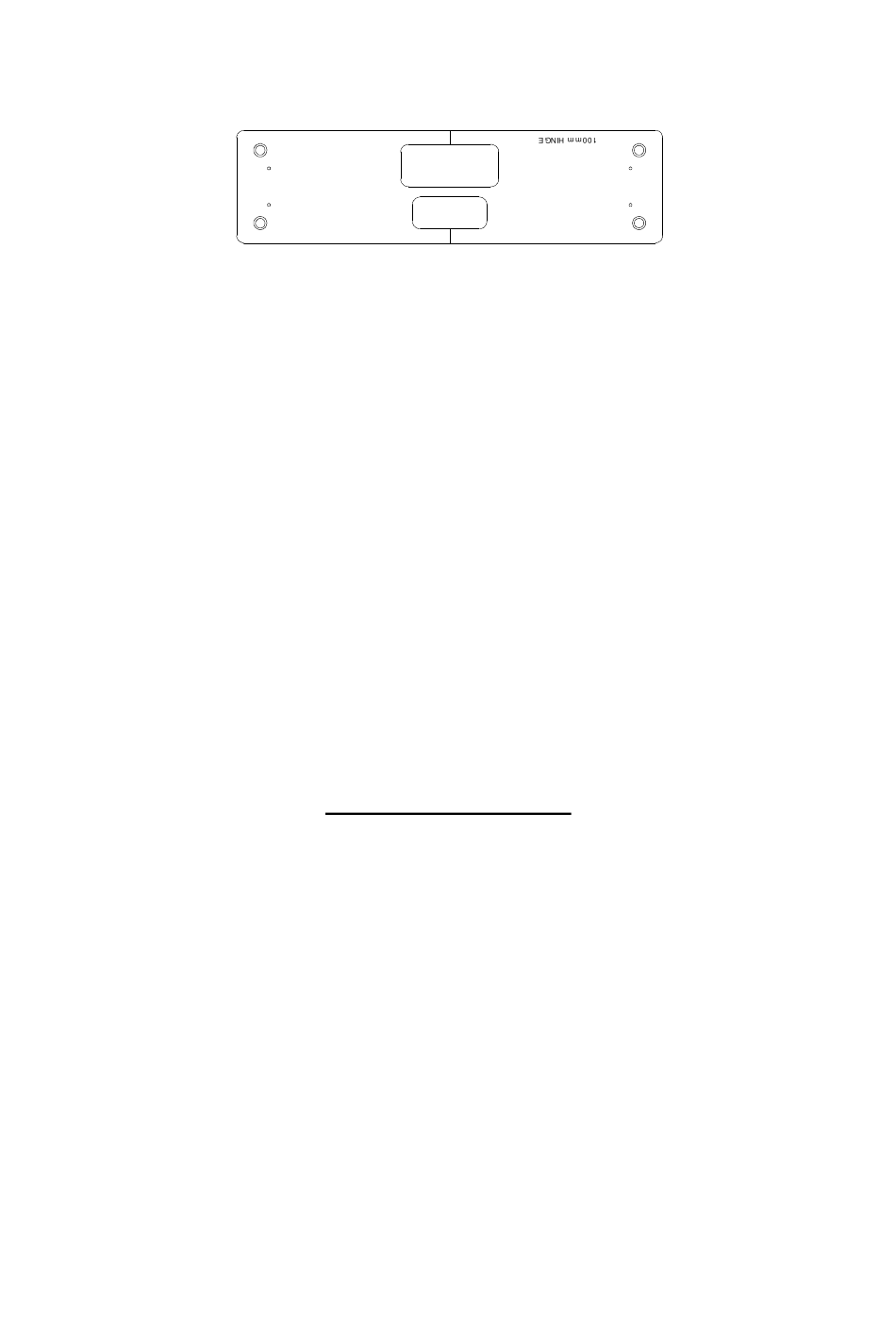

Jig plate (120mmx450mm)
4 x Aligning pegs
Corner chisel
2 x fixing bradawls
1. Make sure all cables are clear of the router.
2. Make sure the door is correctly supported.
3. Always use protective goggles when using the router.
4. Do not switch router on with blade touching the work.
5. Never remove the router when it is switched on and
moving.
6. Make sure there are no obstructions to the path of the
router.
7. RE AD INSTRUCTIONS CAREFULLY BEFORE
STARTING THE WORK.
U SE 16M M G U I D E BU SH + 1/ 2" C U TTER
MADE IN UK

SAFETY FIRST

75mm HINGE
OTHER EQUIPMENT
NEEDED
Light Duty Router (900-1000
W)
16mm Guide bush
12.7mm (1/2") straight Cutter
