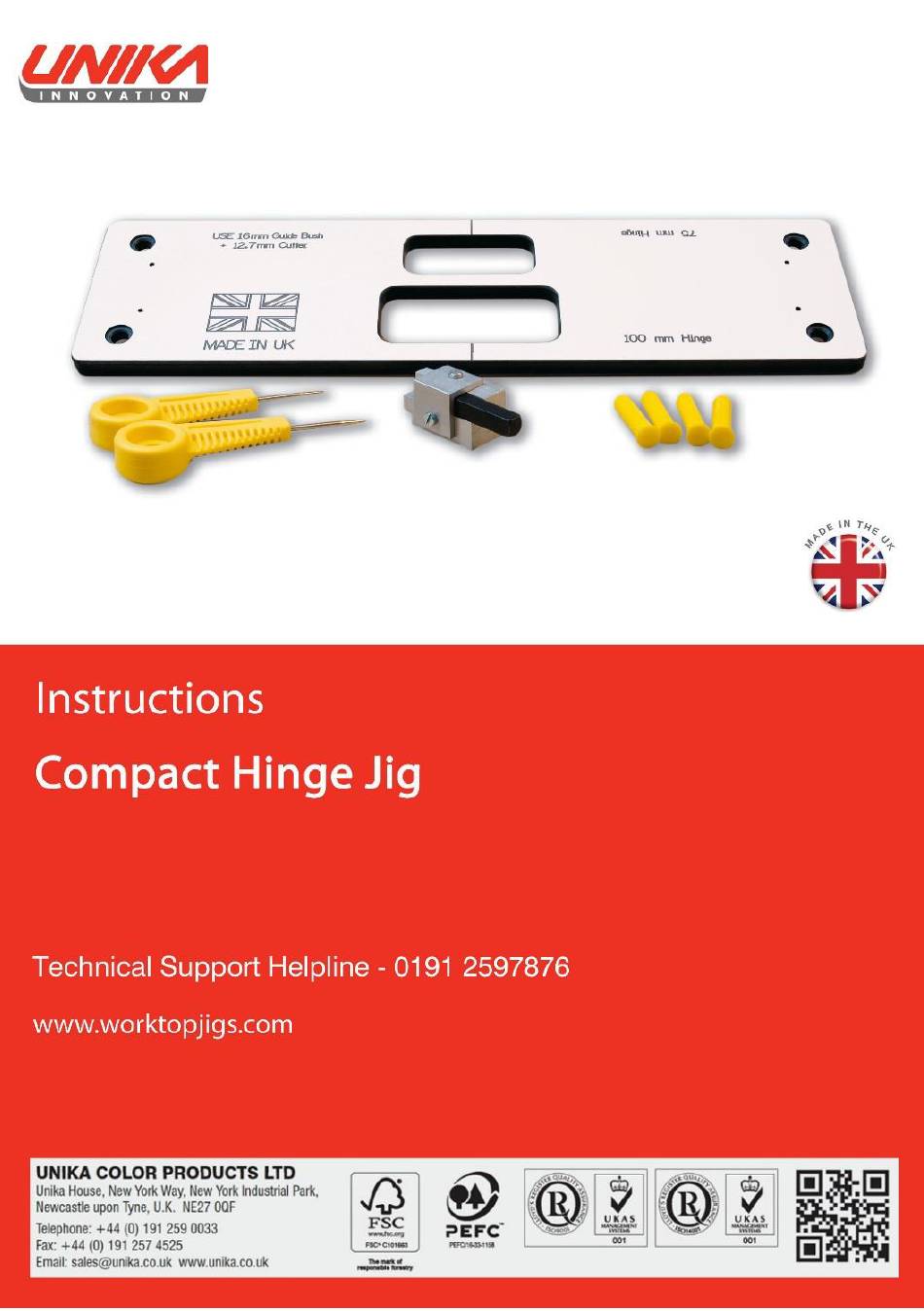

Unika Compact Hinge Jig Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compact Hinge Jig and is the answer not in the manual?

Questions and answers

Summary of Contents for Unika Compact Hinge Jig

  • Page 2 The jig can be used to recess 75mm and 100mm hinges in doors and door frames. The recess will be 20mm for a 75mm hinge and 30mm for 100mm hinge. U SE 16M M G U I D E BU SH + 1/ 2" C U TTER MADE IN UK 75mm HINGE The jig will recess hinges by a minimum distance of 230mm (in...
  • Page 3 THE DOOR Using a pencil, mark the edge of the door to be routed at the centre point where you want the hinge to sit with a horizontal line. Repeat this process for further hinges down the length of the door.
  • Page 4 THE FRAME Starting from the top of the frame, mark the distances of the hinge centres on the door, adding on 3mm to each one to allow for the clearance at the top of the door. For example, if the top hinge has a centre of 250mm from the top of the door then mark the frame at 253mm from the top of the frame.
