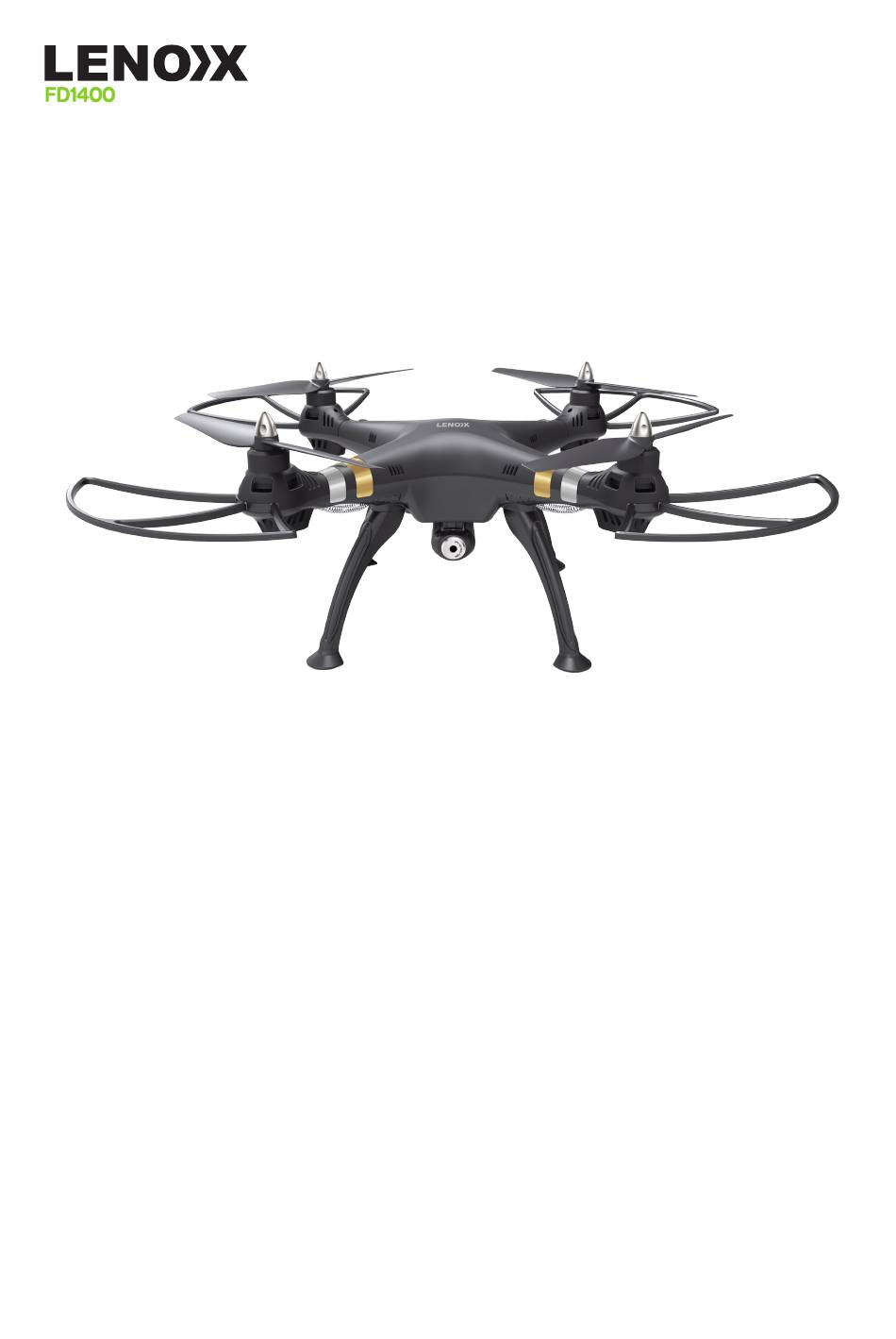

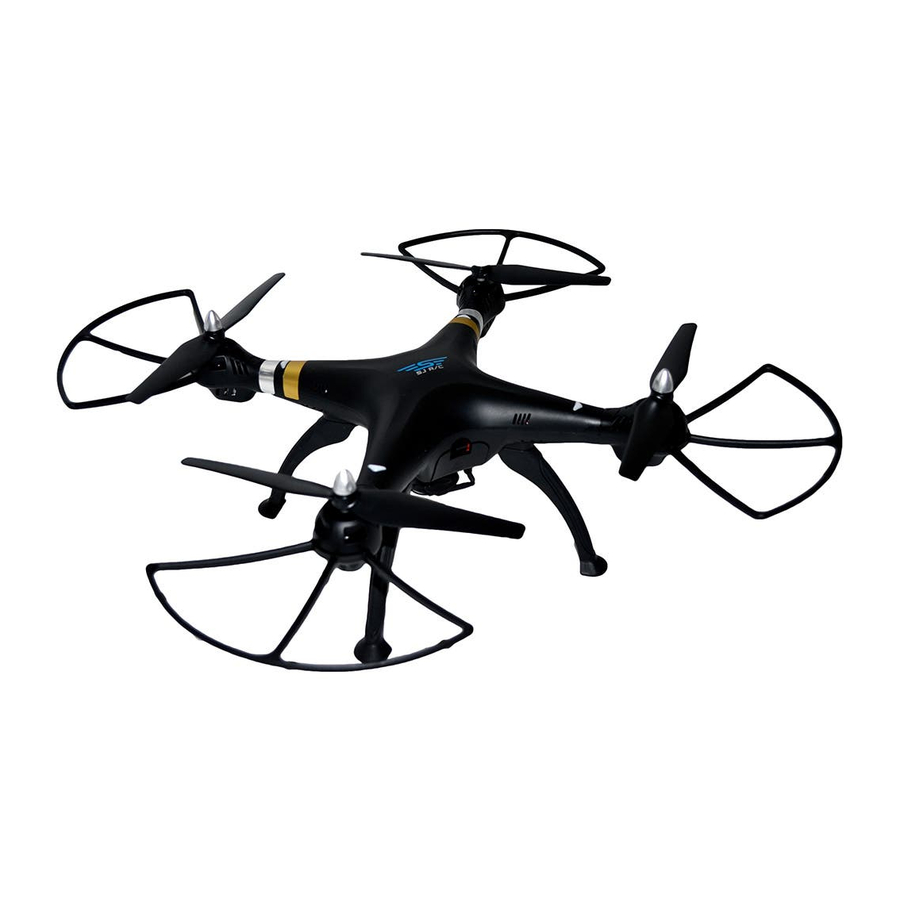

Long Distance Drone with WIFI
MODEL NO: FD1400
BATCH NO: PR3675
INSTRUCTION MANUAL
PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• If you are in a controlled air space, which covers most Australian cities, you must not fly higher
than 400 Feet (120 meters).
• Do not fly within 5.5 km of an air field.
• You must not fly closer than 30 meters to vehicles, buildings or people.
• You must only operate this quad-copter in your line of sight in day light. Do not let it get away from
you.
• You must not fly under any populous area, such as beaches, other people's backyards, heavy
populated parks or sports ovals where there is a game in progress.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lenoxx FD1400

  • Page 1 Long Distance Drone with WIFI MODEL NO: FD1400 BATCH NO: PR3675 INSTRUCTION MANUAL PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE • If you are in a controlled air space, which covers most Australian cities, you must not fly higher than 400 Feet (120 meters).
  • Page 2: Safety Instructions

    KEY FEATURES OF THE QUAD-COPTER: • Auto return function • Headless mode • 6-axis gyro • 2.4 GHz radio control technology • Control distance: about 350 – 400 meters • Image transmission distance: about 60 meters • Flight time: about 15 minutes •...
  • Page 3: Choking Hazard

    13. During the process of synchronising the controller to the quad-copter, ensure there is 1 – 2 meters distance between the user and the quad-copter to avoid collision or injury. 14. Our company and it’s distributors are not responsible for any loss due to incorrect operation which may cause any loss or damage or injury to the body or damage and loss of property.
  • Page 4: Controller Function

    CONTROLLER FUNCTION: ONE BUTTON TAKE OFF/LANDING: One button take off/one button landing: Press this button to begin flying. To end flying, press this button again. Speed + high speed and Speed - low speed: Press the high-speed switch or low speed switch to change between different speeds.
  • Page 5 DIAGRAM OF QUAD-COPTER:...
  • Page 6: Charging The Lithium Battery

    CHARGING THE LITHIUM BATTERY: 1. Ensure the quad-copter is turned off. 2. Insert the USB end of the charge lead to a computer or mains USB adaptor. 3. Connect the end of the charge lead to the charging socket of the quad-copter. 4.
  • Page 7: Operating Method

    OPERATING METHOD: HEIGHT SETTING MODE: After synchronising the of the quad-copter with the controller, press the one-button take off button to enter the Pressure Height-setting Mode. This time the height of the quad-copter will be steadily kept on the current height. Push the throttle lever upward, the quad-copter will be ascending; Pull the throttle lever downward, the quad-copter will be descending.
  • Page 8: Headless Mode

    HEADLESS MODE: Place the quad copter on the ground facing forwards towards you. After synchronising the quad-copter with the controller, during the course of take-off, press the headless/normal mode switch on the controller. When headless mode is on, the headless indicator light is illuminated on the controller.
  • Page 9: Functional Introduction

    FUNCTIONAL INTRODUCTION: OPERATION:...
  • Page 11 CAMERA: TAKING PHOTOS AND RECORDINGS: TAKING PHOTOS AND VIDEOS USING THE CONTROLLER: 1. To take a photo, press the camera key on the controller once. You will hear a camera sound, which represents that a photo has been taken. 2. To take a video, hold the camera key down on the controller for 3 seconds, the controller will beep and the video camera icon on the app screen will blink.
  • Page 12: Troubleshooting

    TROUBLESHOOTING: PROBLEM REASON SOLUTION The indication light of the 1. The quad-copter and 1. Refer to the section quad-copter is flashing without controller are not ‘preparation for take-off’ and reaction when operated. synchronised correctly. synchronise the quad-copter and controller correctly. 2.
