P
o
roduct
verview

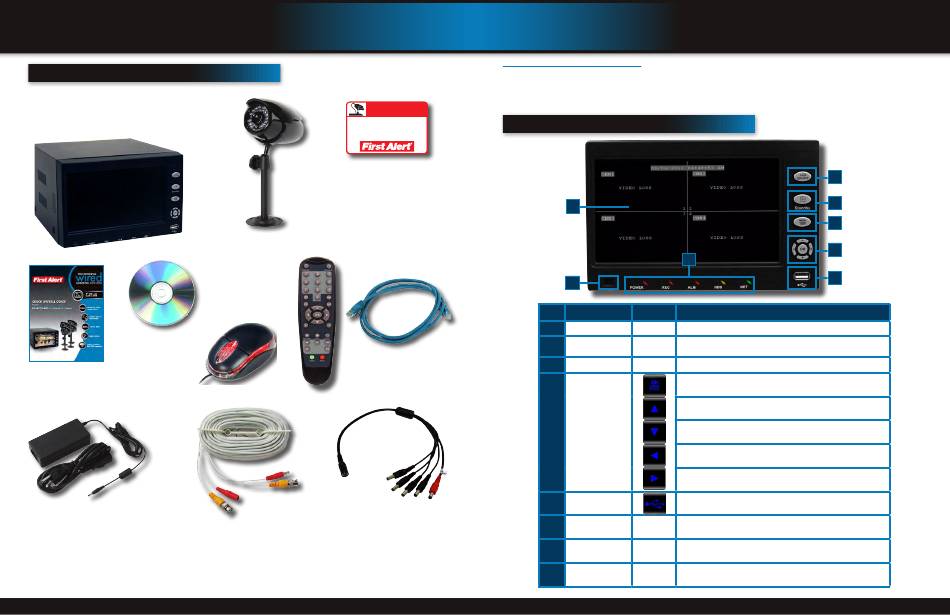

package contents
w
'
i
t
B
hat
s
n
he
ox
HS-4705-400
4 Channel Digital DVR
with 500GB Hard Drive
Installation Software
and Manuals
Quick Install Guide
Power Supply for
DVR and Cameras
60' BNC Video & DC Power Cable
Quantity 4
©2012 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc. 3901 Liberty Street Road, Aurora, IL 60504-8122. Due to continuing
product development, the product inside the packaging may look slightly different than the one on the package. BRK Brands, Inc. is a subsidiary
of Jarden Corporation (NYSE: JAH). To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday,
7:30 a.m. - 5 p.m., Central Standard Time.
Made in China
WARNING
THESE PREMISES ARE UNDER
24 HOUR VIDEO SURVEILLANCE
PROTECTED BY
2 Window
Warning Decals
400 TVL Camera
Quantity 4
RJ45 Ethernet Cable
USB 2.0 Mouse
Remote Control
5-way Power splitter -
4 cameras, 1 DVR
Page 2
About this Quick Start Guide
Thank you for choosing First Alert for your security needs! This Quick Start Guide is designed to provide you with the basic
operation of your HS-4705-400 DVR. Please consult the complete User's Manual included on the CD disk for a detailed
explanation of all the features and functions of this DVR. We also encourage you to visit our website at www.brkelectronics.
com to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera products and
announcements. You'll find this product line under Products >> Security Cameras >> Wired Cameras.
F
P
ront
anel
8
6
i
F
c
d
tem
unction
ontrol
1
LCD ON/OFF
Turns LCD Display on or off
Function 1: Press and hold to enter/exit standby mode. Function 2:
2
Standby/Window
Switch between Quad view and CHN 1-4 single channel view.
3
MENU/EXIT
Press to open/close the main menu
In menus, press to confirm selections; in PTZ mode, press to change the
navigation buttons to control the connected PTZ camera (not included)
Press to move cursor up; in PTZ mode, press to pan camera up
4
Navigation/OK/PTZ
Press to move cursor down; in PTZ mode, press to pan camera down
Press to move cursor left; in PTZ mode, press to pan camera left
Press to move cursor right; in PTZ mode, press to pan camera right
Connect a USB flash drive to the left port for data backup and firmware
5
USB
upgrades. Connect a USB mouse to the right port
6
IR Sensor
IR receiver for the remote control
Visual indicators for Power, Record, Alarm, Hard Drive (HDD)
7
LED Indicators
and Network Status.
8
Main Screen
7" LCD Color Monitor
P
o
roduct
verview
dvr controls
1
2
3
4
7
5
escriPtion
Page 3
