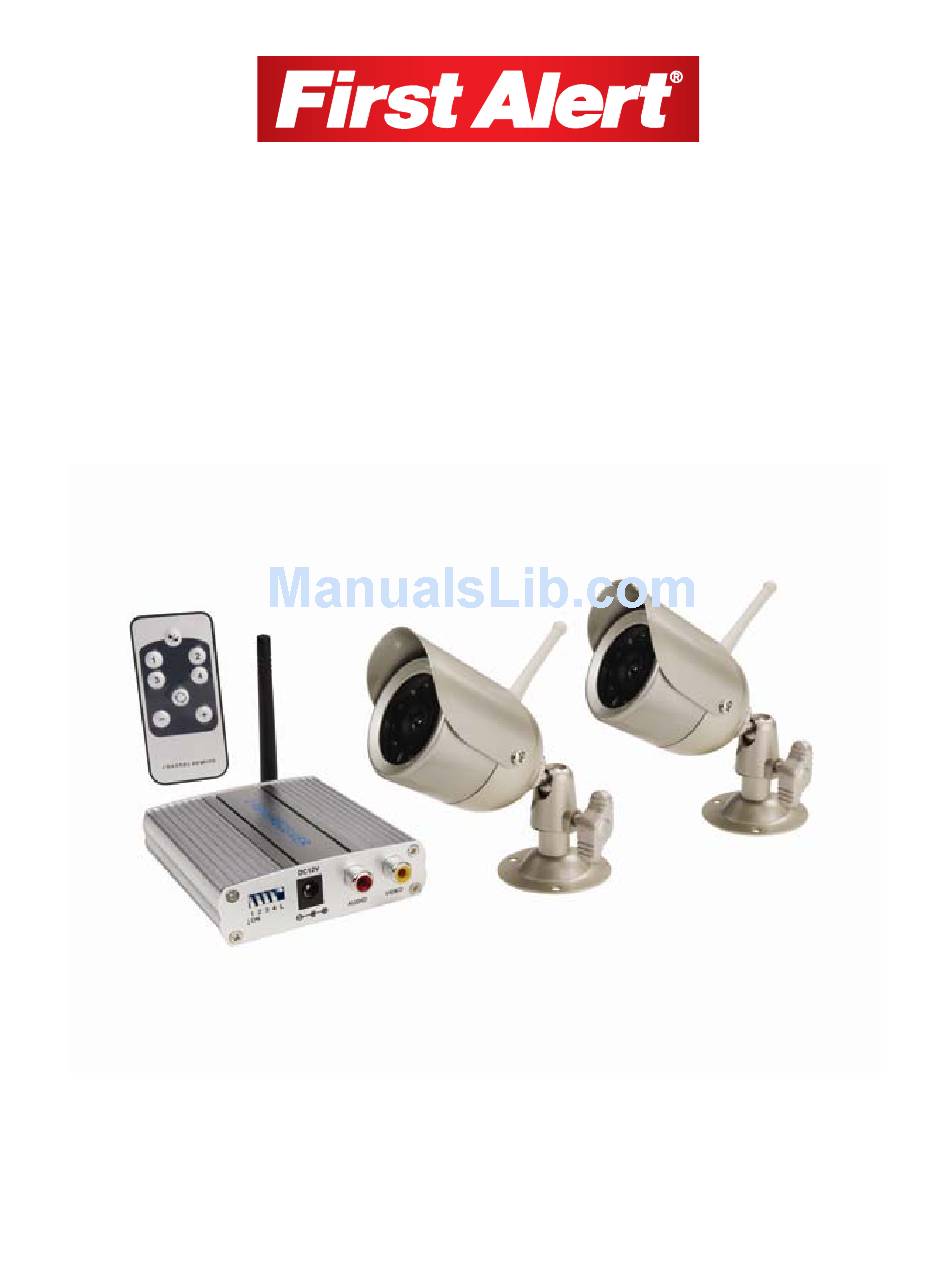

- Page 1 Indoor/Outdoor Analog Wireless Camera with Receiver Model A-560 USER'S MANUAL...
- Page 2 ©2010 Lehigh Consumer Products, LLC All rights reserved. Distributed by Lehigh Consumer Products, LLC, Macungie, PA 18062. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package. Lehigh Consumer Products, LLC is a subsidiary of Jarden Corporation (NYSE: JAH). To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m - 5:00 p.m., Central Standard Time.
-
Page 3: Table Of Contents
Table of Contents Safety ..........................1 Safety Precautions ........................... 1 FCC Compliance ..........................1 Getting to Know Your A-560 System ................2 Check Package Contents........................2 Features............................4 Setting Up Your A-560 System ..................5 Safety and Installation Tips ......................5 Device Operating Range........................ -
Page 5: Safety
Safety AFETY RECAUTIONS Do not drop, puncture, or disassemble the camera. Never tug on the power adapter. Use the plug to remove it from the wall. Do not expose the camera to high temperatures. For your own safety, avoid using the camera when there is a storm or lightning. ... -
Page 6: Getting To Know Your A-560 System
Congratulations on purchasing your First Alert Security Camera product. First Alert has been helping families and businesses stay safe for over 50 years. By having a First Alert Security Camera, you’re taking the first step in protecting your home or business from damage or theft. -
Page 7: Features
Getting to Know Your A-560 Security System Model A-560 User's Manual receiver antenna power supply AV cable 2.4 GHz receiver EATURES 380 TV lines for clear image resolution 4 transmission channels 6 mm lens Infrared night vision ... -
Page 9: Setting Up Your A-560 System
Setting Up Your A-560 System AFETY AND NSTALLATION Do not attempt to open the camera. There are no user serviceable parts inside. Refer servicing to qualified service personnel. When installing the camera, follow manufacturer’s advice when using power tools, ... -
Page 10: Installing The Camera
Setting Up Your A-560 System Model A-560 User's Manual NSTALLING THE AMERA Select the position for the camera and secure the camera bracket. Screws and anchors are supplied. Use an appropriate screw type for the mounting surface Loosen the T-bolt. -
Page 11: Setting The Camera's Channel
AMERA HANNEL The A-560 wireless camera has four selectable channels to avoid any interference from any other wireless devices. Follow the steps below to set or change the frequency channel of the cameras. If you are adding another camera to an existing system, make sure its channel is different from the channels of the existing cameras. -
Page 12: Connecting The Receiver To A Dvr/Vcr And Tv
Setting Up Your A-560 System Model A-560 User's Manual DVR/VCR ONNECTING THE ECEIVER TO A Note: The receiver also can be connected directly into the television inputs. Connect one end of the AV cable (supplied) to the Receiver. Connect other end of AV cable to INPUT on DVR/VCR. -
Page 13: Setting The Receiver's Channel
Setting Up Your A-560 System Model A-560 User's Manual ETTING THE ECEIVER HANNEL The wireless receiver is capable of receiving up to four separate channels. The front of the wireless receiver has four LEDs corresponding to the four channels. When lit, the LED indicates which channel is currently being displayed. -
Page 14: Remote Control
EMOTE ONTROL You can operate the Model A-560 using the remote control supplied. Press button 1, 2, 3, or 4 to view the image on the camera for that channel. Press the + or – button to manually scan channels. Press the Auto-Scan button to automatically scan and view channels for approximately 5-seconds for each channel. -
Page 15: Technical Information
Technical Information ECEIVER Transmission Channels Transmission Range 330 ft Power Supply DC 12V AMERA Image Device 1/4” CMOS Video System NTSC Resolution 380 TV lines Min. Illumination 0 LUX (IR ON) Lens Infrared LEDs Effective Pixels NTSC: 512 (H) x 492 (V) Signal/Noise Ratio >... -
Page 16: Warranty
IMITED ARRANTY BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase (the “Warranty Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the Warranty Period. -
Page 17: Obtaining Service
Warranty Model A-560 User's Manual other software that may be or may become resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of the product.
