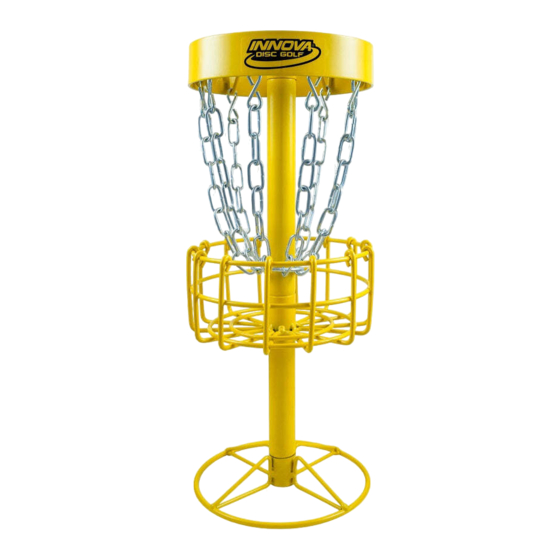

Innova DISCatcher Installation

PERMANENT TARGET GROUND TUBE INSTALLATION
Parts (included per target
location)
• Installation Tube
WARNING: Before digging always contact your local utilities and property maintenance to locate any
underground lines. (Water, Gas, Electrical, Sprinkler, etc...)
STOP
Step 1 Dig a hole that is at least 6 inches in diameter and 24 inches deep. Most
manual post hole diggers create a 6 inch diameter hole, but if you are
installing an entire course it is maybe worth the money to rent a two man
auger with a 6 inch bit.
Step 2 Assemble one pole and locking collar according to Step 1 of Target
Assembly (see other page). Tape the bottom of the installation tube with
duct tape or packing tape to prevent any concrete getting into the tube
during installation. Place the installation tube in the hole with the tab
pointing towards the tee or line of play, (this will assure that the number
on the target faces the tee). The tab should be at, or slightly below grade
level to keep it away from lawn mower blades and to establish the correct
height for the target. Slide the target pole with locking collar attached
into the installation tube. This will keep cement out of the installation
tube while pouring. Just one pole with locking collar can be used to set
up the installation tubes for your entire course.
Step 1 Pour the concrete into the hole around the installation tube to no higher
than two inches below grade level. This will allow room for a padlock (not
included). Use a level to plumb the pole on at least two sides 90˚ from
each other. A torpedo level works best. After leveling the pole, make sure
the tab still points toward the tee or line of play, clean o any concrete on
the locking tab and then carefully remove the pole from the tube.
West Coast S ales
(800) 408-8449
900 S. Dupont Ave. | Ontario, CA 91761

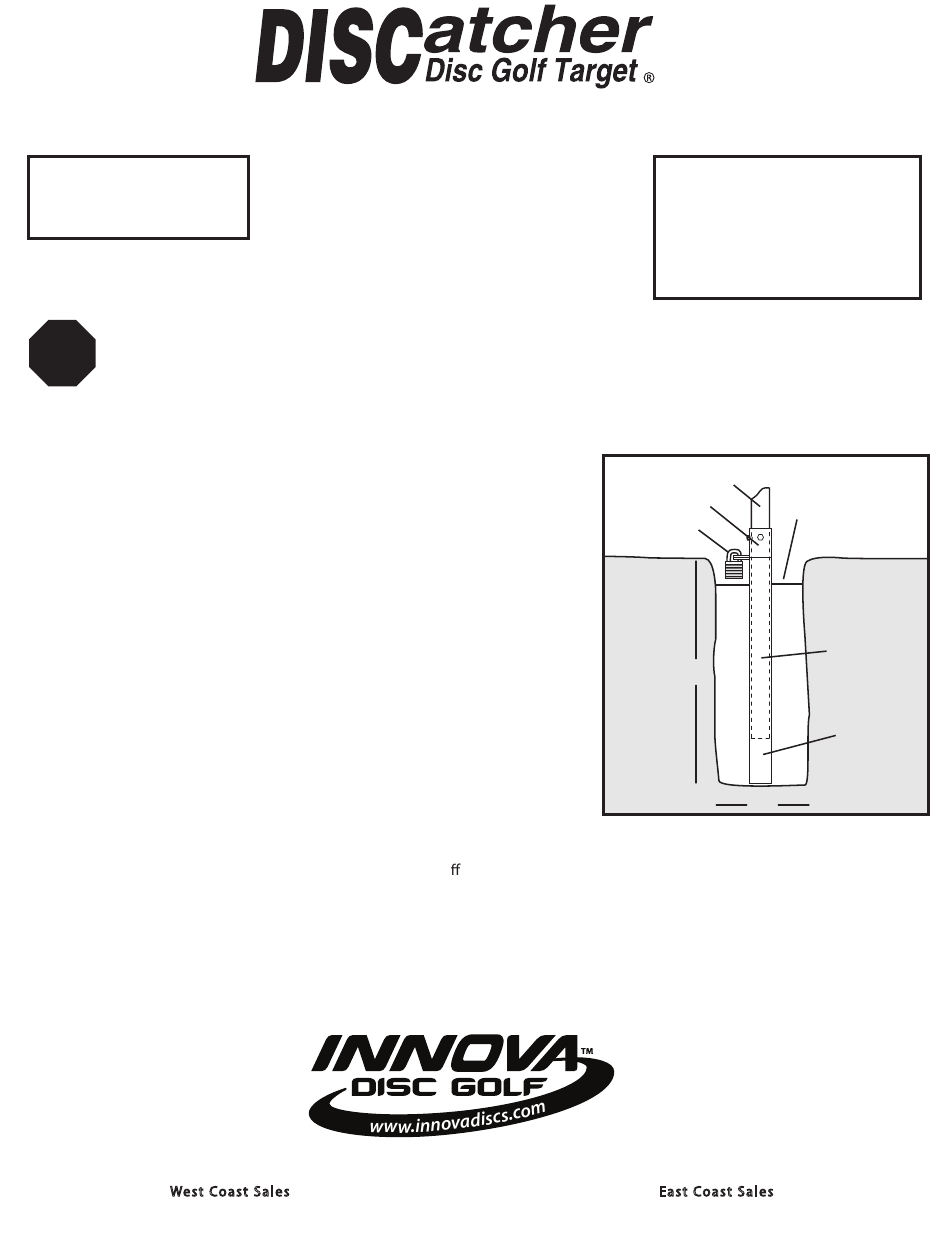

SE T TING TH E IN STA L LATION TU BE (Diagram 1
Still have questions? Give us a call.
www.innovadiscs.com
Installation tools and extras needed
• One Target Pole & Locking Collar
assembled from Step 1 on page 2.
• Duct or packing tape
• 60 pounds of concrete per target
• Post hole digger or auger
• Torpedo level or carpenter's level
)
Target Pole
Locking Collar
Padlock
(not included)
24"
Diagram 1
6"
East Coast Sales
(800) 476-3968
2850 Commerce Drive | Rock Hill, SC 29730
Page 1
Top of concrete
should be 2 inches
below grade
Grade Level
Pole
Installation
Tube
