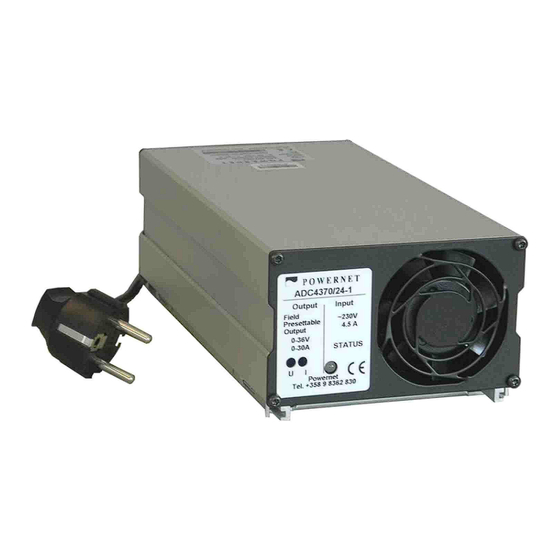

ADC4370 SERIES
800W Battery Chargers and Power Supplies
Wide output adjustment range 0...144VDC
Analog control by external 0-5VDC voltage
Temp.comp charging, sense as on option
Analog control
modular connector
Sales & R&D Martinkyläntie 43, FI-01720 VANTAA, Tel. +358 10 2890 700
E-mail marketing@powernet.fi, service@powernet.fi
Internet www.powernet.fi
Powernet reserves the right to change the specification without notice
Power fail relay alarm
Master-Slave connection
Microprocessor controlled charging curves for all kind of
batteries
DATASHEET / USER MANUAL
Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi
Master-Slave
connection
437c5q
Advertisement
Related Manuals for PowerNet ADC4370 SERIES
Summary of Contents for PowerNet ADC4370 SERIES

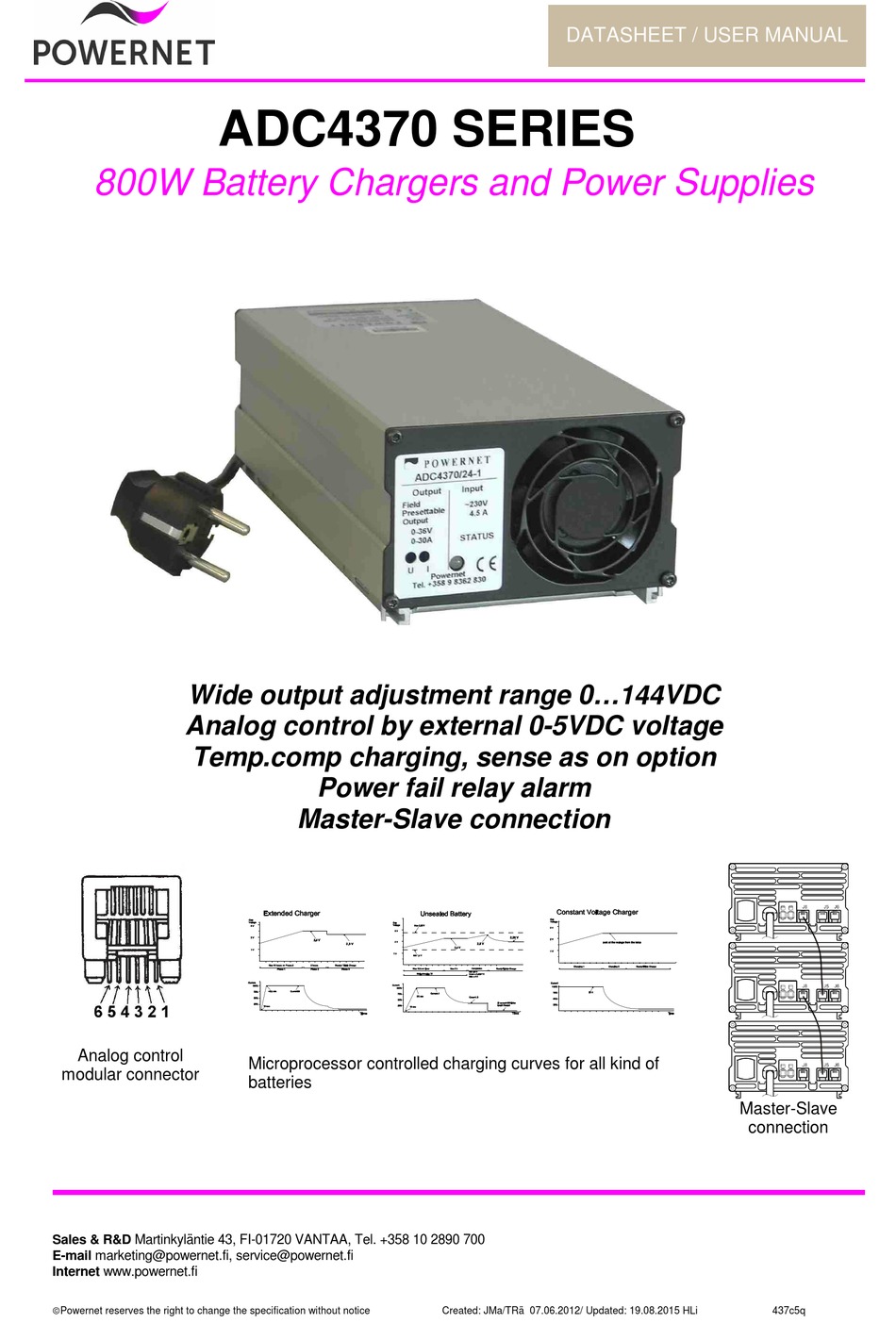

- Page 1 Microprocessor controlled charging curves for all kind of modular connector batteries Master-Slave connection Sales & R&D Martinkyläntie 43, FI-01720 VANTAA, Tel. +358 10 2890 700 E-mail marketing@powernet.fi, service@powernet.fi Internet www.powernet.fi Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q...
- Page 2 CUSTOMISED VERSIONS AVAILABLE • Cyclic battery chargers or customized charging curves for all kind of batteries • Sense models • IP44 enclosures, 19” enclosures Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q...
-
Page 3: Technical Data
Output power / input voltage derating curve Output power (typical) and fan speed vs ambient temperature See power limitation and start-up at DC input Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q... -
Page 4: Installation
Dangerous voltages, capable of causing death, are present in this equipment. Do not remove the cover. No operator serviceable parts inside. Refer servicing to qualified service personnel. Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi... - Page 5 0,5A @ 120Vac If power is off the COMMON is connected to NC. When power is switched ON the COMMON is connected to NO Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi...
- Page 6 Measure with digital multi meter voltage from Modular connector pin 4 Tune from trimmer ”Current Meas” to equal with voltage in modular pin 2 (Target Current). Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi...
- Page 7 Wrong connection does not damage the units but in that case slaves does not follow the master's commands. Quantities of the slave units are Slave unit unlimited. Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q...
- Page 8 104 VDC 98,8 VDC 108 VDC maximum 140 VDC 133 VDC 144 VDC maximum Factory default code switch position by bold in tables Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q...
- Page 9 You cannot find the required charging algorithm on list available => Contact the seller / importer and ask if the charger can be up dated with the algorithm you need. Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi...
- Page 10 The voltage tuning trimmer affects to every programmed voltage settings. The original list is not not valid without returning the original tuning. Incorrect trimmer tuning may be harmful to the battery. Powernet reserves the right to change the specification without notice Created: JMa/TRä 07.06.2012/ Updated: 19.08.2015 HLi 437c5q...
