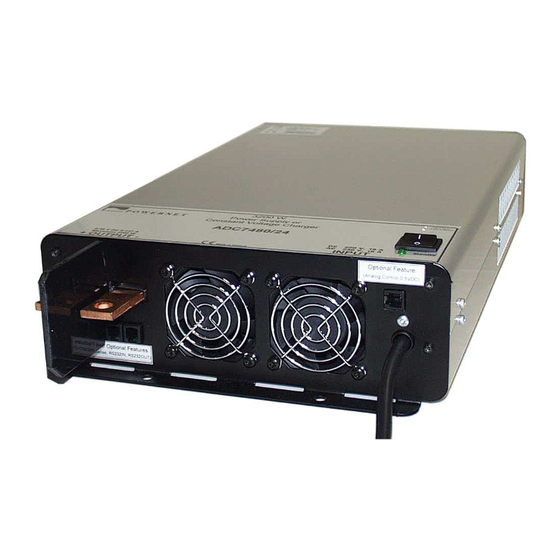

ADC7480 SERIES
3000W Battery Chargers and Power Supplies
Wide output adjustment range 0...320VDC
Analog control by external 0-5VDC voltage
Temp.comp charging, sense as on option
Analog control
modular
connector
Sales & R&D Martinkyläntie 43, FI-01720 VANTAA, Tel. +358 10 2890 700
E-mail marketing@powernet.fi, service@powernet.fi Internet www.powernet.fi
Powernet reserves the right to change the specification without notice
Power fail relay alarm
Master-Slave connection
Microprocessor controlled charging curves for all kind of
batteries
DATASHEET / USER MANUAL
Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi
Master-Slave
connection
748c5o
Advertisement
Table of Contents
Related Manuals for PowerNet ADC7480 SERIES
Summary of Contents for PowerNet ADC7480 SERIES
- Page 1 Microprocessor controlled charging curves for all kind of modular connection batteries connector Sales & R&D Martinkyläntie 43, FI-01720 VANTAA, Tel. +358 10 2890 700 E-mail marketing@powernet.fi, service@powernet.fi Internet www.powernet.fi Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o...
- Page 2 ****) TTL level serial bus, need level converter if use with standard RS-232 port CUSTOMISED VERSIONSON S • Cyclic battery chargers or customized charging curves for all kind of batteries • Sense models • Customized mechanics Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o...
-
Page 3: Technical Data
200 250 300 Nominal output voltage / current characteristics 3000W modules Output power / input voltage de rating curve Output power / ambient temperature Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o... -
Page 4: Installation
Dangerous voltages, capable of causing death, are present in this equipment. Do not remove the cover. No operator serviceable parts inside. Refer servicing to qualified service personnel. Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi... -
Page 5: Front Panel
Digital serial bus in option Temperature compensation and Sense options Not in use (reserved factory testing) REAR PANEL Analog control, isolated (for example type ADC7480/24AI) Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o... - Page 6 Measure with digital multi meter voltage from Modular connector pin 4 Tune from trimmer ”Current Meas” to equal with voltage in modular pin 2 (Target Current). Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi...
- Page 7 / current equals to masters settings. More power can be provided by connecting more slave units to the chain. The connection principle is illustrated in the picture. Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o...
- Page 8 220 VDC 251,2VDC maximum maximum 192 VDC 219,2VDC 252 VDC 287,7 VDC maximum maximum Factory default code switch position by bold in tables Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi 748c5o...
- Page 9 You cannot find the required charging algorithm on list available => Contact the seller / importer and ask if the charger can be updated with the algorithm you need. Powernet reserves the right to change the specification without notice Created: JMa/TRä 08.06.2012/ Updated: 19.08.2015 HLi...
