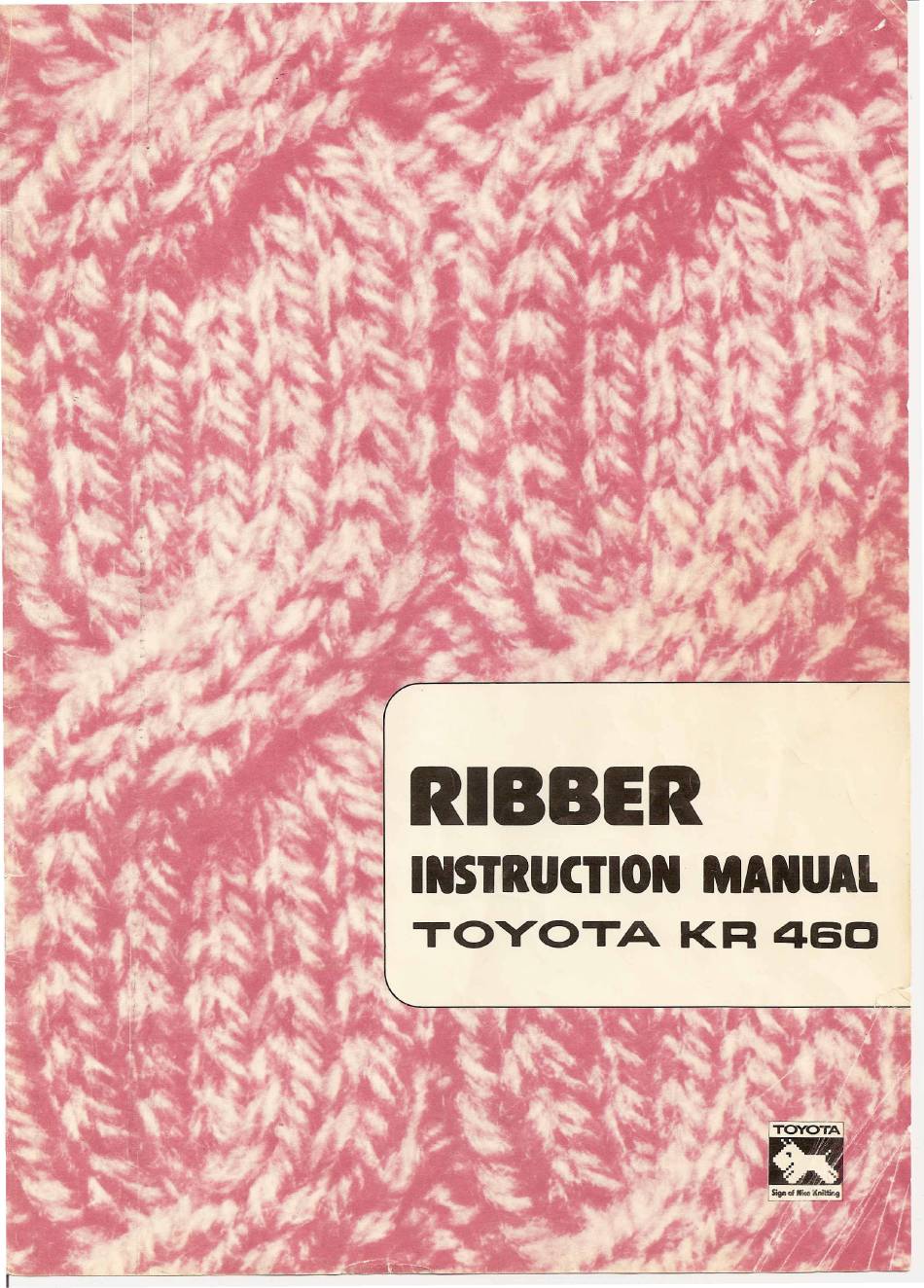

RIBBER
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the KR 460 and is the answer not in the manual?

Questions and answers

Related Manuals for Toyota KR 460

Summary of Contents for Toyota KR 460

  • Page 1 RIBBER INSTRUCTION MANUAL...
  • Page 3 Screw the clamps to the bottom of main knitter. (CD~) *Be sure the top of clamp and slot to be matched. The clamp and slot must be parallel. Attach main knitter onto table. (CD ~) Be sure the clamp closely fitted to the side of table without gap.
  • Page 4 Install right Hanging Plate onto Yarn Holder, then the left one next. A slight gap between the Stopper front main knitter will cause improper gauge in knit- ting dropping stitch. Fix left Hanging Plate in the same as the right •...
  • Page 5 the needles on main knitter ribber face exactly opposite, loosen Set Screws and them by sliding ribber sideways. sure the sinker-hooks on both knitters facing exactly opposite. Tighten left Set Screw so that Stopper closely fitted to the front of main knitter without any gap.
  • Page 6 Fix the handle to main carriage, place carriage correctly on the needle bed so that it slides smoothly. * Be sure Front Holder is correctly mounted onto the needle bed. Fix the handle to ribber carriage, set carriage in the following way. 1.
  • Page 7 Slide Metal Pins to the center. Mount Rib Yarn Feeder between both Carriage Guides and place it onto Rib Yarn Feeder Base. ® Ensure both cut-outs of Rib Yarn Feeder snugly fit to small pegs on the front of main carriage.
  • Page 8 Upper Tension Dial between "_" -4.~" For smooth knitting, use paraffin wax. is recommended hang small weights both sides to prevent stitches from coming up (See page 34). Main Tension Dial ex. - ..------- Tension Dial Fine ..Q.. .§. .§.
  • Page 9 Set Racking Indicator at "5" and Half Pitch Lever at "P". To prevent needles from being damaged, be sure not to operate Racking Handle with leaving needles on both beds at selected position. alternate needles on both beds with end needles on main bed.
  • Page 10 GUIDE TO WIDTH OF KNITTING AND WEIGHT (In close rib in medium yarn) Number of required weights will be different according to yarn and stitch patterns. Setting carriages Main carriage .left "Empty" Rib carriage right "Empty" center "Empty" Carriage is on left.
  • Page 11 '410_ Follow steps of "CASTING-ON", from 1 through • 8 on pages 7 and 8. Main carriage neutral Rib carriage center "Tuck" Tension dials "one" larger tension on main knitter. (ex. Ten Dials for m. yarn ..is recommented hang side weights when ends of...
  • Page 12 Half Pitch Lever "H" 15.61 Racking Indicator All buttons and levers are the neutral positions. Set tension dials (see page Knit the first row to left (see how yarn is hooked).
  • Page 13 Setting carriages Main carriage Ieft "Empty" Rib carriage right "Empty" center "Empty" Knit rows changing both tension dials (refer page ljioEJ Move Racking Handle by one click left. Racking Indicator ..Transfer left end stitch on ribber left end needle main knitter.
  • Page 14 L .~.5·6·~" R •• •• ;"1 .u.J. .u.I. l" i," "" ,,!' ""'" ~~~~~~J~~~J~H Half Pitch Lever "H" 15·61 Racking Indicator • i]]ii]]ii])jj buttons and levers in the neutral posi- tions. Set both tensoin dials (see page 6). Knit first row to left (see how yarn...
  • Page 15 Setting carriages Main carriage .left "Empty" carriage right "Empty" center "Empty" Knit 3 rows changing both tesion dials. (refer to page Switch Half Pitch Lever "P". Racking Indicator ..Then swing the Racking Handle to the left .LLL Racking Indicator ..
  • Page 16 Setting carriages Main carriage .left "Empty" carriage right "Empty" center "Empty" Knit 3 rows changing both tesion dials. (refer to page 6). Llt-~ Switch Half Pitch Lever to "P". Racking Indicator ..Then swing the Racking Handle to the left .Ll.L Racking Indicator...
  • Page 17 r;'h,- CLOSE RIB L~~·5·6·~" ••• I,',', .1.J.J. Half Pitch Lever ."H" Racking Indicator all buttons and levers neutral position. Set tension dials (see page Casting-on is completed. (carriage is on right side.) Release "Empty" buttons both carriages neutral. Set tension dials to "Close rib".
  • Page 18 L "~·5·6·~"R J.J.L Try tension gauge before start, and match the tension dials to knit even stitches on both sides. Half Pitch Lever "H" 15·61 Racking Indicator To get circular knitting with closed edge on both sides, do the waste knittings at the begining and the last.
  • Page 19 Carriage is on right. Thread nylon cord. 1I11III111 Knit two rows to make one row of circular knitting. Leave the yarn-end piece about three times as long as the width of the knitting section. £3 It can be used to crochet edge. Thread main yarn into yarn feeder.
  • Page 20 Cast-on (refer to pages 7 and 8), Half Pitch Lever "P". Racking Indicator Change settings Half Pitch Lever "H". Re-set needles as shown in Fig. Transfer required numbers pf stitches on main knitter to the selected needles on ribber. Setting carriages Main carriage neutral Rib carriage...
  • Page 21 .u.J. Set up needles as shown in Fig, transfer and re-set the stitch. Be sure empty needles back to "A" position. Setting carriages Main carriage neutral. carriage neutral (ex.S ply Tension dials Knit required number rows. (ex, 10 rows) Transfer three stitches each other.
  • Page 22 .••• 4- 5-6 j •••. ••• J.LJ. ~J~HJ~H Set up needles as shown in Fig, and transfer and re-set the stitch. Be sure all the empty needles back to "A" position. ~j~n~~n'~ Setting carriages Main carriage neutral Rib carriage neutral Tension dials :'two"...
  • Page 23 £ .u.J. .LI...L Half Pitch Lever "H" Racking Indicator Set needles as shown in Fig. Follow steps from 3 throught 7 on pages 7 and 8. Knit two rows changing both tension dials (refer to page Set main carriage on the left (Fig.1): CD , Pattern Knit Lever "PA TT ERN",...
  • Page 24 L.~·5·6·~ ••.. • .u.J. Half Pitch Lever "H" Racking Indicator Set needles as shown in Fig~ Follow steps from 3 through 7 pages 7 and 8. Knit two rows changing both tension dials (refer to page ..••• • •••...
  • Page 25 .u..L .LU. Half Pitch Lever "H" 15:61 Racking Indicator Set needles as shown in Fig. Follow steps from 3 through 7 on pages and 8. 'Knit two rows changing both tension dials (refer to page 6). Place carriage the left. Pattern Knit Lever "PATTERN"...
  • Page 26 Setting carriages Main carriage Both "Empty" but- tons Rib carriage AII "Empty" levers. Adjust both tension dials. (ex. Medium yarn ..tension dial Rib-carriage setting Knitting Levers neutral In case the pattern which has long loop ~t·§ of patterning yarn runs widely across at the back of knitted fabric, do the follow- ing stops on main knitter.
  • Page 27 Pull out an empty needle next to the working needles the carriage side to "8" position. (When you knit following row, needle will catch yarn and a stitch will be formed.) Transfer the first end stitch on main knitter onto the empty needle on ribber, using double-eyed transfer...
  • Page 28 Transfer first end stitch main knitter onto the first needle@on ribber. Do not forget to push back the needle "A" position. Neat Way of Decreasing Stitch ® ribber Transfer the first end stitch onto the second needle on main knitter. '))~'))')) Transfer first...
  • Page 29 CASTING-ON (FOR EDGE TIGHTER 1 X 1 RIB AND 2 X 2 RIB) Half Pitch Lever "P" Racking Indicator • Place carriages on the right and set them neutral. both Tension Dials. (Set them by one larger tension on both knitters than the tension numbers of the first row shown on page 6.)
  • Page 30 ® ® §j. •• ,,",".II L,;. '-r-L- -.-' yarn end about three times as long as the width of the knitting. Thread yarn end into tapestry needle.
  • Page 31 Setting carriages Main carriage Both Partial Knitting Levers on carriage Both Partial Knitting ®@. Levers Select required number needles at the opposite carriage, to "E" position. (ex. needles on each bed), Knit one row to the left. (The yarn end passes over needles in "E"...
  • Page 32 Setting Carriages Main carriage Both Partial Knitting CDCZl. Levers on carriage Both Partial Knitting ®@. Levers Other buttons levers are set for required stitch pattern. carriage same as above for KNITTING NARROWER. Assume some of needles are already in "E" ,Josition in this case.
  • Page 33 WHEN RACKING HANDLE IS USED KNITTING NARROWER Setting Carriage ~JIJ Main carriage Both "Empty" but- CD~. tons Rib carriage Both Partial Knitting ® Levers on Other buttons levers are set for required stitch patterns. Move Racking Handle following instruc- tion of the pattern.
  • Page 34 Do not move carriages by force. Loosen Fabric Presser Knobs and remove Rib Yarn Feeder. pull it up. Take off pulling towards you. Pull both Front Holders of rib carriage, while holding them, tilt carriage toward you. Slide it off the working section.
  • Page 35 Follow the instruction of main knitter, page 44. Pull the bar until the damaged needle is disengag- With latch opened, push needle up, then pull it down toward you, and it will come oft. It is easier to insert the spare needle with the latch opened.
  • Page 36 When a few stitches at both ends come up, keep re-hanging side weights every ten fifteen rows. When stitches one side come up, be sure weights are well balanced. 1 ,, In case that all stitches come up, add more weights on.
  • Page 38 ®~ et· ® ® >l Cast-on Comb used when starting knitting Cast-on Comb Wire(long) used together with cast-on comb Cast-on Comb Wire (medium) Cast-on Comb Wire(short) Large Knitting Weights used getting better condition for smooth knitting Small knitting Weights used for getting better knitting condition of the end stitches and partial knitting...
