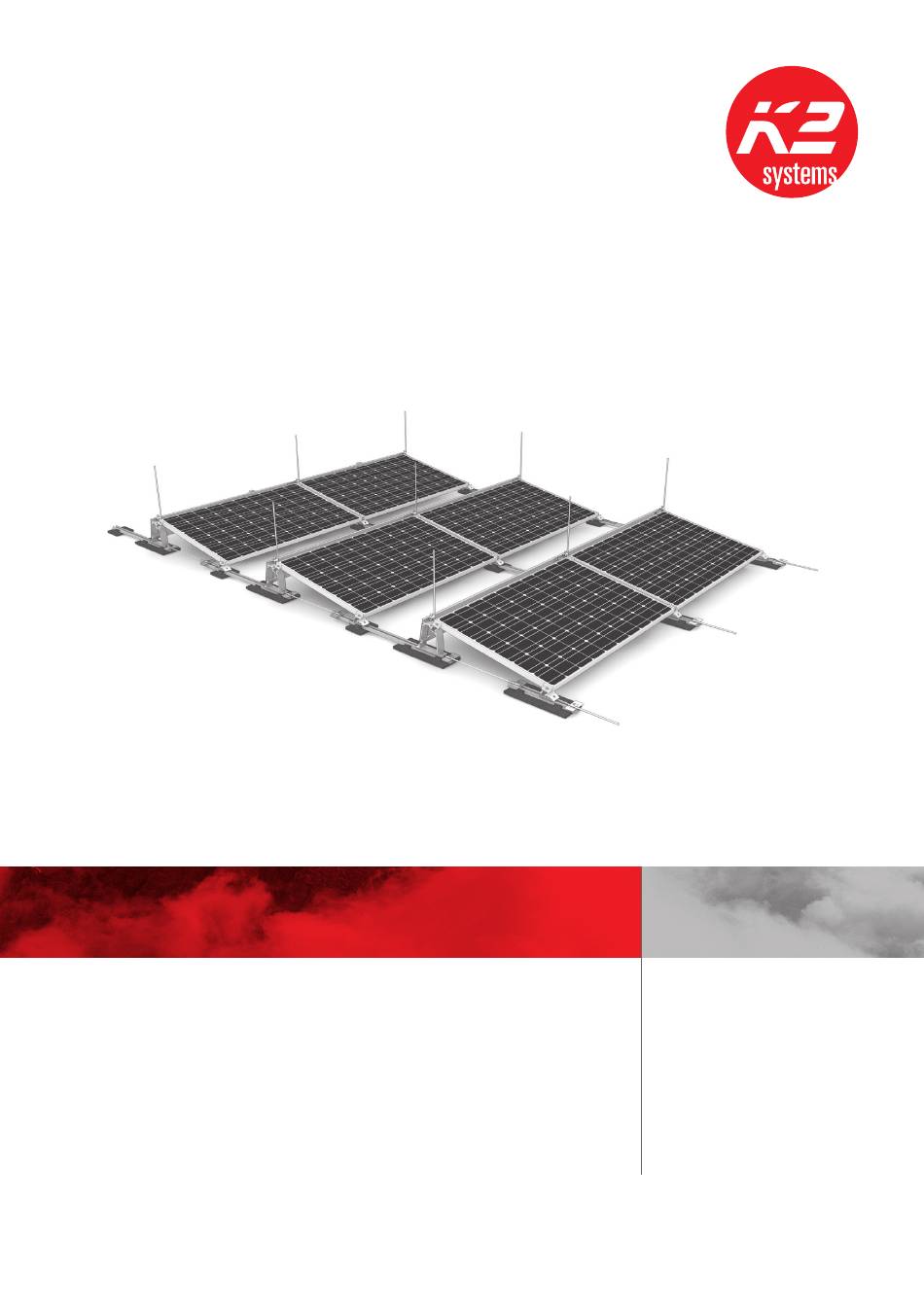

- Page 1 Mounting systems for solar technology RECOMMENDATION S-DOME 2.0 SYSTEM LIGHTNING PROTECTION RECOMMENDATIONS...
- Page 2 DIN EN 62305-3. These tests were carried out with parts from Dehn & Söhne. During the tests, the components listed below were used in addition to those of the S-Dome 2.0 system. The items listed in italics can be obtained directly from the manufacturer Dehn &...
- Page 3 The lightning rods are mounted at the top of the Dome D1000 component. After fixing the terminal clamp and lightening rod, turn the rod by 90 degrees and adjust. Tightening torque: 25 Nm Required items: Terminal clamp, lightning rod Assembly S-Dome 2.0 System 3 | 5...
- Page 4 Allen bolt with serrated under head M8x30 K2 Systems GmbH expressly points out that the use of the listed components is only a recommendation. Alterna- tively, lightning protection components from other manufacturers may also be used. Please follow all instructions given by the module and inverter manufacturers.
- Page 5 Mounting systems for solar technology SERVICE-HOTLINE Recommendation S-Dome 2.0 | GB1 | 0816 | Subject to change. Product illustrations are exemplary and my differ from the original. +49 (0)7159 42059-0 Info@k2-systems.de...
