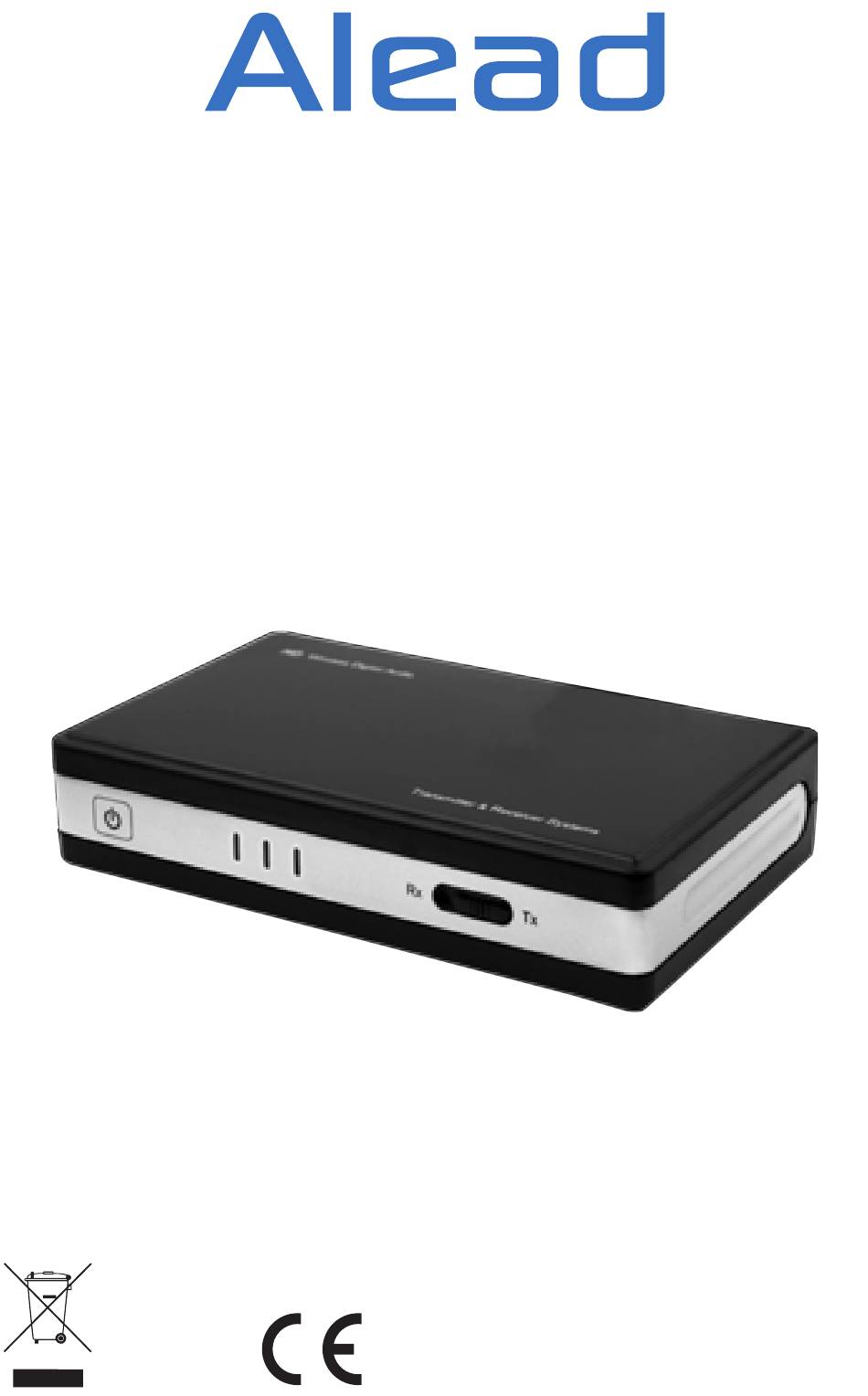

Page 1: User Guide
Bluetooth Wireless Stereo Transceiver TRX Plus2 P/N ASTR5C2XX USER GUIDE Declaration of Conformity. We declare that product ASTR5C2XX conforms to the R&TTE Directive 1999/5/RC. FCC ID: 2ADC4NMSP3C2MTRX 0678... -
Page 2: Getting Started
INTRODUCTION This Bluetooth Stereo Transceiver (TRX Plus2) works with your home stereo as Transmitter (Tx) to transmit or Receiver (Rx) to receive music/audio wirelessly by using Bluetooth A2DP porfile. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below. -
Page 3: Product Overview
PRODUCT OVERVIEW This Bluetooth Stereo Transceiver (TRX Plus2) provides the RCA and 3.5mm AUX audio interface. Power ON/OFF LEDs TX/RX Switch TX Mode - Green Power ON - Amber RX Mode - Blue ne In Line Out DC IN Line In... -
Page 4: System Setup
SYSTEM SET UP It is easy to set up the system. It needs to connect the power, desired audio input or output, select audio cable, the desired transmitter (Tx) or receiver (Rx) mode and device pairing. 1. Plug the power cord Line In Line Out DC IN... - Page 5 Transmitter (Tx): Set-top box BD/DVD player/ 3.5’ Line In...
- Page 6 Receiver (Rx): Sound Bar Speaker Line Out DC IN...
- Page 7 LED will be solid on with amber color SELECT DESIRED WORKING MODE – TRANS- MITTER (Tx) OR RECEIVER (Rx) MODE TRX Plus2 works with 2 different modes: 1. Transmitter (Tx): Transmit music/audio to Bluetooth stereo speaker, receiver headphone..etc.
- Page 8 PAIRING Transmitter (Tx): To pair and connect with Bluetooth speaker, receiver, and headphone devices 1. Turn on the TRX Plus2. The power LED solid on with amber color and the Mode LED is quick flashing with green color for pairing.
-
Page 9: Power Off
Bluetooth MP3, music player, TV, laptop, Mac and PCs…etc 1. Turn on the TRX Plus2 and into Rx pairing state, the power LED solid on with amber color and Mode LED is quick flashing with blue color. -
Page 10: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of TRX Plus2 working statues. POWER LED Power Statues Indication Power on Amber LED solid on Power off Amber LED off Mode Statues MODE LED Indication Transmitter Green LED fast... -
Page 11: Troubleshooting
Bluetooth enabled with appropriate third party software, profiles in order to enable correct opera- tion. Problem Likely Cause / Solution TRX Plus2 does TRX Plus2 and Bluetooth not reconnect. device were out of range Lost Connection. of distance. Turn both Mode LED... -
Page 12: Customer Service Information
Cannot pair with Bluetooth Ensure you are using Tx speaker, mode with green receiver, flashing. headphone Cannot pair with Ensure you are using Rx iPod, iPhone, mode with blue iPad, Mac, flashing. PC...etc CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view our website –...
