Page 1: User Guide

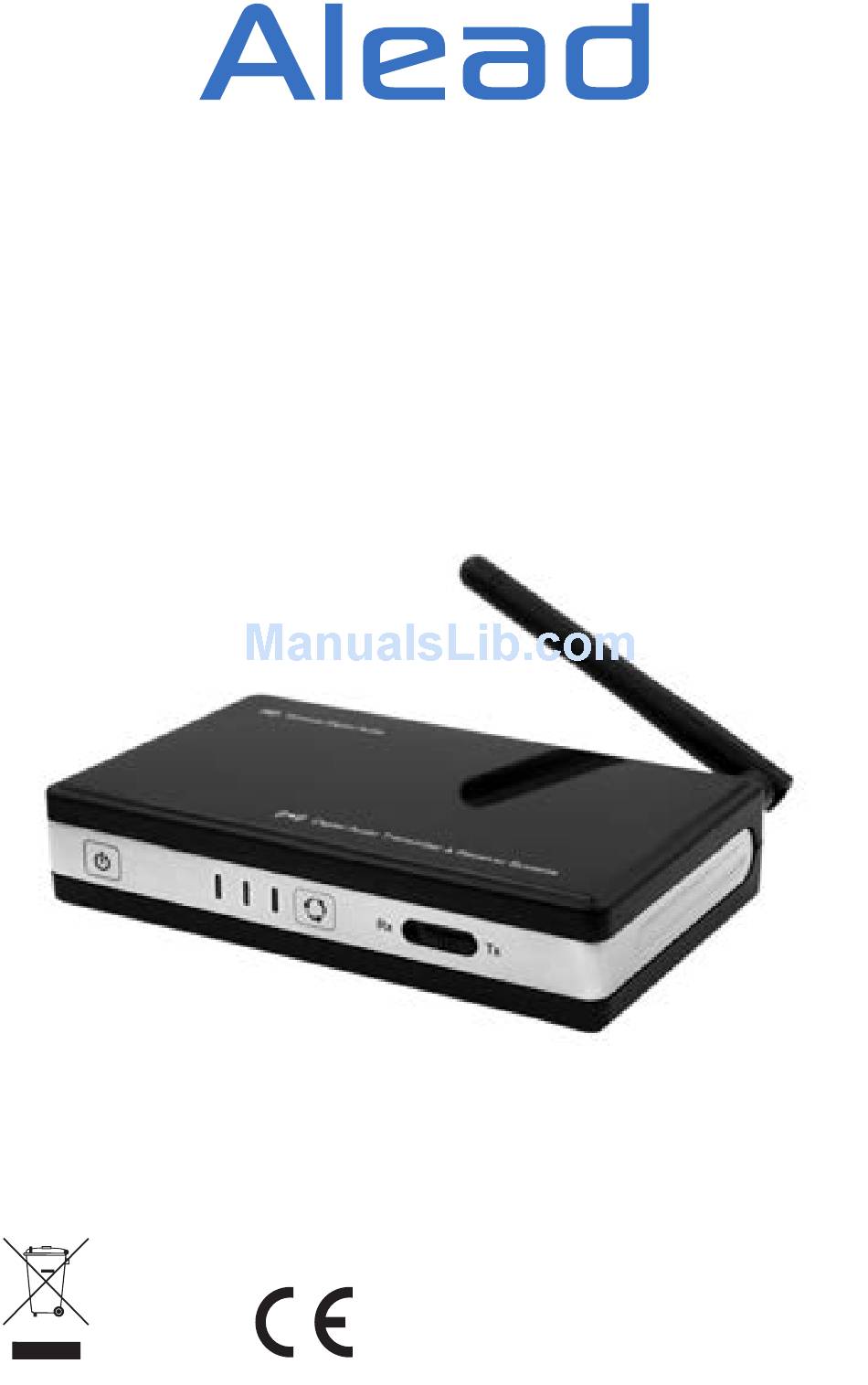

Bluetooth Wireless Stereo Transceiver HD2/HDM2 ASTRHD5C2XXX P/N: ASTRHD5C2MXX USER GUIDE Declaration of Conformity. We declare that product ASTRHD5C2XXX / ASTRHD5C2MXX conforms to the R&TTE Directive 1999/5/RC. FCC ID: 2ADC4NMSP3C2MTRX 0678... -
Page 2: Getting Started
INTRODUCTION This Bluetooth Stereo Transceiver, TRX_HD2 /TRX_HDM2 works with your home stereo as Transmitter (Tx) to transmit or Receiver (Rx) to receive music/audio wirelessly. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below. Stereo Transceiver HD2/HMD2 Optical(Toslink) cable... -
Page 3: Product Overview
PRODUCT OVERVIEW This Bluetooth Stereo Transceiver provides the digital optical (Toslink), coaxial and analog 3.5mm aux audio interface. Power Audio Channel TX/RX Switch ON/OFF MultiLink LEDs Switch Optical - Orange Power ON - Amber Coaxial - Yellow TX Mode - Green - Green RX Mode - Blue AUDIO... -
Page 4: System Setup
SYSTEM SET UP It is easy to set up the system. It needs to install the antenna, power, connect desired audio input or output, select audio cable, the desired transmitter (Tx) or receiver (Rx) mode and device pairing. 1. Install the Bluetooth antenna and power cord AUDIO AUDIO INPUT... - Page 5 Transmitter (Tx): Set-top box BD/DVD player/ 3.5’ AUDIO OUTPUT OPTICAL COAXIAL AUDIO INPUT DIGITAL OPTICAL COAXIAL OPTICAL...
- Page 6 Select audio input channel By touch the audio channel selection icon to select audio input channel. OPTICAL: Audio LED solid on with orange color COAXIAL: Audio LED solid on with yellow color AUX: Audio LED solid on with green color Transmitter (Tx): AUDIO INPUT...
-
Page 7: Receiver (Rx)
Receiver (Rx): Sound Bar Speaker AUDIO INPUT OPTICAL COAXIAL AUDIO AUDIO INPUT OUTPUT DIGITAL OPTICAL COAXIAL DC IN... - Page 8 Select audio output channel By touch the audio channel selection icon to selected audio output channel OPTICAL: Audio LED solid on with orange color COAXIAL: Audio LED solid on with yellow color AUX: Audio LED solid on with green color Receiver (Rx): AUDIO OUTPUT...
- Page 9 POWER ON By touch the POWER icon to turn on the unit, the Power LED will be solid on with amber color SELECT DESIRED WORKING MODE – TRANS- MITTER (Tx) OR RECEIVER (Rx) MODE TRX_HD2 works with 2 different modes: 1.
- Page 10 PAIRING Transmitter (Tx): To pair and connect with Bluetooth speaker, receiver, and headphone devices 1. Turn on the TRX_HD2. The Power LED solid on with amber color and the Mode LED is quick flashing with green color for pairing. 2. Place the Bluetooth stereo speaker, receiver, headphone into pairing state.
- Page 11 2. After the TRX_HD2 is in pairing state, initiate Bluetooth search feature and find the device name “Blue Station HD2”. Refer to your iPhones’, PCs’ User Guide. If pin code requested during pairing, please submit the pin code 0000. 3. The iPhone, iPad, PC should find the TRX_HD2 and pair with it.
- Page 12 Audio Pass Through The Audio Pass Through function is only available at Transmitter mode (Tx) and will be performed automatically when TRX_HD2 is powered on. By touch the audio channel selection icon to select audio input channel. OPTICAL: The OPTICAL input audio signal will be passed through to the optical and coaxial output.
- Page 13 FEATURES OF MULTIPLE LINKS – (Extra ※ features for TRX_HDM2 model only) With multilink, TRX_HDM2 can link and transmit audio/music to two Bluetooth speakers, receivers or headphones at the same time. Pairing and connect to the second Bluetooth device If you like to connect 2nd receiver/speaker when the 1st receiver is connecting, by touch multilink icon, TRX_HDM2 will start to pair the second receiver.
-
Page 14: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of TRX_HD2 working statues. POWER LED Power Statues Indication Power on Amber LED solid on Power off Amber LED off Mode Statues MODE LED Indication Transmitter Green LED fast pairing flashing Transmitter Green... -
Page 15: Troubleshooting
TROUBLESHOOTING Please note that you should also be familiar with the operation your audio speaker, receiver, headphone, mobile phone or other connecting Bluetooth device. Please read the User Guide for your device carefully. For operation with a PC or laptop, please note that these devices should also be Bluetooth enabled with appropriate Bluetooth profiles in order to enable correct operation. -
Page 16: Customer Service Information
Cannot pair with Bluetooth Ensure you are using Tx speaker, mode with green receiver, flashing. headphone Cannot pair with Ensure you are using Rx iPod, iPhone, mode with blue iPad, Mac, flashing. PC...etc CUSTOMER SERVICE INFORMATION For other Nolan Bluetooth products or support, please view our website –...
