Crayola Qwikflip Glow Easel Instruction Manual

WARNING:
!
-
CHOKING HAZARD
Small parts.
Not for children under 3 years.
• Keep small parts necessary for assembly out of children's reach.
• Adult assembly required.
• This item must be used on level ground. DO NOT use on an uneven surface.
• Adult supervision advised when item is in use.
• Requires an adult to flip the easel board to the preferred side. Check that the lower pegs of
the easel board are securely slotted in the preferred position before allowing the child to use
the item.

PARTS LIST

A
ASSEMBLY INSTRUCTIONS
1
Remove the product from the package. Attach
4 legs to the main frame (D) by matching the
markings L1, L2, R1 and R2.
4
Clip on the tray (E) onto the pegs of the main
frame (D) as shown.
Qwikflip® Glow Easel
INSTRUCTION MANUAL
L1 L2 R1 R2
2
Hold the easel board (A) with the glow board
facing front and insert the left pivot cap (B) to
the peg of the easel board (A). Make sure the
marking is matched. Attach the right pivot cap
(C) in the same way to the other side.
5
Stick the anti-slip rubber pads (F) to the bottom
of the legs.
F
B C
D
NO. 5044-01
P AR T S L IS T
# DESCRIPTION
A Easel Board
L1 Left Front Leg
L2 Left Back Leg
R1 Right Front Leg
R2 Right Back Leg
B Left Pivot Cap
C Right Pivot Cap
D Main Frame
E Tray
F Anti-Slip Rubber Pad
Notes: Illustrations not to scale.
3
Assemble the whole easel board by inserting
the holes of both pivot caps to the main frame.
Make sure the markings are matched, and parts
are securely snapped together.
6

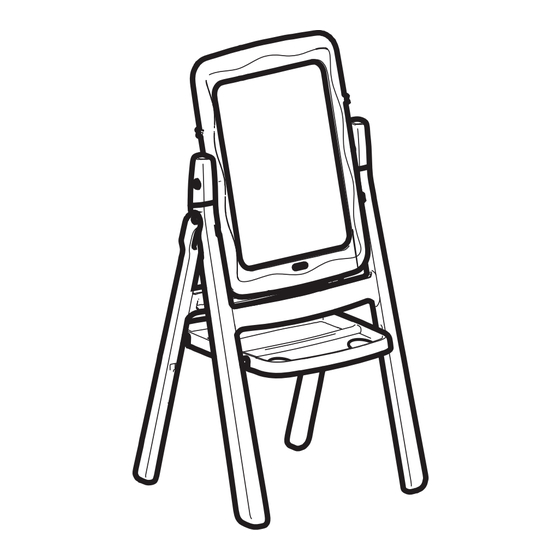

Picture shows assembled product. Please
ensure the board is snapped securely into main
frame indents before allowing a child to use it.
Ages: 4+
QT Y
1
1
1
1
1
1
1
1
1
4
E
