The XT series of ozone generators feature a patented method of creating ozone by
corona discharge know as Xetin Ozone. The XT-1800W is designed for a ½ inch
water pipe. It is strongly advised to use an in line water filter in the water line before
the XT-1800W. This will keep any sediment from reaching the unit.

Installation

1. Place the Installation Map on a suitable location of the wall for installing the unit
on the incoming water pipe in the house.
2. Drill 4 holes according to the map, and insert Wall Plugs into pre-bored holes.
3. Drive the screw home, the screws are M6 with a round head, and leave a gap of 2
mm between the screw head and the wall.
4. Hang the unit on these 4 screws. This will secure the unit on the wall.
5. Install the unit in the home plumbing system. Make sure all water screw union
connections are stainless steel.
Use 1/2" pipes, 90
the main water pipe as shown on the Installation Illustration.

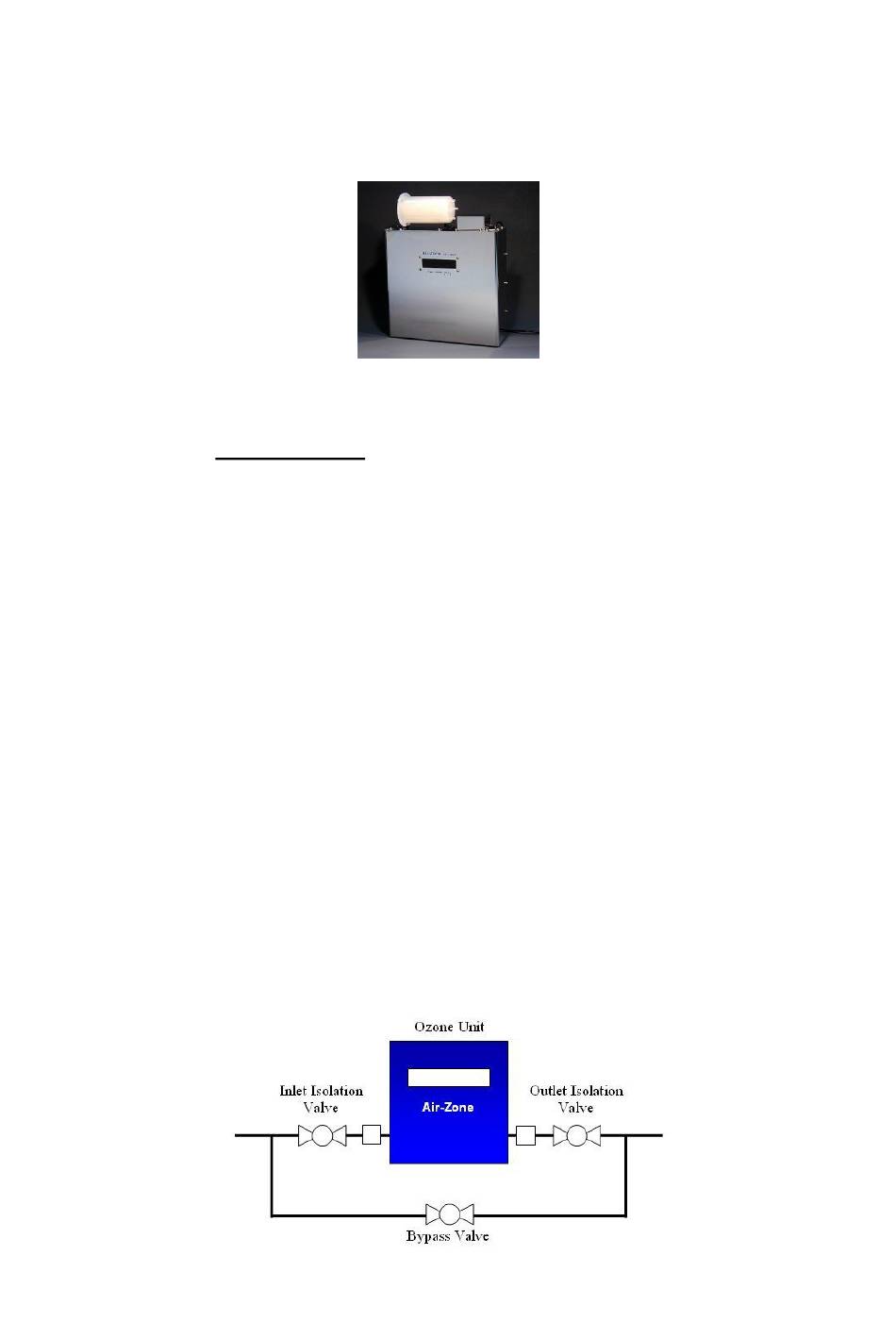

6. Three shutoff valves are necessary, the inlet and outlet of the water purifier need
to have isolation valves installed, and the other bypass valve is installed at the
sides and around the unit. The bypass configuration is shown below:
Air-Zone
Ozone Water Purifier XT-1800W
Operating Instructions
0
elbows, shutoff valves and water filter to install the unit in
