1. Ensure that the back of the push button panel is visible.
See Figure 2, Step 1.
2. Pull down the contact block past the bottom tab. See
Figure 1 and Figure 2, Step 2.
Pull Contact Block Down
Bottom Tab

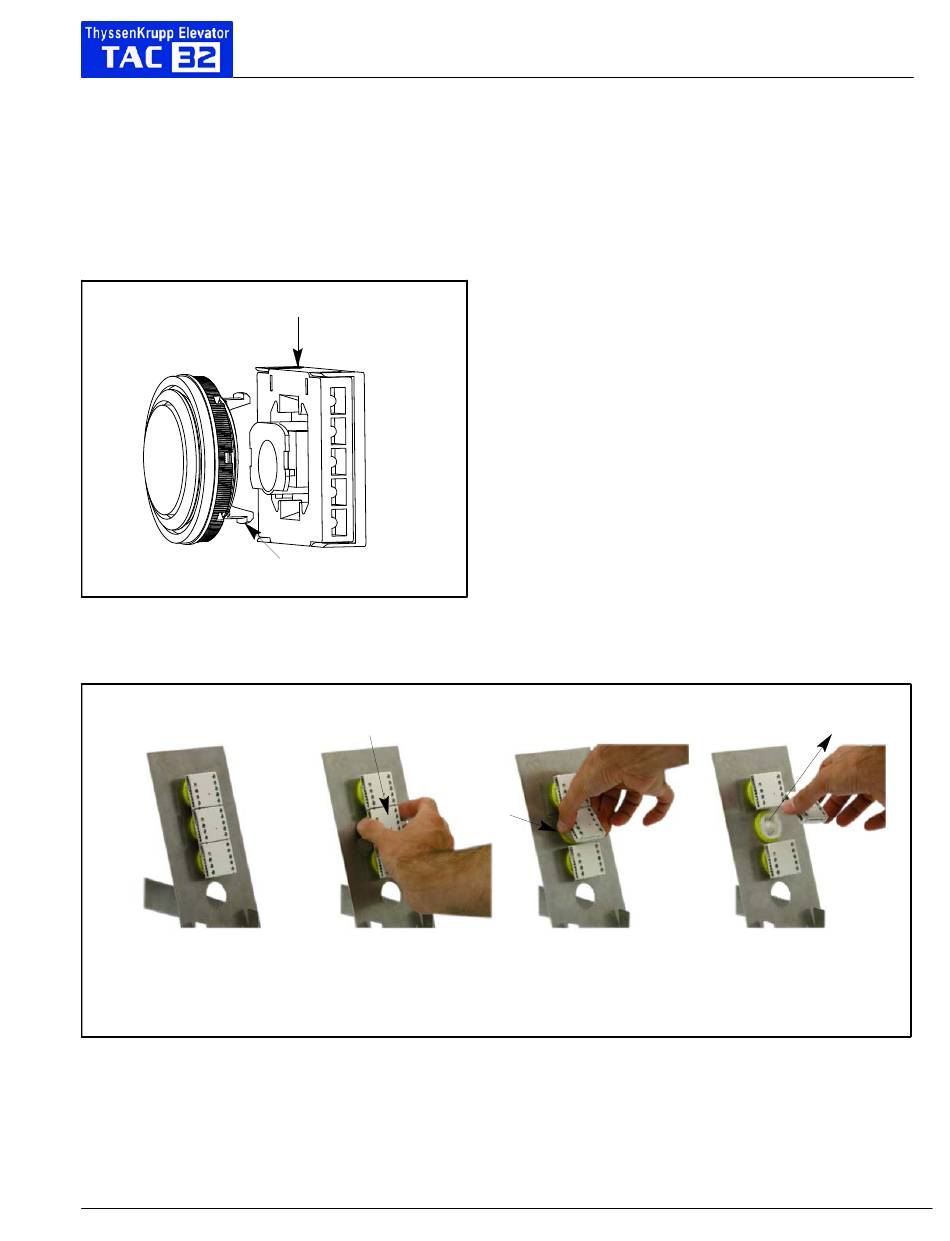

Figure 1 - Push Button Assembly
Step 1
E2010 THYSSENKRUPP ELEVATOR

DMG Contact Block Removal Procedure

Step 2
Figure 2 - Contact Block Removal
Signa 4 Signal Fixtures-61
3. Pull the lower part of the contact block out away from the
panel to release the bottom tab. See Figure 2, Step 3.
4. Move the contact block up to release the top tab. See
Figure 2, Step 4.
Step 3 Step 4
