- Page 1 Tracker Bolt Mini-2 User Manual Revision: 1.00 Document Title BOLT MINI-2 User manual 1.00 Version Finale Date 2018-04-09 Status Released Document Control ID TRACKER BOLT MINI-2...
-
Page 2: Table Of Contents
Contents 1 Introduction ............................ 3 2 Product Overview .......................... 3 2.1 Appearance .......................... 3 2.2 LED Description ......................... 4 3 Getting Started ..........................5 3.1 Parts List ..........................5 3.2 How GPS position Fix ......................5 3.3 Disassemble Introduction ....................5 3.4 Insert SIM Card ........................ -
Page 3: Introduction

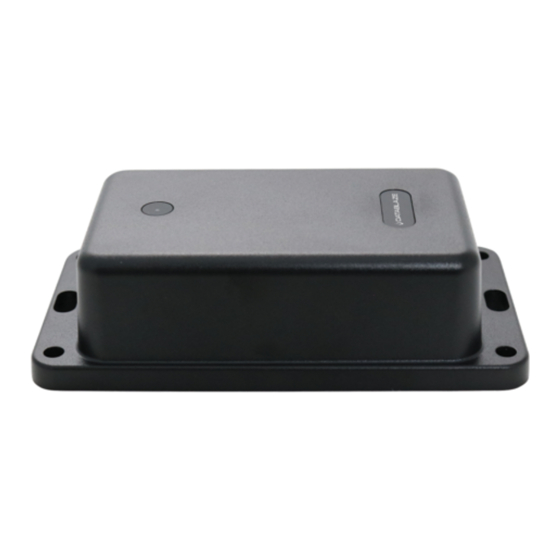

1 Introduction BOLT MINI-2 use primary batteries. it is a powerful GPS locator which is designed for vehicle, and assets tracking . With superior receiving sensitivity, Its location can be real time or schedule tracked by backend server or specified terminals. Based on the embedded wireless tracking protocol, BOLT MINI-2 can communicate with the backend server through LTE Cat-M network, and transfer reports of emergency, Geo-fencing, device status and scheduled GPS position etc…... -
Page 4: Led Description
2.2 LED Description Figure 2-2 There is one tricolour LED lights in BOLT MINI-2 device, the description as following. Light Event State LED show blue GPS fixed Solid LED show red low power Solid LED show green standby mode Slow Flash... -
Page 5: Getting Started
3 Getting Started 3.1 Parts List Name Picture Remark BOLT MINI-2 The LTE/GPS locator. 3.2 How GPS position Fix Your device has an unobstructed view of the sky,lying face up,so it can obtain the initial GPS Fix Figure 3-1 3.3 Disassemble Introduction 1.Dismantling machine tools：... - Page 6 2.Machine appearance： Figure 3-2 3.Disconnect the screw plug Figure 3-3 4.Disconnect the screw...
-
Page 7: Insert Sim Card
Figure 3-4 5.Tear down the base Figure 3-5 3.4 Insert SIM Card Figure 3-6... -
Page 8: Device Power On
3.5 Device Power on Figure 3-7 3.6 Install Figure 3-8 4 Wi-Fi introduction The device role of WIFI could be Master and Slave. When the device role is Master, the device will provide below services: the others devices can read or use the above services after connecting devices, connect the designated device to read the data or related information of the designated WIFI devices. -
Page 9: Trouble Shooting And Safety Info
Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use BOLT MINI-2 on the airplane or near medical equipment. Frequency LTE CatM:B2(TX 1850-1910MHz,RX 1930-1990MHz) - Page 10 FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...
