Summary of Contents for Micron Electronics ATW
- Page 1 ATW User Manual Revision: 1.00 Document Title ATW User manual Version 1.00 Finale Date 2018-03-29 Status Released Document Control ID TRACKER ATW Contents...
-
Page 2: Table Of Contents
2.3 LED Description ......................... 4 3 Getting Started ..........................5 3.1 Parts List ..........................5 3.2 Battery Charging ......................... 5 3.3 ATW Data Cable ......................... 5 3.4 Power on/Power off ......................6 4 Frequency ............................6 5 Trouble shooting and Safety info ....................7 ... -
Page 3: Introduction

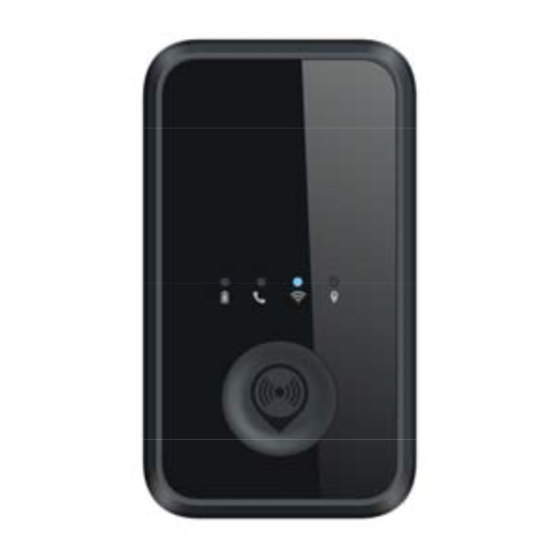

1 Introduction ATW is a powerful GPS locator which is designed for vehicle and assets tracking. With superior receiving sensitivity, fast WCDMA frequencies 850/1900. Its location can be real time or schedule tracked by backend server or specified terminals. Based on the embedded wireless... -
Page 4: Led Description
Click the key will turn off internal VBAT when OS is abnormal, and then press Power Key to restart ATW. 2.3 LED Description Figure 1-2 There are four LED lights in ATW device, the description as following. Light Event State... -
Page 5: Getting Started
You can charge the battery using charging cable which connects ATW device with the Adapter. Charging will last about 5 hours. Note: If the ATW device is firstly used, please make sure the battery is fully charged, which will make the life of battery much longer. 3.3 ATW Data Cable ATW Data Cable is a cable with a 12PIN connector. -
Page 6: Power On/Power Off
3.4 Power on/Power off Figure 2-2 Power on: Press the Power key at least 3 seconds and release it to power on ATW device. Note that, the will light for a moment and then turn off. Power LED light Power off: ... -
Page 7: Trouble Shooting And Safety Info
Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use ATW on the airplane or near medical equipment. FCC Caution. § 15.19 Labelling requirements. - Page 8 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
