1) Description

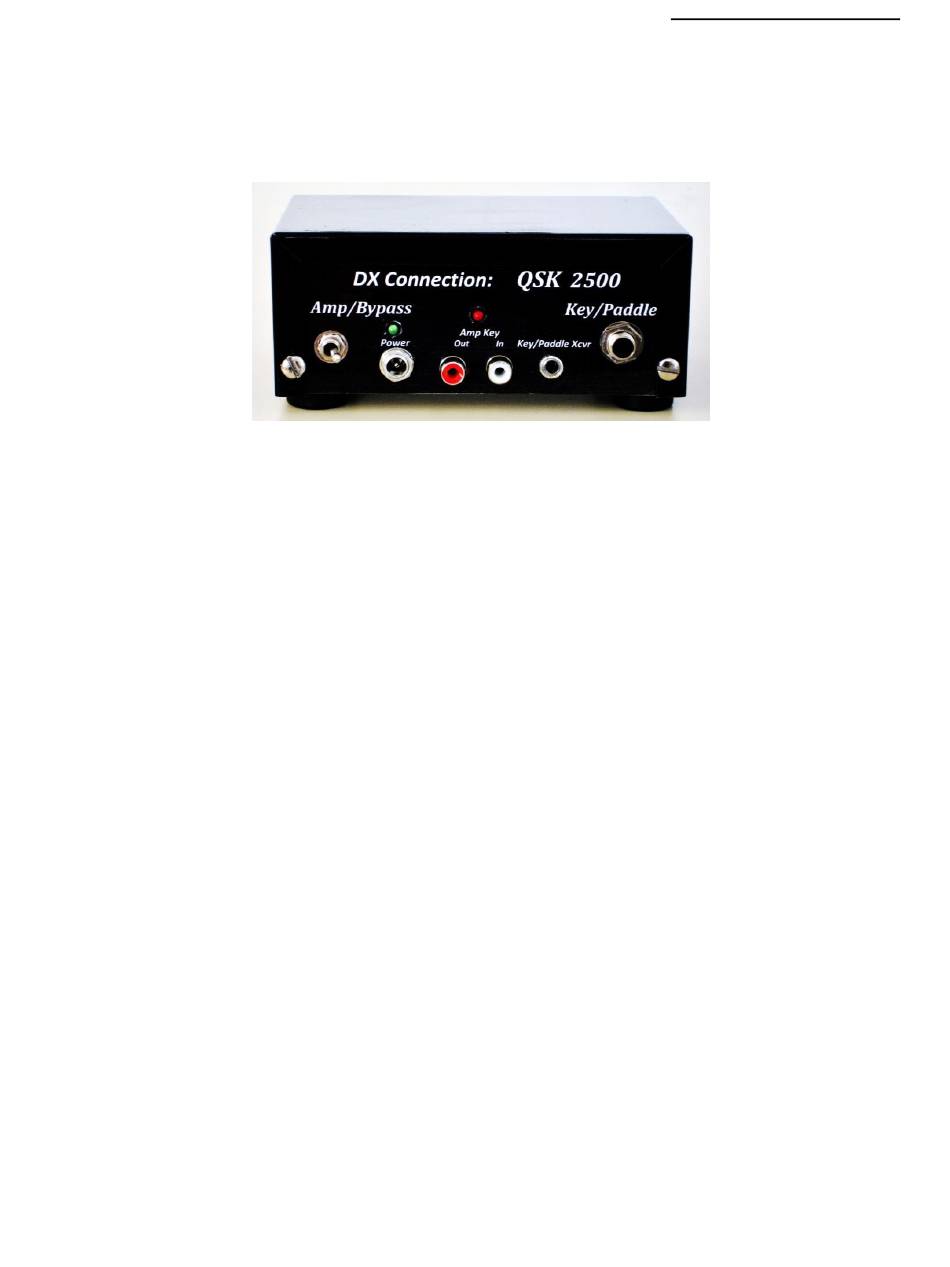

The DX Connection QSK 2500
no amplifier modifications. No amplifier T/R relay interface is required. The QSK unit will interface to
amplifiers whose key jack presents less than 200 volts positive or negative polarity to the QSK unit. The
©
QSK 2500
adds a nominal 10ms delay to the transceiver's normal RF delay to eliminate hot switching of
the amplifier's internal T/R changeover relay before the first dit or dah of a transmission. After the first
dit or dah, the amplifier remains keyed up for the remainder of the transmission preventing excessive T/R
relay switching. The QSK 2500
the last dit or dah of a transmission. The QSK unit incorporates hot switching T/R relay protection caused
by some transceivers removing the amplifier key signal before the RF envelop has decayed. The QSK unit
senses for RF on the amplifier RF input connector and only switches from Transmit-to-Receive when the
RF envelop is no longer present. A functional block diagram is included later in this manual.
©
The QSK 2500
Key/Paddle input jack accepts a straight key, an external keyer, a bug, a paddle (to use the
transceiver's internal keyer), computer generated CW, or anything that keys the transceiver by grounding
a circuit(s). The input device must sink about 1 ma to ground and accommodate 5 volts open circuit.
These requirements are compatible with the transceiver's Key/Paddle Input jack requirements.
2) Specifications
a) RF Power: 2500 Watts CW/SSB/Data modes
b) Antenna VSWR: < 1.5:1 at 2.5KW, < 2.5:1 at 1.5KW, < 3.0:1 at 1.250KW
c) RF losses: almost lossless relays (much less loss than PIN diodes), silver plated SO-239 connectors
d) QSK internal relays: acoustically quieted and sealed for quiet operation
e) No hot switching of QSK internal relays
f)
Provides T/R relay high voltage interface for both new and older amplifiers: The QSK 2500
presents a 5VDC 1ma signal to transceiver Amp key jack. The QSK 2500
1/30/15
DX Connection
©
QSK 2500
Instruction Manual
©
allows operating a non-QSK amplifier in QSK mode (or SSB VOX mode) with
©
returns the amplifier to standby 2 sec to 10 sec (user settable) following
DxConnection@frontier.com
©
input
©
output keys (to ground)
Page 1 of 12

Advertisement

loading
Need help?

Need help?

Do you have a question about the QSK 2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for DX Connection QSK 2500

  • Page 1 QSK internal relays: acoustically quieted and sealed for quiet operation e) No hot switching of QSK internal relays © Provides T/R relay high voltage interface for both new and older amplifiers: The QSK 2500 input © presents a 5VDC 1ma signal to transceiver Amp key jack. The QSK 2500...
  • Page 2 Optional cable set: One 6 ft long 1/8” mini-stereo cable, two 6 ft long RCA cables, plus one 1/8” to 1/4” stereo adapter. w) Factory option to use the Kenwood transceiver +12VDC Amp Key output signal: Contact DX Connection for information.
  • Page 3: Operation

    The transceiver keys to ground a 5VDC 1ma signal from the QSK unit. (Contact DX Connection to use Kenwood’s +12 VDC for QSK 2500 keying.) The QSK’s AMP Key OUT phono jack connects to the amplifier’s AMP Key IN (or ‘antenna relay’, ‘T/R relay’, or ’transmit input’) as shown in Figure 1. It keys the amp T/R relay to ground.
  • Page 4 When SSB VOX mode is selected, the QSK 2500 holds the amplifier keyed for 30 seconds following the last voice transmission. (CW cannot be used while in this mode.) The QSK 2500 is keyed by the ‘AMP in’...
  • Page 5: Limited Warranty

    9) Limited Warranty The QSK 2500 is warranted to be free of defects in materials and workmanship for 1 year to the original purchaser. This limited warranty is for either the repair or replacement of the QSK unit only. There is no coverage for anything other than the QSK unit.
  • Page 6 DxConnection@frontier.com Figure 1a Delay potentiometer & jumper holes adjacent to PIC processor Table 1: Total time for Amp T/R relay to switch (factory delay setting= 10ms) © total T/R QSK 2500 transceiver transceiver actuation comment key delay RF delay time...
  • Page 7 DxConnection@frontier.com Table 2: Changing QSK timing delay (Optional) Jumper 2 adjacent holes together located next to the PIC16F676 pin specified in table. pin 2 pin 3 pin 4 QSK delay Comment 10ms factory setting (no jumpers) jumper add 1 jumper jumper add 1 jumper jumper...
  • Page 8 DxConnection@frontier.com 1/30/15 Page 8 of 12...
  • Page 9 DxConnection@frontier.com amplifier transceiver © QSK 2500 (front) key/paddle key/paddle Amp Key Pwr In Amp Key Amp Key key/paddle xcvr 2 to +200 VDC to gnd or -2 to -200 VDC to gnd; 150ma (max) key, paddle, keyer DC power: 17 - 25 volts computer, bug, etc.
  • Page 10 DxConnection@frontier.com 17 – 25 volts DC Key/Paddle jack power to QSK input to QSK Xcvr Key/Paddle jack Figure 3 Circuit for power switch set to ‘Bypass’ Amp relay control Amp out Xcvr relay control Amp in Xcvr Figure 4 RF circuit in ‘receive’ & ‘off’ states 1/30/15 Page 10 of 12...
  • Page 11 DxConnection@frontier.com Example: QSK 2500 interface to AL-811H Amplifier Figure 5 AL-811H without QSK 2500 1/30/15 Page 11 of 12...
  • Page 12 DxConnection@frontier.com AL-811H amplifier Relay transceiver © QSK 2500 (front) key/paddle key/paddle Relay Amp Key (back) (in) key/paddle xcvr Pwr In Figure 6 AL-811H relay connection AL-811H amplifier transceiver (back) © QSK 2500 (back) RF OUT RF OUT XCVR RF IN...
