Summary of Contents for Azbox SD99010A

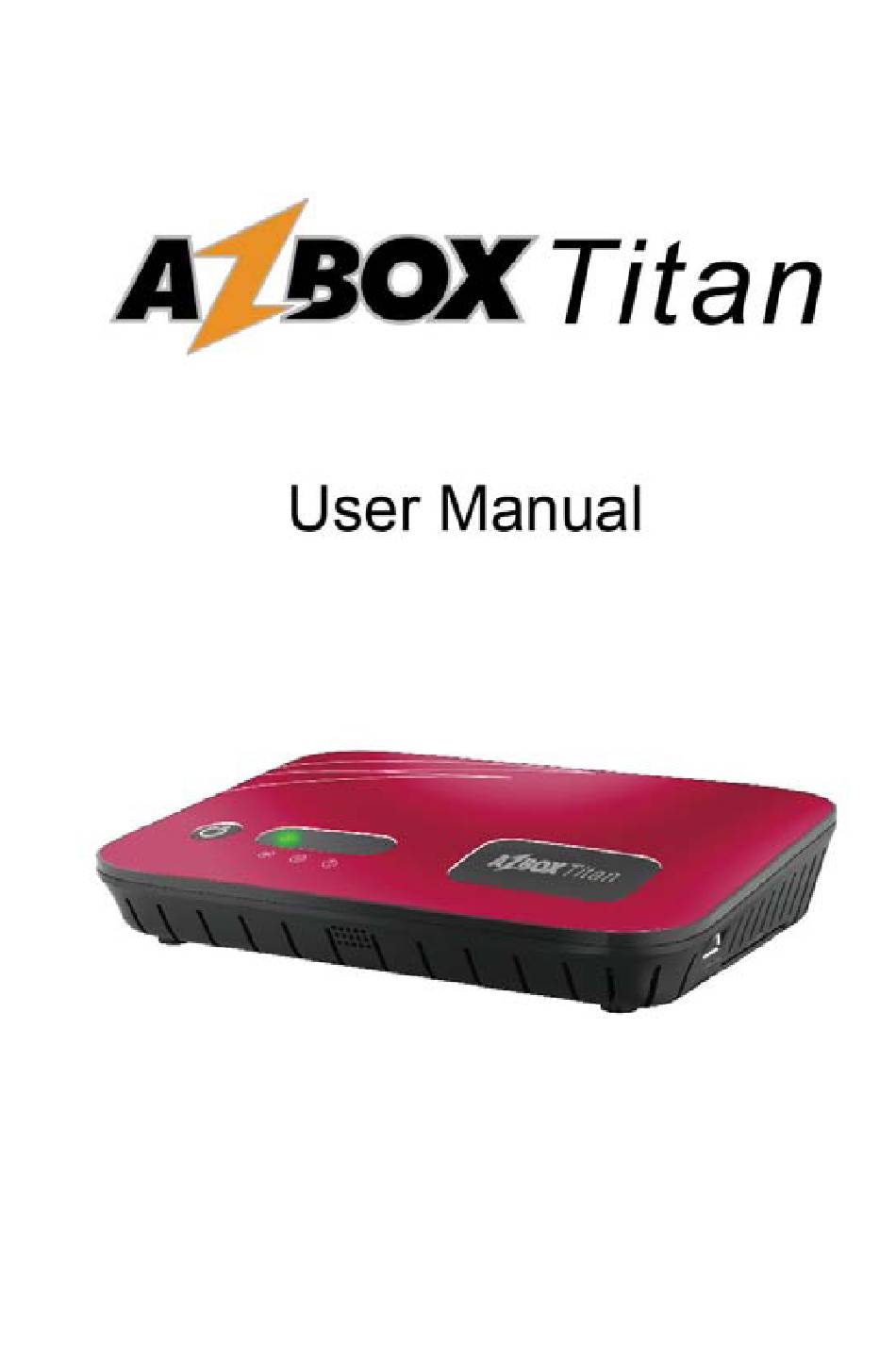

- Page 2 Applicant & Shenzhen Sen5 Technology Co., Ltd. Address: 7 floor North block, SDG Infoport,No.2 Kefeng Road, Hi-tech Park, Nanshan district, Shenzhen, China Satellite Receiver + Android Box Description of Equipment: Titan,SD99010A, SD99010B, SD99010C, Model: SD99010D, SD99010E Trade Name: AZBOX, Sen5, Aidooo...
- Page 3 SAFETY INSTRUCTIONS This STB has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Page 4 SAFETY INSTRUCTIONS MAINS SUPPLY: AC 100-240V ~ 50/60Hz OVERLOADING: Do not overload wall outlets, extension cords or adapters as this can result in fire or electrical shock. LIQUIDS: Keep liquids away from the STB. CLEANING: Before cleaning, disconnect the STB from the wall socket. Use a cloth lightly dampened with water (no solvents) to clean the exterior.
- Page 5 Warning! Important Safety Instructions Always be careful when using your product. To reduce the risk of fire, electrical shocks, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine. • Read all safety and operating instructions before operating your product. •...
- Page 6 If the plug still does not fit, contact your electrician to replace your outlet. • Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
- Page 7 CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. NOTE: This equipment limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 8: Table Of Contents
Content CONTENT ........................8 1． SIDE PANEL ....................10 2． REAR PANEL....................10 3． CONNECTING YOUR SYSTEM ............... 11 4． REMOTE CONTROLLER................. 12 5． BASIC OPERATIONS ..................14 DVB SECTION ......................14 5.1 T STB ..................14 URN ON 5.2 P ....................14 OWER 5.3 C... - Page 9 6.1.3 M ..................21 OTOR NTENNA 6.1.4 M ..................22 ANUAL 6.1.5 S ..................23 YSTEM ETUP 6.1.6 USB......................26 7． UPGRADE ......................27 8． STORAGE MANAGE ..................28 9． EPG ........................28 10． CAS ........................29 11． ADV TIMER ...................... 29 12． RADIO ......................29 13．...
-
Page 10: 1． Side Panel
1． Side Panel The USB PVR port only work for DVB system 2． Rear Panel... -
Page 11: 3． Connecting Your System
3． Connecting Your System There are four ways to connect the receiver to your existing TV system. We recommend using one of the following cases for the best result: If you have a high definition television set, you should use a HDMI cable for best result. Plug one end of the cable into the HDMI socket on the receiver and the other end into the matching socket on your television. -
Page 12: 4． Remote Controller
4． Remote Controller... - Page 13 1． POWER: To switch ON/OFF the receiver power supply. 2． DVB/Android：To switch between DVB and Android. 3． MUTE: To mute or restore the sound 4． TV/RADIO: To switch between TV and RADIO. 5． NUMBER KEYPAD: To select TV/Radio channel and enter to programming parameters by the numeric keys and to input the character by the alphabetical keys.
-
Page 14: 5． Basic Operations
5． Basic Operations This model has two systems with android and DVB，Press key to switch system quickly between android and DVB, the user is very easy to choose which system to use. DVB Section 5.1 Turn on STB First, press the Power to turn on the unit. When the STB is first used, there will play the first channel from the default Channel List. -
Page 15: Audio
5.10 Audio In full screen, press [AUDIO] key to open the “Audio” window on the screen. You can modify the audio track by pressing [Ch Up/Dn] key and modify the audio mode by pressing [VOL +/-] key among Left / Right / Stereo / Mono. -
Page 16: Tv/Radio
5.13 TV/RADIO In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO] key to switch to TV mode. 5.14 Channel List In full screen, press [OK] key or [CH.LIST] can enter “Channel List”. Press [Vol +/-] key to change satellite. Press [Ch Up/Dn] key to move highlight and press [OK] key to play the highlighted channel. -
Page 17: Find
5.18 Find 1． Pressing [FIND] key in full screen can open the “Find” window. Press [Vol +/-] [Ch Up/Dn] keys to move highlight and press [OK] key to input the selected symbol or letter into the dialogue. The search result display on the right screen. 2．... - Page 18 5.22 OK Pressing [OK] key in full screen can open the “OK LIST” window Press RED Button to display different SORT Group, you can list up the channels by 4 kinds of sorting ways. Press Green Button to display the fast find channel menu...
-
Page 19: 6． Main Menu
Press Yellow Button to display previous list with all channel Press Blue Button to display Satellite list with all channel 6． Main Menu When pressing the [MENU] on the RCU, the 8 icons will appear on your TV screen where you can configure all your settings :Main Menu, Upgrade, USB Formatter, EPG, CAS, PVR,Reservation, Radio When the focus on the mainmenu, press ok key will... -
Page 20: Channel
6.1.1 Channel By selecting “Channel” menu, You can move highlight by press [Ch Up/Dn] key to select Radio channel editor、TV channel editor NAME [Red Key]: To edit the channels name LOCK [Green Key]: To lock the channels which you want to lock. -
Page 21: Motor Antenna
key can enter satellite list for you to select directly. LNB Freq: In this item, press [Volume Up/ Volume Down] key can select the parameter. Option is 5150/5750/5950/9750/10600/10700/10750/11300/5150-5750/Universal(9750-10600) /Universal(9750-107500)/and MDU DiSEqC1.0/1.1: You can use [Volume Up/ Volume Down] key to switch options. There are several options for your selection: Disable / LNB1 / LNB2 / LNB3 / LNB4 22K: You can use [Volume Up/ Volume Down] key to switch “ON / Off”. -
Page 22: Manual Scan
6.1.4 Manual Scan you can find sub-menus for Satellite, Transponder, Polarity, NIT, program ,Signal Quality Bar and etc. and press Green key to start channel search by current parameters Satellite: Select the satellite what you want to search the channel Transponder : Select the desired TP (transponder). -
Page 23: System Setup
Satellite Find By selecting “satellite find” menu You can use [Vol+/-] key to switch Satellite and Transponder You can set Beep tone ON or OFF 6.1.5 System Setup By pressing [Menu] and selecting “system” item, and move the UP/Down key to select Language, OSD setting, time, TV setup, Parental Lock, Update&Backup Factory setting Language... - Page 24 Time When you entry to Timer Menu, you can see: sleep time、Time Zone and GMT usage can set sleep timer. When you set a sleep timer and the time arrive, the system will enter to standby automatically. it will switch the mode between Sleep Timer Off /15/30/45/60/90/120 minutes.
- Page 25 Update &Backup By pressing [Menu] and selecting “System” item, and press OK key enter to update&backup menu when the highlight on the upgade&backup item Upgrade by network：you can download new software to this receiver by network Image upgrade：you can download new software to this receiver by external USB memory device（the upgrade file format support “*ssu”）...
-
Page 26: Usb
Internet PING When you enter “Internet PING” menu, you will see a screen like below Set Ping Mode option for 5times or forever Set Ping time out by 1~10sec. Set Ping Target by String and Number When the highlight on the Ping Run, press OK key to run PING function 6.1.6 USB When you entry to USB menu, you can selectUSB Safe Remove PVR Settings... -
Page 27: 7． Upgrade
When the highlight on the default recording period，you can press Left/Right key to set recording period 7． Upgrade Press to enter USB upgrading menu when the USB is connected. When the cursor on the Image upgrade， press OK key to set image upgrade Move the cursor on the Upgrade Menu，the upgrade file will display on the left menu，you must select the correct... -
Page 28: Storage Manage
8． Storage Manage “storage manage”menu shows all related information about the USB memory device (like HDD and Memory Box), including Volume, Total Size, Free Size and used Size, When the cursor on the format item, press OK key to make format operation. 9．... -
Page 29: 10． Cas
10． CAS We provide CA slots for user. Receiver has been built in smart card module with CONAX system. By using cards provided by operators in this system, it is possible to watch many scrambled channels coded in this system. This menu shows detailed information about card inserted into card reader module. It allows inserted in order to help messages visible on the bottom of the screen. -
Page 30: 13． Android Section
13． Android Section 1. Basic Operations This guide describes how to use the Android platform After you turn on your Box, Home opens. It’s a unique launcher and designed by ourselves .At the bottom of the screen, you'll find three Navigation buttons. They're always available. No matter what you're doing with your Box, you can always get back to the main Home screen or return to previous screens: Icon Name Description... - Page 31 1 Click the Settings icon on a Home or All Apps screen. 2 Click Wireless & networks > Wi-Fi. 3 Slide the Wi-Fi switch to the On position. The device scans for available Wi-Fi networks and displays the names of those it finds. Secured networks are indicated with a Lock icon.
- Page 32 The web address (URL) of the current page is displayed at the top of the window, unless a mobile site scrolls the URL bar off the top of the screen (if so, just drag the page down to bring the URL bar into view).
- Page 33 1 Browse to the page you want to set as your home page. 2 Press Menu and Click Settings > Set home page. 3 Click Use current page. Or enter a different page’s address (URL). 4 Click OK If you prefer to open new Browser windows without opening a webpage by default, leave this field blank.
- Page 34 Click to zoom in or out. Turn the Box to view the picture in upright (portrait) or sideways (landscape) orientation. The picture is displayed (but not saved) in the new orientation. Click the picture to view the Zoom and other controls. Click a Zoom icon, double-tap the screen, or pinch two fingers together or spread them apart to zoom in or out.
- Page 35 Delete a song from the SD card or USB storage Click & hold a song in a library list. In the menu that opens, Click Delete. ORS On the Playback screen, press Menu and Click Delete. When your Box is connected to a computer, you can also delete music files Playing music You can listen to music by using the Box’s built-in speaker, through a wired headset.
- Page 36 Skip tracks or pause and resume playback. Drag the slider to go directly to a section of a track. You can return to the Playback screen from most other screens in the Music application by pressing Menu and Clicking Playback. You can return to the Playback screen from any other application by opening the Notifications panel and Clicking the ongoing music notification.
- Page 37 Control playback volume You can control the volume of music in the Music application. S Press the Box’s Volume Up/Down button. A panel opens to show the current media volume; the indicator moves as you adjust the volume. Some headsets include their own volume controls or ways to pause and resume playback or to switch tracks.
- Page 38 2.2 Search for applications 1 Click the Search icon at the top right of the screen or press the Search button 2 Enter what you want to search for and Click Search again. You can enter all or part of an application’s name or description, or the developer’s name you want to search for.
- Page 39 .2.4 Create a Google Checkout account You can pay for the items you purchase from Android Market with a Google Checkout account. You can set one up the first time you purchase an item on Android Market, or ahead of time in a web browser. In a web browser, go to http://checkout.google.com to establish a Google Checkout account.
- Page 40 3、 Click Uninstall. 4、 Click OK in the confirmation dialog. 5、 Click the explanation that best matches why you’re uninstalling and Click OK. 6、 The application is uninstalled. You can install the application again at any time, without charge if it was a paid application.
- Page 41 3、Apps setting You use the Apps setting to view details about the applications installed on your Box, to manage their data, to force them to stop if they misbehave, and to set whether you want to permit installation of applications that you obtain from web sites and email. Applications settings screen Unknown sources Check to permit installation of applications that you obtain from web sites, email, or...
- Page 42 5、Language & keyboard settings Use the Language & Keyboard settings to select the language for the text on your Box and for configuring the onscreen keyboard, including words that you’ve added to its dictionary. Language & Keyboard screen Select language Opens the Language screen, where you can select the language to use for the text on your Box.
-
Page 43: 14． Specification
14． Specification Specification Android 4.2 Allwinner A20 Dual Core Tuner Demodulator Mode QPSK,8PSK,16APSK，32APSK Frequency Range 950~2150MHz Video MPEG-2 MP@HL, MP@ML. MP@LL, SP@ML/ MPEG4-AVC HP@L4.1/VC-1 AP@L3 and MP@HL/ MPEG4 ASP Part2/DivX/Xvid up Video Decoding to1920x1080/60i resolution/ China AVS 1.0 Jizhun profile @ level 6.2/ H.263 CVBS(video format @ 576i or 480i) Video Output... - Page 44 Audio CINCH Analog Audio L/R Output(White/Red Color) Conector USB Port USB 2.0 Port for Software Upgrade/Backup RS232 Port Serial Port for Software Upgrade Ethernet Port Plug-in Ethernet Board (RJ45 port) Wifi wifi model （IEEE 802.11 b/g/n） HDMI Connector High-Definition Multimedia Interface V1.3 Accessories IR RC3 / Other on Request (38kHz)NEC Batteries...
- Page 45 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
