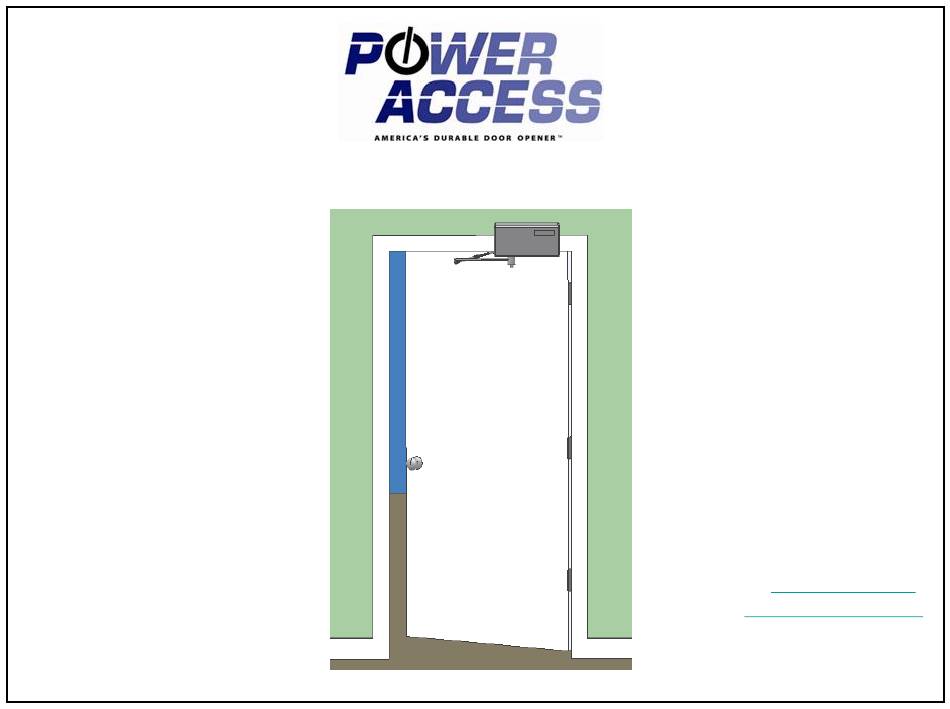

- Page 1 Model 2300JR Installation Guide POWER ACCESS CORPORATION P.O. BOX 1050 – 170 MAIN STREET NEW HARTFORD, CT 06057 800-344-0088 WEBSITE: www.power-access.com EMAIL: salesinfo@power-access.com...
-
Page 2: Standard Parts
MODEL 2300JR PARTS LIST STANDARD PARTS MODEL 2300JR (MOTOR UNIT) WITH SLIP FRICTION CLUTCH ARM, ADJUSTABLE FOREARM AND SHOE, 9 FOOT 115VAC POWER CORD, AND 300MHz RADIO RECEIVER DOUGHNUT MAGNET (PART NUMBER 2440) SEE PAGE 7, ITEM 4.1.5 AND PAGE 14 (6) #10 1-1/2”... -
Page 3: Optional Accessories
MODEL 2300JR PARTS LIST OPTIONAL ACCESSORIES ELECTRIC STRIKE MODEL 4560S – 24VDC ELECTRIC STRIKE WIRELESS REMOTE TRANSMITTERS PENDANT STYLE TRANSMITTER GARAGE DOOR STYLE TRASMITTER MODEL 4440TK – MODEL 4495SQ MODEL 4440T – SINGLE CHANNEL MODEL 4437S WALL MOUNTED SINGLE CHANNEL MODEL 4440D –... - Page 4 (PAGE 20) TO VERIFY YOU HAVE THE CORRECT UNIT. IF NOT, SEE ROTATION DIRECTION (PAGE 15, 9.1). 1.1.2 THE DOOR THAT THE MODEL 2300JR IS TO BE MOUNTED TO SHOULD BE PLUMB, SQUARE, AND NOT WARPED. THE DOOR SHOULD NOT STICK TO THE JAMB.
- Page 5 A HARD DOOR STOP MUST BE USED TO PREVENT THE DOOR FROM TRAVELING PAST 90 DEGREES WHEN OPENING. A HINGE MOUNTED STANDARD DUTY DOOR STOP IS INCLUDED IN THE MODEL 2300JR PACKAGE. TO INSTALL THIS DOOR STOP REMOVE THE HINGE PIN FROM THE TOP DOOR HINGE. REINSERT THE PIN WITH THE DOOR STOP IN PLACE.
- Page 6 THE SHOE 1-3/4 INCHES BELOW THE BOTTOM OF THE NARROW EDGE OF THE MOTOR MOUNT PLATE AND 16 INCHES FROM THE HINGE SIDE EDGE OF THE DOOR, SECURE THE SHOE TO THE DOOR WITH 2 SUPPLIED WOOD SCREWS. Power Access 2300JR 3/23/15...
- Page 7 CLUTCH ARM THAT FACES THE VELCROED SENSOR 1/8” FROM THE CLUTCH ARM HUB, CENTERED ON THE ARM. THIS TRIGGERS THE MOTOR TO SHUT OFF WHEN IN OPERATION. VELCROED SENSOR SET SCREWS CLUTCH ARM HUB DOUGHNUT MAGNET Power Access 2300JR 3/23/15...
- Page 8 5. ELECTRIC STRIKE INSTALLATION 5.1 STRIKE INSTALLATION THE POWER ACCESS MODEL 2300JR DOOR OPENER IS DESIGNED SO THAT THE DOOR CAN STILL BE MAUALLY OPENED WITHOUT ACTIVATING THE UNIT. THEREFORE, IT IS NECESSSARY TO HAVE ANOTHER MECHANICAL FEATURE TO HOLD THE DOOR SHUT WHEN NOT IN OPERATION.
- Page 9 STRIKE PLATE LATCHING SURFACE. THIS IS WHAT COMES IN CONTACT WITH THE DOOR LATCH. ADDITIONAL SHIMS PROVIDED WITH THE STRIKE CAN BE USED IF THERE IS STILL TOO MUCH WIGGLE ROOM BETWEEN THE DOOR LATCH AND THE STRIKE LATCHING SURFACE. Power Access 2300JR 3/23/15...
- Page 10 5. ELECTRIC STRIKE INSTALLATION 5.3 CONNECTING ELECTRIC STRIKE TO MODEL 2300JR ONCE INSTALLED AND POSITIONED, USE THE TWO 12 FOOT LOW VOLTAGE WIRES SUPPLIED WITH THE MOTOR UNIT TO CONNECT TO THE TERMINALS OF THE ELECTRIC STRIKE. WHEN THE DOOR OPENER IS ACTIVATED IT WILL SEND A SINGLE SHOT 24VDC PULSE TO THE STRIKE TO RELEASE TENSION AND ALLOW THE DOOR TO OPEN.
-
Page 11: Programming The Receiver
SWITCHES 1-10 ON THE MOTOR MOUNT RECEIVER NEED TO MATCH SWITCHES 1-10 ON THE TRANSMITTER. NOTE: OPEN = OFF SOME DIP SWITCHES ARE LABELED ON-OFF AND SOME ARE LABELED OPEN-CLOSE. OPEN = OFF & CLOSED = ON Power Access 2300JR 3/23/15... -
Page 12: Operation
CORD SO IT DOES NOT OBSTRUCT THE MOVEMENT OF THE DOOR. POWER CORD EXITS THE HINGE SIDE. CAUTION: LEVER ARM SHOULD NEVER EXTEND BEYOND 90 DEGREES. BEYOND 90 DEGRESS THE LEVER ARM WILL SCISSOR, CAUSING THE OPENER TO MALFUNCTION. Power Access 2300JR 3/23/15... - Page 13 ACTIVATION TIME TIME SMALL FRACTIONS OBSTACLE IS ENCOUNTERED, THE MOTOR OF A TURN WILL NOT BURN ITSELF OUT. THE CLUTCH TENSION CANNOT BE ADJUSTED. ROTATE CW TO ROTATE CW FOR INCREASE DWELL INCREASED MOTOR TIME ACTIVATION TIME Power Access 2300JR 3/23/15...
- Page 14 POSITIONED SO THAT THE MOTOR SHUTS OFF WHEN THE DOOR IS 75- 80 DEGREES OPEN AND THE DOOR WILL COAST TO A SOFT STOP AT ABOUT 90 DEGREES. CAUTION: A DOOR STOP MUST BE USED TO PREVENT THE DOOR FROM TRAVELING BEYOND 90 DEGREES. Power Access 2300JR 3/23/15...
- Page 15 9. CHANGING HAND (ROTATION OF THE MOTOR) 9.1 ROTATION DIRECTION: THE MOTOR IN MODELS 2300DL AND 2300JR IS PROGRAMMED TO ROTATE CLOCKWISE TO OPEN THE DOOR. MODELS 2300DR AND 2300JL HAVE THE MOTOR TURN COUNTER-CLOCKWISE TO OPEN THE DOOR. IF YOU NEED TO CHANGE...
-
Page 16: Main Circuit Board
TH – Timer Hold Open DIP SWICH 1 AUTO CLOSE L/I – Lock/Inhibit MOCT SB – Single Button Input MAGNETIC SWITCH OL2 DIP SWITCH 2 C – Close Input CTOFF O – Open & Hold COM - Common Power Access 2300JR 3/23/15... - Page 17 A MOMENTARY CONTACT IT WILL RESET THE CLOSE TIMER AND OPEN THE TIMER WILL BEGIN TIMING WHEN CONTACT IS RELEASED. THIS COULD BE USED WITH A SAFETY MAT APPLICATION WHERE THE ONLY CONCERN IS ON THE CLOSING CYCLE AS IT DOES NOT PREVENT AN OPENING. Power Access 2300JR 3/23/15...
- Page 18 LED IS ON WHEN POWER IS ATTACHED TO UNIT. POWER INDICATES LED IS OFF WHEN NO POWER IS GOING TO THE UNIT. INDICATOR POWER ATTACHED LED REMAINS ON UNTIL THE MAGNETIC SWITCH IS ACTIVATED. POSITION INDICATES INDICATOR LOCATION OF DOOR Power Access 2300JR 3/23/15...
-
Page 19: Troubleshooting
STRIKE WORKS INTERMITTENTLY BAD SOLENOID REPLACE STRIKE NOTHING HAPPENS WHEN TRANSMITTER SWITCHES DO SEE PROGRAMMING THE RECEIVER TRANSMITTER BUTTON IS PRESSED NOT MATCH RECEIVER (PAGE 11) CONTROLLER BATTERY DEAD REPLACE BATTERY IN TRANSMITTER BLOWN FUSE REPLACE FUSE Power Access 2300JR 3/23/15... -
Page 20: Right Hand Door
DOOR MOUNT (2300DL) UNIT MOUNTED TO JAMB ON PUSH SIDE OF DOOR • PROVIDED WITH EXTENDED FOREARM • MOTOR SHAFT FACING DOWNWARD • POWER CORD EXITS TOWARD HINGE SIDE OF UNIT JAMB MOUNT (2300JL) JAMB MOUNT (2300JR) Power Access 2300JR 3/23/15...
