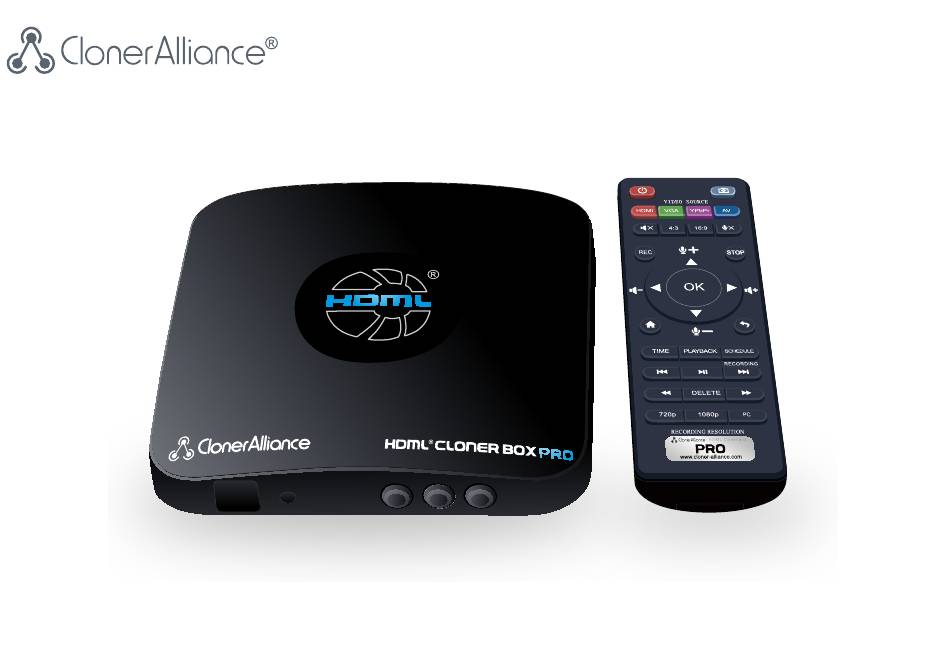

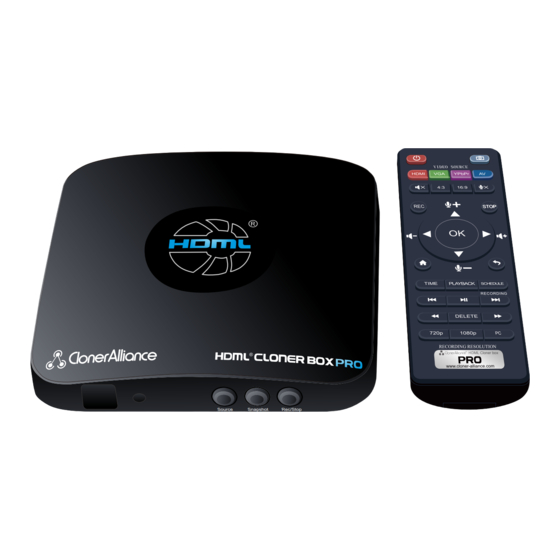

HDML-Cloner Box Pro User Manual
Source
Snapshot
Rec/Stop

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDML-Cloner Box Pro and is the answer not in the manual?

Questions and answers

Related Manuals for ClonerAlliance HDML-Cloner Box Pro

Summary of Contents for ClonerAlliance HDML-Cloner Box Pro

  • Page 1 HDML-Cloner Box Pro User Manual Source Snapshot Rec/Stop...
  • Page 2 HDML-Cloner Box Pro User Manual This documentation describes how to use HDML-Cloner Box Pro (Model: CA-998P) device. Copyright Notice Copyright © ClonerAlliance® Inc. All rights reserved. Documentation Version 2.5 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance™...
  • Page 3 Before using HDML-Cloner Box Pro, please ensure that you read and understand the safety precautions below: 1. Do not attempt to open the case of HDML-Cloner Box Pro or modify it in any way, as this will void the warranty.

  • Page 4: Table Of Contents

    ................. . .8 How to Playback the Recorded files on HDML-Cloner Box Pro directly? .

  • Page 5: Getting Started

    HDML Cloner box Source Snapshot Rec/Stop • a. Power Adapter • e. Remote Control • b. MMI Cable (VGA/AV/YPbPr to HDMI Cable) • f. User Manual • c. Micro-USB to USB Cable • g. HDMI Cable • d. HDML-Cloner Box Pro...

  • Page 6: Product Diagram

    Rec/Stop Source 1. LED indicator light for recording. Blue means HDML-Cloner Box Pro is recording videos in 1080p, while Green means it is recording videos in 720p or others. 2. When this light is on, it means HDML-Cloner Box Pro is turned on.
  • Page 7 1. Getting Started 6. Line In: Stereo audio inputs. 7. Line Out: Insert the headphone plug into this jack to output the video sound. 8. Mic: Insert the microphone plug into this jack to input voice. 9. Storage: Insert the USB flash drive or mobile hard disk and record videos to this storage medium.
  • Page 8 13. Out: Connect an HDMI cable between HDML-Cloner Box Pro and TV. 14. To PC: Connect the Micro-USB to USB cable between PC and HDML-Cloner Box Pro for recording videos to PC. This function must be realized together with HDML-Cloner Pro Helper.
  • Page 9 1. Getting Started Power on/Power off. Capture an image. Select HDMI as the input signal. Select VGA as the input signal. Select YPbPr as the input signal. Select AV as the input signal. Mute. Switch to the aspect ratio of 4:3. Switch to the aspect ratio of 16:9.

  • Page 10: How To Record Videos To The Usb Storage Device? Connect

    2.1 Connect 1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Pro. 2. Connect the video player to In port on HDML-Cloner Box Pro via an HDMI cable.

  • Page 11: Record/Capture

    2. Please use a premium USB flash drive or mobile hard disk with high speed to avoid unexpected problems such as file loss. 2.2 Record/Capture 1. After all devices are connected properly, please connect power adapter of HDML-Cloner Box Pro and turn on other devices. 2. Plug in a USB flash drive.

  • Page 12: Playback

    2.4 How to Playback the Recorded files on HDML-Cloner Box Pro directly? 1. After all devices are connected properly, plug the USB storage device into HDML-Cloner Box Pro and press the PLAYBACK button on the remote control to enter the playback menu interface.
  • Page 13 2. How to record videos to the USB storage device? There are four categories, which are FILM, PHOTO, MUSIC and TEXT.
  • Page 14 2.4. How to Playback the Recorded files on HDML-Cloner Box Pro directly? 2. Select one category and press OK to go to the next step. Then you can select a partition.
  • Page 15 2. How to record videos to the USB storage device? 3. You will see the file list.
  • Page 16 2.4. How to Playback the Recorded files on HDML-Cloner Box Pro directly? Select your desired file by using the four buttons of volume control on the remote control. You can preview the files and press OK to select multiple files.
  • Page 17 2. How to record videos to the USB storage device? 4. Press on the remote control to play the selected video(full screen).

  • Page 18: Schedule Recording

    2.5. Schedule Recording 2.5 Schedule Recording 1. Press the TIME button on the remote control. Set the system time by using the four buttons of volume control on the remote control. Then select Save to finish the setting.
  • Page 19 2. How to record videos to the USB storage device? 2. Press the SCHEDULE button on the remote control. Set the recording frequency, start time and recording time by using the four buttons of volume control on the remote control. Then select Save to finish the setting. 3.

  • Page 20: Menu Navigation

    2.6 Menu Navigation Press on the remote control to browse the menu settings of HDML-Cloner Box Pro, which are TIME, PICTURE, SOUND and OPTION. 1. Under the TIME column, there are seven aspects: System Time, Schedule Recording, Headset Mixing, Bitrate Set,...
  • Page 21 2. How to record videos to the USB storage device? System Time: Set the time of HDML-Cloner Box Pro by year, month, day, hour, minute and second. Schedule Recording： Set the recording frequency, Start time and recording time. Then videos will be recorded automatically according to your settings.
  • Page 22 2.6. Menu Navigation Picture Mode: Mild, User, Dynamic and Standard are available. Color Temperature: Medium, Warm, User and Cool are available. Aspect Ratio: Auto, 4:3, 16:9, Zoom 1, Zoom 2 and Just Scan are available. The default state is 16:9. 3.
  • Page 23 2. How to record videos to the USB storage device? Sound Mode: Standard, Music, Movie, Sports and User are available. Equalizer: 120Hz, 500Hz, 1.5KHz, 5KHz and 10KHz are available. 4. Under the OPTION column, there are five aspects: OSD Language, Restore Factory Default, OSD Transparency, OSD Duration and Firmware Version.
  • Page 24 2.6. Menu Navigation...
  • Page 25 2. How to record videos to the USB storage device? OSD Language: Set the language to be displayed on the menu English, Japanese, Simplified Chinese and Traditional Chinese are available. Restore Factory Default: Restore the factory settings. OSD Transparency: Set the transparency of the menu. High, Middle, Low and OFF are available. OSD Duration: Set the duration of menu display 5s, 10s, 15s and OFF are available.

  • Page 26: How To Record Videos To Pc

    HOW TO RECORD VIDEOS TO PC? 3.1 Obtain HDML-Cloner Pro Helper Please download HDML-Cloner Pro Helper software from https://www.cloner-alliance.com/download.html Note：Prior to installing HDML-Cloner Pro Helper, please make sure you are using Windows 7 or later versions and your PC is equipped with USB 2.0 or 3.0 port.

  • Page 27: Install & Connect

    3. How to record videos to PC? 3.2 Install & Connect 1. Install HDML-Cloner Pro Helper • Download HDML-Cloner Pro Helper software from https://www.cloner-alliance.com/hdmicloner-pro-helper.html • Double click the installation file and the setup wizard window will pop up. Click Next-Next-Next-Next-Next-Install...
  • Page 28 3.2. Install & Connect Yes, restart the computer now-Finish. Note: During the software installation, a driver needs to be installed as well. When there is a prompt popped up as below, please click “Install”.
  • Page 29 1. Connect the video player to the In port on HDML-Cloner Box Pro via an HDMI cable. 2. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Pro. 3. Connect the Micro-USB to USB cable between the “To PC”port of HDML-Cloner Box Pro and the USB port of PC.
  • Page 30 3.2. Install & Connect After all devices have been connected properly, please power on all connected devices. The Windows operating system will prompt “Found a new hardware”and install the driver automatically. Please make sure “Full HD Capture Device”is installed successfully and appears in the Device Manager (Right click My Computer – Manage – System Tools – Device Manager).
  • Page 31 3. How to record videos to PC?

  • Page 32: Register

    3.3. Register 3.3 Register Please register HDML-Cloner Pro Helper first before using, otherwise it can only be used for 7 days. Run HDML-Cloner Pro Helper. Click on the main interface to open the ”About” window. Then click on the ”Register” button to open the ”Register”...
  • Page 33 3. How to record videos to PC? There are two methods to obtain the registration code of HDML-Cloner Pro Helper. 1. Scan the QR code below to get the code if the S/N of HDML-Cloner Box Pro is in the form of CPXXXXXXXX or DPXXXXXXXX.
  • Page 34 3.3. Register For more details about recording videos to PC, please scan the QR code below to visit the Frequently Asked Questions. Or click here...

  • Page 35: Record/Capture

    3. How to record videos to PC? 3.4 Record/Capture 1. After all devices are connected properly, insert the video disc into the drive of the video player and run HDML-Cloner Pro Helper.
  • Page 36 3.4. Record/Capture 2. Click to start recording.
  • Page 37 3. How to record videos to PC? 3. Click to stop recording. Tip: During recording, you can also click to pause at anytime. When you want to resume, please click to continue recording. Besides, you can Click to take screenshots, click to capture GIF animation and you can enable VBS function by clicking...
  • Page 38 3.4. Record/Capture 4. After recording, click to view the recorded video. Then you can click to play back the video directly.
  • Page 39 3. How to record videos to PC? HDML-Cloner Pro Helper also supports recording videos at the scheduled time. Click to enter the ”Setup” window. Then click the ”Schedule Recording” button.
  • Page 40 3.4. Record/Capture Please enable schedule recording first, and set the Start time and duration for schedule recording. Then click “OK”. Then videos will be recorded automatically at the scheduled time.

  • Page 41: Setup

    3. How to record videos to PC? 3.5 Setup Video Resolution: Set the output video resolution. 1080p,720p and 480p are available. Video Bitrate: 6Mbps, 8Mbps, 10Mbps, 12Mbps, 15Mbps and 18Mbps are available. Video Render: Define the video render. Video Mix Render9, Video Mix Render7 and Internal YUV Render are available. Language: Set the language to be displayed on the interface.
  • Page 42 3.5. Setup Hotkey for Recording: Set the hotkey for starting and stopping recording videos. MP4 Format: Four options are available, which are MPEG-4 format (video codec: H.264, audio codec: AAC), MPEG-4 format (video codec: H.264, audio codec: AC3), MPEG-4 format (video codec: H.264, audio codec:MP3) and MPEG-TS...
  • Page 43 Set up maximum recording time: Set the maximum recording time. If the recording time exceeds the set value, HDML-Cloner Box Pro will stop recording videos. Schedule Recording: Set the Start time and duration, and videos will be recorded automatically at the scheduled time.
  • Page 44 3.5. Setup Picture: Setup picture file format for capturing static snapshot of video. For capturing animated GIF, you can setup ratio and frame rate of GIF.
  • Page 45 3. How to record videos to PC? VBS: Video Broadcast share is an http web server. It can help you to playback captured videos on the smart phone or PC web browser. OK: Click to save the settings. Cancel: Click to exit the “Setup”window without saving the settings. Note: The parameter options may change as the software upgrades.

  • Page 46: Frequently Asked Questions

    What kinds of USB flash drives or mobile hard disks does HDML-Cloner Box Pro support? HDML-Cloner Box Pro supports most kinds of USB flash drives and mobile hard disks, such as SanDisk, Kingston, etc. Please format your storage device (FAT32 and NTFS formats are supported) on Windows 7 or above before using. Please...
  • Page 47 4. Frequently Asked Questions Why is the mute button of remote malfunction? Please make sure the “Time info”setting in setup menu is switched to “off”. It will be fixed. Please refer to the picture below. Why is there a prompt “No signal”? Please switch to the proper input signal with the remote control or by pressing the “SOURCE”button on HDML-Cloner...
  • Page 48 If the solutions above don’t work, please don’t hesitate to send an email to support@cloner-alliance.com, we will get back to you with a solution in 24 hours. How to check the firmware version of HDML-Cloner Box Pro? Press on the remote control, select ”OPTION” - ”Firmware Version”. Then you can see the firmware version number.

  • Page 49: Supported Resolutions

    SUPPORTED RESOLUTIONS 4K (3840x2160 30p), 1920x1080 (50p), 1920x1080 (60p), 1920x1080 (24p), 1920x1080 (25p), 1920x1D80 (30p), 1920x1080 (50i), Input 1920x1080 (60i),1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60p), 1280x800 (60p), 1024x768(60p), 720x480 (60p), 720x480 (50i), 640x480 (60p), 720x480 (60p), 720x576 (50p) Output 1920x1080 (60p), 1280x800 (60p), 1024x768 (60p), 1280x800 (60p), 1360x768 (60p)

  • Page 50: Product Specifications

    PRODUCT SPECIFICATIONS Output format MP4 (H.264) Video standards (Input) NTSC, PAL, PAL-60 Supported disk formats FAT32, NTFS Input signals HDMI, VGA, YPbPr, AV, Audio L/R, MIC Output signals HDMI (pass-through), USB, Micro USB Bitrate Max: 16Mbps Maximum storage capacity 2TB Power supply DC 5V/2A Weight...

  • Page 51: Contact Us

    CONTACT US If you encounter any problem when using our products, please contact us by support@cloner-alliance.com or call 1-844-9-CLONER (toll free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by market@cloner-alliance.com.

  • Page 52: Disclaimer

    DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade- mark of USB implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
  • Page 53 Toll free: 1-844-9-CLONER Support Email: support@cloner-alliance.com Market Email: market@cloner-alliance.com www.cloner-alliance.com Copyright ClonerAlliance Inc. All rights reserved.
