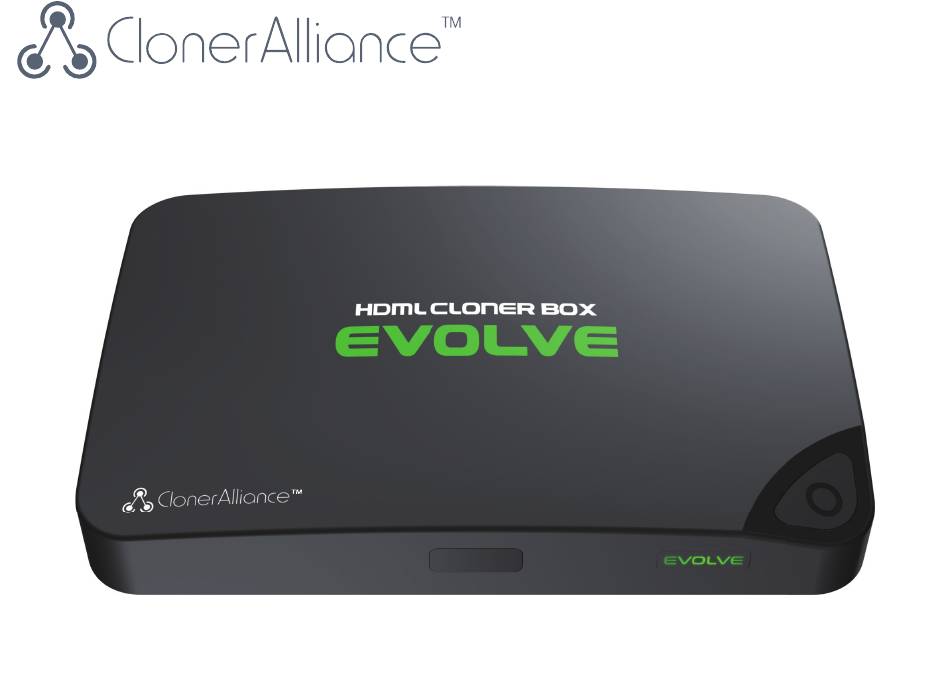

Page 1 HDML-Cloner Box Evolve User Manual...
Page 2 HDML-Cloner Box Evolve User Manual This documentation describes how to use HDML-Cloner Box Evolve (Model: CA-1180E) device. Copyright Notice Copyright © ClonerAlliance Inc. All rights reserved Documentation Version 1.10 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system,...
Page 3 Before using HDML-Cloner Box Evolve, please ensure that you read and understand the safety precautions below: 1. . Do not attempt to open the case of HDML-Cloner Box Evolve or modify it in any way, as this will void the warranty.
Page 4: Table Of Contents
Table of Contents Getting Started Box Contents Product Diagram How to record videos to the USB flash drive/TF card Connect Record/Capture Schedule Recording Bitrate Setup How to record videos to PC System Requirements Install HDML-Cloner Pro Helper Connect Register HDML-Cloner Pro Helper How to get the registration code of HDML-Cloner Pro Helper? Menu Navigation Frequently Asked Questions...
Page 5: Getting Started
Getting Started Box Contents ™ a. Power Adapter b. . HDML-Cloner Box Evolve c. . AV Cable d. . Micro-USB to USB Cable e. . Remote Control f. . User Manual g. . HDMI Cable...
Page 6: Product Diagram
1. . IR: Receives the IR signal from the remote control. 2. . LED light: Three colors are available: white, blue and green. When HDML-Cloner Box Evolve is turned on, the LED will illuminate white for a while, then blink blue/green alternately and finally illuminate solid blue or solid green.
Page 7 Storage TF Card 4. TF Card: Insert the TF card into this slot and record videos to this storage medium. 5. . Storage: Insert the USB flash drive or mobile hard disk and record videos to this storage medium.
Page 8 6. . 5V/2A: Plug the power adapter into this port and power on HDML-Cloner Box Evolve. 7. . 1 IN: Connect an HDMI cable between a source video player and HDML-Cloner Box Evolve. 8. . 2 IN: Connect an HDMI cable between another source video player and HDML-Cloner Box Evolve.
Page 9 : Insert the headphone plug into this jack to output the video sound. : Insert the microphone plug into this jack to input your live voice.
Page 10 : Turn on/Turn off the power of HDML-Cloner Box Evolve. : Start recording. : Stop recording. : Adjust the volume of the source video. STOP : Adjust the volume of the microphone voice. : Confirm button. : Show the main menu or return to the previous menu.
Page 11: How To Record Videos To The Usb Flash Drive/Tf Card
HDML-Cloner Box Evolve. Tips: 1. . If you insert both the USB flash drive and TF card into HDML-Cloner Box Evolve, the recorded video will be saved to the storage medium which is connected first. 2. . For better user experience, please use a premium USB flash drive or mobile hard disk with high...
Page 12: Record/Capture
* The USB flash drive is not included in the product box. You need to purchase it separately. Record/Capture 1. After all devices are connected properly, please power on all devices, the video image from the video player will be displayed on TV and the LED will illuminate solid blue or solid green.
Page 13 Then you can remove the USB flash drive or TF card. Tips: 1. . HDML-Cloner Box Evolve will power on immediately when connected to the external power adapter. When the video players connected to 1 IN and 2 IN ports are shut off, HDML-Cloner Box Evolve will be in standby mode automatically after 3 minutes.
Page 14 2. . If the source video is 1080p, the LED will illuminate solid blue; if the source video is 720p, the LED will illuminate solid green. 3. . HDML-Cloner Box Evolve supports the function of CEC wake-up. If the video player is turned on, other devices connected to it via HDMI cables will be turned on automatically.
Page 15 Tips on selecting a proper USB flash drive: 1. Recommended brands: Toshiba, SanDisk, Kingston 2. Interface specifications: USB 2.0, USB 3.0 3. Connector type: Type A 4. Make sure the actual reading speed is not less than 30Mbps, and the writing speed is not less than 10Mbps.
Page 16: Schedule Recording
Schedule Recording IMPORTANT: If you set the recording frequency to "Once", please make sure to create a schedule task at least 3 minutes in advance. If you set the recording frequency to "Every day", please make sure to create a schedule task at least 1 minute in advance. Then HDML-Cloner Box Evolve will start recording the video at the scheduled time properly.
Page 17 Then select Save to finish the setting. (3) After finishing the setup, press the menu button on the remote control and return to the playback interface. Then HDML-Cloner Box Evolve will start recording videos automatically at the scheduled time.
Page 18: Bitrate Setup
Bitrate Setup Press on th e remote control and the bitrate selection menu will pop up. There are six options BITRATE available, which are LIMITED: 6M, LIMITED: 10M, LIMITED: 16M, UNLIMITED: 6M, UNLIMITED: 10M and UNLIMITED: 16M. If you select a bitrate suffixed with LIMITED, the recorded video saved to the storage device in FAT32 or NTFS format will be split into several 2GB files.
Page 19: How To Record Videos To Pc
Windows OS working together with HDML-Cloner Box Evolve. Please download the latest version of HDML-Cloner Pro Helper from our official website: https://www.cloner-alliance.com/download.html Note: Please don't connect HDML-Cloner Box Evolve to PC before installing the software, or there will be a prompt "Unknown USB Device".
Page 20 If the following window appears during the installation process, please select "Install", otherwise HDML-Cloner Pro Helper will not work properly.
Page 21: Connect
Connect 1. Connect the video player to the "IN" port on HDML-Cloner Box Evolve via an HDMI cable. 2. Connect the Micro-USB to USB cable between the "To PC" port of HDML-Cloner Box Evolve and the USB port of PC.
Page 22 ③ ① ② After all devices are connected properly, when you power on all devices, the Windows operating system will prompt "Found a new hardware" and install the driver automatically. Wait a while and when the prompt "Device driver software installed successfully" pops up (as shown below), run HDML-Cloner Pro Helper on the desktop.
Page 23: Register Hdml-Cloner Pro Helper
Register HDML-Cloner Pro Helper Please register HDML-Cloner Pro Helper first before using. With the trial version, you can only use it for 7 days. Run HDML-Cloner Pro Helper. Click in the main interface and then click the "Register" button. Click the "Input registration code" button to open the "Register" window. Fill in your proper Email address, name and registration code.
Page 24: How To Get The Registration Code Of Hdml-Cloner Pro Helper
How to get the registration code of HDML-Cloner Pro Helper? XXXXXXXX Do not miss out CEXXXXXXXX https://goo.gl/oWQzRG XXXXXXXXXXXXXXXX xxx-xxxxxx-xxxxxx-xxxxxx-xxxxxx XXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXX For more details about registering HDML-Cloner Pro Helper, visit the link below to read step by step instructions. https://www.cloner-alliance.com/hdmicloner-box-pro-faq/purchase-and-register-faq/how-to-register-hdml-cloner-pro-helper.html...
Page 25 For more details about recording videos to PC, please scan the QR code below to visit the Frequently Asked Questions. cloner-alliance.com/hdmicloner-box-evolve-faq/technical-faq/how-to-record-videos-to-pc-with-hdml-cloner-box-evolve.html...
Page 26: Menu Navigation
Menu Navigation Press on the remote control to browse the menu settings of HDML-Cloner Box Evolve. There are seven options: System Time, Schedule Recording, OSD Language, Aspect Ratio, Firmware Update, Restore Factory Default and Firmware Version.
Page 27 System Time: Set the time of HDML-Cloner Box Evolve by year, month, day, hour, minute and second. Schedule Recording: Set the schedule recording frequency, start time, recording time and delete the schedule task. OSD Language: Set the language to be displayed on the menu. Czech, English, French, Japanese, Simplified Chinese, Traditional Chinese and German are available.
Page 28: Frequently Asked Questions
Frequently Asked Questions You can visit https://www.cloner-alliance.com/faq.html at anytime to view latest technical questions and answers. 1. What should I do if the following interface appears on TV? Och, something wrong! Don't worry!... Don't worry, it's very easy to solve this problem. Please scan the QR code below to find the answer. cloner-alliance.com/hdmicloner-box-evolve-faq/technical-faq/black_screen_tips_evolve.html...
Page 29 4. . If I insert both the USB flash drive and TF card into my capture box, where will my video be saved? If you insert both the USB flash drive and TF card into HDML-Cloner Box Evolve, the video will be saved into the first connected storage device. Meanwhile, when the storage space of one device is full, the capture box will stop recording instead of recording to another storage device.
Page 30 Why did my capture box switch itself off automatically? After HDML-Cloner Box Evolve is connected, if your video players are shut off, HDML-Cloner Box Evolve will be in standby mode automatically after 3 minutes. If you want to use it again, please press the "Record/Stop"...
Page 31 10. Why is there a prompt "Can't detect USB Device"? Please format your USB stick or unplug the USB stick from the USB port and plug it into HDML-Cloner Box Evolve again. If the solutions don't work, please send an email to support@cloner-alliance.com for direct help.
Page 32: Supported Resolutions
Supported Resolutions 3840x2160 (30p) 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) Input 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p) 1280x720 (60p), 1280x768 (60p), 1280x800 (60p) 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) Output 1920x1080 (60p), 1280x720 (60p) Recording 1920x1080 (30p), 1280x720 (60p)
Page 33: Product Specifications
Product Specifications Output format MP4 (H.264) Video standards (input) NTSC, PAL Supported disk formats FAT32, NTFS Input signals HDMI1, HDMI2, AV, Audio L/R, MIC Output signals HDMI (pass-through), USB, Micro USB, TF Bitrate Max: 16Mbps Maximum storage capacity Maximum 2TB for a USB flash drive; Maximum 32GB for a TF card CEC wake-up Support...
Page 34: Contact Us
Disclaimer HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trademark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
Page 35: Index
Index Power adapter ON/OFF Remote Connect Record Bitrate HDML-Cloner Pro Helper Register System time Firmware Version Resolutions Specifications Email...
