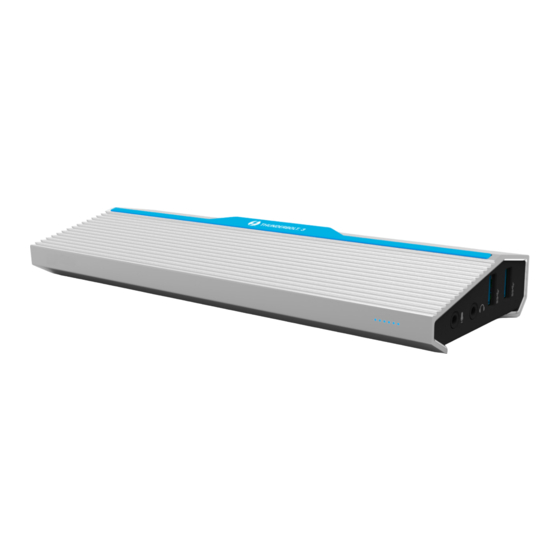

Page 1: Docking Station
Thunderbolt Docking Station User Guide Thunderbolt-3 Dock Model: K160B-001K CAN ICES-3(B)/NMB-3(B) Version 1.0... -
Page 2: Package Content
1. Package Content 1. Thunderbolt 3 docking station x 1 2. Thunderbolt 3 cable x 1 3. Power adapter (20V/6.75A – 135W) x 1 4. User guide x 1 2. Specification 1 x Thunderbolt 3 (PD 70W with 135W AC Upstream adapter) 1 x Thunderbolt... -
Page 3: Product Feature
3. Product Feature USB 3.0+Battery Charge USB 3.1 DisplayPort USB-C Ethernet Thunderbolt3 Power In PD 70W Microphone USB 3.0 Earphone... -
Page 4: System Setup
4. System Setup 1. Connect docking station to power. Warning: To reduce the risk of electric shock, fire, or damage to the equipment, use only the power adapter included with the docking station. 2. Connect docking station to your computer[a][b] •... -
Page 5: Operating System
3. Install driver • The necessary drivers for this dock will be automatically installed. For Thunderbolt 3 driver, please contact the manufacturer of your computer for latest Thunderbolt driver or software. 4. Setup overview 5. Operating System Windows OS: 7/ 8.0&8.1/10 (32-bit or 64-bit) Mac OS: 10.12 (Sierra) or later 6. - Page 6 Click “Yes”. 3. User should see the following window after clicking “Yes” in previous window. Make sure the connected device is “XXX, Thunderbolt 3 Dock”. 4. Click drop down menu and select “Always Connect”. XXX, TBT-3...
- Page 7 5. Click “OK” and Finish the authentication. XXX, TBT-3 8. Check Firmware and Software Version 1. In the system tray, right click on the Thunderbolt icon. 2. In the list, select “Settings”. 3. Select “Details” in the Settings. 4. Check software and firmware version, contact your laptop maker for firmware information. 9.
