Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . .2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Set Up and Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Product Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Storing the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Moving the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Arranging the Shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Raising the Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Lowering the Shell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Mechanical Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Panel Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Visit the Legacy Classic web page at www.wengercorp.com for more details.
Note: Please read and understand the instructions before operating the Acoustical Shell.
Note: If you need additional information, contact Wenger Corporation using the information below.
©Wenger Corporation 2017
Wenger Corporation, 555 Park Drive, P.O. Box 448, Owatonna, Minnesota 55060-0448
Questions? Call.....USA: 800-4WENGER (493-6437) • Worldwide: 1-507-455-4100 • www.wengercorp.com
Legacy
Classic Acoustical Shell
®
Printed in USA 06/17
Owner's Manual
Part #186G186-05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wenger Legacy
Summary of Contents for Wenger Legacy
-
Page 1: Table Of Contents
Visit the Legacy Classic web page at www.wengercorp.com for more details. Note: Please read and understand the instructions before operating the Acoustical Shell. Note: If you need additional information, contact Wenger Corporation using the information below. ©Wenger Corporation 2017 Printed in USA 06/17 Part #186G186-05 Wenger Corporation, 555 Park Drive, P.O. -
Page 2: Important User Information
Wenger Corporation. Wenger Corporation does not assume any responsibility for any errors that may appear in this manual. In no event will Wenger Corporation be liable for technical or editorial omissions made herein, nor for direct, indirect, special, incidental, or consequential damages resulting from the use or defect of this manual. -
Page 3: Safety Precautions
WARNING means that failure to follow the instruction may result in serious injury or death. • CAUTION means that failure to follow the instruction may result in serious injury or damage to property. Read all of these safety instructions before setting up the Legacy Classic Acoustical Shell components. Set Up and Usage CAUTION CAUTION... -
Page 4: Product Terminology

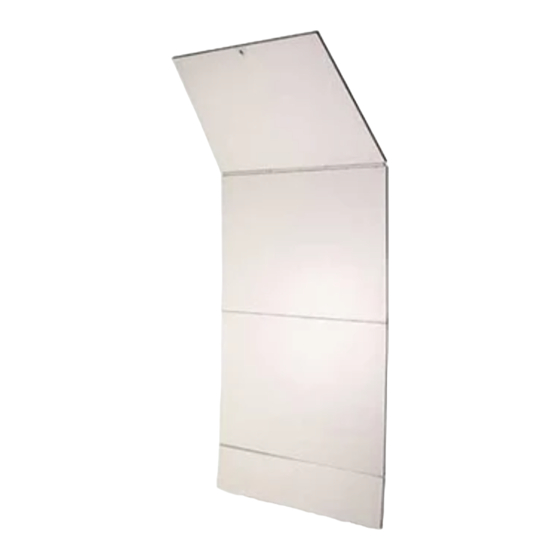

Product Terminology A Legacy Classic Acoustical Shell includes a counter-weighted base on casters, a support frame, and four acoustical reflector panels. The following terms are used throughout these instructions: Shell - One complete unit. Canopy Panel Base - The assembly that supports the frame and panels. -
Page 5: Required Tools
Required Tools A pliers may be required to adjust the Legacy Classic Acoustical Shell. Pliers Storing the Shells In their Storage Position, the shells can pass through a 35” x 79” opening (a typical 36” door). A single shell unit is 72” wide x 78½” high x 34½” deep (183 x 199 x 88 cm). -
Page 6: Moving The Shells
Moving the Shells CAUTION CAUTION CAUTION Never move the Legacy Always have the Legacy Do not move the shell if the Classic Acoustical Shell more Classic Acoustical Shell in Canopy panel is raised and than a few feet when it is in the Storage Position when unlocked. -
Page 7: Arranging The Shells
Arranging the Shells Each shell is 72” (183 cm) wide. The canopy panels on the shell can be tapered to provide a “tight” enclosure when the shell is set up on a 19 foot radius and the canopy is set at a 45° angle — the most common arrangement for choral groups. -
Page 8: Raising The Shell
It is recommended that one person stand behind the shell to serve as a spotter, to prevent raising the shell into an obstacle or another shell. CAUTION CAUTION CAUTION Never move the Legacy Always have the Legacy Make sure that anyone Classic Acoustical Shell Classic Acoustical Shell... - Page 9 Canopy NOTE: One Canopy Tool is supplied with each Tool Legacy Classic Acoustical Shell set. It may be stored on the frame of any shell. 4. Pull out and unfold the Crank Handle located on the back side of the shell.
- Page 10 Raising the Shell ( continued) 6. Push the Upper Panel against the magnets. Turn the Crank Handle counter-clockwise to lower the Upper Panel until it rests on the Lower Panel in the Performance Position. NOTE: This is the shell’s normal performance height. If the shell is used at less than the maximum height, it cannot be guaranteed that the Upper and Canopy Panels will stop and...
-
Page 11: Lowering The Shell
Lowering the Shell 1. Turn the Crank Handle ¼ turn Clockwise to slightly raise the Upper Panel. 2. Push out on the bottom of the Middle Panel to separate it from the magnets. CAUTION The Middle Panel must be disengaged before the shell can be lowered. - Page 12 Lowering the Shell ( continued) 4. Pull out and fold in the Crank Handle located on the back side of the shell. 5. Move the Canopy Lock Knob to the “LOWER” position. Canopy Lock Knob 6. With the Canopy Tool, raise the Canopy Panel Canopy slightly (A) to release it, then lower it (B) to the Panel...
- Page 13 Lowering the Shell ( continued) 7. Pull out the bottom of the Upper Panel and fold the Filler Panel up to its Storage Position (between the Upper and Lower Panels). Upper Panel Filler Panel...
-
Page 14: Replacement Parts List
RECTANGULAR CANOPY PANEL,CARRIER ASSY SCREW,SM,PTH,#8 X 5/8,BLK.ZN PIN, MAIN SCREW,SELF DRILLNG,NO.10-16,.75 PIVOT BEARING,PANEL HINGE, LOWER PANEL MIDDLE PANEL,CARRIER ASSY HANDLE,FOLD,PLASTIC,2.91 LEGACY CANOPY TOOL CAPSCREW,GD2,ZP,1/4-20X1 1/4 PANEL ASSY,MIDDLE HANDLE,CRANK MAIN FRAME,PAINTED COG,ALIGNMENT BOLT, CARRIAGE, 3/8-16X2 1/4, ZP PIVOT WLDMT, MID PANEL NUT,LOCK,NY.IN,FULL,ZP,3/8-16... -
Page 16: Maintenance
Replace or repair damaged parts promptly. Refer to the Replacement Parts List. CAUTION Do not make adjustments to the lift mechanism. Contact Wenger Customer Service for repair options. Panel Repair Panels are of lightweight composite construction and made of durable materials. If accidentally damaged, repairs can be made with common fillers and paint.
