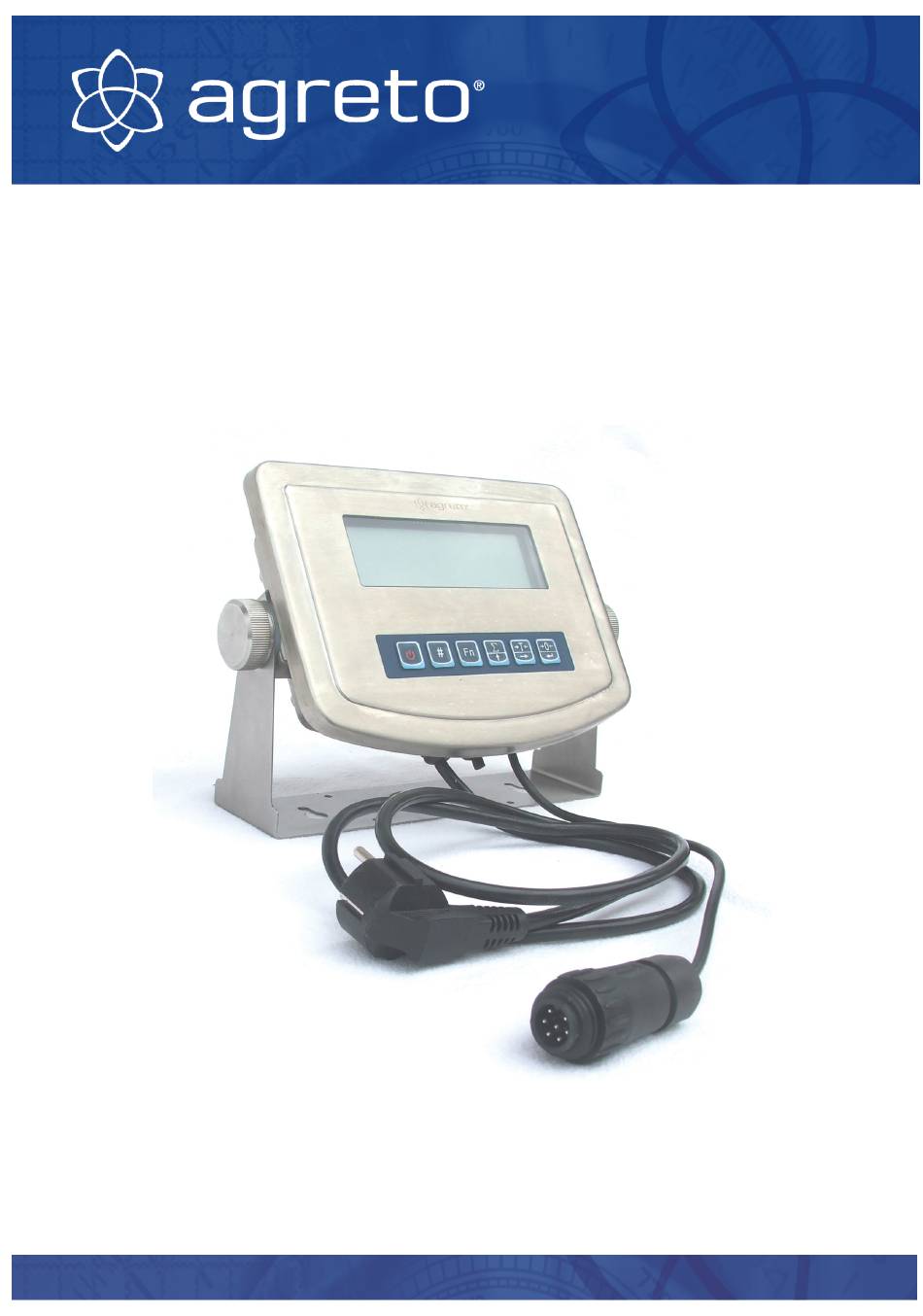

User Manual
AGRETO Weighing Indicator HD1
6.6.2017
© © © © A A A A G G G G R R R R E E E E T T T T O O O O e e e e l l l l e e e e c c c c t t t t r r r r o o o o n n n n i i i i c c c c s s s s G G G G m m m m b b b b H H H H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agreto HD1

Summary of Contents for Agreto HD1

  • Page 1 User Manual AGRETO Weighing Indicator HD1 6.6.2017 © © © © A A A A G G G G R R R R E E E E T T T T O O O O e e e e l l l l e e e e c c c c t t t t r r r r o o o o n n n n i i i i c c c c s s s s G G G G m m m m b b b b H H H H...

  • Page 2: Table Of Contents

    AGRETO Weighing Indicator HD1 Content Content Content Content 1 Introduction ..................... 3 2 Scope of delivery .................... 3 3 Intended use ....................3 4 Security ......................4 Safety Instructions for the Buyer ..................4 Safety instructions for the operator ................. 4 Residual Hazards ......................

  • Page 3: Introduction

    Bracket for stand mounting This user manual 3 Intended use The AGRETO weighing indicator HD1 is suitable for all weighing applications, where no officially calibration is needed. It is designed for use in humid, dusty rooms. The protection class is IP67. It can therefore also be used in stables and other humid rooms.

  • Page 4: Security

    AGRETO HD1Weighing indicator, has read and understood this manual. Safety instructions for the operator DANGER! The AGRETO HD1 Weighing indicator may only be operated by persons who are familiar with the operation of the device. Precaution! Keep the work area clean! Soiled areas contributes to accidents.

  • Page 5: Technical Specifications

    AGRETO Weighing Indicator HD1 5 Technical specifications Size (W/H/D) 258 mm / 184 mm / 60 mm for table mounting 280 mm / 161 mm / 124 mm for wall mounting Weight: 1890 g Operating temperature: -10 to +40 degrees Celsius...

  • Page 6: Getting Started

    6 Getting started 6.1 Connecting the load cells AGRETO weighing scales are supplied with a connection cable that fits in the weighing display. If you have one of those, you connect the cable's 7-pole round plug to the fitting round plug coming out of the weighing display (that's the plug without a protective cap).

  • Page 7: Weighing

    AGRETO Weighing Indicator HD1 7 Weighing 7.1 Turning on the weighing display Press the [ ] button. The weighing display will now run a self-test. The display is ready for use when the weight readout appears. In standard mode the display isn't put to zero, but shows the actual load, based on the null position that was last used.

  • Page 8: Weighing With Tare Function

    AGRETO Weighing Indicator HD1 7.4 Weighing with Tare function When you'd like to weigh an object in a container or package, the weight of the empty container can be automatically subtracted without changing the zero position, by using the tare function.
  • Page 9 AGRETO Weighing Indicator HD1 Shortly press the [ ∑ ] button. The display will show the sum of the objects weighed so far, followed by the amount of weighed objects so far (n 0001), after which it returns to the normal weighing mode. The AUTO symbol lights up as long as the sum and amount of weighed objects are displayed.

  • Page 10: Animal Weighing Mode

    AGRETO Weighing Indicator HD1 7.6 Animal weighing mode If you'd like to weigh restless animals or unstable loads, you can use the animal weighing mode. Take the following steps: Make sure the display is set to zero. Put the weighing object on the scales.

  • Page 11: Parameters

    AGRETO Weighing Indicator HD1 8 Parameters The Weighing Display HD1 has several configurable parameters that influence the way the system functions. Normally these parameters have been pre- configured correctly and need only be altered in special circumstances. Take the following steps to start parameter configuration: Keep the [ Fn ] button pressed for 3 seconds and then release the button.
  • Page 12 AGRETO Weighing Indicator HD1 changes (standard) Baud rate RS232 Br **** 600 interface 1200 2400 (standard) 4800 9600 Communication mode * 1 (standard) RS232 interface Filter 1 low stabilization (Stabilization of the 2 (Standard) display in an animal weighing mode)

  • Page 13: Calibration

    AGRETO Weighing Indicator HD1 9 Calibration If you bought the weighing display together with AGRETO weighing scales, the display is already fully calibrated and checked. Calibration is only needed: If you didn't buy the weighing display together with AGRETO weighing scales.

  • Page 14: Calibration Parameters

    AGRETO Weighing Indicator HD1 The calibration menu is operated in the following way: With the [ ] button the entry is confirmed and the next parameter will be shown. After the last parameter is shown the parameter menu is closed and the display reverts to normal weighing mode.
  • Page 15 AGRETO Weighing Indicator HD1 The calibration menu is operated as follows: With the [ ] button the entry is confirmed and the next parameter will be shown. After the last parameter is shown the parameter menu is closed and the display reverts to normal weighing mode.

  • Page 16: Rs232 Interface

    AGRETO Weighing Indicator HD1 10 RS232 Interface The weighing indicator has a serial interface for controlling an additional display, a printer, or to communicate with a PLC or a PC. 10.1 Connection pin-out For using the interface a cable must be prepared or ordered.

  • Page 17: Troubleshooting

    AGRETO Weighing Indicator HD1 5: command mode, issue 5: command mode, issue on the request on the request 5: command mode, issue 5: command mode, issue on the request on the request Gross weight request command: HEX(02)+“A“+“HEX(03), answer: GW:0023.45 (kg) Net weight request command HEX(02)+“B“+“HEX(03): answer: NW:0013.45 (kg)

  • Page 18: Warranty

    AGRETO Weighing Indicator HD1 12 Warranty Over and above statutory warranty for the AGRETO weighing indication HD1 following warranty provisions apply: The AGRETO electronics GmbH guarantees the function and repairs or replaces all the parts that have a material or manufacturing damage within the warranty period.

  • Page 19: Declaration Of Conformity

    AGRETO Weighing Indicator HD1 Declaration of Conformity EC Declaration of Conformity For the following named product AGRETO HD1 Weighing Indicator This is to confirm that it complies with the essential protection requirements of Council Directive on the approximation of the laws of Member States relating to electromagnetic compatibility (2004/108/EC) and Low Voltage Directive (2006/95/EG).

  • Page 20: Imprint

    Despite careful treatment and examination of the contents, no warranty is made with respect to information in this user manual. Any liability of the author is excluded. Copyright © 2017, AGRETO electronics GmbH AGRETO electronics GmbH Pommersdorf 11 A-3820 Raabs Tel.: +43 2846 620 0...
