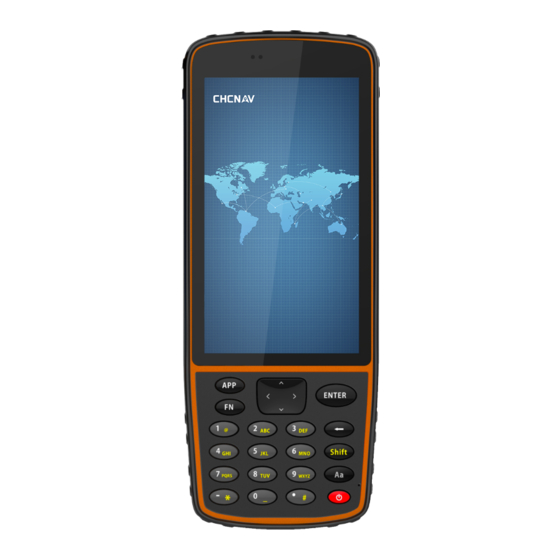

- Page 1 Shanghai Huace Navigation Technology LTD. HCE320 Handheld GNSS Data Collector User Guide Revision 1.0 March 2018...
- Page 2 Operation is subject to the following two conditions: (1) this device not cause harmful interference and (2) this device must accept any interference that may cause undesired operation. HCE320 User Guide – Revision 1.0 March 2018...
-
Page 3: Table Of Contents
HCE320 Data Controller Manual Table of contents 1 Product Introduction ..............4 Brief Introduction ................4 Product Accessories ..............4 Display Icon Introduction ............... 5 LandStar 7 Software Introduction ..........5 2 Getting Started ................7 Switch On/Off SIM/SD Card Installation ............. 7 Keyboard Introduction .............. -
Page 4: Product Introduction
HCE320 Data Controller Manual 1 Product Introduction 1.1 Brief Introduction Virtual function key: [Home]: Touch for returning to main screen when in any interface. [Back]: Touch for returning to previous interface. [Menu]: Touch for displaying current programs, users can click to open the program. -
Page 5: Display Icon Introduction
HCE320 Data Controller Manual Stylus Screen protection foil Strap USB data cable DC power adapter 1.3 Display Icon Introduction Description Description The current Vibrate mode battery status Mobile signal Wifi status strength Airplane Alarm clock... - Page 6 HCE320 Data Controller Manual Note: Users can call out E-manual by clicking the question mark at top-right corner of LandStar 7, please make sure you’ve installed LandstarHelp in HCE320 before.
-
Page 7: Getting Started
HCE320 Data Controller Manual 2 Getting Started 2.1 Switch On/Off Long press [Power] key for switch on HCE320. In the state of power-on, short press [Power] key to enter sleep mode, long press [Power] key will pop-up select screen, select [Power Off] option to switch off. -
Page 8: Keyboard Introduction
HCE320 Data Controller Manual Note: HCE320 supports to receive data not only via receiver network, but also PDA network. 2.3 Keyboard Introduction Open LandStar 7 Switch language input methods Confirm Switch between current input method and number Caps lock Power... -
Page 9: Important Notification
Please use standard DC power adapter and USB data cable to charge HCE320. When HCE320 has low power, it has sound prompts, and then please charge it. When HCE320 has much lower power, it has secondly sound prompts, and then HCE320 will switch off automatically. -
Page 10: Basic Functions
Pull down menu list and find [USB] icon, choose to transmit file. Or double click [Computer] in computer desktop and double click [HCE320], users can see and operate in both internal and external SD card storage. 3.2 Network Type Switch Click [Setting] to enter setting interface, and click [More] to find the [Mobile Network]. - Page 11 HCE320 Data Controller Manual one you need. Note: In general, HCE320 will automatically choose the network type based on SIM card, users only need to switch network type while using intranet.
-
Page 12: Restore Factory Setting
HCE320 Data Controller Manual 3.3 Restore Factory Setting Enter the [Settings] → [Backup & Reset] → [ Factory data reset] Press [Factory data reset] → [Reset phone], data controller will automatically shut down and restart. Note: after choosing [Erase everything], the memory data in data... -
Page 13: Data Controller Function
HCE320 Data Controller Manual 3.4 Data Controller Function Enter the [Settings], find [Location], choose one positioning mode and open it; Open LandStar7 software, tap [Connect] in the [Configure], choose [Local] in the [Device Type], [Android Local] in the [Device Name], [Local] in the [Connection Type], tap [Connect]. - Page 14 HCE320 Data Controller Manual...
-
Page 15: Data Controller Core Upgrade
HCE320 Data Controller Manual 4 Data Controller Core Upgrade Enter the [Settings], find and tap [About Phone], check data controller core version firstly. - Page 16 HCE320 Data Controller Manual Then tap [Wireless upgrade], tap upper right corner, choose [Local upgrade], choose the core version to be upgraded.
- Page 17 HCE320 Data Controller Manual Controller will restart automatically after upgrading, return to the mobile status interface to see the core version and check whether the upgrade is successful.
- Page 18 HCE320 Data Controller Manual Shanghai Huace Navigation Technology Co., Ltd Building C, NO. 599 Gaojing Road, Qingpu District, 201702 Shanghai, China Tel: +86 21 542 60 273 Tel: +86 21 649 50 963 Email:sales@chcnav.com|support@chcnav.com Website:www.chcnav.com...
- Page 19 SY4-B01010 Shanghai Huace Navigation Technology LTD. Model name: Handheld GNSS Data Collector Model No.: HCE320 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
