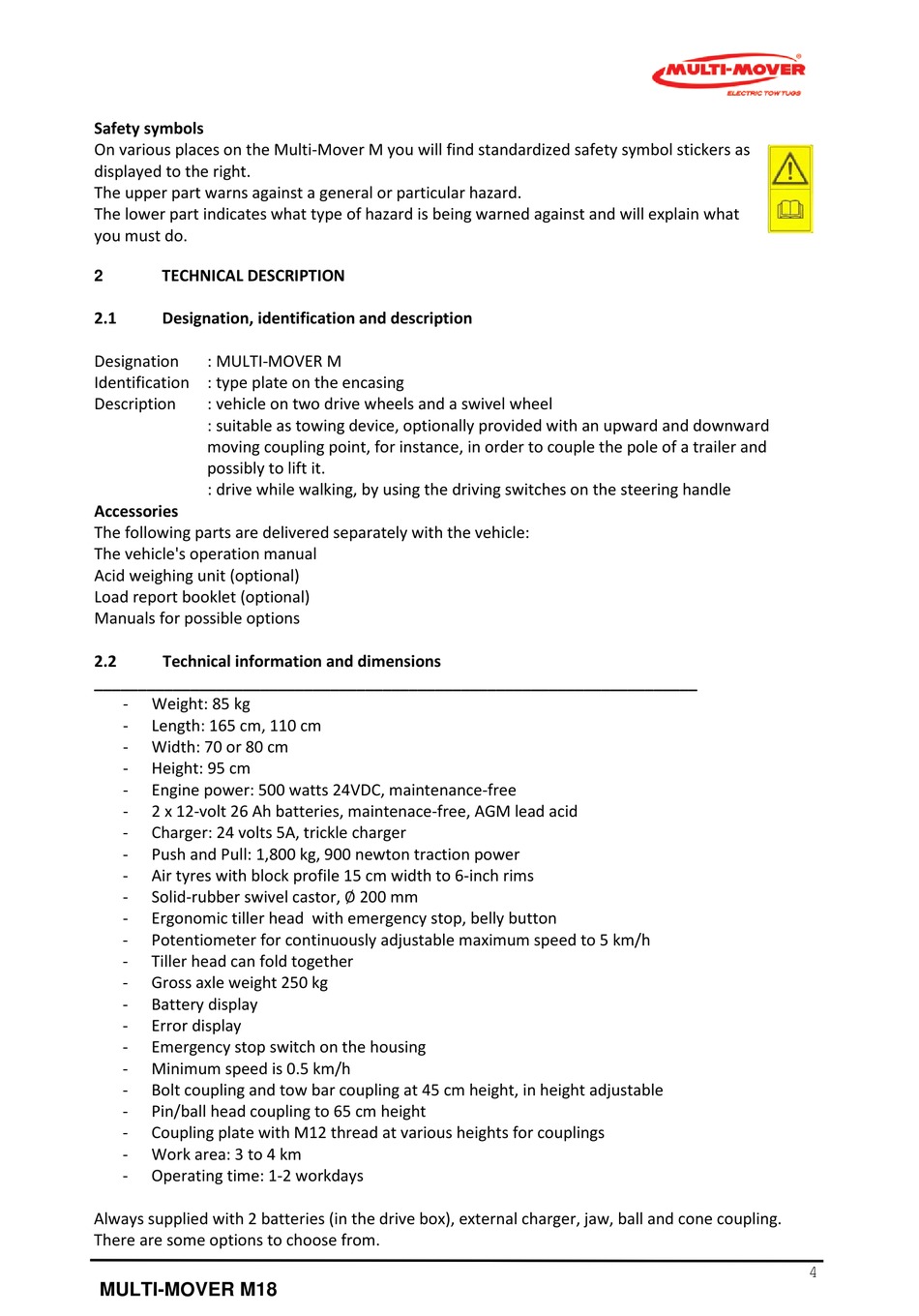

Chapter 2 Technical Description; Designation, Identification And Description; Technical Information And Dimensions - Multi-Mover M18 User Manual And Parts List

Safety symbols
On various places on the Multi-Mover M you will find standardized safety symbol stickers as
displayed to the right.
The upper part warns against a general or particular hazard.
The lower part indicates what type of hazard is being warned against and will explain what
you must do.
TECHNICAL DESCRIPTION
2
2.1

Designation, identification and description

Designation : MULTI-MOVER M
Identification : type plate on the encasing
Description : vehicle on two drive wheels and a swivel wheel
: suitable as towing device, optionally provided with an upward and downward
moving coupling point, for instance, in order to couple the pole of a trailer and
possibly to lift it.
: drive while walking, by using the driving switches on the steering handle
Accessories
The following parts are delivered separately with the vehicle:
The vehicle's operation manual
Acid weighing unit (optional)
Load report booklet (optional)
Manuals for possible options
2.2

Technical information and dimensions

_____________________________________________________________________
- Weight: 85 kg
- Length: 165 cm, 110 cm
- Width: 70 or 80 cm
- Height: 95 cm
- Engine power: 500 watts 24VDC, maintenance-free
- 2 x 12-volt 26 Ah batteries, maintenace-free, AGM lead acid
- Charger: 24 volts 5A, trickle charger
- Push and Pull: 1,800 kg, 900 newton traction power
Solid-rubber swivel castor, ∅ 200 mm
- Air tyres with block profile 15 cm width to 6-inch rims
-
- Ergonomic tiller head with emergency stop, belly button
- Potentiometer for continuously adjustable maximum speed to 5 km/h
- Tiller head can fold together
- Gross axle weight 250 kg
- Battery display
- Error display
- Emergency stop switch on the housing
- Minimum speed is 0.5 km/h
- Bolt coupling and tow bar coupling at 45 cm height, in height adjustable
- Pin/ball head coupling to 65 cm height
- Coupling plate with M12 thread at various heights for couplings
- Work area: 3 to 4 km
- Operating time: 1-2 workdays
Always supplied with 2 batteries (in the drive box), external charger, jaw, ball and cone coupling.
There are some options to choose from.
