Summary of Contents for Lenze P500 series

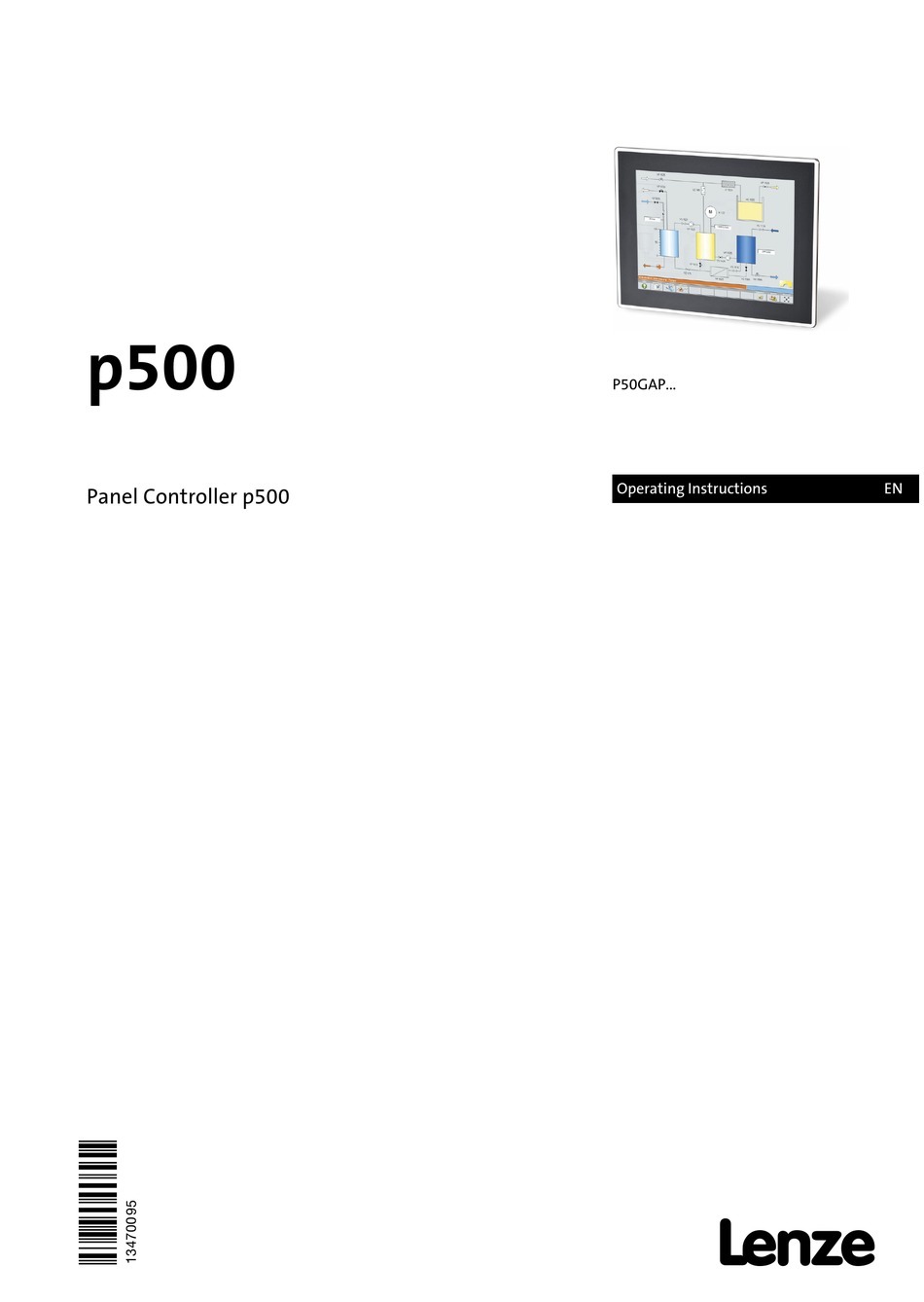

  • Page 1 p500 P50GAP... Operating Instructions Panel Controller p500...
  • Page 2 Please read these instructions before you start working! Follow the enclosed safety instructions. Tip! Information and tools concerning the Lenze products can be found in the download area under www.lenze.com...
  • Page 3: Table Of Contents

    ............Lenze ¯ BA_p500 ¯ 3.0...
  • Page 4 ............... . . Lenze ¯ BA_p500 ¯ 3.0...
  • Page 5: About This Documentation

    About this documentation Contents This documentation provides you with information about the intended use of the Panel Controller p500 in the Lenze "Controller−based Automation" control system. Reference manual "Controller" Here you can find detailed information on the parameter setting and programming of the Lenze Controllers.
  • Page 6: Conventions Used

    16 = see page 16 Documentation reference Reference to another documentation with additional information Example: EDKxxx = see documentation EDKxxx â EtherCAT â EtherCAT is a registered trademark and patented technology licensed by Beckhoff Automation GmbH, Germany. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 7: Notes Used

    Special safety instructions and application notes Pictograph and signal word Meaning Safety note or application note for the operation according Warnings! to UL or CSA requirements. The measures are required to meet the requirements Warnings! according to UL or CSA. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 8: Safety Instructions

    ¯ Only qualified skilled personnel are permitted to work with or on Lenze drive and automation components. According to IEC 60364 or CENELEC HD 384, these are persons ...
  • Page 9 ¯ After the system has been disconnected from the supply voltage, live components and power connections must not be touched immediately because capacitors may be charged. Please observe the corresponding notes on the device. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 10 Safety instructions General safety information Disposal ¯ Recycle or dispose of the product according to the applicable regulations. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 11: Product−Specific Safety Instructions

    Please use the original packaging to return the device! Stop! The product contains electrostatic sensitive devices. Before working in the connection area, the personnel must be free of electrostatic charge. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 12: Safety Instructions For The Installation According To Ul/Csa

    ¯ For use on a Flat Surface of a Type 1, 4 and 4x Indoor Use Only Enclosure Optional filed bus module ¯ Use only together with appropriate cable connectors, provided with screws for securement and secure connector to avoid loosening. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 13 ¯ Conçu pour une utilisation sur une surface plane, coffret de type 1, 4 et 4x (usage intérieur uniquement). Module bus en option ¯ A utiliser exclusivement avec des connecteurs de câble à vis adaptés. Fixer les connecteurs pour éviter toute déconnexion. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 14: Product Description

    Scope of supply Number Name Panel Controller Screw tensioner For screen size 17.8 cm (7.0") For screen size 26.4 cm (10.4") For screen size 38.1 cm (15.0") Connection plug for voltage supply SD card (inserted) Mounting instructions Lenze ¯ BA_p500 ¯ 3.0...
  • Page 15: Application As Directed

    – for monitoring/controlling mass transportation – for monitoring/controlling medical systems – for monitoring/controlling weapons systems In order to ensure the protection of persons and material assets, higher−level safety systems must be used! Lenze ¯ BA_p500 ¯ 3.0...
  • Page 16: Device Features

    MC−PND (PROFINET device) MC−ISI (RS232, RS422, RS485) Control/display elements ü Reset key button Diagnostic LEDs Operating system â Windows Embedded Compact 7 Runtime software ü Logic ü Motion â Visu VisiWinNET Compact CE, 1000 power tags Lenze ¯ BA_p500 ¯ 3.0...
  • Page 17: Identification

    Nameplate  ‚ „ ƒ Input: † … ‡ Type: 32xxC_002 Fig. 3−2 Typenschild Pos. Description Manufacturer Certification Type designation Technical data Serial number as bar code and numerically Material number (customer−specific) Type code/order number Lenze ¯ BA_p500 ¯ 3.0...
  • Page 18 7 = MC−PNC (PROFINET scanner) 8 = MC−PND (PROFINET device) 9 = MC−CAN2 (CANopen master/slave) D = MC−ISI (RS232, RS422, RS485) Control technology runtime software 3 = Logic: LPC1000 (V3.x) 4 = Motion: MPC1200 (V3.x) Lenze ¯ BA_p500 ¯ 3.0...
  • Page 19: Controls And Displays

    Product description Controls and displays Controls and displays p500−003 Fig. 3−3 Control and display elements Pos. Description Touchscreen Panel Controller Slot for MC card (optional) Screw tensioner Lenze ¯ BA_p500 ¯ 3.0...
  • Page 20 System clock not synchronised. blue/ yellow Reset has been triggered. "Backup & Restore" software manual Here you’ll find some detailed information relating to the LED status displays of the optional "Backup & Restore" Engineering tools. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 21: Ups Functionality

    After a successful reset, the POWER−LED is flashing blue. ¯ Press the reset button for more than 10 s: – The Lenze standard setting is loaded and a restart is carried out. – All LEDs are off during the reset.
  • Page 22: Technical Data

    3K3 (without condensation, relative humidity 10 ... 95 %) Pollution EN 61131−2 Degree of pollution 2 Mechanical Vibration EN 61131−2 Shock EN 61131−2 15 g Site altitude Storage/transport < 12000 m amsl Operation < 3000 m amsl Lenze ¯ BA_p500 ¯ 3.0...
  • Page 23: Mechanical Data

    W x H x D [mm] [kg] p500 17.8 cm (7.0") 210 x 155 x 86 26.4 cm (10.4") 263 x 221 x 86 38.1 cm (15.0") 371 x 291 x 93 1) Without MC card Lenze ¯ BA_p500 ¯ 3.0...
  • Page 24: Electrical Data

    Colours [pixels] [cd/m p500 800 x 480 17.8 cm (7.0") 15:9 1:400 20000 (WVGA) 800 x 600 26.4 cm (10.4") 262144 (SVGA) 1:700 50000 1024 x 768 38.1 cm (15.0") (XGA) 1) Backlight Life Time Lenze ¯ BA_p500 ¯ 3.0...
  • Page 25: Mechanical Installation

    ¯ The device must be securely seated in the mounting cutout and the front panel seal must be correctly fitted. Otherwise, class of protection IP65 will not be achieved on the front side of the device! Lenze ¯ BA_p500 ¯ 3.0...
  • Page 26: Dimensions

    Mechanical installation Dimensions Dimensions > 40 > 40 p500_004 Fig. 5−1 Dimensions and mounting clearances Panel Controller [mm] p500 17.8 cm (7.0") 26.4 cm (10.4") 38.1 cm (15.0") Lenze ¯ BA_p500 ¯ 3.0...
  • Page 27: Mounting Steps

    Mechanical installation Mounting steps Mounting steps 1. Insert the panel controller into the mounting cutout. p500_006 Panel Controller [mm] p500 17.8 cm (7.0") 26.4 cm (10.4") 38.1 cm (10.4") Lenze ¯ BA_p500 ¯ 3.0...
  • Page 28 Mechanical installation Mounting steps 2. Use vice clamp. p500_007 Positioning aid for screw clamps 3. Tighten the screws. max. 20 Ncm max. 1.7 lbin p500_008 Lenze ¯ BA_p500 ¯ 3.0...
  • Page 29: Electrical Installation

    ¯ Printed circuit boards may be touched only at places free from electrical contacts and may be placed only on appropriate materials (e.g. on ESD packaging or conductive foam material). ¯ Printed circuit boards may only be transported and stored in ESD packaging. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 30: Emc−Compliant Wiring

    ¯ Maintain the minimum cross−sections prescribed in the safety regulations: – For the EMC, not the cable cross−section is important, but the surface and the contact with a cross−section as large as possible, i.e. large surface. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 31: Connecting Voltage Supply (24 V)

    Cable with Combicon plug 3−pin Combicon socket (conductor cross−section DC voltage supply (24 V) max. 2.5 mm IPC001 Separate earth conductor PE connection M4 (PH 2) (min. 2.5 mm ) with ring cable lug IPC001 Lenze ¯ BA_p500 ¯ 3.0...
  • Page 32: Interfaces For Peripheral Devices

    ¯ Use a strain relief in the immediate vicinity of the RJ45 socket. ¯ Select the contact surface on which the device is mounted as fixing point of the strain relief. ¯ Comply with the related minimum bending radius of the cable used. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 33: Usb Interface

    This makes it possible to avoid automatic update/downgrade processes that are possibly undesirable and difficult to manage. The SD card is used as flash memory for the following applications: ¯ PLC boot project (not for Lenze HMI devices) ¯ Visualisation ¯ Databases of the data manager ¯...
  • Page 34: Maintenance

    – Moisten the cloth with the detergent. Do not spray the detergent directly on the device. ¯ Clean the rear side of the device with a clean, lintfree and soft cloth. Do not use liquid or foaming detergent since it may enter the housing or terminals. Lenze ¯ BA_p500 ¯ 3.0...
  • Page 35: Index

    Mounting conditions, 23 Device, radio interference, 11 Mounting cutout, 27 Device features, 16 Mounting place, 23 Device overview, 19 Mounting position, 23 Device protection, 22 Diagnostic LED, 20 Dimensions, 23, 26 Displays, 19 Disposal, 10 Lenze ¯ BA_p500 ¯ 3.0...
  • Page 36 − application as directed, 15 Voltage supply, 24 Protection of persons, 22 Shock resistance, 22 Short circuit, 29 Protective measures, 22 Static discharge, 29 Status LED, 20 Storage temperature, 22 structure (EMC−compliant wiring), Supply, 24 Lenze ¯ BA_p500 ¯ 3.0...
  • Page 37 © 08/2014 | BA_p500 | .P!ô | 3.0 | TD17 Q J ã Lenze Automation GmbH Postfach 10 13 52, D−31763 Hameln Hans−Lenze−Str. 1, D−31855 Aerzen Germany Ü +49 5154 82−0 Ø +49 5154 82−2800 Ù lenze@lenze.com Ú www.lenze.com Û...
