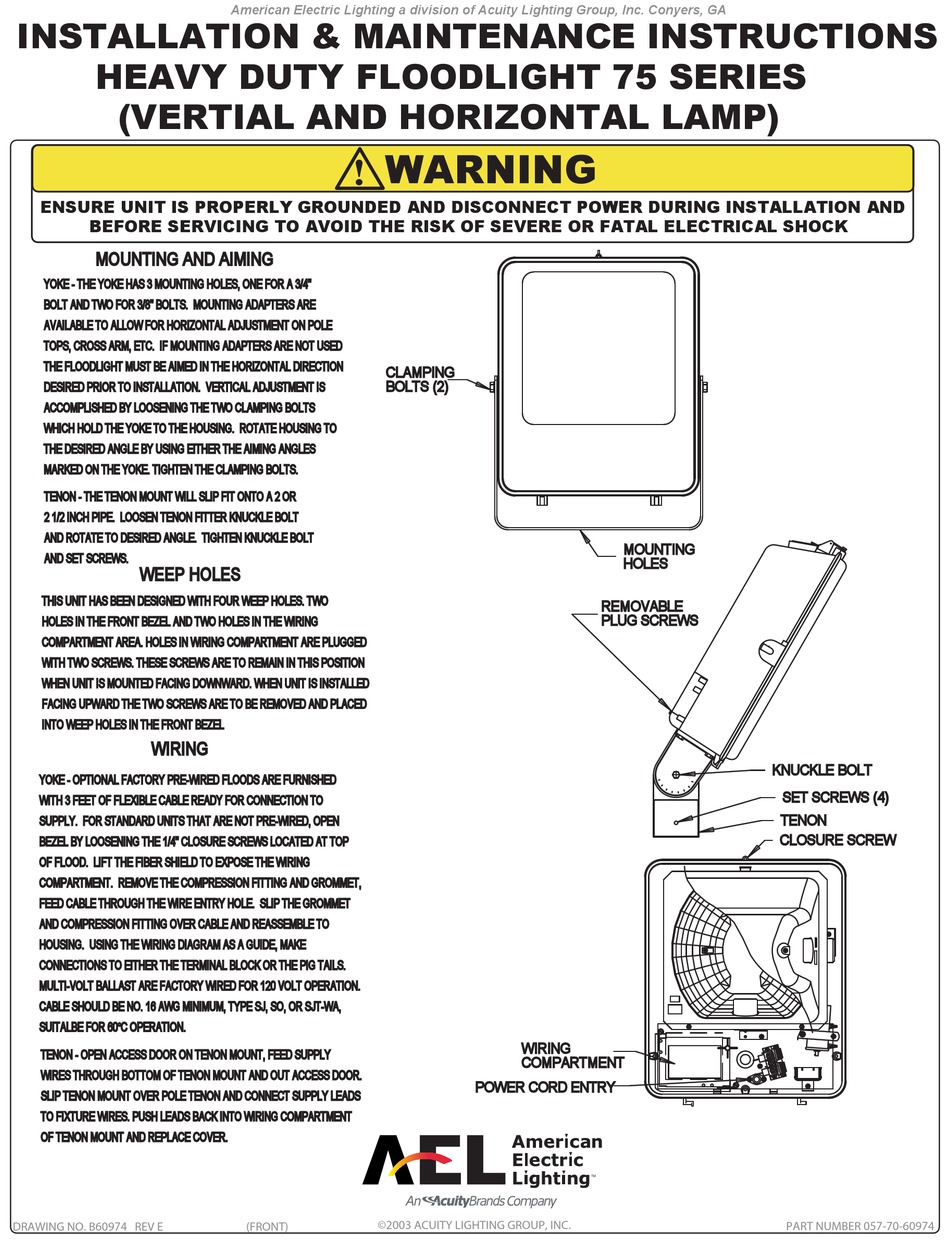

AEL 75 SERIES Installation & Maintenance Instructions

INSTALLATION & MAINTENANCE INSTRUCTIONS
HEAVY DUTY FLOODLIGHT 75 SERIES
(VERTIAL AND HORIZONTAL LAMP)
ENSURE UNIT IS PROPERLY GROUNDED AND DISCONNECT POWER DURING INSTALLATION AND
BEFORE SERVICING TO AVOID THE RISK OF SEVERE OR FATAL ELECTRICAL SHOCK
MOUNTING AND AIMING
YOKE - THE YOKE HAS 3 MOUNTING HOLES, ONE FOR A 3/4"
BOLT AND TWO FOR 3/8" BOLTS. MOUNTING ADAPTERS ARE
AVAILABLE TO ALLOW FOR HORIZONTAL ADJUSTMENT ON POLE
TOPS, CROSS ARM, ETC. IF MOUNTING ADAPTERS ARE NOT USED
THE FLOODLIGHT MUST BE AIMED IN THE HORIZONTAL DIRECTION
DESIRED PRIOR TO INSTALLATION. VERTICAL ADJUSTMENT IS
ACCOMPLISHED BY LOOSENING THE TWO CLAMPING BOLTS
WHICH HOLD THE YOKE TO THE HOUSING. ROTATE HOUSING TO
THE DESIRED ANGLE BY USING EITHER THE AIMING ANGLES
MARKED ON THE YOKE. TIGHTEN THE CLAMPING BOLTS.
TENON - THE TENON MOUNT WILL SLIP FIT ONTO A 2 OR
2 1/2 INCH PIPE. LOOSEN TENON FITTER KNUCKLE BOLT
AND ROTATE TO DESIRED ANGLE. TIGHTEN KNUCKLE BOLT
AND SET SCREWS.
WEEP HOLES
THIS UNIT HAS BEEN DESIGNED WITH FOUR WEEP HOLES. TWO
HOLES IN THE FRONT BEZEL AND TWO HOLES IN THE WIRING
COMPARTMENT AREA. HOLES IN WIRING COMPARTMENT ARE PLUGGED
WITH TWO SCREWS. THESE SCREWS ARE TO REMAIN IN THIS POSITION
WHEN UNIT IS MOUNTED FACING DOWNWARD. WHEN UNIT IS INSTALLED
FACING UPWARD THE TWO SCREWS ARE TO BE REMOVED AND PLACED
INTO WEEP HOLES IN THE FRONT BEZEL
WIRING
YOKE - OPTIONAL FACTORY PRE-WIRED FLOODS ARE FURNISHED
WITH 3 FEET OF FLEXIBLE CABLE READY FOR CONNECTION TO
SUPPLY. FOR STANDARD UNITS THAT ARE NOT PRE-WIRED, OPEN
BEZEL BY LOOSENING THE 1/4" CLOSURE SCREWS LOCATED AT TOP
OF FLOOD. LIFT THE FIBER SHIELD TO EXPOSE THE WIRING
COMPARTMENT. REMOVE THE COMPRESSION FITTING AND GROMMET,
FEED CABLE THROUGH THE WIRE ENTRY HOLE. SLIP THE GROMMET
AND COMPRESSION FITTING OVER CABLE AND REASSEMBLE TO
HOUSING. USING THE WIRING DIAGRAM AS A GUIDE, MAKE
CONNECTIONS TO EITHER THE TERMINAL BLOCK OR THE PIG TAILS.
MULTI-VOLT BALLAST ARE FACTORY WIRED FOR 120 VOLT OPERATION.
CABLE SHOULD BE NO. 16 AWG MINIMUM, TYPE SJ, SO, OR SJT-WA,
SUITALBE FOR 60×C OPERATION.
TENON - OPEN ACCESS DOOR ON TENON MOUNT, FEED SUPPLY
WIRES THROUGH BOTTOM OF TENON MOUNT AND OUT ACCESS DOOR.
SLIP TENON MOUNT OVER POLE TENON AND CONNECT SUPPLY LEADS
TO FIXTURE WIRES. PUSH LEADS BACK INTO WIRING COMPARTMENT
OF TENON MOUNT AND REPLACE COVER.
DRAWING NO. B60974 REV E
American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA
WARNING
!
CLAMPING
BOLTS (2)
©2003 ACUITY LIGHTING GROUP, INC.
(FRONT)
MOUNTING
HOLES
REMOVABLE
PLUG SCREWS
WIRING
COMPARTMENT
POWER CORD ENTRY
KNUCKLE BOLT
SET SCREWS (4)
TENON
CLOSURE SCREW
PART NUMBER 057-70-60974
