DG-WU2008
User Manual
V1.0
2018-10-10
As our products undergo continuous development the specifications are subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-WU2008 and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WU2008

Summary of Contents for Digisol DG-WU2008

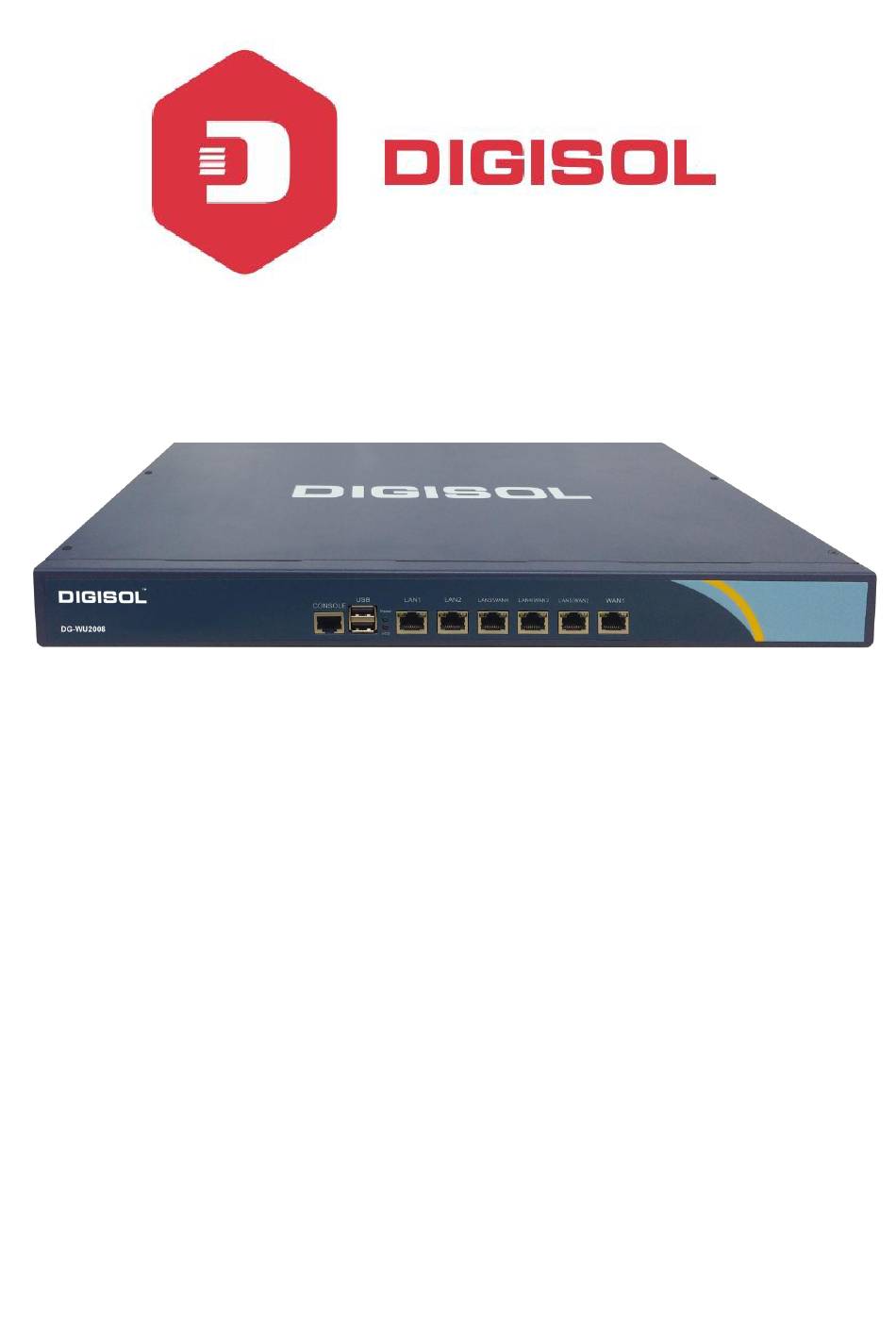

  • Page 1 DG-WU2008 User Manual V1.0 2018-10-10 As our products undergo continuous development the specifications are subject to change without prior notice...

  • Page 2: Table Of Contents

    DG-WU2008 User Manual Content Chapter 1 Product Installation, Default Data, Packing……………………………………………………………………………………..4 Chapter 2 Hardware Introduction……………………………………………………………………………………………………………………4 Chapter 3 Login……………………………………………………………………………………………………………………………………………….7 Chapter 4 WEB GUI Configuration…………………………………………………………………………………………………………………..9 4.1 AC…………………………………………………………………………………………………………………………………………………….10 4.1.1 Device List……………………………………………………………………………………………………………………………..10 4.1.2 Zero Config……………………………………………………………………………………………………………………………12 4.1.3 Device Group…………………………………………………………………………………………………………………………14 4.1.4 Device Log…………………………………………………………………………………………………………………………….15 4.1.5 Upgrade Manage…………………………………………………………………………………………………………………..16 4.1.6 Server Config…………………………………………………………………………………………………………………………16...
  • Page 3 DG-WU2008 User Manual Chapter 8 Security Center………………………………………………………………………………………………………………………………26 8.1 Port Mapping……………………………………………………………………………………………………………………………………26 8.2 IP Filter…………………………………………………………………………………………………………………………………………….26 8.3 URL Filter…………………………………………………………………………………………………………………………………………27 8.4 MAC Filter………………………………………………………………………………………………………………………………………..27 8.5 DMZ…………………………………………………………………………………………………………………………………………………28 Chapter 9 IP/Time Group……………………………………………………………………………………………………………………………….29 Chapter 10 Authentication…………………………………………………………………………………………………………………………….30 Chapter 11 Routing………………………………………………………………………………………………………………………………………..35 Chapter 12 Device …………………………………………………………………………………………………………………………………………36 12.1 Management………………………………………………………………………………………………………………………………….36 12.2 Device Log …………………………………………………………………………………………………………………………………….37 12.3 Firmware Update……………………………………………………………………………………………………………………………37...

  • Page 4: Chapter 1 Product Installation, Default Data, Packing

    Chapter 1: Product Instruction, Default Data, Packing 1.1 Product Instruction: DG-WU2008 is an CAPWAP based WLAN Controller, With main functions are Router, AC Controller, Management, VLAN Management functions; When worked as a router, it can access into 1000 end users, to do advertisement and captive portal authentication.
  • Page 5 DG-WU2008 User Manual 1.2 Default Data: Management IP address & LAN IP address: 192.168.10.1 Login Password: admin 1.3 Packing and Accessory  DG-WU2008 WLAN Controller  Power Cable  Mounting kit  User Manual ________________________________________________________________________________________________________...

  • Page 6: Chapter 2 Hardware Introduction

    DG-WU2008 User Manual Chapter 2: Hardware Introduction Hardware: WAN1: WAN Port in Default mode. WAN2/LAN5; WAN3/LAN4; WAN4/LAN3: LAN Ports in default mode, but can set up as WAN ports in gateway operation mode based on requirement. LAN1, LAN 2: LAN Ports as default CONSOLE: Serial port USB: Two for USB flash &...

  • Page 7: Chapter 3 Login

    DG-WU2008 User Manual Chapter 3: Login The default IP address of the device is 192.168,10.1. Setup an IP address for PC. The IP address should be anyone between 192.168.10.2~192.168.10.254. Or else the PC will obtain the IP address directly from the AC controllers DHCP server.
  • Page 8 DG-WU2008 User Manual Open browser, input AC Controller’s IP address 192.168.10.1, Enter to log into AC controller’s WEB GUI. Input the password as admin and click on Login ________________________________________________________________________________________________________...

  • Page 9: Chapter 4 Web Gui Configuration

    DG-WU2008 User Manual Chapter 4: WEB GUI Configuration When you login into this AC controller, the following home page will pop up: Hardware Info: It gives the CPU and Memory usage info. RealTime Users: It gives the info of no. end users access into it the controller when it work as Gateway.

  • Page 10: Device List

    DG-WU2008 User Manual WAN: Displays the WAN port info. Real time speed: Shows the WAN Ethernet speed, different WAN with different color 4. 1. AC AC: Wireless AP control and management Click on AC, it will pop up following picture, which showed all the wireless AP connected into this WLAN controller.
  • Page 11 DG-WU2008 User Manual Online AP: Shows the qty of wireless AP which are online WLAN Users: Shows the qty of end users which are accessing into wireless AP. Search: Search the wireless AP by IP address or MAC address Batch Set: Set Channel, TX Power, Time to restart, Max users, device login password in batch.

  • Page 12: Zero Config

    DG-WU2008 User Manual 4.1.2: Zero Config This function makes wireless AP plug and play, but recommend to configure this function before connecting wireless AP into this network as following reason: 1. If you configure this function after wireless AP connected into this network, then all wireless AP should be reboot, so that the wireless AP will get the configuration from Zero config.
  • Page 13 DG-WU2008 User Manual Wireless Basic: to setup wireless AP’s SSID, password, Tag VLAN info Device List: Wlan Device 1 and Wlan Device 2. Wlan Device 1 mean 2.4G Radio mailny. Wlan Device 2 mean 2.4G or 5.8G radio, based on wireless AP.

  • Page 14: Device Group

    DG-WU2008 User Manual RF Output Power: 100%, 75%, 50%, 25%, 12.5%, can adjust it based on application. More RF Power, mean more WiFi Range; Coverage Threshold: This make end users to connect the outdoor CPE with stronger signal strength; After setup all the data, click Apply to add zero config group as follow: Pls note, click on the config button , can modify the data if need.

  • Page 15: Device Log

    DG-WU2008 User Manual Add AP to Group: 4.1.4: Device Log Device Log is keeping the operation record of this WLAN controller. ________________________________________________________________________________________________________...

  • Page 16: Upgrade Manage

    DG-WU2008 User Manual 4.1.5: Upgrade Manage In this part, AC controller can do the firmware of wireless AP upgrade automatically. 4.1.6: Server Config: Server: This AC controller can assign IP address for wireless AP automatic, no need to change wireless AP’s IP address one by one...
  • Page 17 DG-WU2008 User Manual Refresh: click to refresh the wireless AP’s IP address Function: Enable/Disable the Server config, default is Enable Server IP address: default is 192.168.200.1; can be changed to anyone you like, but pls note, if server IP is 192.168.200.1, then wireless AP’s IP address will be from 192.168.200.2 to 192.168.200.254, to 192.168.201.X, to 192.168.202.X...

  • Page 18: Wan

    DG-WU2008 User Manual 4.2. WAN If controller is working as Gateway. Click on WAN, which includes WAN setting, Load Balance, Policy Routing 4.2.1 WAN Setting: WAN1 is WAN port by default; WAN2, WAN3, WAN4 work as LAN ports by default, but can be configured as WAN ports, which make Ethernet backup and Ethernet superposition.

  • Page 19: Load Balance

    DG-WU2008 User Manual If this is used to work as controller only, then can disable the WAN function as follow: NOTE: When you disable the WAN, make the controller LAN connect with gateway’s LAN port. 4.2.2 Load Balance Load Balance is used to set bandwidth when there are multiple WAN ports; It can detect the IP address auto or manual;...

  • Page 20: Lan

    DG-WU2008 User Manual 4.3 LAN This includes LAN setting and DHCP server configuration. 4.3.1 LAN Setting: User can change the controllers LAN ip address and also edit the DHCP server parameters ________________________________________________________________________________________________________...

  • Page 21: Static Dhcp

    DG-WU2008 User Manual 4.3.2 Static DHCP Static DHCP: admin can bind certain MAC address with respective IP address. ________________________________________________________________________________________________________...

  • Page 22: Chapter 5 Vlan Settings

    DG-WU2008 User Manual Chapter 5 VLAN Settings Through VLAN setting, we can connect WLAN controller’s LAN port with VLAN switch’s trunk port, config the VLAN id and associated parameters so that the WLAN controller can manage the wireless AP under particular VLAN.

  • Page 23: Chapter 6 Vpn

    DG-WU2008 User Manual Chapter 6 VPN If want to use VPN, first make sure this WLAN controller is working in gateway mode. This controller support PPTP/L2TP two type; Choose the right VPN type, then config the VPN server and VPN client separately.
  • Page 24 DG-WU2008 User Manual Add VPN user ________________________________________________________________________________________________________...

  • Page 25: Chapter 7 Flow Control

    DG-WU2008 User Manual Chapter 7 Flow Control Flow Control is used to limit end users Ethernet speed; NOTE: First need to create an IP group and then limit the Ethernet speed for that group Shared Mode: mean all end users in this IP group share the configured downstream and upstream Ethernet speed.

  • Page 26: Chapter 8 Security Center

    DG-WU2008 User Manual Chapter 8 Security Center In this part user can config the firewall features such as IP/MAC/URL filter 8.1 Port Mapping Port forwarding is an application of network address translation(NAT) that redirects a communication request from one address and port number combination to another while the packets are traversing a network gateway, such as a router or firewall 8.2 IP Filter...

  • Page 27: Url Filter

    DG-WU2008 User Manual 8.3 URL Filter When enable URL filter, the router can reject users to visit the denied URL. 8.4 MAC Filter When enable MAC filter, router will allow or prohibit this MAC address to access into this router based on rules.

  • Page 28: Dmz

    DG-WU2008 User Manual 8.5 DMZ DMZ or Demilitarized Zone is a physical or logical subnetwork that contains an exposes an organization’s external-facing service to a usually larger and untrusted network, usually the Internet. The purpose of a DMZ is to add an additional layer of security to an organization’s local area network.

  • Page 29: Chapter 9 Ip/Time Group

    DG-WU2008 User Manual Chapter 9 IP/Time Group Create and IP/TIME group which can then be used to apply flow control and authentication paramaters. IP Group: can add single IP in the group or can assign and IP addr range. TIME Group: can add group based in time and days.

  • Page 30: Chapter 10 Authentication

    DG-WU2008 User Manual Chapter 10 Authentication There are local authentication and remote authentication. Remote Authentication: Enter the Remote authentication server details and URL white list and MAC white list details. NOTE: Free port is the LAN port which are set from authentication.
  • Page 31 DG-WU2008 User Manual Local Auth Page: admin the customize the auth page from here Local Auth Params: used to setup the authentication method SMS Auth, Member Auth, Radius available. ________________________________________________________________________________________________________...
  • Page 32 DG-WU2008 User Manual SMS Auth: Get authentication code by messages, but this have to work with SMS gateway. Member Auth: can import member list by excel form, or can work with other radius server to do the member auth. Radius: can work with other radius server, to make it work as authentication server.
  • Page 33 DG-WU2008 User Manual Local auth policy for users: Like which IP address will get the authentication, and what time they will be authenticated, which authentication method will be pop up. Member Manage: Can import or export this member list if needed. You can create users list here.
  • Page 34 DG-WU2008 User Manual ________________________________________________________________________________________________________...

  • Page 35: Chapter 11 Routing

    DG-WU2008 User Manual Chapter 11 Routing Includes system routing and static route In System routing it shows system routing info Static Route: add the static route based on destination IP address. ________________________________________________________________________________________________________...

  • Page 36: Chapter 12 Device

    DG-WU2008 User Manual Chapter 12 Device This includes management of WLAN Controller, such as backup, reset, reboot, device log, upgrade firmware, modify password... 12.1 Management Backup Save the WLAN controller configuration file to your computer, can restore to the same configuration if restore this file.

  • Page 37: Device Log

    DG-WU2008 User Manual 12.2. Device Log Device Log Enable or Disable to show system log Remote Log Service To decide whether send System log into some pointed remote server synchronously; 12.3. Firmware Upgrade This feature allows you to upgrade the firmware.

  • Page 38: Modify Password

    DG-WU2008 User Manual 12.4 Modify Password Modify the login password here: 12.5: Maintenance You can set reboot timer of the device or enable/disable the console login. 12.6 Reboot Device To Reboot the WLAN controller now ________________________________________________________________________________________________________...

  • Page 39: System Time

    DG-WU2008 User Manual 12.7 System time User can set the system time manually by syncing it with the host or using NTP server. ________________________________________________________________________________________________________...

  • Page 40: Chapter 13 Ddns

    DG-WU2008 User Manual Chapter 13 DDNS DDNS or Dynamic DNS, is a method of automatically updating a name server in the Domain Name System (DNS) ________________________________________________________________________________________________________...
  • Page 41 DG-WU2008 User Manual ________________________________________________________________________________________________________...
