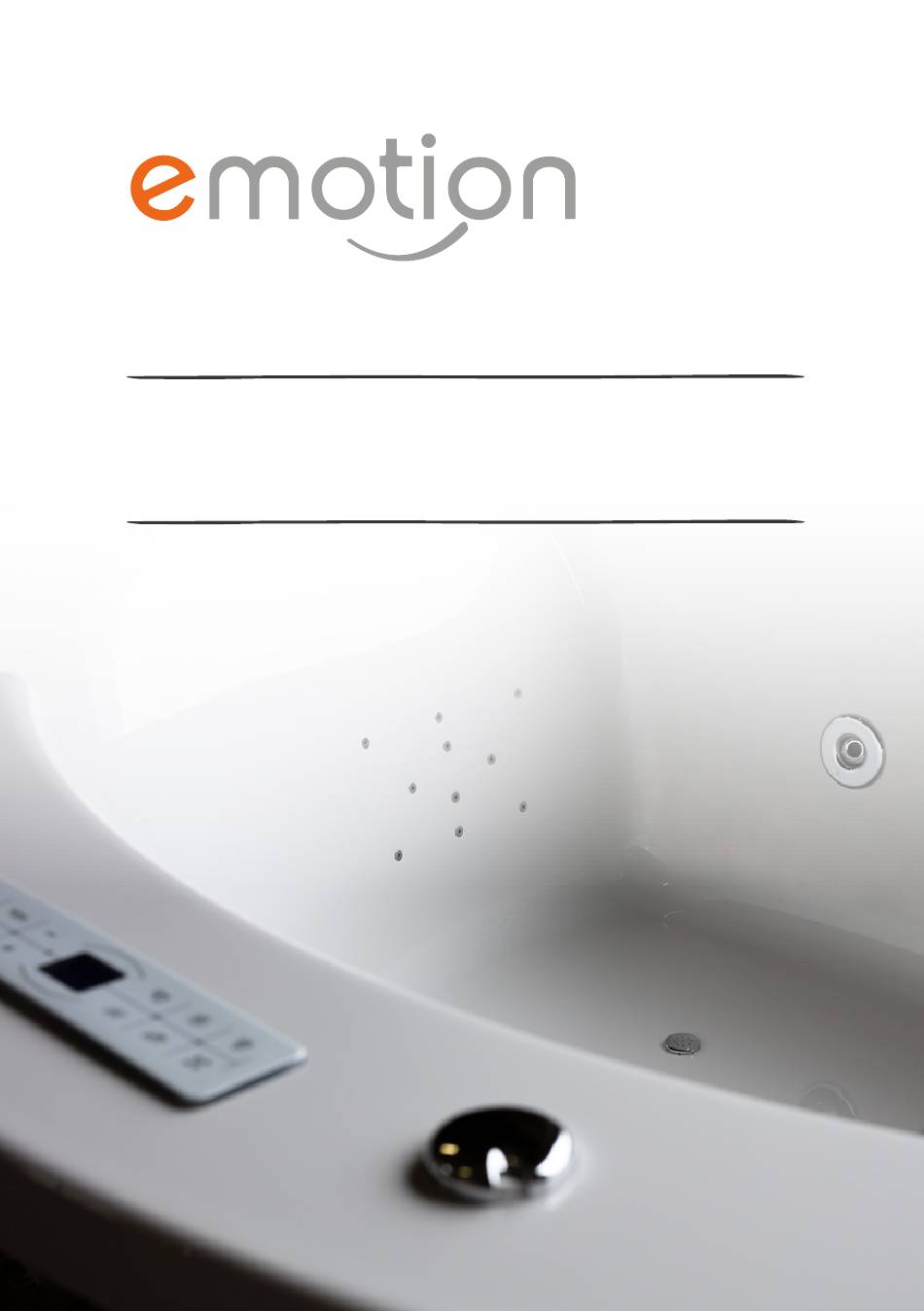

- Page 1 Premium Whirlpool Operating and Installation Instructions...
-
Page 3: Table Of Contents
Ladies and Gentlemen, Thank you for choosing our product. Prior to installing the product and the initial start-up, please take some time to read this manual carefully to familiarize yourself with the safety aspects. Please open the package (wooden crate) using a cordless screw driver (TX20 bit). -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Children or anyone needing assistance should not use the whirlpool spa without supervision. People with heart conditions, high blood pressure or diabetes or other serious illnesses should exercise increased caution or consult a doctor before using the whirlpool tub. 2. -
Page 5: Part Names
PART NAMES (Features may vary depending on the configuration.) 3-unit fixtures (optional) Waterfall (optional) Handheld shower head (optional) Side jets and suction fitting Drain and bottom air nozzles... - Page 6 Back massage jets Drain and overflow fitting Venturi (air admixture valve) LED touch-display control panel 3-color light therapy LED...
-
Page 7: Specifications And Installation
SPECIFICATIONS AND INSTALLATION 230 V voltage 16 A fuse 50 Hz frequency water supply hose (½ to ½ inch) (Important: No rigid pipe connection between whirlpool tub and water line – risk of breaking!) 50 mm drain Important information for the electrical installation All electrical work must be performed with the power shut off (if applicable, remove the bathroom fuse). - Page 8 7. In addition, the effectiveness of the implemented protective measures, ground and insulation connections, potential equalization, insulation status etc. of the newly installed equipment must be verified and documented. 8. If the tub control is to be used in other (e. g. medical) areas, such as hospitals, outpatient clinics, health spas and rehabilitation facilities, the additional requirements for the installation of such systems must be complied with.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS water pump plus air pump minus heater On/Off key lock colored lighting LED FM/Radio /Bluetooth These functions are not ozone disinfection included in the feature set. display On/Off and key lock Press Key 10 to activate the whirlpool system. This will activate the backlighting of the touch control panel. - Page 10 Venturi (air admixture valve) If you open the Venturi valve while the water pump is running, the jet system will be supplied with extra air, the water pressure increases and the massage effect is intensified. In most cases, the valve is factory-preset set to the maximum value and open.
-
Page 11: Initial Start-Up / Test Run
INITIAL START-UP / TEST RUN Please take your time and test your whirlpool spa thoroughly! 1. Make sure the space under the whirlpool is clearly visible so any leaks can be detected immediately. 2. Fill the hot tub with water until the water level sensor (TLS) is covered. During this time, check all the lines, jets and nozzles to make sure they are tight. -
Page 12: Final Assembly
FINAL ASSEMBLY Required installation tools (not included) sIlIKOn SILICON sIlIKOn TX20 bit Countersink INCLUDED IN THE SHIPMENT... - Page 13 Preparation of final assembly Wall mounting of the tub is required for safety and stability purposes and must take place before the final assembly of the whirlpool is completed. Determine the exact height for the tub mounting brackets: 1. Place the hot tub in its intended final position. 2.
- Page 14 3.0 Align the L-brackets on the tub frame with the skirt. 3.1 Adjust the skirt holders on the blocks under the tub rim.
- Page 15 3.2 Loosen the L bracket a little, extend it and adjust it in the correct position; then screw it in place. Attach the skirt provisionally to the tub so you can mark the drill points. Remove the skirt again. To prevent scratches and tears, TX20 bit you should drill the holes in the skirt with a wood drill and prepare these holes with a countersink for the screw fastening.
- Page 16 Emotion Warenhandels GmbH | Bordeaux Straße 3 | 28309 Bremen | Phone 020 - 34 99 50 19 | Email: contact@emotion-24.co.uk | www.emotion-24.co.uk...
