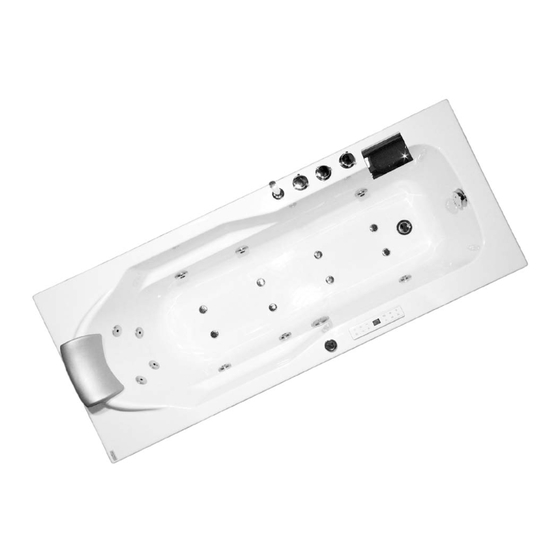

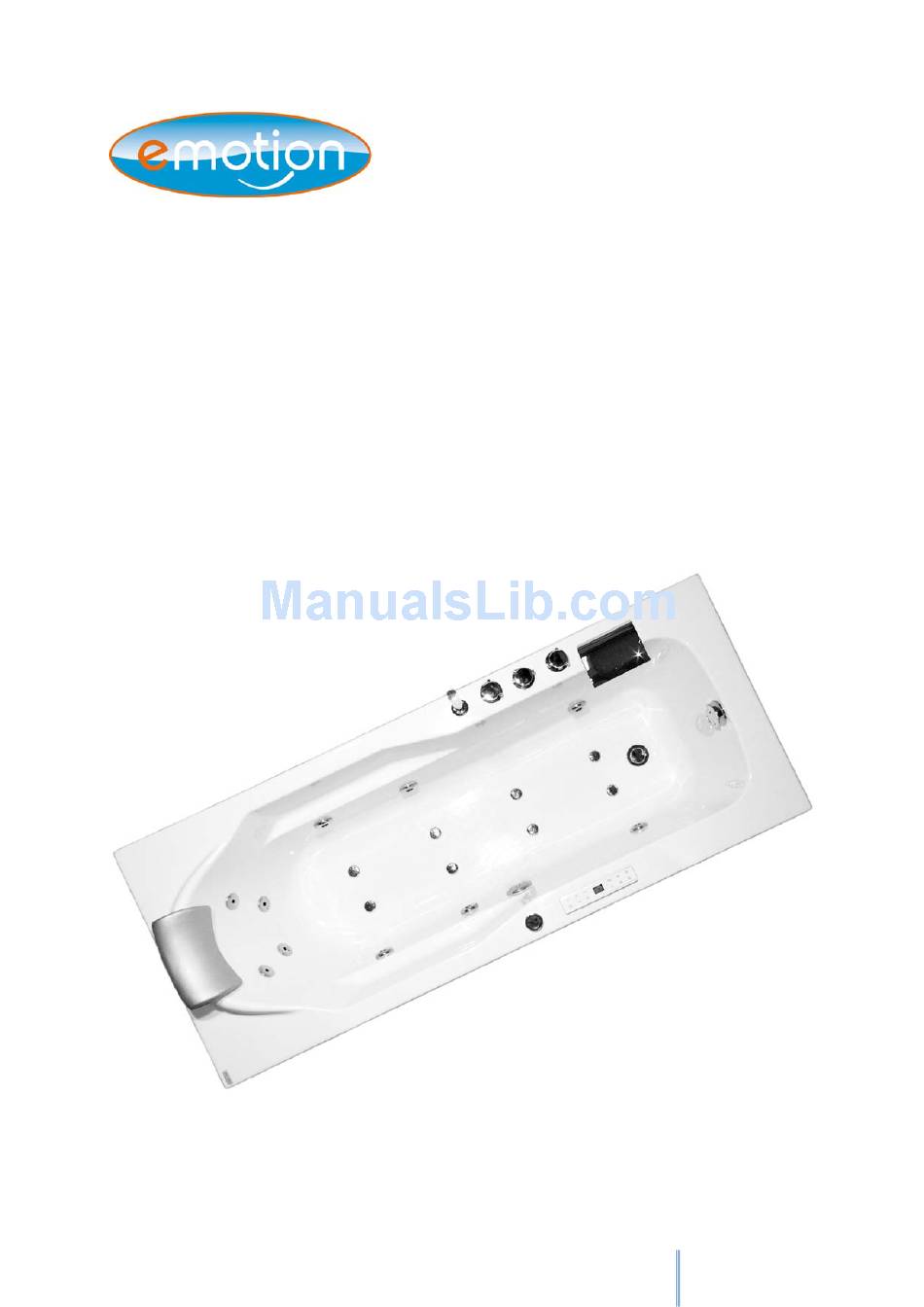

- Page 1 Optimus 170 Premium left Operating and installation instructions Is there a problem with your product or do you have any questions? Please feel free to contact our hotline: 020 - 8528 1729...
-
Page 2: Table Of Contents
Index Accessories and sketch Safety instructions Part names Operating the touch displays Whirlpool control 7-10 Dry-running protection and settings 10-11 Heating and secondary drying 11-12 Electrical connection and installation mounting 12-15 Care and maintenance Required installation tools... -
Page 3: Accessories And Sketch
Ladies and Gentlemen, Thank you for choosing our product. For safety reasons, please take some time to read this manual before installing and starting up carefully. Please open the packaging with suitable tools. Accessories and sketch: 1 x waterfall faucet and gasket 1 x hand shower and hand shower hose Fixing material for the skirt with wall mounting... -
Page 5: Safety Instructions
Safety instructions 1. Children and people who require care should not bathe without supervision. Persons with heart problems, high blood pressure or diabetes, and other serious illnesses should use the spa with increased caution or after consulting a physician. 2. Persons with heart problems or high blood pressure are discouraged from using a hot tub. -
Page 6: Part Names
Part names 1. Overflow 9. Headrest 2. Outflow 10. Waterfall faucet 3. Side jets 11. Hot water 4. Touch display 12. Changeover switch 5. Air injection vent 13. Cold water 6. Suction 14. Hand shower 7. Ground air nozzles 8. Back jets... - Page 7 Using the touch screen 1. Air nozzles 2. Water jets (large jet) 3. LED Light Therapy...
-
Page 8: Whirlpool Control
Whirlpool Control Type 230 8014B-S03 Rudolf Koller GmbH Type 230 8014B-S03 Rudolf-Koller-Straße 1 112 Rev.2 A-3902 Vitis Ing. Aigner A Tel. +43/2841/8207 Fax. +43/2841/8221 Email: office.vitis.at@rkoller.com Technical changes and printing errors reserved! - Page 11 1 General This control has four outlets. Outlet Heating (16) is for heating, Outlet Lamp (15) is for the transformer of the lamp and Outlet Pump (14) is designated for the pump. Outlet Fan (12) is designated for connection of a fan that is only switched on and off. This outlet cannot be regulated.
- Page 12 3 Description of the status indicator for switches with edge illumination If a switch with edge illumination is used, the configuration connector “Side LED” can be connected for the edge illumination. The side LEDs of the switch are then illuminated when the water level is adequate (hight of TLS -dry running protection sensor) and switched off when the water level is inadequate.
- Page 13 Connection description black +12V DC max. 50mA blue brown signal output L-level = water present H-level = water not present 6 Settings 6.1 Interval adjustment The interval can be adjusted with the sDIP-switch S4 (see diagram position 1). When in interval mode, the units are switched “on”...
- Page 14 8 Description of the dryer automatic drying The DIP-switch S3 (see diagram position 1) must be in the “ON” position in order to activate this function automatically after each time the tub is used. If the water in the tub reaches the filling level (TLS-hight) the drying function will be activated after 30 seconds.
- Page 15 wire stripping length of the cable ends: 6mm • When conductors made of thin wires are used, ferrules may be used in conjunction • The protective ground conductor is to be held long enough, that it is pulled out of the •...
- Page 16 Austria ÖVE-EN 1, part 4 paragraph 49/1980 or, if applicable, 1996 All electric components must be installed in such a way, that persons in the bathroom will only be able to access parts with safety extra-low voltage of 12V. Care must also be taken that electrical installations are set-up, mounted and affixed in such a way that they cannot fall into the bathtub.
-
Page 17: Installation Instructions
Installation instructions Installation of water connections (before initial use): 1. Secure the hand shower and the waterfall and connect them to the fitting. 2. Connect the hot tub to your water connections. 3. Connect the drain pipe to your sewer connection. First activation (before final assembly): 1. -
Page 18: Care And Maintenance
Care and maintenance 1. For the daily cleaning of the tub, use a soft cloth and regular household detergent. Please avoid cleaners that contain acetone or ammonia. For disinfection, never use formic acid- or formaldehyde-containing agents. The automatic ozone disinfection kills germs and bacteria. 2.
