Summary of Contents for MKS 1249A
- Page 1 115910-P1 Rev C, 12/98 Instruction Manual MKS Type 1249A Solenoid Valve Driver Six Shattuck Road Fax: (978) 975-0093 Andover, MA 01810-2449 E-mail: mks@mksinst.com (800) 227-8766 or (978) 975-2350 Web site: http://www.mksinst.com...
- Page 2 MKS sales representative or distributor from which the equipment was purchased or, in the case of a direct purchase from MKS, with the MKS home office in Andover, Massachusetts, USA.
- Page 3 115910-P1 Rev C, 12/98 MKS Type 1249A Solenoid Valve Driver...
- Page 4 All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system, except as may be expressly permitted in writing by MKS Instruments, Inc.
-
Page 5: Table Of Contents
Table of Contents Table of Contents Valve Safety Information ....................... 1 Symbols Used in This Instruction Manual..............1 Symbols Found on the Unit ..................2 Safety Procedures and Precautions ................3 Sicherheitshinweise für das Ventil..................5 In dieser Betriebsanleitung vorkommende Symbole ........... 5 Erklärung der am Gerät angebrachten Symbole ............ - Page 6 Table of Contents Power Requirements ..................23 Setup..........................24 Dimensions....................24 Mounting Instructions..................25 Electrical Information....................26 Grounding .....................26 Connectors.....................26 Chapter Three: Overview .......................29 General Information ....................29 Instrument Components....................30 Interface Connector..................30 Valve Connector ....................30 Bias Adjust Potentiometer ................31 Valve Position Indicator LED ................31 On-Board Jumpers......................32 Jumper J3 - Input Type ..................33 Jumper J4 - Full Scale Voltage...............33 Jumper J5 - Digital Input Control..............33...
- Page 7 List of Figures and Tables List of Figures and Tables Figures Figure 1: Preferred Method To Connect an Overall Metal Braided Shielded Cable ....22 Figure 2: Alternate Method To Connect an Overall Metal Braided Shielded Cable ....22 Figure 3: Top View Dimensions of the 1249 Unit ..............24 Figure 4: Front View Dimensions of the 1249 Unit ...............
- Page 8 List of Figures and Tables...
-
Page 9: Valve Safety Information
Valve Safety Information Symbols Used in This Instruction Manual Valve Safety Information Symbols Used in This Instruction Manual Definitions of WARNING, CAUTION, and NOTE messages used throughout the manual. Warning The WARNING sign denotes a hazard to personnel. It calls attention to a procedure, practice, condition, or the like, which, if not correctly performed or adhered to, could result in injury to personnel. -
Page 10: Symbols Found On The Unit
Symbols Found on the Unit Valve Safety Information Symbols Found on the Unit The following table describes symbols that may be found on the unit. Definition of Symbols Found on the Unit Protective earth (ground) Off (Supply) Earth (ground) On (Supply) IEC 417, No.5019 IEC 417, No.5017 IEC 417, No.5008... -
Page 11: Safety Procedures And Precautions
DO NOT SUBSTITUTE PARTS OR MODIFY VALVE Do not install substitute parts or perform any unauthorized modification to the valve. Return the valve to an MKS Calibration and Service Center for service and repair to ensure that all safety features are maintained. - Page 12 Safety Procedures and Precautions Valve Safety Information DO NOT OPERATE IN AN EXPLOSIVE ENVIRONMENT To avoid explosion, do not operate this product in an explosive environment unless it has been specifically certified for such operation. USE PROPER FITTINGS AND TIGHTENING PROCEDURES All valve fittings must be consistent with valve specifications, and compatible with the intended use of the valve.
-
Page 13: Sicherheitshinweise Für Das Ventil
Sicherheitshinweise für das Ventil In dieser Betriebsanleitung vorkommende Symbole Sicherheitshinweise für das Ventil In dieser Betriebsanleitung vorkommende Symbole Bedeutung der mit WARNUNG!, VORSICHT! und HINWEIS gekennzeichneten Absätze in dieser Betriebsanleitung. Warnung! Das Symbol WARNUNG! weist auf eine Gefahr für das Bedienpersonal hin. -
Page 14: Erklärung Der Am Gerät Angebrachten Symbole
Erklärung der am Gerät angebrachten Symbole Sicherheitshinweise für das Ventil Erklärung der am Gerät angebrachten Symbole Nachstehender Tabelle sind die Bedeutungen der Symbole zu entnehmen, die am Gerät angebracht sein können. Bedeutung der am Gerät angebrachten Symbole Ein (Energie) Aus (Energie) Erdanschluß... -
Page 15: Sicherheitsvorschriften Und Vorsichtsmaßnahmen
Ersetzen Sie keine Teile mit baugleichen oder ähnlichen Teilen, und nehmen Sie keine eigenmächtigen Änderungen am Ventil vor. Schicken Sie das Ventil zwecks Wartung und Reparatur an den MKS-Kalibrierungs- und -Kundendienst ein. Nur so wird sichergestellt, daß alle Schutzvorrichtungen voll funktionsfähig bleiben. - Page 16 Sicherheitsvorschriften und Vorsichtsmaßnahmen Sicherheitshinweise für das Ventil Anweisungen zum Spülen des Ventils! Das Ventil darf nur unter einer Ablufthaube gespült werden. Schutzhandschuhe sind zu tragen. Nicht zusammmen mit explosiven Stoffen, Gasen oder Dämpfen benutzen! Um der Gefahr einer Explosion vorzubeugen, darf dieses Produkt niemals zusammen mit explosiven Stoffe aller Art eingesetzt werden, sofern es nicht ausdrücklich für diesen Zweck zugelassen ist.
-
Page 17: Informations Relatives À La Sécurité Pour La Valve
Informations relatives à la sécurité pour la valve Symboles utilisés dans ce manuel d'utilisation Informations relatives à la sécurité pour la valve Symboles utilisés dans ce manuel d'utilisation Définitions des indications AVERTISSEMENT, ATTENTION, et REMARQUE utilisées dans ce manuel. Avertissement L'indication AVERTISSEMENT signale un danger pour le personnel. -
Page 18: Symboles Apparaissant Sur L'unité
Symboles apparaissant sur l'unité Informations relatives à la sécurité pour la valve Symboles apparaissant sur l'unité Le tableau suivant décrit les symboles pouvant apparaître sur l'unité. Définition des symboles apparaissant sur l'unité Marche Terre de protection (sous tension) Arrêt (hors tension) Terre (masse) (masse) IEC 417, No.5007... -
Page 19: Mesures De Sécurité Et Précautions
Ne pas installer des pièces de substitution ou effectuer des modifications non autorisées sur la valve. Renvoyer la valve à un centre de service et de calibrage MKS pour tout dépannage ou réparation afin de garantir le l'intégrité des dispositifs de sécurité. - Page 20 Mesures de sécurité et précautions Informations relatives à la sécurité pour la valve PAS D'EXPLOITATION DANS UN ENVIRONNEMENT EXPLOSIF Pour éviter toute explosion, ne pas utiliser cet appareil dans un environnement explosif, sauf en cas d'homologation spécifique pour une telle exploitation. UTILISATION D'ÉQUIPEMENTS APPROPRIÉS ET PROCÉDURES DE SERRAGE Tous les équipements de la valve doivent être cohérents avec ses spécifications, et compatibles avec l'utilisation prévue de la valve.
-
Page 21: Medidas De Seguridad De La Válvula
Medidas de seguridad de la válvula Símbolos usados en este manual de instrucciones Medidas de seguridad de la válvula Símbolos usados en este manual de instrucciones Definiciones de los mensajes de advertencia, precaución y de las notas usados en el manual. Advertencia El símbolo de advertencia indica la posibilidad de que se produzcan daños personales. -
Page 22: Símbolos Hallados En La Unidad
Símbolos hallados en la unidad Medidas de seguridad de la válvula Símbolos hallados en la unidad La tabla siguiente contiene los símbolos que puede hallar en la unidad. Definición de los símbolos hallados en la unidad Encendido Apagado (alimentación eléctrica) (alimentación eléctrica) Puesta a tierra Protección a tierra... -
Page 23: Procedimientos Y Precauciones De Seguridad
No instale piezas que no sean originales o modifique la válvula sin autorización. Para asegurar el correcto funcionamiento de todos los dispositivos de seguridad, envíe la válvula al Centro de servicio y calibración de MKS toda vez que sea necesario efectuar reparaciones o tareas de mantenimiento. - Page 24 Procedimientos y precauciones de seguridad Medidas de seguridad de la válvula USE PROCEDIMIENTOS ADECUADOS PARA REALIZAR LA PURGA La válvula debe purgarse debajo de una campana de ventilación y deben utilizarse guantes protectores. NO HAGA FUNCIONAR LA VÁLVULA EN UN AMBIENTE CON RIESGO DE EXPLOSIONES Para evitar que se produzcan explosiones, no haga funcionar este producto en un ambiente con riesgo de explosiones, excepto cuando el mismo haya sido certificado específicamente para tal uso.
-
Page 25: Chapter One: General Information
The 1249 unit is designed to work with solenoid control valves such as the MKS Type 148 and 248 valves, which are located upstream of the process. The small size of the 1249 unit enables it to fit into virtually any process control system. -
Page 26: How This Manual Is Organized
Calibration and Service Center before shipping. The ERA Number expedites handling and ensures proper servicing of your instrument. Please refer to the inside of the back cover of this manual for a list of MKS Calibration and Service Centers. Warning All returns to MKS Instruments must be free of harmful, corrosive, radioactive, or toxic materials. -
Page 27: Chapter Two: Installation
Chapter Two: Installation How To Unpack the Type 1249 Unit MKS has carefully packed the Type 1249 unit so that it will reach you in perfect operating order. Upon receiving the unit, however, you should check for defects, cracks, broken connectors, etc., to be certain that damage has not occurred during shipment. -
Page 28: Interface Cables
January 1, 1997, some products shipped to the European Community must also comply with the Product Safety Directive 92/59/EEC and Low Voltage Directive 73/23/EEC, which cover general safety practices for design and workmanship. MKS products that meet these requirements are identified by application of the CE Mark. -
Page 29: Generic Shielded Cable Guidelines
Chapter Two: Installation Interface Cables Generic Shielded Cable Guidelines Should you choose to manufacture your own cables, follow the guidelines listed below: 1. The cable must have an overall metal braided shield, covering all wires. Neither aluminum foil nor spiral shielding will be as effective; using either may nullify regulatory compliance. 2. -
Page 30: Figure 1: Preferred Method To Connect An Overall Metal Braided Shielded Cable
Interface Cables Chapter Two: Installation Example 1: Preferred Method To Connect Cable (shown on a transducer) Metal Cable Clamp Screw Transducer Split Lock Washer Overall Insulation External Tooth Lock Washer (if present) Bare Metal Cable Clamp Transducer Housing Making Firm Contact To Braid Braid Here Is Desirable Optional Plastic or Metal Cable (but not usually necessary) -
Page 31: Product Location And Requirements
Chapter Two: Installation Product Location and Requirements Product Location and Requirements Ambient Operating Temperature The acceptable ambient operating temperature range for the 1249 unit is 0° to 50° C (32° to 122° F). Power Requirements The 1249 unit requires an external power supply of ±15 VDC ±5% @ 50 mA (excluding the valve) or a +24 VDC ±5% @ 50 mA (excluding the valve). -
Page 32: Setup
±0.01 inches (X.XX). 3.69 (93.7) Mounting Hole 4 x 0.16 (4.06) DIA 3.28 2.69 (83.3) (68.3) Seria l #: 0123456789 Model #: 1249A MKS Instruments, Inc. Made in the USA Figure 3: Top View Dimensions of the 1249 Unit... -
Page 33: Mounting Instructions
Chapter Two: Installation Setup 1.13 (28.7) Figure 4: Front View Dimensions of the 1249 Unit 3.12 (79.2) 1.13 (28.7) 4.12 (104.6) Figure 5: Side View Dimensions of the 1249 Unit Mounting Instructions The 1249 unit has four predrilled holes for mounting screws. Refer to Figure 3, page 24, for the location and size of the mounting screw holes. -
Page 34: Electrical Information
Electrical Information Chapter Two: Installation Electrical Information Grounding For protective earthing, plug the power cord into a properly grounded outlet. Connectors There are two connectors on the 1249 valve driver, as shown in Figure 6, page 30: • 15-Pin Type “D” Male Interface Connector •... -
Page 35: Table 6: Interface Connector Pinout
Chapter Two: Installation Electrical Information Interface Connector The 15-pin Type “D” male Interface connector, located on the front of the unit, provides access to the power and signal input pins. Interface Connector Pinout Pin Number Assignment Valve Test Point + Voltage or Current Input CLOSE Input* OPEN Input*... -
Page 36: Table 7: Valve Connector Pinout
Electrical Information Chapter Two: Installation Valve Connector The 9-pin Type “D” female Valve connector, located on the back of the unit, allows you connect the 1249 unit to the 148 or 248 solenoid valves and provides access to the output signals. Valve Connector Pinout Pin Number Assignment... -
Page 37: Chapter Three: Overview
General Information Chapter Three: Overview General Information MKS products are designed and tested to provide the highest degree of safety attainable. To use your MKS valve safely, you must always conform to the following instructions: • Refer to the valve instruction manual for directions on installation and operation of the valve. -
Page 38: Instrument Components

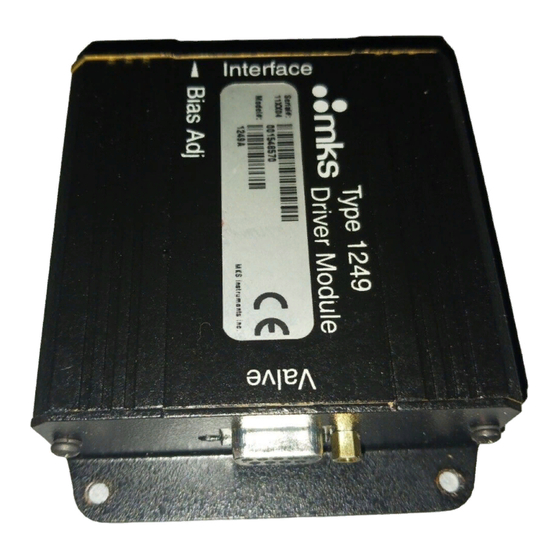

Instrument Components Chapter Three: Overview Instrument Components The instrument components are shown in Figure 6. PANEL Seria l #: 0123456789 Model #: 1249A MKS Instruments, Inc. Made in the USA Valve Connector Interface Connector FRONT PANEL Valve Position Bias Adjust... -
Page 39: Bias Adjust Potentiometer
Chapter Three: Overview Instrument Components Bias Adjust Potentiometer The bias adjust potentiometer establishes a valve position offset. Since each valve requires a slightly different voltage level to move from the fully closed to slightly open position, the bias adjust allows the 1249 unit to compensate for the difference. Use the bas adjust pot to determine the minimum voltage required to move your valve from the fully closed to the slightly open position. -
Page 40: On-Board Jumpers
On-Board Jumpers Chapter Three: Overview On-Board Jumpers The PC board, located inside the 1249 unit, contains three user-settable jumpers. Figure 7 shows the location of the jumpers. Valve Connector Jumper J4 (set for 0 to 5 V FS voltage) Jumper J5 (set for open collector digital inputs) Jumper J3... -
Page 41: Jumper J3 - Input Type
Chapter Three: Overview On-Board Jumpers Jumper Assignments Jumper Assignment Options Input Type Voltage* or Current Full Scale Voltage 0 to 5 V* or 0 to 10 V Digital Input Control TTL or Open Collector* * Factory default setting. Table 9: Jumper Assignments Jumper J3 - Input Type The position of jumper J3 determines whether the input will be a voltage or current. -
Page 42: Labels
The serial number label lists the serial number and the product model code. The label also displays the CE mark signifying compliance with the European CE regulations. Serial #: 0123456789 Model #: 1249A MKS Instruments, Inc. Made in the USA Figure 8: Serial Number Label... -
Page 43: Chapter Four: Operation
Chapter Four: Operation How To Set the Jumpers Chapter Four: Operation How To Set the Jumpers The 1249 unit contains three user-settable jumpers on its PC board; refer to On-Board Jumpers, page 32, for more information. These jumpers determine the: •... -
Page 44: How To Change The Bias Adjust Setting
How To Change the Bias Adjust Setting Chapter Four: Operation How To Change the Bias Adjust Setting The bias adjust potentiometer establishes a valve position offset by setting the minimum voltage required to move your valve from the fully closed to the slightly open position. Refer to Bias Adjust Potentiometer, page 31, for more information. -
Page 45: Appendix A: Product Specifications
Appendix A: Product Specifications Performance Specifications Appendix A: Product Specifications Performance Specifications Bias Adjust Potentiometer Adjustable to fully Close valve with 4 mA or 1 VDC input Adjustable to fully Open valve with a 0 VDC input Control Lines OPEN and CLOSE - jumper selectable TTL logic level or Open Collector TTL Logic Level User must supply a 5 VDC ±5% @ 10 mA source... -
Page 46: Electrical Specifications
Electrical Specifications Appendix A: Product Specifications Electrical Specifications CE Compliance Electromagnetic Compatibility EMC Directive 89/336/EEC Product Safety Requirements Product Safety Directive 92/59/EEC Input Power ±15 VDC ±5% @ 50 mA, excluding valve + 24 VDC ±5% @ 50 mA, excluding valve Physical Specifications Connectors Interface... -
Page 47: Appendix B: Model Code Explanation
The options of your unit are identified in the model code. The model code is identified as follows: 1249A Type Number (1249A) The type number 1249A designates the model number of the instrument. There are no options available with this unit. - Page 48 Model Code Appendix B: Model Code Explanation This page intentionally left blank.
-
Page 49: Index
Index Index Ambient operating temperature, 23, 38 Manual conventions, 18 Manual organization, 18 Model code, 39 Bias adjust pot description of, 31 how to adjust, 36 Power requirements, 17, 23, 38 Cables, 20–22 Safety information, 1–16, 29 CE Mark, 17, 20, 38 Serial number label, 34 Connectors Interface connector, 27, 30... - Page 50 Index...
