Merak MMk-736F Quick Setup Manual

GSM/M2M GATEWAY MMk-736F / MMk-736N
Standard telephone landline generator and remote monitoring for lifts
PREPARING THE SIM CARD
1) For the following settings, previously introduce the SIM card in a free mobile phone or a mobile telephone
phone from the SIM card provider.
2) Check that the PIN access code of the SIM card is disabled through the security configuration.
3) Disable all call forwarding and voicemail line: type ##002#, after a few seconds, the operator will confirm
the cancellation with a message on the screen.
INSTALLATION AND STARTUP
1) Introduce the SIM and connect the supplied external antenna to the device
2) Connect the emergency phone to the port FXS.
3) For remote monitoring (Model MMk-736F), connect the lift controller to the corresponding
communications port (RS232, RS485, CAN1, CAN2).
4) Connect the power supply to the supplied power adapter (12VDC IN).
5) Turn on the device (OFF/ON).
WARNING:
by MERak antennas or power adapters may affect the correct performance of the device.
Is important to look for a location for the antenna that provides the best level of coverage: this ensures
the maximum audio quality while performing voice calls.
To guarantee that enought charge is available to make an emergency call in power failure situations,
the battery must be completely charged in it's first use.

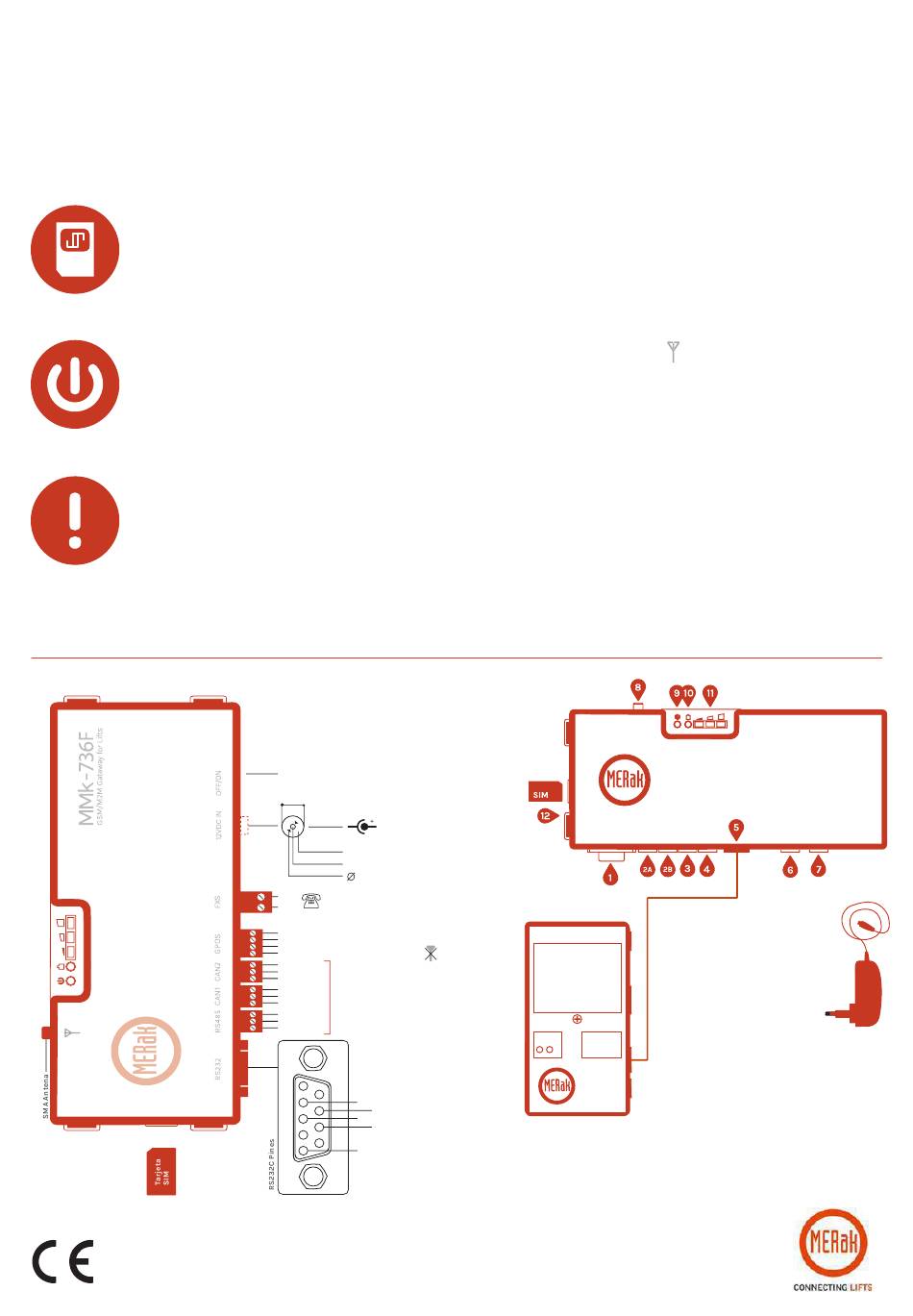

WIRING
HARDWARE: CIG005A3
SOFTWARE: 1.0.3 o POSTERIOR
GV.1.3.5
QUICK SETUP GUIDE
MERak recommends using the supplied antenna and power adapter. Using an unapproved
OFF/ON
6,2 mm
-
Negativo -
Positivo +
1,9 mm
TIP
RING
AUX OUT 12Vdc
AUX OUT Colector NPN
OMLS 12Vdc
OMSL Colector NPN - Out Mobile Signal
CAN2 H
CAN2 L
CAN2_GND
CAN1 H
CAN1 L
Modelo 736F
CAN1_GND
RS485 B
RS485 A
RS485_GND
1
6
2 TX
CTS
7
RX
3
8 RTS
4
9
5 GND
MACHINE
ROOM
CAR
Compact
emergency
phone
MMk-656
(OPTIONAL)
1 RS-232*
2A
RS-485*
2B
CAN BUS 1*
3 CAN BUS 2*
4
GPOS
5 FXS (connection to phone)
6
Power supply
7
OFF/ON Switch
8 Antenna
9
Status indicator
10
Battery indicator
11 Coverage indicator
12
Autoconfiguration button
*Aviable depending on model
Power supply
MMk-108
for GSM/M2M
Gateway
(SUPPLIED)
