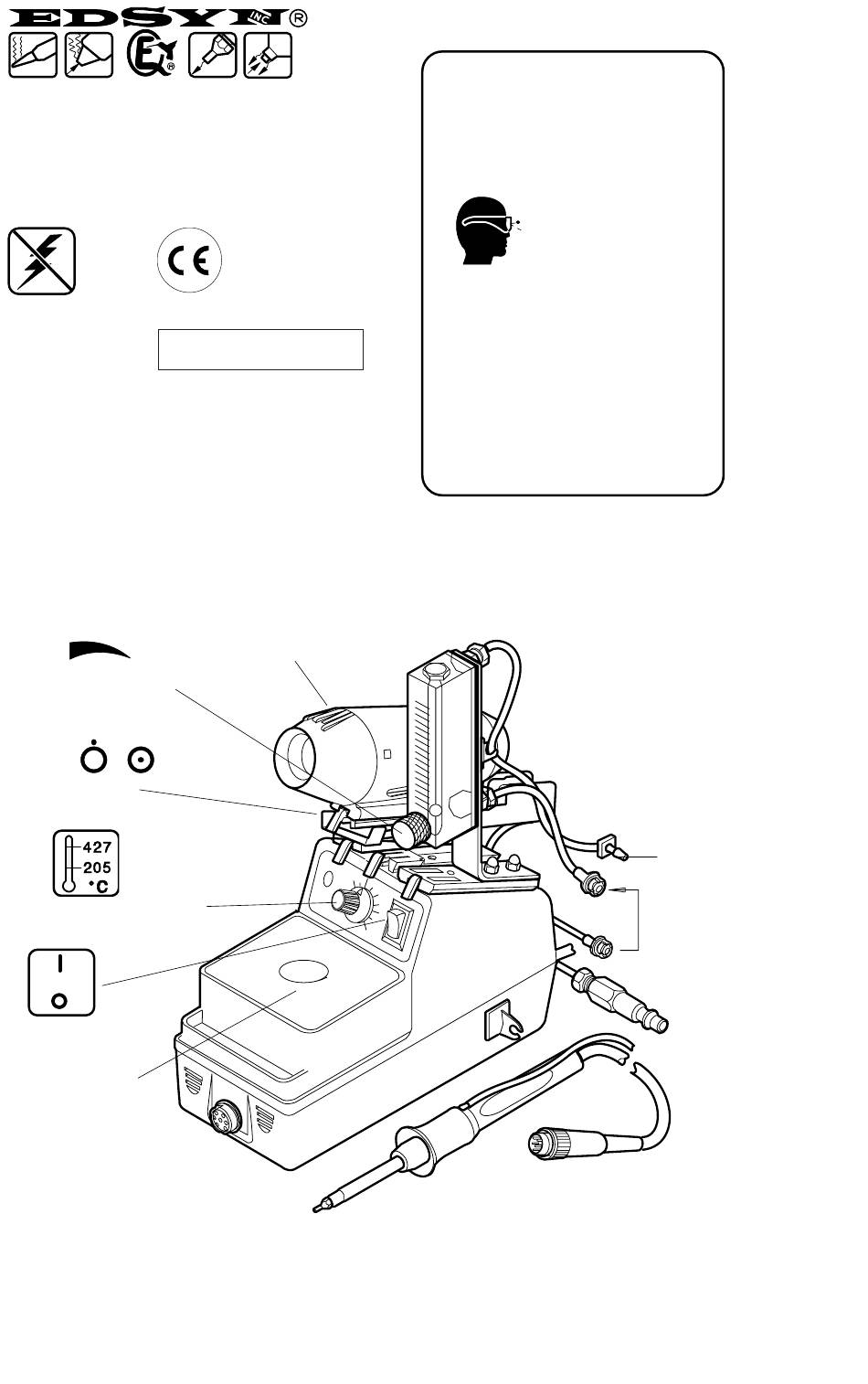

Edsyn 971DH-230B User Manual

971DH-230 /B
ATMOSCOPE
®
SMD Hot Air Station
24V Tool

OPERATING REQUIREMENTS:

•230 V, 50 Hz
• Automatic air shut-off
• Easy to use flow regulator
• Modulator assembly
• Easily converted to contact
• ESD safe
• Hot air calibration capability
• Check valve equipped high
PR570
Air Flow Regulator
PAS53
Pod Air Switch
Temperature Control
Power switch
RS199 Sponge
NOT SHOWN:
External Calibration Pots (left side)
1A fuse (under side)
soldering with NO-FUME system
pressure hose
PD533 Pod
Compressed air or non-inflammable gas supply:
approx. 1.4 up to max. 5.5 bar
(approx. 138 up to max. 551 kPa)
(compressed air must be water- and oil-free)
PRECAUTIONARY
MEASURES:
Safety glasses must
be worn when using
the hot air station
The hot air tool itself must always be
placed in the tool pod when not in use.
To avoid personal injury, a faulty or
damaged power cable must be replaced
by the manufacturer or by an authorized
workshop.
Unplug from power source when
replacing the fuse, 1A.
For indoor use only.
LST17-1
Connect to tool
Male connector
connect
Female connector
w/ check valve
Air or nitrogen
input, 5.5 bar max.
(clean & dry)
