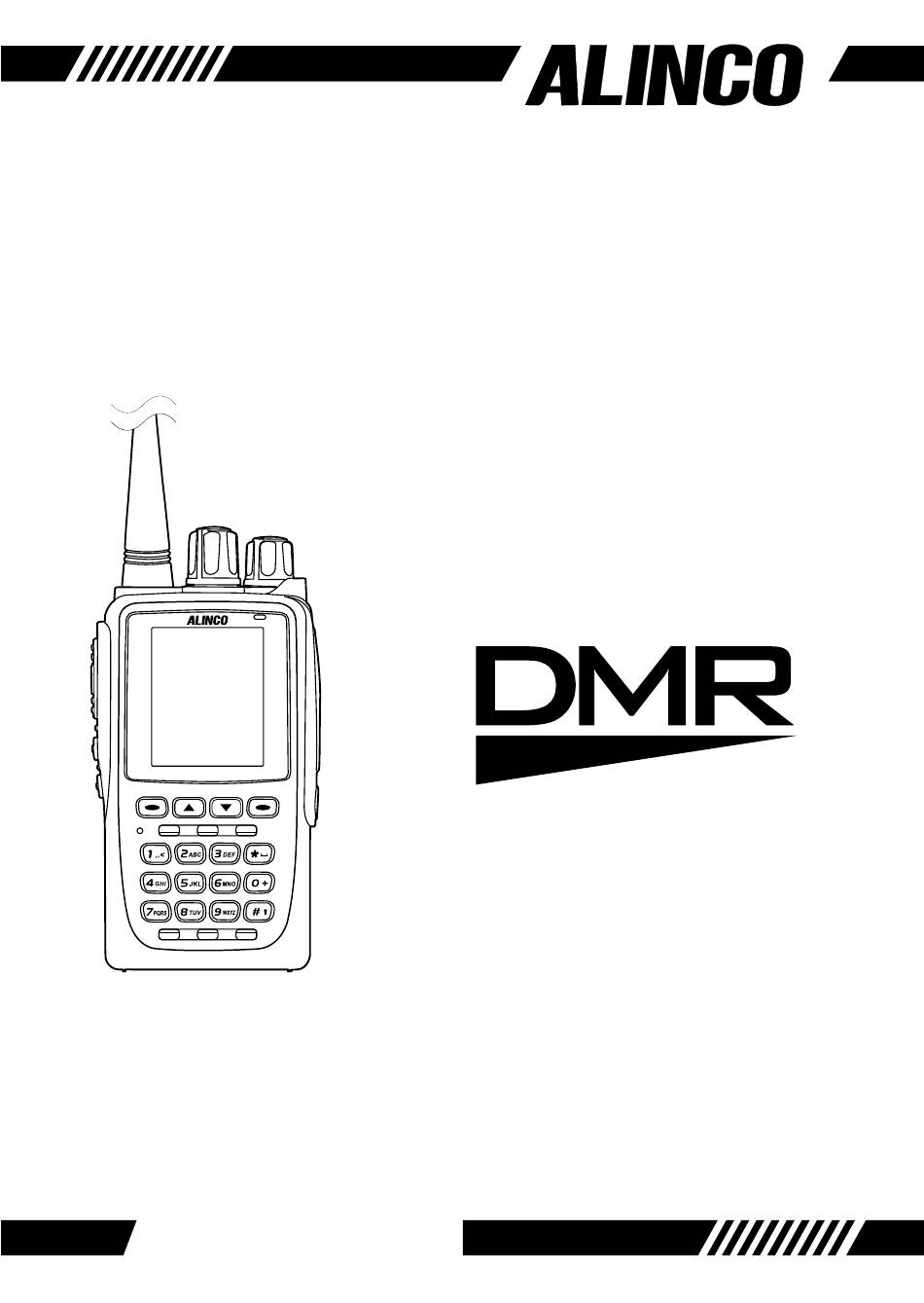

VHF/UHF DUAL BAND
DIGITAL TRANSCEIVER

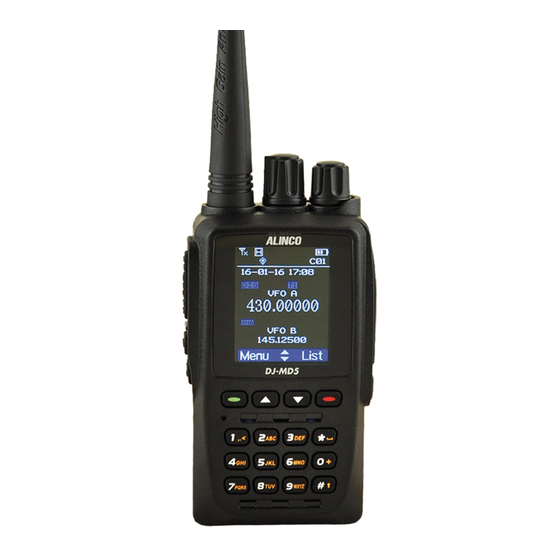

DJ-MD5
DJ-MD5
Thank you for purchasing your new Alinco transceiver. Please read this manual
carefully before using the product to ensure full performance, and keep this manual
for future reference as it contains information on after-sales service.
In case addendum or errata sheets are included with this product, please read those
materials and keep them together with this instruction manual for future reference.
ALINCO, INC.
User Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alinco DJ-MD5
Summary of Contents for Alinco DJ-MD5
- Page 1 DJ-MD5 User Manual DJ-MD5 Thank you for purchasing your new Alinco transceiver. Please read this manual carefully before using the product to ensure full performance, and keep this manual for future reference as it contains information on after-sales service. In case addendum or errata sheets are included with this product, please read those materials and keep them together with this instruction manual for future reference.
-
Page 2: Notice
(which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its hand-held radios outdoor or inside the car during lightning. - Page 3 No part of this document may be reproduced, translated or transcribed in any from or by any means without the prior permission of Alinco. Inc., Osaka, Japan. Alinco and ALINCO logo are registered trademarks of Alinco incorporated, Japan in United States, EU States, Russia, China and many other countries.
- Page 4 (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Hereby, ALINCO, INC. declares that the radio equipment type DJ-MD5 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the...
- Page 5 Notice ■ RADIO FREQUENCY ENERGY SAFETY INFORMATION This Alinco transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits...
- Page 6 Use only Alinco authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Alinco recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC's occupational/ controlled environment RF exposure limits.
-
Page 7: Warning
WARNING WARNING To prevent any hazard during operation of Alinco's radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product. - Page 8 WARNING Keep the radio out of the reach of children. In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin. Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations.
- Page 9 WARNING Do not place the product in a container carrying conductive materials, such as water or metal in close proximity. A short-circuit to the product may result in electric shock, fire and/or malfunction. ■ About chargers Do not use adaptor other than having the specified voltage. It may result in electric shock, fire and/or malfunction,Never turn on the radio while charging.
- Page 10 WARNING ■ Maintenance Do not disassemble the unit and its accessories. Please consult with your local dealer of this product for service and assistance. Caution ■ Environment and condition of use Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.
- Page 11 WARNING Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or benzene for cleaning. Check with your local waste officials for details on recycling or proper disposal of the electronics product, battery-packs and accessories in your area.
-
Page 12: Table Of Contents
Contents Contents Notice ..............2 Warning ..............7 Contents .............. 12 1 Accessories ............. 13 2 Names and Operations of Parts ...... 18 3 Basic Operation ..........19 4 Options ............21 5 Specifications ..........23... -
Page 13: Accessories
Accessories 1.1 Standard Accessories • EBP-88 : Li-ion Battery Pack (DC 7.4V 1700mAh) • EDC-189A : Li-ion Battery Charger • EDC-191T/E : AC Adaptor (depending on the version of purchase) • EA-228 : Antenna • EBC-34 : Belt Clip • ERW-21 : PC interface cable •... - Page 14 Accessories 1.2 Installations 1.2.1 Antenna ■ Attaching the Antenna 1. Hold the antenna by its base. 2. Align the grooves at the base of the antenna with the protrusions on the antenna connector. 3. Slide the antenna down and turn it clockwise until it stops.
- Page 15 Accessories 1.2.3 Battery Pack ■ Attaching the Battery Pack Match the projections of the battery to the bottom of the unit as shown with arrows below. Push the upper part of the battery until it clicks to securely hold the battery. ■...
- Page 16 Accessories 1.2.4 Prevent Short Circuiting the Battery Pack Be extra cautious when carrying the rechargeable battery pack; short circuiting will produce surge current possibly resulting in fire. DON'T carry with metals of DON'T carry the battery D O N ' T p l a c e i n t h e any type, e.g.
- Page 17 Accessories 1.2.5 Using the Charger 1. Connect the AC adaptor plug to the DC-IN jack on the back of the charger. *The design of the AC adaptor may vary depending on the models. 2. Connect the adaptor to an outlet. AC adaptor (EDC-191T/E) Charger...
-
Page 18: Names And Operations Of Parts
Accessory port: PTT Key To keep the radio Display (LCD) dust and splash resistant, the cover PF1 Key must be closed properly with the DJ-MD5 PF2 Key original supplied MENU EXIT cover when Microphone accessories are not in use. Keypad... -
Page 19: Basic Operation
Basic Operation 3.1 Turning On the Power Turn Power dial clockwise to power on. Turn it counter-clockwise to power off. NOTE NOTE: • Please be patient, it takes about 8 seconds until it turns on. 3.2 Adjusting the Audio Output (Volume) Turn Power dial clockwise to increase the audio level, counter-clockwise to decrease. - Page 20 Basic Operation 3.5 Receiving When a signal is received on the channel that you selected, S-meter is displayed on the LCD, then the received signal can be heard. The indicator lights green while radio is receiving in analog channel or lights cyan if it is receiving in digital channel.
-
Page 21: Options
Options EME-56A Earphone Microphone EMS-76 Speaker Microphone Spares: EA-228 Antenna EBC-34 Belt Clip EBP-87 Li-ion Battery Pack (DC 7.4V 1500mAh) EBP-88 Li-ion Battery Pack (DC 7.4V 1700mAh) EDC-189A Li-ion Battery Charger EDC-191E AC Adaptor (220V) EDC-191T AC Adaptor (120V) ERW-21 PC interface cable... - Page 22 Options 4.1 Accessory port Open the jack cover and insert the accessory plug into the jack as shown. When the accessory is not used, please be sure to close the cover securely. NOTE: NOTE 1.To keep the radio dust and splash resistant, the cover must be closed properly with the supplied cover.
-
Page 23: Specifications
Specifications ■GENERAL Frequency Range 136-174MHz / 400-480MHz / 76-108MHz (FM radio RX only) Number of Channels 4000ch Zones per Radio 250 zone (MAX 250ch/zone) Analog: 12.5/25kHz Channel Spacing Digital: 12.5kHz Operating Voltage 7.4V DC nominal Operating Temperature Range -20℃ to +55℃ (-4 ℉ to +131 ℉ ) Frequency Stability ±2.5ppm Antenna Impedance... - Page 24 Manufacture: ALINCO, INC. Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:export@alinco.co.jp Copyright Alinco, lnc. PS0943/FNEL-NL Printed in China...
