Summary of Contents for Challenge Xtreme MD3215M

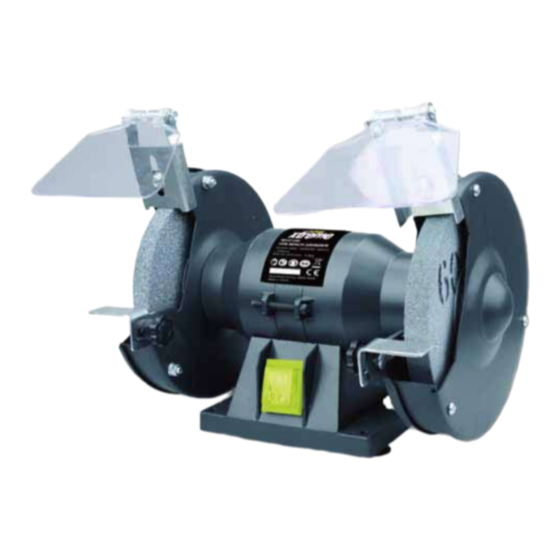

- Page 1 150mm BENCH GRINDER MD3215M ORIGINAL INSTRUCTIONS...
-
Page 2: General Safety Instructions
4. Keep other persons away Thank you for purchasing a Do not let persons, especially children, not CHALLENGE XTREME 150mm Bench involved in the work touch the tool or the Grinder. We would like you to be extension cord and keep them away from completely satisfied with your new... -
Page 3: Additional Safety Rules
ORIGINAL INSTRUCTIONS 13. Maintain tools with care binding of moving parts, breakage of Keep cutting tools sharp and clean for parts, mounting and any other conditions better and safer performance. that may affect its operation. Follow instruction for lubricating and A guard or other part that is damaged changing accessories. - Page 4 ORIGINAL INSTRUCTIONS Instruction for the safe use, handling and 8. Periodically check that all nuts, bolts and storage of abrasive wheels taking into other fixings are properly tightened. account the requirements of the CEN standard 9. Do not use a wheel that has received a for abrasive products for the type of tool blow, especially to the side of the wheel.
- Page 5 ORIGINAL INSTRUCTIONS SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
- Page 6 ORIGINAL INSTRUCTIONS HELPLINE NO 08454 505299...
-
Page 7: Component List
ORIGINAL INSTRUCTIONS COMPONENT LIST 1. Adjusting guard plate 2. Eye shield 3. Grinding wheel 4. Work rest 5. Work rest fixing knob 6. On/Off switch 7. Wheel guard Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Rated voltage 230-240V~50Hz... -
Page 8: Operating Instructions
ORIGINAL INSTRUCTIONS 2. SETT ING OF TOOL REST AND OPERATING INSTRUCTIONS SPARK ARRESTER BRACKET Before using the tool, read the (See Fig. C, D) instruction book carefully. The tool rest and spark protection assembly’s spark arrester bracket have to be set from time to time to compensate for 1. -
Page 9: Grinding Wheel
ORIGINAL INSTRUCTIONS 4. SIZE OF PART TO BE MACHINED defects or cracks. For the resonance test, let the wheel hang from a piece of string The part to be machined must at least and tap lightly with a screwdriver handle or be large enough to hold securely in both similar (no metal!). -
Page 10: Maintenance
ORIGINAL INSTRUCTIONS Fig. F MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. -
Page 11: Plug Replacement
ORIGINAL INSTRUCTIONS PLUG REPLACEMENT Your Bench Grinder is supplied with a fitted plug, however if you should need to fit a new plug follow the instruction below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Blue = Neutral Brown = Live Green/Yellow = Earth As the colours of the wires in the mains lead of this appliance may not correspond with the... -
Page 12: Ec Declaration Of Conformity
We hereby certify that the product stipulated above complies with all the relevant provisions of the following EC new approach directive/s. This declaration of conformity is issued under the sole responsibility of the manufacturer 150mm Bench Grinder MD3215M Type of Product: Model Number:...
