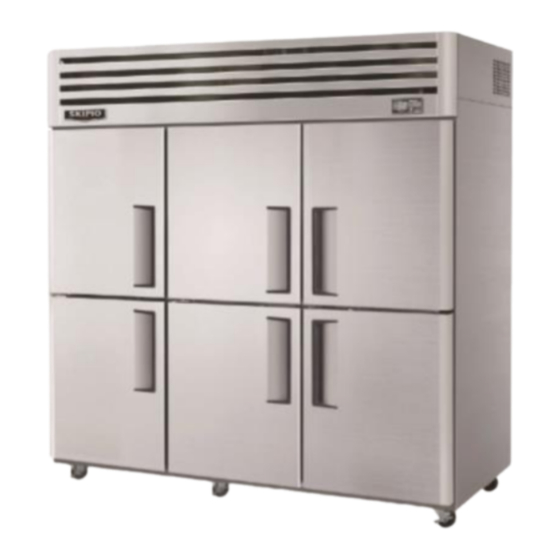

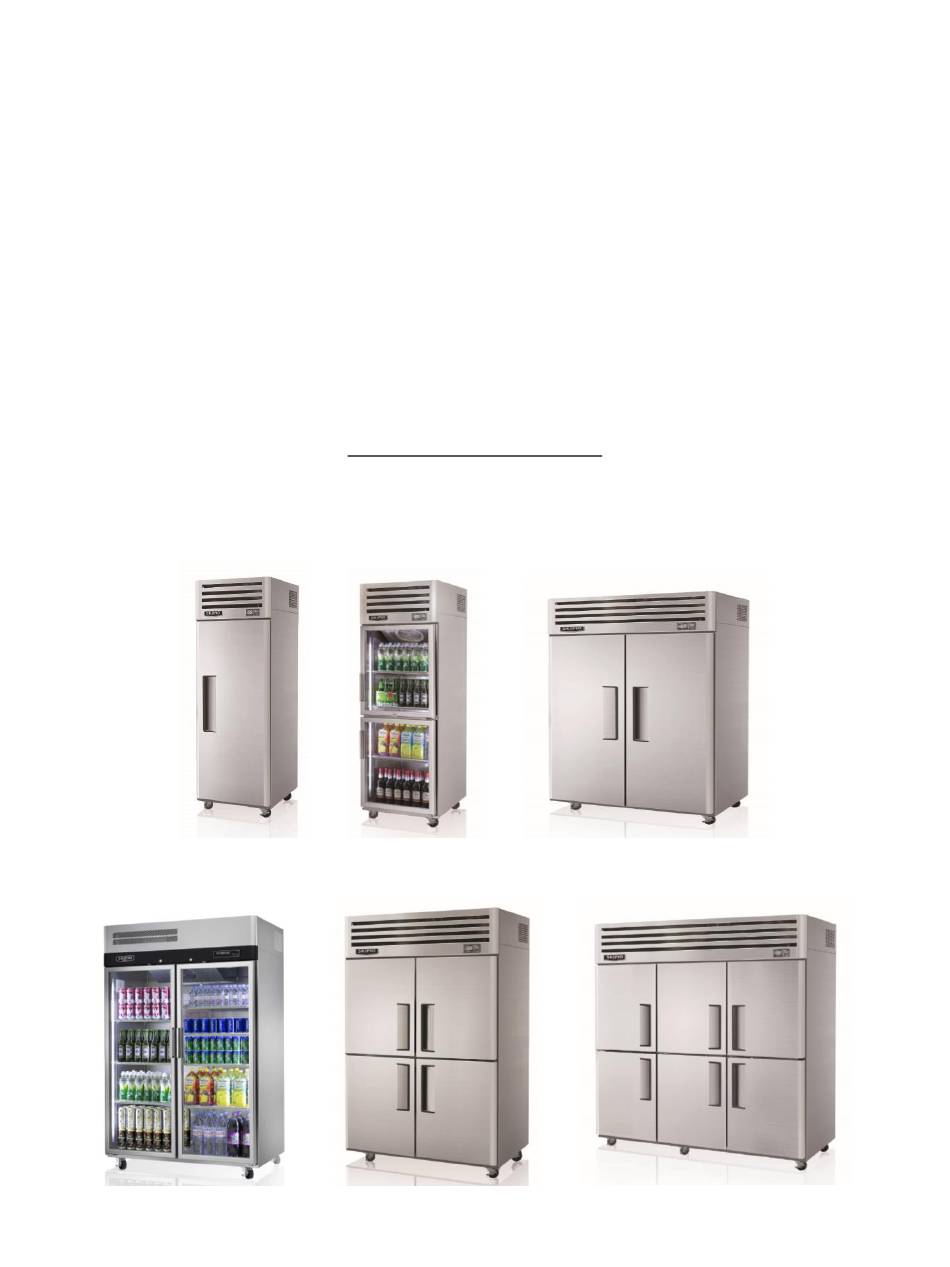

- Page 1 REVISED 16. JUNE. 2017 SKIPIO Commercial Refrigerators & Freezers User Manual REACH-IN (UPRIGHT) SRT, SFT & SRFT series Chiller, Freezer & Dual Temperature...
- Page 2 Turbo Air Warranty WARRANTY CLAIMS – The user must report to its dealership, hence the dealer can accumulate all pertinent information supporting the existence of the alleged defect. TWO YEARS PARTS & LABOUR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation.
- Page 3 REVISED 16. JUNE. 2017 2. NO CONSEQUENTIAL DAMAGES, TURBO AIR IS NOT RESPONSIBLE FOR ECONOMIC LOSS; PROFIT LOSS OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES OR DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE CLAIMS WHETHER OR NOT ON ACCOUNT OF REFRIGERATION FAILURE.
-
Page 4: Table Of Contents
REVISED 16. JUNE. 2017 Contents 1. MODELS ................ 5 2. INSTALLATION ............. 6 Warning & Safety Instructions ....................6 Installing the Unit ........................... 7 1. Avoid heat source ........................7 2. Levelling ............................7 3. Ventilation ............................8 Shelving ..............................8 Loading Product .......................... -
Page 5: Models
REVISED 16. JUNE. 2017 1.MODELS UPRIGHT SOLID DOOR Model Type Config. Doors Operating temperature range SRT25-1 Refrigerator Solid Door SRT25-2 Refrigerator Solid Door SRT45-2 Refrigerator Solid Door +1°C to +8°C up to 38°C ambient SRT45-4 Refrigerator Solid Door SRT65-3 Refrigerator Solid Door SRT65-6 Refrigerator... -
Page 6: Installation
REVISED 16. JUNE. 2017 2. INSTALLATION Warning & Safety Instructions This appliance conforms to current safety requirements. However, inappropriate use can cause injury and damage to property. Do not cover the grilles or block the entry of airflow (condenser) or exhaust of airflow by placing objects up against the refrigeration unit;... -
Page 7: Installing The Unit
REVISED 16. JUNE. 2017 Installing the Unit 1. Avoid heat source Avoid direct sunlight, uneven surface, hot environment beyond recommended ambient temperature of the cabinet. The unit must NOT be situated where it is affected by hot air from adjacent equipment as this will compromise the airflow and performance of the cabinet. -
Page 8: Ventilation
REVISED 16. JUNE. 2017 3. Ventilation Providing an environment with good ventilation prolongs the life of compressor and performance. Air flows into condenser (front) and the outflow of the used air is exhausted via outlets. For efficient operation of the cabinet, providing adequate ventilation and ambient temperature (below 38°) is essential. -
Page 9: Loading Product
REVISED 16. JUNE. 2017 Loading Product Do not overload products: a maximum loading of 20kg per shelf Do not allow products to overhang the front of the shelf which may prevent the door from shutting Place products with air space for even cooling and efficient operation... -
Page 10: Operation
REVISED 16. JUNE. 2017 3.OPERATION Start Up Plug into the main power supply and check operation of the unit, front display and lighting. The compressor and the condenser and evaporator fans should all operate within 2 minutes from the moment the unit is plugged in. The cabinet light (inside) will go on when a door is opened. Electronic Controller Turbo Air electronic controller controls and displays the internal cabinet temperature. -
Page 11: Power On/Off
REVISED 16. JUNE. 2017 Power On/Off Plugging into the power automatically turns on the cabinet. There are several ways manually power on and off while pugging in. 1. There is a power switch located at the top of the cabinet (near condenser). 2. -
Page 12: Controller Alarms For Users
REVISED 16. JUNE. 2017 Controller Alarms for users Electric controller When the inside temperature is lower than - 45°C, the panel will display ‘LO’, and higher than +18°C, ‘HI’ will be displayed. Defrost starts when the icing on the evaporator occurs: usually 4 ~ 6 times a day. It will take 20 ~ 30 minutes to finish defrost. -
Page 13: Servicing
REVISED 16. JUNE. 2017 4.SERVICING Cleaning Cabinet Using a damp cloth for cleaning both the interior and exterior of the cabinet is recommended when it requires. Before cleaning, the cabinet should be disconnected from the power supply. Cleaning Condenser Cleaning condenser coils is the most important thing a customer’s can do to maintain a freezer/refrigerator’s longevity. -
Page 14: Troubleshooting
REVISED 16. JUNE. 2017 screw driver or a hand drill. Once, open up the top cover, brush the condenser and reassemble the cover. Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact Turbo Air to arrange for a Turbo Air authorized service agent to clean the condenser with compressed air.
