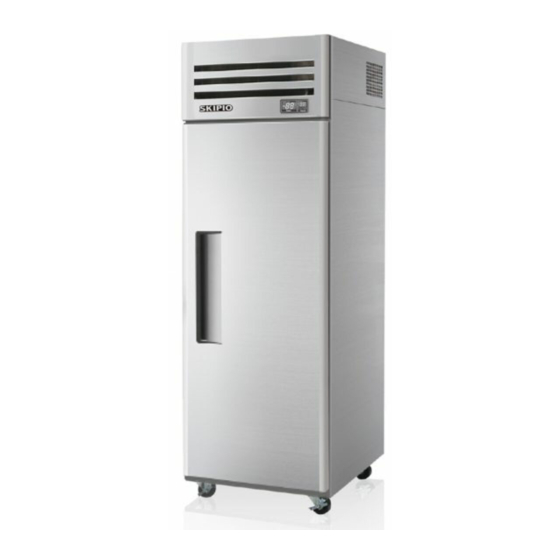

- Page 1 SKIPIO Commercial Refrigerators & Freezers User Manual REACH-IN (UPRIGHT) SRT, SFT & SRFT series Chiller, Freezer & Dual Temperature...
- Page 2 Customer directly from SKIPIO. 5. SKIPIO or its authorized agent has the right to assess the Product to determine the cause of the defect. The Customer must make the product accessible for SKIPIO or its authorized agent to assess and, if applicable, to repair including removing all personal items in the way.
- Page 3 8. The Warranty Period is not extended or renewed by any successful claim whereby the Product is replaced or Repaired 9. SKIPIO makes no representation as to the time frame within which any repair can or will be carried out. In general, any repair will be restricted to normal business hours Monday to Friday...
- Page 4 (9am – 5pm) excluding public holidays and weekends, SKIPIO is not liable for the cost of the authorized service agents other than the time specified in this point. 10. Warranty back to base apply to any items that can be carried and place into standard vehicle (eg;...
- Page 5 5. Any services from an unauthorized person including owner – SKIPIO will not accept misuse of display controller which is not mentioned on user manual.
-
Page 6: Table Of Contents
Contents MODELS ............................. 7 INSTALLATION ..........................8 Warning & Safety Instructions ....................8 Installing the Unit ........................... 9 1. Avoid heat source ........................9 2. Brake on castor ..........................9 3. Ventilation ............................ 10 Shelving .............................. 10 Loading Product ..........................11 OPERATION ............................ -
Page 7: Models
1.MODELS UPRIGHT SOLID DOOR Model Type Config. Doors Operating temperature range SRT25-1 Refrigerator Solid Door SRT25-2 Refrigerator Solid Door SRT45-2 Refrigerator Solid Door +1°C to +8°C up to 38°C ambient SRT45-4 Refrigerator Solid Door SRT65-3 Refrigerator Solid Door SRT65-6 Refrigerator... -
Page 8: Installation
2. INSTALLATION Warning & Safety Instructions This appliance conforms to current safety requirements. However, inappropriate use can cause injury and damage to property. Do not cover the grilles or block the entry of airflow (condenser) or exhaust of airflow by placing objects up against the refrigeration unit;... -
Page 9: Installing The Unit
2. Brake on castor Rear castors come with brakes for SKIPIO upright cabinets to secure the position. The brake acts like see-saw, pressing down on the left side of brake or rotating (anti-clockwise) locks the castor. -
Page 10: Ventilation
3. Ventilation Providing an environment with good ventilation prolongs the life of compressor and performance. Air flows into condenser (front) and the outflow of the used air is exhausted via outlets. For efficient operation of the cabinet, providing adequate ventilation and ambient temperature (below 38°) is essential. -
Page 11: Loading Product
Loading Product Do not overload products: a maximum loading of 20kg per shelf Do not allow products to overhang the front of the shelf which may prevent the door from shutting Place products with air space for even cooling and efficient operation. Load products below “LOAD LINE”... -
Page 12: Operation
The cabinet light (inside) will go on when a door is opened. Electronic Controller SKIPIO electronic controller controls and displays the internal cabinet temperature. For general operation, no initial setup or additional programing is required. When the cabinet is connected to the power supply, the current cabinet temperature will be displayed on the electronic controller. - Page 13 2. Electronic controller for dual temperature (SURF-series) SURF-series comes with a combined controller for both R and F compartments. Factory setup temperature of SUF-series is - 18°C and ranged from -21°C to -12°C. For SUR-series, factory setup temperature is 2°C and ranged from 1°C to 8°C.
-
Page 14: How To Adjust Temperature
How To Adjust Temperature In order to prevent mistouch or undesired temperature adjustment, “Set” button has been implemented. -
Page 15: Power On/Off
Power On/Off Plugging into the power automatically turns on the cabinet. There are several ways manually power on and off while pugging in. 1. There is a power switch located at the top of the cabinet (near condenser). Controller Alarms for users Electric controller When the inside temperature is lower than - 45°C, the panel will display ‘LO’, and higher than +18°C, ‘HI’... -
Page 16: Servicing
4. SERVICING Cleaning Cabinet Using a damp cloth for cleaning both the interior and exterior of the cabinet is recommended when it requires. Before cleaning, the cabinet should be disconnected from the power supply. Cleaning Condenser Cleaning condenser coils is the most important thing a customer’s can do to maintain a freezer/refrigerator’s longevity. - Page 17 Once, open up the top cover, brush the condenser and reassemble the cover. Over time, dust may accumulate within the condenser that cannot be removed with a brush. If this occurs, contact SKIPIO to arrange for a SKIPIO authorized service agent to clean the condenser with compressed air.
-
Page 18: Troubleshooting
Troubleshooting Issue Possible cause Resolution High temperature setting Adjust temperature setting Condenser blockage Clean condenser Warm cabinet temperature Poor ventilation environment Provide good ventilation around the side and back of the unit Dirty Condenser Clean condenser Unit operating in high temperatures Provide good ventilation around the side Power consumption is higher and back of the unit...
