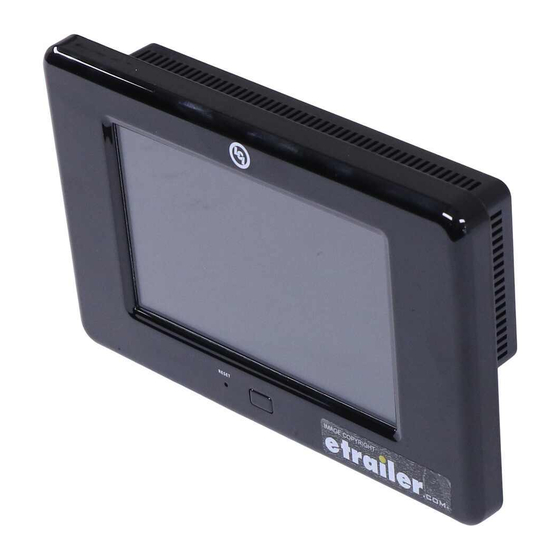

Lippert Components OCTP Owner's Manual
  1. Manuals
  2. Brands
  3. Lippert Components Manuals
  4. Touch Panel
  5. OCTP
  6. Owner's manual

Lippert Components OCTP Owner's Manual

Hide thumbs

Advertisement

Quick Links

OneControl
Touch Panel
OWNER'S MANUAL
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the OCTP and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert Components OCTP

Summary of Contents for Lippert Components OCTP

  • Page 1 OneControl Touch Panel OWNER'S MANUAL ®...

  • Page 2: Table Of Contents

    14-19 System Information The OneControl® Touch Panel (OCTP) is a touchscreen device that provides system controls and monitoring software for the recreational vehicle unit. The systems include slide-outs, leveling systems, awnings, lighting, temperature, water tanks, tire pressure, battery levels and any other compatible systems installed on the unit and programmed into the OneControl®...

  • Page 3: System Operations

    System Operations Press back button (Fig. 3A) in the top-left corner to return to the home screen at any time. Awning, if equipped: A. Pressing the Awning icon (Fig. 2) will allow you to access the awning control screen (Fig. 3). B.
  • Page 4 Doors, if equipped: A. Pressing the Doors icon (Fig. 2) will allow you to access the door lock control screen (Fig. 5). B. Select a door to operate. To lock the door, press the LOCK button (Fig. 5A). II. To unlock the door, press the UNLOCK button (Fig. 5B). Fig.
  • Page 5 Generator, if equipped: A. Pressing the Generator icon (Fig. 2) will allow you to access the generator control screen (Fig. 7). B. Select a generator to operate. To start the generator, press the START button (Fig. 7A). II. To access the auto-start menu and set maintenance intervals, choose auto-start voltage, etc., press the SETTINGS button (Fig.
  • Page 6 Landing Gear, if equipped: A. Pressing the Landing Gear icon (Fig. 2) will allow you to access the landing gear control screen (Fig. 10). To extend the landing gear, press the EXTEND button (Fig. 10A). II. To retract the landing gear, press the RETRACT button (Fig. 10B). Fig.
  • Page 7 Lighting, if equipped: A. Pressing the Lighting icon (Fig. 2) will allow you to access the lighting control screen (Fig. 12). Pressing the highlighted ALL ON or ALL OFF (Fig. 12A) will turn all lights on or off. II. Pressing the highlighted ON or OFF (Fig. 12B) will turn individual lights on or off. III.
  • Page 8 11. Slides, if equipped: A. Pressing the Slides icon (Fig. 2) will allow you to access the slide-out control screen (Fig. 15). B. Select a slide-out to operate. Pressing OUT will extend the slide-out (Fig. 15A). II. Pressing IN will retract the slide-out (Fig. 15B). Fig.
  • Page 9 13. TV Lifts, if equipped: A. Pressing the TV Lift icon (Fig. 2) will allow you to access the TV lift control screen (Fig. 17). B. Select a TV lift to operate. To raise the TV lift, press the RAISE button (Fig. 17A). II.

  • Page 10: Onecontrol Resources

    OneControl Resources Pressing the MyRV icon (Fig. 2) will allow you to access the MyRV OneControl resources. NOte: The following documents and resources on the OneControl® Touch Panel are pre-loaded on the system at the time of manufacture. For the latest revisions, visit www.lci1.com. There are various operation and information videos (Fig.
  • Page 11 Owner's Manuals (Fig. 19C); product documentation containing operation and basic troubleshooting (Fig. 22). NOte: Product documentation may not be specific to any unit. Search Function (Fig. 19D); searches the OneControl® tablet for any files (documentation, videos, images, etc.) containing the search term (Fig. 23). NOte: Enter search terms into search pop-up and press the search button (Fig.
  • Page 12 FAQs (Fig. 19E); frequently asked questions with drop down answers (Fig. 24). NOte: Press the question to reveal the answer and a link to more information. Apps (Fig. 11F); manage the tablet and information settings (Fig. 25). A. OneControl® Media Sync (Fig. 25A) allows the manufacturer to manage documentation supplied on OneControl®.

  • Page 13: Onecontrol Assembly

    ONECONTROL ASSEMBLY ® ELECTRONICS Front View Screen Power button touch Panel Rear View Canbus Power Connector Page 13 Rev: 12.21.18 CCD-0001440...

  • Page 14: Onecontrol Components

    ONECONTROL COMPONENTS ® ELECTRONICS Callout Part # Description 318708 7" Tablet 318750 Wall Mount Docking Station 345081 Digital Switch, Touch Screen Wall Mount Switch Page 14 Rev: 12.21.18 CCD-0001440...
  • Page 15 ONECONTROL COMPONENTS ® ELECTRONICS (Original) (V2) (V2) (20A) Callout Part # Description 406345 5" OneControl® Touch Panel 406347 7" OneControl® Touch Panel 644577 OneControl® Touch Panel Mounting Bracket Tank Monitor (Original) 341237 437442 Tank Monitor (V2) Tank Monitor (V2) (20A) 431051 Page 15 Rev: 12.21.18...
  • Page 16 ONECONTROL COMPONENTS ® ELECTRONICS Callout Part # Description 318709 Wi-Fi Hub 378610 Range Extender 406343 Wi-Fi Gateway Hub 351138 Smart Switch 344920 5 Function Receiver with Selectable Fuses 344922 5 Function Receiver with Selectable Fuses and Hydraulic 344921 8 Function Receiver with Selectable Fuses 344923 8 Function Receiver with Selectable Fuses and Hydraulic 318751...
  • Page 17 ONECONTROL COMPONENTS ® ELECTRONICS Callout Part # Description 436375 Multi-Output LED Lighting Control Module 331111 Canbus Data Harness - 2' 331113 Canbus Data Harness - 5' 331114 Canbus Data Harness - 10' 331116 Canbus Data Harness - 20' 331117 Canbus Data Harness - 30' 351071 Canbus Data Harness - 50' 329080...
  • Page 18 ONECONTROL COMPONENTS ® ELECTRONICS (Original) (Single Zone) (Dual Zone) (triple Zone) Callout Part # Description HVAC Controller (Original) 406350 709167 HVAC 2.0 Controller (Single Zone) HVAC 2.0 Controller (Dual Zone) 709168 HVAC 2.0 Controller (triple Zone) 709169 406348 Generator Genie Controller Page 18 Rev: 12.21.18 CCD-0001440...
  • Page 19 ONECONTROL COMPONENTS ® ELECTRONICS Callout Part # Description 308958 2 Motor Velocity Sync In-Wall Slide Controller 709940 Auto Start Generator Genie Controller 425749 Leveling Controller 345083 694656 4 Point Ground Control 3.0 Controller 694654 6 Point Ground Control 3.0 Controller Page 19 Rev: 12.21.18 CCD-0001440...
  • Page 20 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”).  LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided.  Any unauthorized use shall void any applicable warranty. ...

This manual is also suitable for:

Onecontrol touch panel
