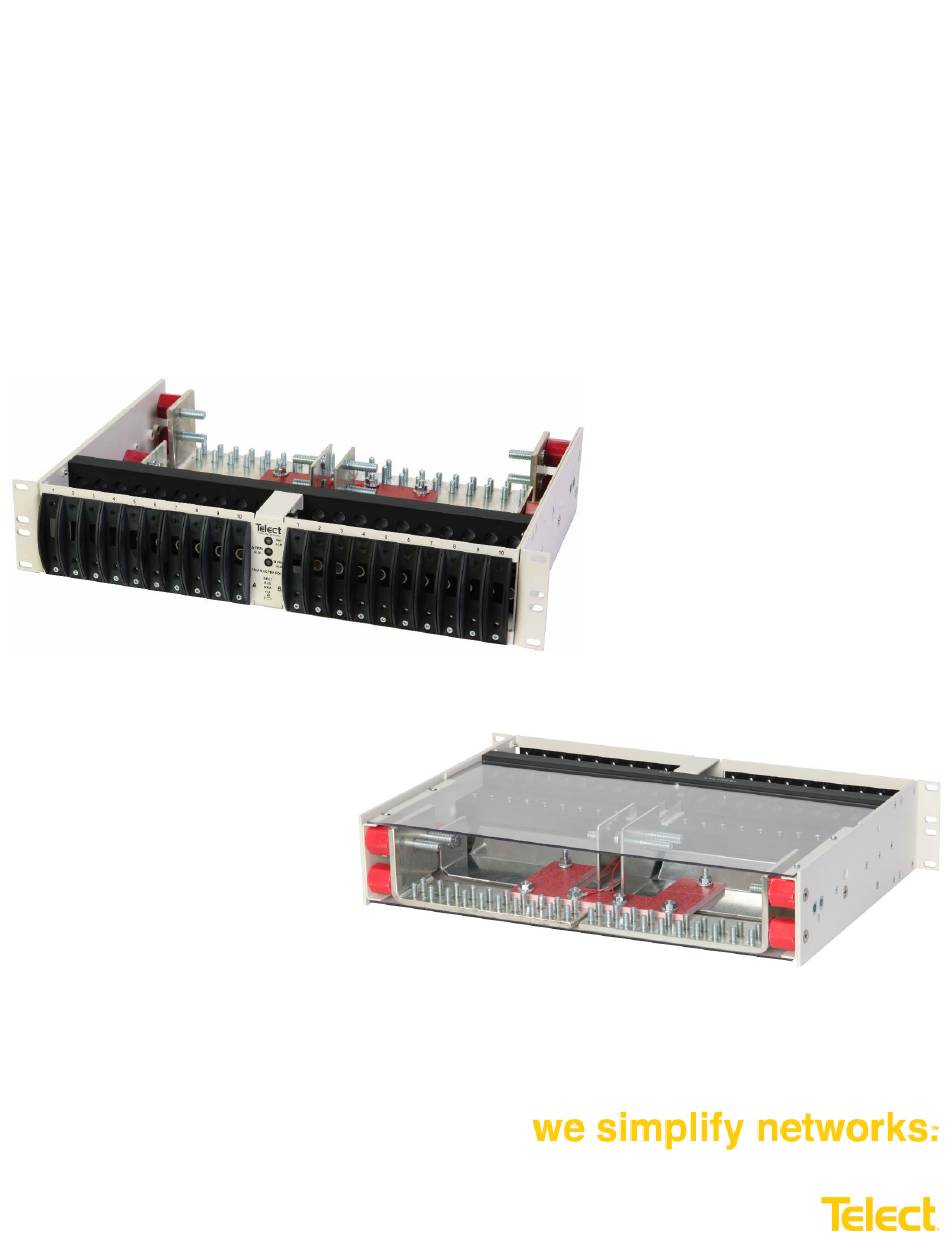

- Page 1 Dual-Feed 600A Load Center Frame 600CB10 & 600CB12 Installation Guide 600CB10 – Front View 600CB10-C – Rear View...
- Page 2 Liberty Lake, WA 99019 Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights nor the patent rights of others. This document and the products described herein are subject to change without notice.
-
Page 3: Table Of Contents
1.7 Drawings ..................................16 List of Figures Figure 1 – 600CB10, 19" 10/10 Position Load Center Frame ....................1 Figure 2 – Installing Load Straps ............................5 Figure 3 – Alarm Board Location (Bottom View of Side A) ..................... 5 Figure 4 –... -
Page 4: Overview
The 600CB10-C and 600CB12-C provide horizontal inputs and a cover. The 600CB10-CL and 600CB12-CL also provide horizontal inputs, a cover and single-pole load straps pre-installed into the panel. The 600CB10-VL and 600CB12-VL provide vertical inputs as well as single-pole load straps pre-installed into the panel. © Telect, Inc. All rights reserved. 7.14.17 136429-2... -
Page 5: Installation Guidelines
-in. centers. Torque bolts compression lug (using -in. or 12 mm wrench) to 50-in./lb. (5.5 N•m), max. Ground wire size #2 AWG (min.) for any input interrupt device 400A or more © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... - Page 6 Specifications: UL Recognized, NEBS Level 3 * Telect suggests you avoid using different types of circuit breakers or fuses in the same load center. Alarm contacts may vary among interrupter manufacturers and may incapacitate the alarm system. ** Circuit breakers for this load center are designed and manufactured by Airpax Corporation and Carling Industries to meet Telect’s specifications.
-
Page 7: Installation Instructions
Please read these instructions carefully before beginning installation. If assistance is required, call Technical Support at 509.926.6000 or email at support@telect.com. • Telect is not liable for shipping damage. If damaged, notify the carrier and call Telect at 509.926.6000 for further recourse. •... -
Page 8: Figure 2 - Installing Load Straps
Refer to Figures 3 and 4. The jumpers are set up for REC-4 (non-mid-trip) circuit breakers and fuses. If you plan on using RLS-4 mid-trip circuit breakers, change the jumper setting as indicated. Figure 3 – Alarm Board Location (Bottom View of Side A) © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 9: Figure 4 - Alarm Board Jumper Settings
If you intend to use a power or larger manual wire-wrap tool, you must install alarm wiring now. Figure 5 – Alarm Wiring © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 10: Figure 6 - Rack Mounting
Mount the panel as high as possible on the rack, leaving at least 1RU of access space above the load center. Tighten screws to 35-in./lb. (4.29 N•m). Telect recommends using a seismic rack for best rigidity. Figure 6 – Rack Mounting WARNING! Failure to properly ground this equipment can create hazardous conditions to installation personnel and to the equipment. -
Page 11: Figure 7 - Ground Lug Connection
Ambient operating temperature affects the type of input wire insulation. Use the table on the following page to choose the correct temperature-rated input wires. For further information, consult the National Electrical Code (NEC). © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 12: Figure 8 - Input Lugs
(off or failure operation) – test A PWR relay and contact alarm terminal: • Expect continuity (0Ω) between Terminals C and NC • Expect an open circuit (∞Ω) between Terminals C and NO Figure 9 – LED Panel © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 13: Figure 10 - Output Lug Connections
Fasten the cover to the load center using the screw previously removed with the cover in Step 1. d. If applicable, install fuse. Figure 10 – Output Lug Connections © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 14: Figure 11 - Installing Circuit Breakers
23. With the output loads (devices fed by this load center) disabled, re-enable fuses or breakers at primary distribution unit or battery. 24. If applicable, switch circuit breakers ON and then check voltage and polarity at loads. © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... - Page 15 28. Re-install operable fuses or switch ON breakers before proceeding. 29. Record circuit assignments in accordance with operating company procedures and guidelines. 30. Lastly, enable equipment loads one at a time to verify proper operation of loads. © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com...
-
Page 16: Parts & Accessories
The following tables list optional and replacement items for the load center. For wire sizing and labeling, please refer to Wire Sizing & Label Convention (Telect part number 117995) included with your load center. Order parts and accessories online at telect.com. - Page 17 (Die code 8) (Die code 10) (Die code 13) Panduit LCD8-14A-L LCD6-14A-L LCD4-14A-L LCD2-14A-Q LCDN2/0-14A-X (Die code 21) (Die code 24) (Die code 29) (Die code 33) (Die code 45) © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com...
-
Page 18: Interconnections
Dual-Feed 600A Load Center Frame 600CB10 & 600CB12 Installation Guide 1.6 Interconnections © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com... -
Page 19: Drawings
FRONT VIEW Telect assumes no liability for the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice. - Page 20 Dual-Feed 600A Load Center Frame 600CB10 & 600CB12 Installation Guide 600CB12-CL – Top View 600CB12-VL – Top View © Telect, Inc. All rights reserved. 7.14.17 136429-2 509.926.6000 :: www.telect.com...
