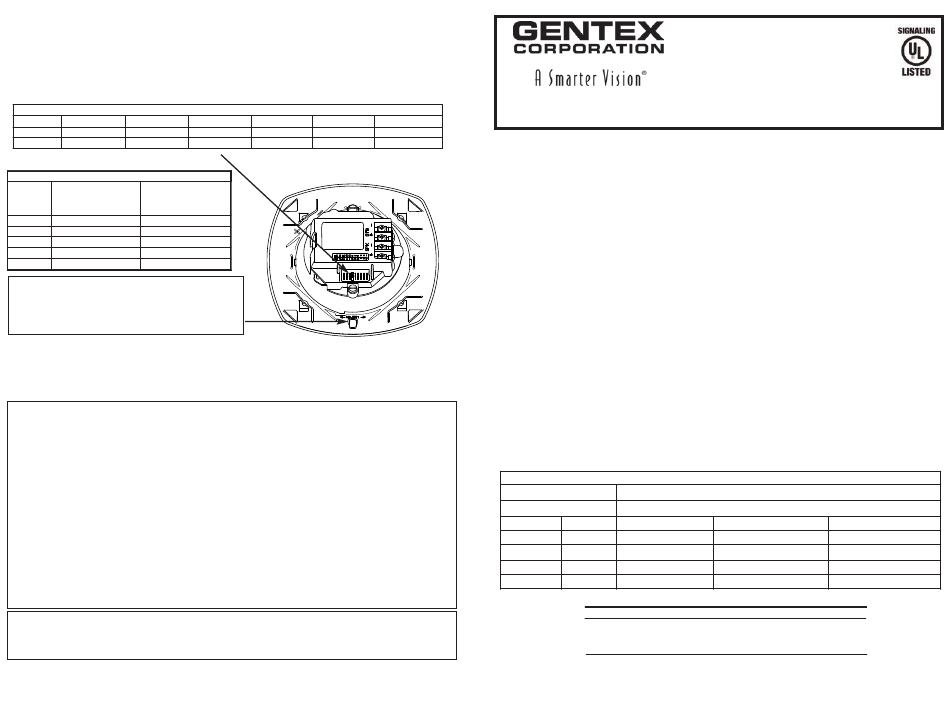

Gentex SSPKCLP SERIES Installation Instructions And Owner's Manual

4. Carefully pack the defective unit (the manufacturer cannot be responsible for consequential
damage due to shipping or mishandling). Include your return address and complete details as
to the nature of the difficulties being experienced and date of installation.
5. Return to: Gentex Corporation, 10985 Chicago Drive, Zeeland, MI 49464. Prior to returning,
call Gentex @ 1-800-436-8391 or e-mail FP_RMA@gentex.com to obtain a RMA Number from
our return department.
VII. ELECTRICAL SPECIFICATIONS:
Field Selectable Power Tap Selection
Voltage 1/8 Watt 1/4 Watt
25 Volts 74.6 dBA @ 10ft. 77.7 dBA @ 10ft. 80.5 dBA @ 10ft. 83.1 dBA @ 10ft. 85.6 dBA @ 10ft. 87.9 dBA @ 10ft.
70.7 Volts 73.7 dBA @ 10ft. 76.7 dBA @ 10ft. 79.6 dBA @ 10ft. 82.5 dBA @ 10ft. 85.4 dBA @ 10ft. 87.9 dBA @ 10ft.
Adjust power taps using needle nose pliers.
Ceiling Strobe Current Ratings*
Regulated 24VDC Regulated 24VFWR
Candela Max. Operating Max. Operating
Current(mA) Current (mA)
15 120mA 183mA
30 130mA 190mA
75 272mA 374mA
95 318mA 439mA
115 360mA 494mA
Adjust intensity by inserting small flatblade screw-
driver to turn dial. Displayed number will indicate
selected candela.
NOTE: Field selectable options of 15, 30, 75, 95 and
115 candela.
Note: DC Voltage Range Limits: 16-33v. FWR Voltage Range Limits: 16-33v. This product was
only tested to the stated voltage range(s); do not apply 80% and 110% of this range for
system operation.
* Speaker Strobes are synchable using the Gentex AVSM Synchronization Module.
LIMITED WARRANTY
For a period of 36 months from the date of purchase, or a
maximum of 42 months from the date of manufacture, Gentex
warrants to you, the original purchaser, that your appliance will be free from
defects in workmanship, materials, and construction under
normal use and service. If a defect in workmanship, materials, or
construction should cause your appliance to become inoperable within the
warranty period, Gentex will repair your appliance or furnish you with a new
or rebuilt replacement appliance without charge to you except for postage
required to return the appliance to us. Gentex will not reimburse you for
repairs or replacement parts provided by other
parties. Your repaired or replacement appliance will be returned to you free
of charge and it will be covered under this warranty for the balance of the
warranty period.
This warranty is void if our inspection of your appliance shows that the
damage or failure was caused by abuse, misuse, abnormal usage, faulty
installation, improper maintenance, or repairs other than those performed
by us.
ANY WARRANTIES IMPLIED UNDER ANY STATE LAW,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FIT-
NESS FOR A PARTICULAR PURPOSE, APPLY ONLY FOR THE WAR-
RANTY PERIOD SPECIFIED ABOVE. PLEASE NOTE THAT SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSION MAY NOT APPLY TO
YOU.
Important Notice:
These materials have been prepared by Gentex Corporation ("Gentex") for informational purposes only, are necessarily summary, and are not purported to serve as legal advice and should not be
used as such. Gentex makes no representations and warranties, express or implied, that these materials are complete and accurate, up-to-date, or in compliance with all relevant local, state and
federal laws, regulations and rules. The materials do not address all legal considerations as there is inevitable uncertainty regarding interpretation of laws, regulations and rules and the application
of such laws, regulations and rules to particular fact patterns. Each person's activities can differently affect the obligations that exist under applicable laws, regulations or rules. Therefore, these
materials should be used only for informational purposes and should not be used as a substitute for seeking professional legal advice. Gentex will not be responsible for any action or failure to act
in reliance upon the information contained in this material.
10985 CHICAGO DRIVE, ZEELAND, MI 49464
550-0385-C
1/2 Watt 1 Watt 2 Watt
SSPKCLP FIELD SELECTABLE
CANDELA SELECTOR
GENTEX WILL NOT BE LIABLE FOR ANY LOSS, DAMAGE,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING
IN CONNECTION WITH THE SALE, USE OR REPAIR OF THIS APPLI-
ANCE. THE MAXIMUM LIABILITY OF GENTEX SHALL NOT IN ANY
CASE EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE
APPLIANCE. PLEASE NOTE THAT SOME STATES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
EXCLUSION MAY NOT APPLY TO YOU.
If a defect in workmanship, materials, or construction should cause
your appliance to become inoperable within the warranty
period, you must return the appliance to Gentex postage prepaid. You
must also prove to the satisfaction of Gentex the date of
purchase of your appliance. Warranty service may only be
performed by Gentex personnel at Gentex's facilities in Zeeland,
Michigan. You must also pack the appliance to minimize the risk of it
being damaged in transit. You must also enclose a return address.
Appliances returned for warranty service should be sent to: Gentex
Corporation, 10985 Chicago Drive, Zeeland, MI 49464. If we receive an
appliance in a damaged condition as the result of
shipping, we will notify you and you must file a claim with the shipper.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE.
GENTEX CORPORATION
PHONE: 1-800-436-8391
www.gentex.com
UNIVERSAL MOUNT LOW PROFILE SPEAKER
AND CEILING MOUNT LOW PROFILE SPEAKER/STROBE
Installation Instructions- Owner's Information
4 Watt
MODELS
SSPKCLP*................LOW PROFILE CEILING OR WALL MOUNT SPEAKER WITHOUT STROBE
SSPK24CLP*............LOW PROFILE CEILING MOUNT SPEAKER WITH SELECTABLE STROBE
* Includes one or more of the following designators, P (plain), R (red) or W (white).
I. INTRODUCTION
The Gentex SSPKCLP Series is a high quality speaker and speaker/strobe. The SSPKCLP
Series is UL Listed for fire protective service. The high intensity strobe utilizes a Xenon flash tube
which generates a high-intensity light visible from all sides. The strobe is UL Listed in compliance
with UL 1971, Signaling Appliances for the Hearing Impaired.
II.

PRODUCT INFORMATION

The SSPKCLP Series speaker and speaker/strobe offer a choice of field selectable power taps,
1/8, 1/4, 1/2, 1, 2 and 4 Watts for either 25v or 70.7v audio amplifiers. The speaker/strobe offers
the option of a high intensity strobe which complies with UL 1971. The frequency range of the
speakers is 400-4000Hz. All devices are suitable for line supervision. Speaker includes DC
blocking capacitor which allows for supervision voltage of either polarity.
III. LOCATION
This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with
this installation manual, the recommendation of the local authorities having jurisdiction, and other
NFPA Standards that provide standards on notification appliances for protective signaling systems.
The Gentex SSPKCLP Series is intended for indoor installation only. This appliance is not
listed for outdoor or drip proof applications.
WARNING! Visual signal must be in the direct viewing area of the occupant in order to be seen.
WARNING! Visual signal can not be seen when objects such as doors, furniture or walls block
visual signal.
NOTICE: Visual signals for the hearing impaired are only one method of alerting the hearing
impaired. Visual signals may not be the preferred method for notifying all hearing
impaired individuals.
Room Spacing for Ceiling-Mounted Visible Appliances per NFPA 72, 2007 Edition
Maximum Room Size
Meters
6.10 x 6.10 20 x 20
9.14 x 9.14 30 x 30
13.4 x 13.4 44 x 44
15.2 x 15.2 50 x 50
WARNING! Visual signal must be installed within 16 feet of the pillow when used
in a sleeping area.
12-01-05
SSPKCLP
UL 1971 COMPLIANT
UL 1480 COMPLIANT
Minimum Required Light Output (Effective Intensity, Cd; One Light)
Maximum Ceiling Height
Feet 10 Foot Ceiling 20 Foot Ceiling
15
30
75
95
**Effective Intensity Requirements for Sleeping Area
Visible Notification Appliance
Distance from Ceiling to Top of Lens
greater than or equal to 24" (610mm)
less than 24" (610mm)
SERIES
30 Foot Ceiling
30 55
45 75
75 NA
95 95
Intensity
110 Cd
177 Cd
