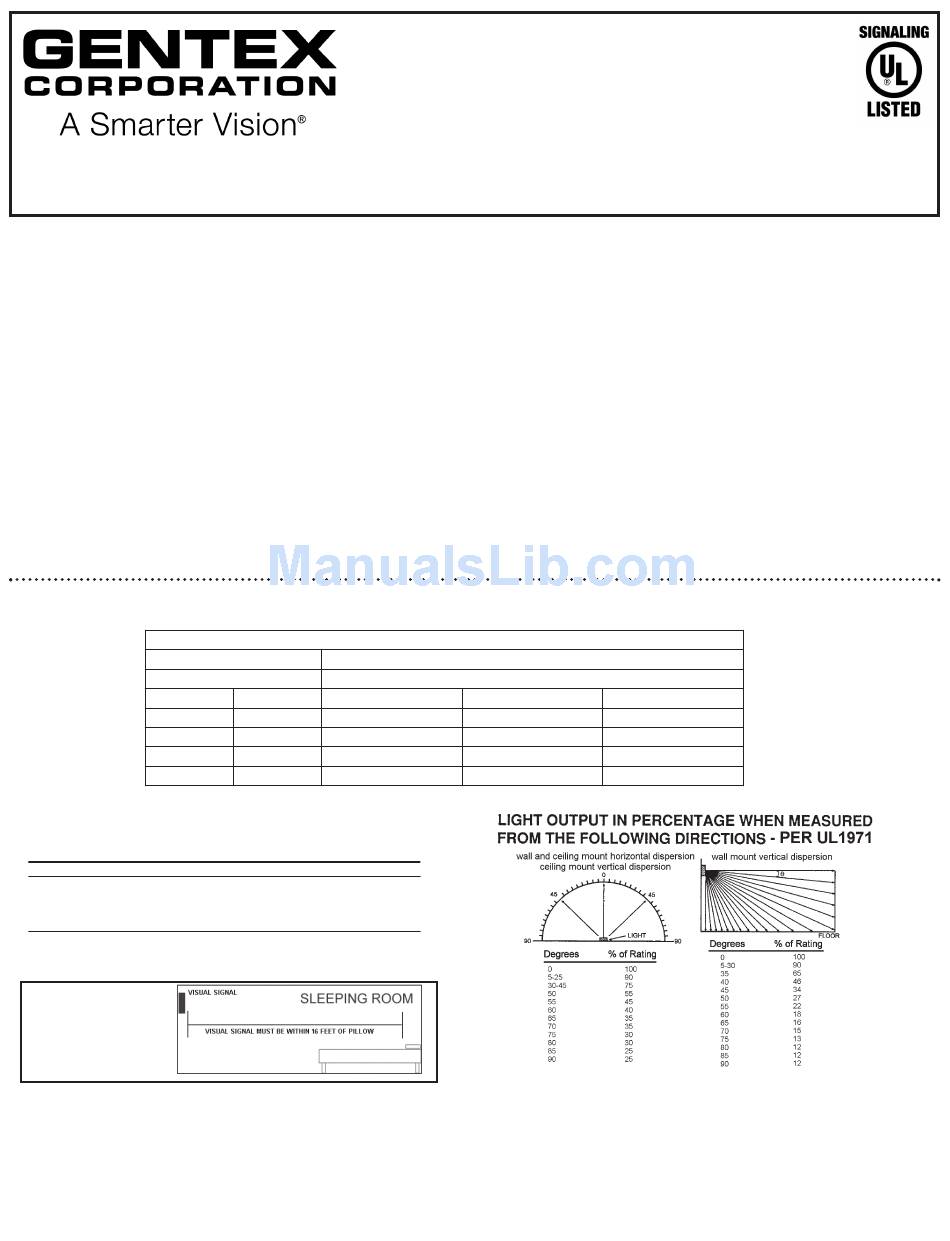

UNIVERSAL MOUNT LOW PROFILE SPEAKER AND
CEILING MOUNT LOW PROFILE SPEAKER/STROBE
MODELS
SSPKCLP*................ LOW PROFILE CEILING OR WALL MOUNT SPEAKER WITHOUT STROBE
SSPK24CLP*............ LOW PROFILE CEILING MOUNT SPEAKER WITH SELECTABLE STROBE
SSPKR24C*.............. LOW PROFILE CEILING MOUNT SPEAKER WITH SELECTABLE STROBE AND RED LENS
* Includes one or more of the following designators, P (plain), R (red) or W (white).
I.

INTRODUCTION

The Gentex SSPKCLP/SSPK24CLP/SSPKR24C is a high quality speaker and speaker/strobe ANSI/UL Listed for fire protective signaling systems. The high intensity strobe
utilizes a Xenon flash tube which generates a high-intensity light visible from all sides. The SSPK24CLP strobe is ANSI/UL Listed in compliance with ANSI/UL 1971, Signaling
Appliances for the Hearing Impaired. The SSPKR24 strobe is ANSI/UL Listed in compliance with ANSI/UL 1638, Visual Signaling Appliances - Private Mode Emergency and
General Signaling.
II. PRODUCT INFORMATION
The SSPKCLP/SSPK24CLP/SSPKR24 Series speaker and speaker/strobe offer a choice of field selectable power taps, 1/8, 1/4, 1/2, 1, 2 and 4 Watts for either 25v or 70.7v
audio amplifiers. The SSPK24CLP speaker/strobe offers the option of a high intensity strobe which complies with ANSI/UL 1971. The SSPKR24 speaker/strobe offers the
option of a high intensity strobe which complies with ANSI/UL 1638.The frequency range of the speakers is 400-4000Hz. All devices are suitable for line supervision.
Speaker includes DC blocking capacitor which allows for supervision voltage of either polarity.
III. LOCATION
This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with this installation manual, the recommendation of the local authorities having
jurisdiction, and other NFPA Standards that provide standards on notification appliances for protective signaling systems. The Gentex SSPKCLP/SSPK24CLP/SSPKR24
Series is intended for indoor installation only. This appliance is not listed for outdoor or drip proof applications.
Maximum Room Size
Meters
6.10 x 6.10
9.14 x 9.14
13.4 x 13.4
15.2 x 15.2
**Effective Intensity Requirements for Sleeping Area
Visible Notification Appliance
Distance from Ceiling to Top of Lens
greater than or equal to 24" (610mm)
less than 24" (610mm)
CAUTION: Strobe light
must be installed within
16 feet of the pillow when
used in a sleeping area.
SSPKCLP & SSPK24CLP SERIES
ANSI/UL 1480 AND/OR ANSI/UL 1971 COMPLIANT
SSPKR24 SERIES
ANSI/UL 1480 AND ANSI/UL 1638 COMPLIANT

SSPK24CLP PRODUCT INFORMATION

Room Spacing for Ceiling-Mounted Visible Appliances per NFPA 72, 2010 Edition
Minimum Required Light Output (Effective Intensity, Cd; One Light)
Feet
10 Foot Ceiling
20 x 20
15
30 x 30
30
44 x 44
75
50 x 50
95
Intensity
110 Cd
177 Cd
Maximum Ceiling Height
20 Foot Ceiling
30 Foot Ceiling
30
45
75
95
55
75
NA
95
550-0490
Page 1
