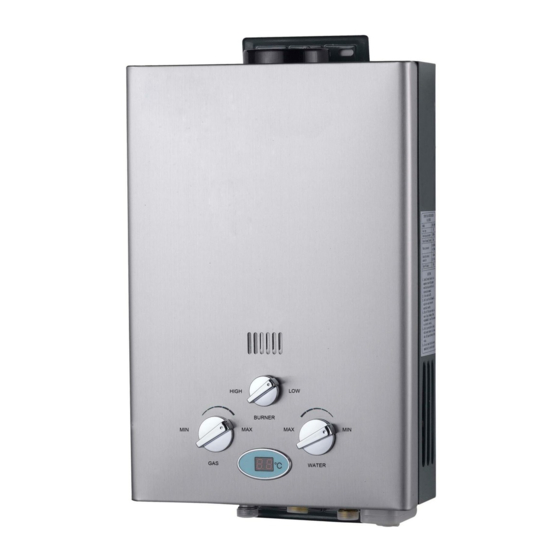

Portable lpg water heater
Hide thumbs Also See for JSD12-D6N:

Advertisement

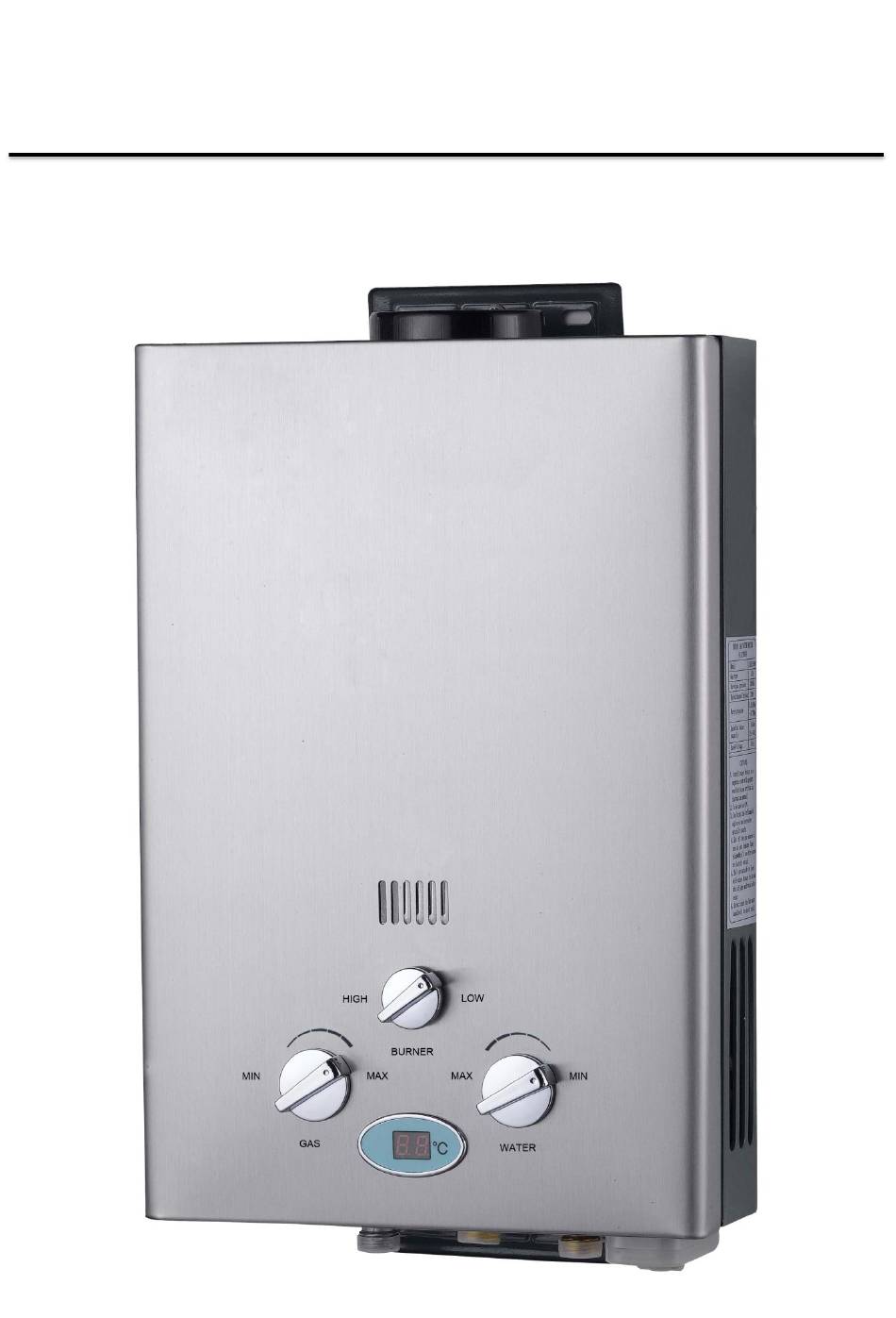

Portable LPG WATER HEATER
Certificate Number: GMK10277
OPERATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JSD12-D6N and is the answer not in the manual?

Questions and answers

Summary of Contents for Country Comfort JSD12-D6N

  • Page 1 Portable LPG WATER HEATER Certificate Number: GMK10277 OPERATION GUIDE...
  • Page 2: Technical Assistance And Spare Parts

    IMPORTANT! It is IMPORTANT that you read these instructions carefully and understand the operation and safety features of this appliance. Familiarize yourself with the appliance before connecting it to the gas bottle. Keep these instructions for future reference. IMPORTANT! This appliance is designed to be used with a source water temperature of 20°C or below.
  • Page 3: Important Notes And Precautions For Use

    IMPORTANT NOTES AND PRECAUTIONS FOR USE You have purchased one of our products for which we thank you. We are confident that this new appliance, modern, functional and practical, made with top quality materials, will meet all your demands. This new appliance is easy to use but before installing and using it, it is important to read this handbook through carefully.
  • Page 4: General Warnings

    GENERAL WARNINGS IMPORTANT • This appliance shall only be used with the Australian Avoid twisting & kinking the Propane Gas hose. Approved 1200mm Propane gas hose & regulator • assembly supplied with the appliance and must be If there is a leak on your appliance (smell of gas), connected only to a Propane gas cylinder certified to immediately attempt to turn off the cylinder valve.
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS This appliance must only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage is rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following.
  • Page 6: Appliance Performance

    APPLIANCE PERFORMANCE LIST OF PARTS SUPPLIED Important – This appliance is designed to be used with • 1 x LPG Portable Water Heater a source water temperature of 20°C or below. If the (Approved to Australian Standards) temperature of the outlet water exceeds 50°C the •...
  • Page 7: Preparing The Appliance

    PREPARING THE APPLIANCE (Note: Images below may vary from the supplied unit) The Gas Inlet Adaptor and Seal is factory fitted Before using the appliance, it is important to prepare to the Water Heater. PLEASE NEVER REMOVE the appliance by installing the proper adaptors to and include this connection in your leaks checks suit our intended use.
  • Page 8: Operating The Appliance

    OPERATING THE APPLIANCE Now that the appliance has been prepared with the proper adapter fittings and connections for our intended use (with a garden hose or 12v water pump supply) we can set it up for operation. Find a suitable sturdy, non-combustible vertical surface to hang the appliance.
  • Page 9 It is preferable to set the BURNER control to IMPORTANT: Turn the gas cylinder on (open) in an anti-clockwise direction one full turn, and then check the connections for leaks with soapy water. IMPORTANT: It is important that when starting the appliance that the gas regulator is set to the ‘min’...
  • Page 10 CARE & MAINTENANCE Your LPG Portable Water Heater has a metal casing and a stainless Steel face plate and so, should be cleaned after each use. This will not only maintain the appearance of your Gas Hot water Shower, it will also add to its longevity.
  • Page 11: Typical Installation

    PLEASE NOTE: Do not use a 240 volt pump or other electrical appliances where they could be affected by water from the unit. TYPICAL INSTALLATION The supplied 1.2 meter LPG hose and regulator assembly connects to a 9 kg LPG cylinder (maximum size). The water heater is then located 1.4 meters from ground level to the connection points as shown above.
  • Page 12: Troubleshooting

    TROUBLE SHOOTING This guide should be followed in case of failure of the appliance to operate correctly. If symptoms persist contact Customer Service on 0438 242 873 DO NOT ATTEMPT TO REPAIR OR MODIFY THE APPLIANCE Problem Cause Make sure you have new batteries installed in the correct position. The Appliance will not light at Negative should be down closest to you and Positive towards the back...
  • Page 13 WARRANTY STATEMENT Turnstyle Enterprises Pty Ltd warrants to the original purchaser that the product sold or distributed by Turnstyle Enterprises Pty Ltd identified below (the Product) will be free from defects in materials and workmanship for the warranty period identified below commencing on the date of purchase from Turnstyle Enterprises Pty Ltd. Turnstyle Enterprises Pty Ltd, will rectify any defect in materials or workmanship appearing within the Warranty period by repairing or replacing the Product (at its option).
  • Page 14 Page 14 of 14...
