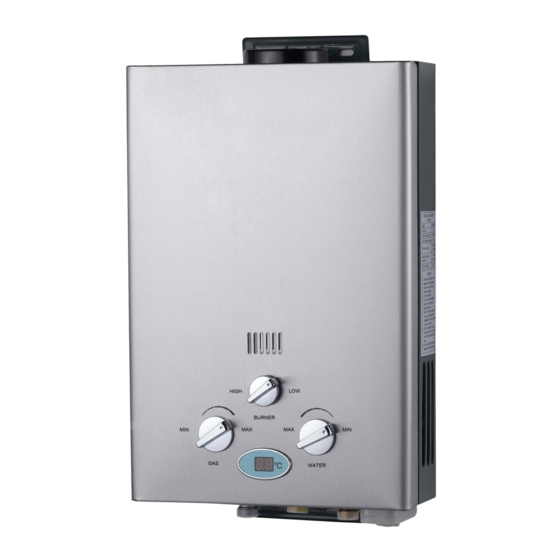

INSTRUCTIONS
Country Comfort
Portable
WATER HEATER
For outdoor use only
IMPORTANT. Read these instructions for use carefully. Familiarise yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
ONLY USE IN WELL-VENTILATED AREAS
CARBON MONOXIDE HAZARD—THIS APPLIANCE CAN PRODUCE CARBON MONOXIDE WHICH
HAS NO ODOUR. USING IT IN AN ENCLOSED SPACE (FOR EXAMPLE, CARAVAN, TENT, CAR,
MOBILE HOME) MAY CAUSE DEATH
CAUTION: accessible parts may be very hot. Keep young children away
WARNING! USE OUTDOORS ONLY. See operating instructions
DO NOT MODIFY THIS APPLIANCE
Do not use this appliance if it is leaking, damaged or does not operate properly
THIS APPLIANCE IS NOT INTENDED FOR THE SUPPLY OF DRINKING WATER
CHECK AND CONFIRM SAFE WATER TEMPERATURE BEFORE USING THIS APPLIANCE.
WATER FROM THIS APPLIANCE MAY BE VERY HOT.
This appliance must be protected from rain

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JSD12-D6N and is the answer not in the manual?

Questions and answers

Related Manuals for Country Comfort JSD12-D6N

Summary of Contents for Country Comfort JSD12-D6N

  • Page 1 INSTRUCTIONS Country Comfort Portable WATER HEATER For outdoor use only IMPORTANT. Read these instructions for use carefully. Familiarise yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. ONLY USE IN WELL-VENTILATED AREAS CARBON MONOXIDE HAZARD—THIS APPLIANCE CAN PRODUCE CARBON MONOXIDE WHICH...

  • Page 2: Table Of Contents

    TECHNICAL ASSISTANCE AND SPARE PARTS Before this appliance left the factory it was tested and set by specialized, expert personnel to guarantee the best functioning results. This appliance must only be serviced by an authorized person For this reason we always recommend contacting the nearest Assistance Centre of ours, specifying the brand, model, serial number and type of problem you are having with it.

  • Page 3: Important Notes And Precautions For Use

    1. IMPORTANT NOTES AND PRECAUTIONS FOR USE You have purchased one of our products for which we thank you. We are confident that this new appliance, modern, functional and practical, made with top quality materials, will meet all your demands . This new appliance is easy to use but before installing and using it, it is important to read this handbook through carefully.

  • Page 4: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 2.1 PERFORMANCE SPECIFICATION Performance Sheet JSD12-D6N Description Model Gas Water Heater Shape and Name of Components...
  • Page 5 Main technical data Number of Injector Size Total NGC Gas Type injectors (mm) (kPa) (MJ/h) Propane LPG 0.60 2.75 Power Voltage (V.dc) Max. Water Pressure 0.75MPa Net weight – 5 kg Min. Water Pressure 0.025MPa Rated Hot Water 6 L/min per minute at 25° rise Capacity Features This model has accidental flameout safety device, vent pipe anti-block, winter/summer shift.
  • Page 6 Typical installation shown The supplied 1.2 metre LPG hose and regulator assembly connects to a 9 kg LPG cylinder (maximum size). The water heater is then located 1.4 metres from ground level to the connection points as shown above. Water pump and fresh water tank are to be located in a convenient position as shown.
  • Page 7 2.2.4 OUTDOOR AREAS with rain protection Any enclosure in which the appliance is used shall comply with one of the following: D2. Within a partial enclosure that includes an overhead cover and no more than two walls or D3. Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply: D4/5 (i) At least 25% of the total wall area is completely open.

  • Page 8: Description Of Control Function

    2.2.5 INSTALLATION The portable water heater must be mounted on a vertical surface, with the water and gas connections on the underside pointing downwards. The surface must be capable of supporting the weight of approximately 10 kg. This appliance is not certified for installation or connection to fixed piping systems, eg domestic, commercial, caravans, mobile homes.

  • Page 9: Shut Off

    Winter-summer model water heater: with the knob changing to winter or summer. (operation of temperature control like above.) SHUT-OFF 3.1.4 To stop using the water heater, turn the gas cylinder valve off, wait for the flame to go out, then turn the appliance control valves and water valve off.

  • Page 10: Cleaning

    4. INSTRUCTIONS FOR THE USER: CLEANING, STORAGE AND MAINTENANCE 4.1 CLEANING 4.1.1 Get rid of accumulated dirt and dust on shell of water heater by cloth constantly. Do not use chemical or volatile scour that may change shell’s color. 4.1.2 Clean accumulated dusts and carbon (if present) inside heat exchanger periodically to ensure the smooth passage of smoke.

  • Page 11: What To Do If

    5. WHAT TO DO IF..5.1 Some of the problems can be caused by simple maintenance operations or something that was forgotten and can easily be resolved without having to call for technical assistance. If your appliance is not working efficiently: •...
