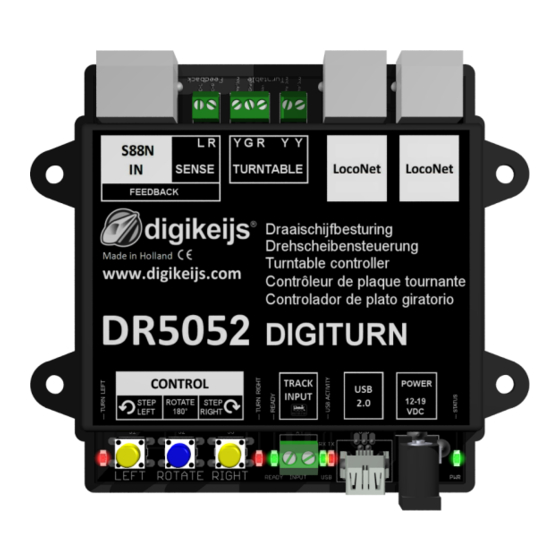

Digikeijs DR5052 DIGITURN Instruction Manual

Turntable controller
Hide thumbs Also See for DR5052 DIGITURN:

Advertisement

Quick Links

Download this manual See also: Instruction Manual
DR5052 DIGITURN
Stand 2019.01.10
instruc on manual
© Copyright 2005 – 2019 digikeijs, the Netherlands. All
rights reserved. No informa1on, images or any part of
this document may be copied without the prior wri2en
permission of Digikeijs.
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
DR5052
DIGITURN
Firmware 1.x.x
(2019.01.10)
P 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DR5052 DIGITURN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digikeijs DR5052 DIGITURN

Summary of Contents for Digikeijs DR5052 DIGITURN

  • Page 1 DR5052 DIGITURN instruc on manual Firmware 1.x.x (2019.01.10) © Copyright 2005 – 2019 digikeijs, the Netherlands. All rights reserved. No informa1on, images or any part of this document may be copied without the prior wri2en permission of Digikeijs. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...

  • Page 2: General Informa On

    DR5052 DIGITURN Stand 2019.01.10 1.0 General Informa on 1 Index General information Adding track sidings Index 4.10 Parameterise track connections Plus and Profi Guarantee and warranty provisions version Legal information 4.11 Properties Global Detector 4.12 S88N® IN Settings Product overview...
  • Page 3 We reserve the right to change the design of the product, the soJware and / or the firmware without prior no1ce. Copyright All Digikeijs opera1ng instruc1ons and other wri2en instruc1ons supplied and/or downloadable are protected by copyright. Reproduc1on is not permi2ed without the wri2en permission of Digikeijs.

  • Page 4: Product Overview

    DR5052 DIGITURN Stand 2019.01.10 2.0 Product overview 2.1 General product informa on The DR5052 is a turntable decoder that can control almost all turntables. All common control protocols are supported. When using the DR5052 in the Basic or Basic Plus version, no modifica1ons to the turntable are necessary, the turntable can be connected and operated "Out of the Box".
  • Page 5 DR5052 DIGITURN Stand 2019.01.10 2.2 Technische Spezifika onen. The terminals are designed for a cross-sec1on of 0.25mm² (Turntable and Sense) and 0.5mm² (Track Input). For the 0.25mm² terminals, a screwdriver should be used with a blade size of 0.3×1.8mm (e.g. Wera® 118004) Other sizes can damage the terminals.
  • Page 6 DR5052 DIGITURN Stand 2019.01.10 2.3.0 Hardware Overview DR5052 S88N IN Connec1on S88 Feedback modules L R Measuring voltage connec1on Track connec1ons (see connec- 1on examples) Turntable connec1on Motor control yellow cable (colour code Fleischmann turntable) (colour code Fleischmann turntable) grey cable...
  • Page 7 DR5052 DIGITURN Stand 2019.01.10 2.3.1 Hardware Overview DR5052-M This adapter is required to connect a Märklin® turntable to the DR5052 in the Basic, Basic-Plus and Profi versions. (Please note the connec1on example in points 6.2 and 6.5.) Corresponding installa1on sets are available in the online shop.
  • Page 8 DR5052 DIGITURN Stand 2019.01.10 2.3.3 Hardware Overview DR4188-DC This adapter is required for the Basic-Plus and Profi versions. With this adapter an exact posi1on monitoring of the sidings in connec1on with a DR4088OPTO is possible. (Please note the connec1on example in points 6.4, 6.5 and 6.6.) Corresponding installa1on sets are available in the online shop.

  • Page 9: Configuration Software

    DR5052 DIGITURN Stand 2019.01.10 3.0 CONFIGURATION SOFTWARE ATTENTION!!!! It may happen that the USB connec1on to the PC is lost if the DR5052 remains permanently connected via USB and the track input of the DR5052 is supplied with power. For this reason we recommend the use of a USB isolator.

  • Page 10: Introductory Remarks

    3.2 Download SoFware Do not connect the DR5052 to the PC un1l the soJware has been installed. The soJware can be downloaded from the DIGIKEIJS website. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
  • Page 11 DR5052 DIGITURN Stand 2019.01.10 3.3 Install soFware AJer you have successfully downloaded the soJware, the installa1on can be started by double-clicking on the "DR5052xx.exe" file. Make sure that you have administrator rights on your PC. Wich g !!! Verbinden Sie den DR5052 erst nach erfolgreicher Installa1on der SoJware und Treiber mit dem PC.
  • Page 12 DR5052 DIGITURN Stand 2019.01.10 The following screen appears aJer a few seconds. Select Execute here anyway and click "Next". If you want to change the loca1on of the soJware, you can do so on the next screen. However, it is recommended to leave the seZngs as they are and click "Next".
  • Page 13 DR5052 DIGITURN Stand 2019.01.10 Now follows a short overview of the seZngs. Click on "Install" if you agree. Now the configura1on soJware will be installed and Windows will ask you a few 1mes if you trust Digikeij's soJware.When all this is complete, the last screen appears.
  • Page 14 DR5052 DIGITURN Stand 2019.01.10 3.4 Connec ng the DR5052 to the PC via USB With the desktop symbol the soJware can be started. Do not start the soJware un1l the following steps have been performed! First connect the PC with the supplied USB cable and then with the DR5052.
  • Page 15 DR5052 DIGITURN Stand 2019.01.10 4.0 programming ATTENTION!!!! It may happen that the USB connec1on to the PC is lost if the DR5052 remains permanently connected via USB and the track input of the DR5052 is supplied with power. For this reason we recommend the use of a USB isolator.
  • Page 16 DR5052 DIGITURN Stand 2019.01.10 4.1 Overview Configura on SoFware The different op1ons can be easily accessed by clicking on the respec1ve connec1ons. 1 S88N in Features 2 Features Turntables Stage Detector 3 USB Features / Firmware Upgrade 4 Exit soJware...
  • Page 17 DR5052 DIGITURN Stand 2019.01.10 4.2 USB 2.0 Features The selected DR5052 has been connected via USB and the serial number is read. COM port number for the Dr.Command protocol. Update the firmware of the DR5052. Reset to factory seZngs. Cancel www.digikeijs.com...
  • Page 18 DR5052 DIGITURN Stand 2019.01.10 4.3 Restoring the factory seHngs It is possible to reset the DR5052 seZngs to the factory defaults. The USB menu in the configura1on soJware allows you to ac1vate the reset, which resets the DR5052 seZngs to factory defaults.
  • Page 19 DR5052 DIGITURN Stand 2019.01.10 4.4 Upda ng the SoF- and Firmware The development of the DR5052 soJware con1nues and is constantly being improved. Firmware updates allow you to equip the DR5052 with the latest soJ- ware. The new firmware is integrated in a new configura1on soJware. Before a firmware update is performed, it is recommended to save the current seZngs using the "Import/Export SeZngs"...

  • Page 20: Firmware Versions

    DR5052 DIGITURN Stand 2019.01.10 4.5 Firmware Versions Version Date Descrip on 1.0.0 02.12.2018 First beta version for beta testers 1.0.0 02.12.2018 First instruc1ons 1.0.0 02.12.2018 Connec1on examples www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
  • Page 21 DR5052 DIGITURN Stand 2019.01.10 4.6 LocoNet® Features LocoNet® Feedback Monitor The different colors characterize the different feedback buses. RailCom® Report Here you select which LocoNet command is used to send the RailCom® message. The original OPC_MULTI_SENSE command is used (Digitrax® and Bluecher® compa1ble).
  • Page 22 DR5052 DIGITURN Stand 2019.01.10 4.6.0 Module Proper es Display Logging Window. Railcom® channel 2 for addi1onal address recogni1on. Select language. A maximum of 4 addresses can then be detected simultaneously by Module address in LocoNet®. one detector. Report feedback contacts aJer switching on.
  • Page 23 DR5052 DIGITURN Stand 2019.01.10 4.6.1 Module Proper es Digitrax® specifica1on for repor1ng 'short' locomo1ve addresses. All QoS messages below this value are not reported to the central Standard: Report 0x7D in high quality byte. unit. Alterna1ve: Report 0x00 in high quality byte.
  • Page 24 DR5052 DIGITURN Stand 2019.01.10 4.7 Scrip ng with DR. Script DR Script is a BASIC / Assembler similar, text based programming language. With Dr. Script you have the possibility to control even complex processes with the help of a product of the DR50xx series. Further informa1on about Dr. Script can be found in the separate documenta1on.
  • Page 25 DR5052 DIGITURN Stand 2019.01.10 4.8 Configuring the turntable Here the type of turntable, the protocol to be used, track connec1ons, feedback numbers and all other characteris1cs of the turntable are defined. Depending on which decoder type is selected, different op1ons are available in the soJware.
  • Page 26 DR5052 DIGITURN Stand 2019.01.10 4.8.2 SeHngs speed etc. for the professional decoder type. The DR5052 can also control the turntable using a locomo1ve decoder. This makes it possible to control the drive motor load, illuminate the stage house, switch entry and exit signals on the stage and of course the turntable can be equipped with sound. To be able to use the professional version, the turntable must be converted.
  • Page 27 DR5052 DIGITURN Stand 2019.01.10 4.8.3 SeHngs professional decoder of the stage for ligh ng and signal control. Here the func1ons are assigned which the built-in locomo1ve decoder should control. Base address of the locomo1ve decoder installed in the stage. Switch address which switches the ligh1ng.
  • Page 28 DR5052 DIGITURN Stand 2019.01.10 4.8.4 SeHngs to synchronize the turntable display in the DR5052 tool with the real turntable. This input mask can be used to set the rotary mo1on display in the DR5052 Tool so that the rotary mo1on in the tool matches the rotary mo1on of the real turntable.
  • Page 29 DR5052 DIGITURN Stand 2019.01.10 4.9 Add track connec on In this menu the physically exis1ng track connec1ons of the turntable must be recorded. This can be done in two ways. Add track connec on via the individual bu9ons in the seHngs menu.
  • Page 30 DR5052 DIGITURN Stand 2019.01.10 4.10 Parameterize track connec on Basic-Plus and Profi version Posi1on of the rail siding (for assigned address see Appendix 7.1.1 or 7.1.2 of the se- lected protocol) Polarity of the turntable plaOorm and track connec1ons. Feedback number LEFT rail of the corresponding track connec1on.
  • Page 31 DR5052 DIGITURN Stand 2019.01.10 4.11 Features Stage Detector Here the proper1es of the global detector of the turntable plaOorm are defined. Detector input on the module. (If a check mark is removed here, the corresponding detector is deac1vated). Feedback address of the normal occupancy detector (current sensor).
  • Page 32 DR5052 DIGITURN Stand 2019.01.10 4.12 S88N® IN SeHngs versions) (only for Basic Plus and Professional The S88N® connector is a S88N® compa1ble bus. The DR4088-OPTO feedback modules for detec1ng the posi1on of the turntable rela1ve to the track sidings are connected to this connec1on.
  • Page 33 DR5052 DIGITURN Stand 2019.01.10 4.12.1 ext88N use to control the turntable With the DR5052, it is possible to easily control the turntable via feedback modules connected to the S88N bus (DR4088GND, 4088OPTO). For this func1on, the 8x16 feedback inputs (a maximum of 128 feedback modules) are provided on the S88N bus of the DR5052. If this func1on is used, note that the feedback modules that are used for the connec1on of bu2ons or switches must always be connected directly to the S88N bus of the DR5052 first!
  • Page 34 DR5052 DIGITURN Stand 2019.01.10 5.0 Control turntable www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz P 34...
  • Page 35 DR5052 DIGITURN Stand 2019.01.10 5.2 Turntable with the Control tool (Fleischmann® protocol) Here the general opera1on of the turntable is described and how the turntable behaves when the Fleischmann® protocol is selected in the seZngs. The exact pro- tocol is shown in the appendix item 7.1.2. Here you can also see which turnout address controls which (addresses of the sidings, turn address 180°, etc.).
  • Page 36 DR5052 DIGITURN Stand 2019.01.10 5.1 Turntable with the Control Tool (Märklin® Protocol) Here the general opera1on of the turntable is described and how the turntable behaves when the Märklin® protocol is selected in the seZngs. The exact protocol is set out in Annex, point 7.1.1. Here you can also see which turnout address controls what (addresses of the sidings, turn address 180°, etc.).

  • Page 37: Connec On Examples

    DR5052 DIGITURN Stand 2019.01.10 6.0 Connec on examples A few basic requirements: For the Basic and the Basic-Plus version no conversion of the turntable is necessary! The tabs on the stage (Basic-Plus version) must not be removed! If the professional version is to be used, conversions to the turntable are necessary. This conversion is described in a separate manual.
  • Page 38 DR5052 DIGITURN Stand 2019.01.10 6.1 DR5052 Basic for Fleischmann® H0,N DS, 2-wire track If the DR5052 is used in the basic version, no modifica ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be removed.
  • Page 39 DR5052 DIGITURN Stand 2019.01.10 6.2 DR5052 Basic for Märklin® H0 DS, 3-wire track If the DR5052 is used in the basic version, no modifica ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be removed.
  • Page 40 DR5052 DIGITURN Stand 2019.01.10 6.3 DR5052 Basic for Roco® H0,TT DS, 2-conductor track If the DR5052 is used in the basic version, no modifica ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be removed.
  • Page 41 DR5052 DIGITURN Stand 2019.01.10 6.4 DR5052 Basic-Plus for Fleischmann® H0,N DS , 2-wire track If the DR5052 is used in the Basic-Plus version, no modifica ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be re- moved.
  • Page 42 DR5052 DIGITURN Stand 2019.01.10 6.5 DR5052 Basic-Plus for Märklin® H0 DS, 3-wire track If the DR5052 is used in the Plus version, no modifica1ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be removed. It is also important that the track connec1ons are insulated (separated) from the shed tracks on both sides.
  • Page 43 DR5052 DIGITURN Stand 2019.01.10 6.6 DR5052 Basic-Plus for ROCO® H0,TT DS, 2-wire track If the DR5052 is used in the Plus version, no modifica1ons to the turntable are required! Under no circumstances must the contact lugs on the turntable plaOorm be removed. It is also important that the track connec1ons are insulated (separated) from the shed tracks on both sides.
  • Page 44 DR5052 DIGITURN Stand 2019.01.10 7.0 a9achment 7.1.1 Comparison of Märklin® protocol and func ons in the DR5052 Adr. Key Func on Func on Märklin® Protocol Func on with DR5052 End of programming unused green Start programming unused Clear 180° Emergency stop...
  • Page 45 DR5052 DIGITURN Stand 2019.01.10 7.1.2 Comparison of Fleischmann® protocol and func ons in the DR5052 Adr. Key Func on Func on Märklin® Protocol Func on with DR5052 Turn 180° clockwise Turn 180° clockwise green Turn 180° counter clockwise Turn 180° counter clockwise...
