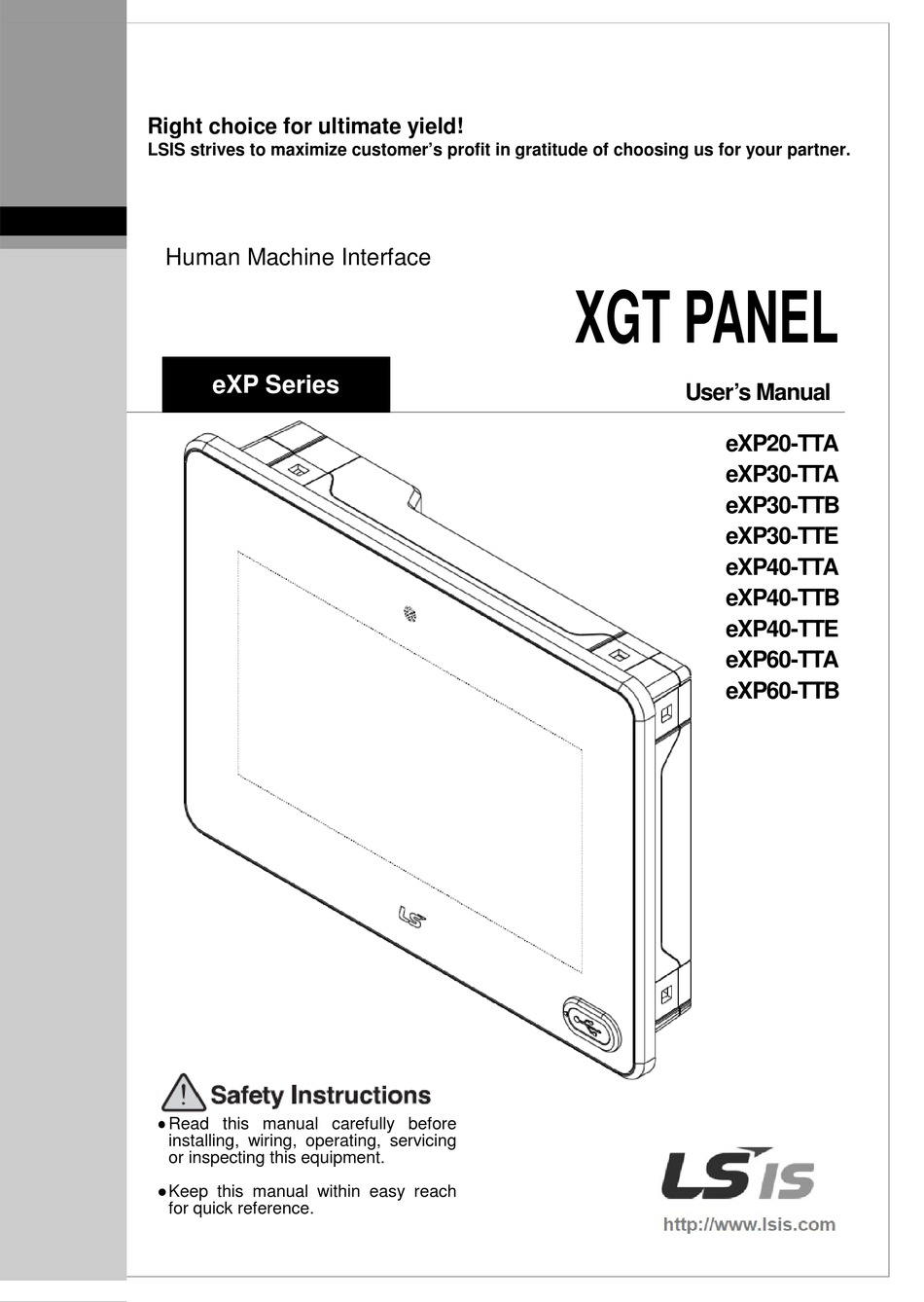

Page 1 Right choice for ultimate yield! LSIS strives to maximize customer’s profit in gratitude of choosing us for your partner. Human Machine Interface XGT PANEL eXP Series User’s Manual eXP20-TTA eXP30-TTA eXP30-TTB eXP30-TTE eXP40-TTA eXP40-TTB eXP40-TTE eXP60-TTA eXP60-TTB Read this manual carefully before ...
Page 2 Safety Precautions Before using the product… To use the product safety and effectively, please read this instruction manual thoroughly before use. ► Please keep to the safety precaution, for it to prevent accidents and potential danger from occurring. ► Safety precaution is classified into ‘Warming’ and ‘Caution’ and their meanings are as follows. Warning Violating the instruction may result in serious personal injury or death.
Page 3 Safety Precautions Design Precautions Warning ► Install a safety circuit external to the HMI to protect the whole control system in case of external power supply trouble. Serious trouble may occur to the entire system due to erroneous output/operation of the HMI. Design Precautions Caution ►...
Page 4 Safety Precautions Wiring Precautions Warning ► Be sure to turn off the HMI and external power before wiring. Otherwise, it may result in an electric shock or damage to the product. Caution ► Wire correctly by checking each of the product’s rated voltage and terminal layout. Otherwise, it may result in fire, electric shock or erroneous operation.
Page 5 Safety Precautions Startup and Maintenance Precautions Warning ► Do not touch the terminals while power is on. Otherwise, it may cause electric shock or erroneous operation ► Turn off the HMI and external power when cleaning or tightening the terminal. Otherwise, it may cause electric shock or erroneous operation.
Page 6 Revision History Revision History Version Date Contents Revised location V1.0 ‘16.05 First Edition V1.1 ’16.07 Additional model (eXP20-TTA) 1-2,2-1~2,3-3,10-3~6,App2-1 V1.2 ’17.08 Additional model (eXP30-TTA/TTE) 2-3~4,3-2,11-3~5,App2-2 V1.3 ’18.05 eXP30-TTA general standard revision...
Page 9: Table Of Contents
Contents Chapter 1 General Introduction ..............1-1~1-6 1.1 How to use the Instruction Manual ......................1-1 1.2 Feature ..............................1-2 1.3 Terminology............................1-6 Chapter 2 System Configuration ............... 2-1~2-6 2.1 Part Names ............................2-1 2.2 System Configuration ..........................2-5 Chapter 3 Standard Specification ..............3-1~3-4 3.1 General Standards ..........................
Page 10 Contents Chapter 6 Viewing Information of PLC Connection Status ......6-1~6-8 6.1 PLC Communication Configuration Settings ..................6-2 6.2 Connection Information ......................... 6-3 6.3 PLC Information ............................ 6-4 6.4 History of PLC Error ..........................6-4 6.5 History of PLC Mode Conversion ......................6-5 6.6 History of PLC Power ..........................
Page 11 Contents Chapter 10 Installation and Wiring ............10-1~10-10 10.1 Installation ............................10-1 10.1.1 Installation environment ......................10-1 10.1.2 Notice in handling ........................10-3 10.1.3 Notice in installing the panel ....................10-3 10.2 Wiring ..............................10-7 10.2.1 Power wiring ..........................10-7 10.2.2 Ground wiring ........................
Page 12: Chapter 1 General Introduction
Chapter 1 General Introduction Chapter 1 General Introduction 1.1 How to use the Instruction Manual This instruction manual provides information such as specification, how to use, etc., of the product needed to operate eXP series of XGT Panel. The user manual’s configuration is as follows. Sequence Category Contents...
Page 13: Feature
Chapter 1 General Introduction 1.2 Feature XGT Panel series has the following features. Various types of external interface (a) Supporting various device of USB, Ethernet, it maximizes the customer’s usability. Status LED - When power on, USB DEVICE(eXP30/40/60) - Project download through XP-Builder Various communication connectors are placed at the lower side so that it can be connected in a variety of types with the control device such as PLC, inverter, etc.
Page 14 Chapter 1 General Introduction (2) Based on Windows CE (a) Adoption of Microsoft Company’s Windows CE • Windows CE 6.0 (b) Advantage • It provides stable software capacity by using Microsoft Company’s platform. • It can process diverse function simultaneously. •...
Page 15 Chapter 1 General Introduction (5) Analog touch Panel (a) It adopts analog (resistive) Touch Panel. • Visibility is improved without the grids. (b) It provides high touch resolution. • It can control Touch Panel precisely. (6) Multilingual and diverse font (a) It supports the multilingual function.
Page 16 Chapter 1 General Introduction (7) Advanced function (a) Alarm function. • The History alarm can be classified alarm group and alarm list and selected alarm can be expressed by alarm search. • The Flow alarm indicates current or the latest alarm at the bottom of screen. •...
Page 17: Terminology
Chapter 1 General Introduction 1.3 Terminology It describes terms used in this manual. Term Definition Remarks A standard element that has a specified function which configures the Ex) CPU module, system. Module Power Module, Devices such as I/O board, which inserted onto the mother board or I/O module base unit..
Page 18: Chapter 2 System Configuration
Chapter 2 System Configuration Chapter 2 System Configuration Characteristic of each eXP series and its system configuration are as follow; 2.1 Part Names 1. eXP20-TTA/DC, eXP20-TTA/DC,CERTI ② ① ③ ⑥ ⑦ ⑧ ⑤ ④ Items Part Names Descriptions 1) Analog Touch Panel: Input by user’s touch ①...
Page 19: System Configuration
Chapter 2 System Configuration Items Part Names Descriptions ④ Power Terminal Composed of Power Input(DC24V) and PE Terminal 1) USB Memory Connection: Backup of data such as alarm/logging/recipe storage of screen data ⑤ USB Interface 2) USB Memory Connection: Send/Receive project data, Send XP-Runtime 3) User’s Interface Connection: Using mouse/keyboard 4) Printer connection: Printing function Battery Cover...
Page 20 Chapter 2 System Configuration 2. eXP30-TTA(B)/DC, eXP30-TTE/DC ② ① ④ ③ ⑦ ⑧ ⑨ ⑤ ⑥ Items Part Names Descriptions 1) Analog Touch Panel: Input by user’s touch ① Front Part 2) LCD: Screen indication Indicating the state of device (On: BLUE) ②...
Page 21 Chapter 2 System Configuration Items Part Names Descriptions 1) USB Memory Connection: Backup of data such as alarm/logging/recipe and storage of screen data ⑥ USB Interface 2) USB Memory Connection: Send/Receive project data, Send XP-Runtime 3) User’s Interface Connection: Using mouse/keyboard 4) Printer connection: Printing function Battery Cover <Setting Switch>...
Page 22 Chapter 2 System Configuration 3. eXP40-TTA(B)/DC, eXP40-TTE/DC ② ① ④ ⑧ ⑩ ⑨ ⑤ ⑥ ⑦ Items Items Items 1) Analog Touch Panel: Input by user’s touch ① Front Part 2) LCD: Screen indication ② Power status LED Indicating the state of device (On: BLUE) 1) Logging/Recipe/Screen Data Backup ③...
Page 23 Chapter 2 System Configuration Items Items Items A. Reset Switch B. Coin Battery C. Setting Switch <Setting Switch Configuration > ⑥ Battery Cover A Side. Backup Battery ON NO.1 B Side. Backup Battery OFF A Side. Do not use NO.2 B Side.
Page 24 Chapter 2 System Configuration 4. eXP60-TTA(B)/DC ② ① ④ ⑧ ⑨ ⑩ ⑤ ⑥ ⑦ Items Items Items 1) Analog Touch Panel: Input by user’s touch ① Front Part 2) LCD: Screen indication ② Power status LED Indicating the state of device (On: BLUE) 1) Logging/Recipe/Screen Data Backup ③...
Page 25 Chapter 2 System Configuration Items Items Items A. Reset Switch B. Coin Battery C. Setting Switch <Setting Switch Configuration > ⑥ Battery Cover A Side. Backup Battery ON NO.1 B Side. Backup Battery OFF A Side. Do not use NO.2 B Side.
Page 26 Chapter 2 System Configuration 2.2 System Configuration In order to use XGT Panel, it is necessary for XP-Builder to prepare project data and transmit it to XGT Panel. Normally you can connect with XGT Panel using RS-232C. Maximum Communication speed is 115,200[bps]. With Ethernet in use, you can transfer project data more quickly.
Page 27 Chapter 2 System Configuration If it is impossible to transfer project data using Communication, you can use USB storage device. For how to use in details, please see the Chapter 7 and XP-Builder User’s Manual. Remark (1) Recommend to transfer project by using Ethernet than RS-232C. (2) For how to make Ethernet cable, please see the Communication User’s Manual.
Page 28: Chapter 3 Standard Specification
Shock endurance * Duration time: 11ms IEC 61131-2 * Pulse wave: half sine pulse (3 times each in X, Y and Z directions) Square wave DC: ±1,200V LSIS Standard Impulse noise Electrostatic Discharge ±6 kV(Contact Discharge), IEC 61131-2 Immunity ±8 kV(Air Discharge)
Page 29 Chapter 3 Standard Specification Remark (1) IEC(International Electro technical Commission) - International private group facilitating international cooperation of electric/electronic standardization, issuing international standards and operating the compliance evaluation systems. (2) Pollution degree - As an index representing the pollution degree of an environment to determine the insulation of a device, pollution degree 2 generally means the status generating non-conductive contamination.
Page 30: Function Standards
Chapter 3 Standard Specification 3.2 Function Standards eXP Series function standard is as follows. eXP20-TTA/DC,CERTI Item eXP20-TTA/DC eXP30-TTA(B)/DC eXP30-TTE/DC TFT color LCD Display type Screen size 10.9cm(4.3”) 14.2cm(5.6”) Display Resolution 480 x 272 640 x 480 pixel 24-bit Color(16.7M) 16-bit Color(65,535 Color) Color indication Left/Right:60 deg.
Page 31 Chapter 3 Standard Specification eXP40-TTE/DC Item eXP40-TTA(B)/DC eXP60-TTA(B)/DC Display type TFT color LCD Screen size 17.8cm(7”) 25.9 cm(10.2”) Display Resolution 800 x 600 pixel(WVGA) 24-bit Color(16.7M) 16-bit Color(65,536) Color indication Left/Right:60 deg. Left/Right:55 deg. Indication degree Upper:40 deg. Upper:35 deg. Lower:60 deg.
Page 32 Chapter 3 Standard Specification Note (1) Caution in power connection : With AC power applied to DC power device, it may cause product damage or fire. Please pay a special attention to connection. (2) PE Connection : For the device PE, please use ⑦ PE terminal in the Chapter 2.1. (3) Battery discharge-prevention DIP switch : In order to prevent the battery discharge, turn off the DIP switch No.1.
Page 34: Chapter 4 System Configuration
Chapter 4 System Configuration Chapter 4 System Configuration It describes the system configuration including XGT Panel’s time setting, Ethernet connection setting, and Backlight settings. If you press [Settings] button in XGT Panel’s Main screen, you can set XGT Panel’s environment as follows. ☜...
Page 35: Backlight Setting
Chapter 4 System Configuration 4.1 Backlight Setting If you press [Backlight Setting] button in [System Configuration] screen as follows, setting screen shows up. [XGT Panel setting screen] [Backlight setting screen] [Dialog box setting option] Name Description Brightness It may adjust brightness of backlight. Do not turn off backlight It doesn’t turn off backlight power.
Page 36: Touch Calibration
Chapter 4 System Configuration 4.2 Touch Calibration When the location is not recognized in XGT Panel, Touch’s scale can be adjusted in XGT Panel. If you press [Touch Calibration] button in System Configuration, the setting screen shows up. If you press five ‘+’ marks, XGT Panel’s touch location adjustment is completed.
Page 37: Date Time Setting
Chapter 4 System Configuration 4.3 Date Time Setting If you press [DateTime Setting] button in [System Configuration] as follows, you can set XGT Panel’s data and time. Remark You can set data/time at device information of communication dialog at the XP-Builder. For details, please refer to the XP-Builder’s manual.
Page 38: Environment Setting
Chapter 4 System Configuration 4.4 Environment Setting If you press [Environment Setting] button in [System Configuration] screen as follows, you can set ‘Auto Goto Screen’ and ‘Buzzer On/Off’. [XGT Panel setting] [Environment - screen]...
Page 39 Chapter 4 System Configuration [Environment - General] [Environment - General] [Environment setting screen]...
Page 40 Chapter 4 System Configuration [Dialog box] Name Description When setting [Auto Goto Screen], XGT Panel is rebooted. Or when downloading Go to screen after boot up the edit data is completed, the screen automatically shows up. If you cancel this setting, the user should press ‘Start’...
Page 41 Chapter 4 System Configuration All files downloaded by the user are deleted. If connection password is set, you have to input the password. This password is connection password needed for project download, etc. You can set that password in [Communication]  [XGT Panel Information]  Clear SRAM memory and [Password] tap.
Page 42 Chapter 4 System Configuration If there is no printer information displays the following message and must be downloaded from the XP-Builder. You can prepare your download, then go to the Start menu in XP-Runtime and use the menu after using the printer settings from XP-Builder.
Page 43 Chapter 4 System Configuration Name Description Port Displays the connection type. Printer type Displays the type of printer. Print direction Sets whether horizontal or vertical. Print color Sets whether color or black and white. High quality print Specifies whether the advanced printing. More...
Page 44: Ethernet Setting
Chapter 4 System Configuration 4.5 Ethernet Setting If you press [Ethernet Setting] button in [System Configuration] screen as follows, you can change IP to use Ethernet. [XGT Panel Setting] You can change IP address by pressing [Set] button of each IP address, Subnet Mask and Gateway. By pressing OK button, changed IP information is reserved.
Page 45: Xp-Remote Setting
Chapter 4 System Configuration 4.6 XP-Remote Setting Settings of XP-Remote that can remotely adjust XGT Panel can be changed. [XGT Panel Setting] [XP-Remote Setting Screen] [Dialog box setting options] Name Description Allow XP-Remote to connect It allows connecting remote XP-Remote. Max.
Page 46: Buzzer Setting
Chapter 4 System Configuration 4.7 Buzzer Setting It may adjust volume and height of XGT Panel Buzzer. [XGT Panel Setting] [Buzzer Settings Screen] [Dialog box setting option] Name Description Buzzer On It may turn on or off the buzzer that occurs when in touch mode Buzzer volume It may adjust the volume of Buzzer Buzzer tone...
Page 48: Chapter 5 Diagnostics
Chapter 5 Diagnostics Chapter 5 Diagnostics It describes the diagnosis function for XGT Panel’s communication terminal, screen and touch function. If you press [Diagnostics] button on the XGT Panel’s basic screen, the menu for diagnosis shows up. ☜ [Main Screen] [Diagnostics setting screen]...
Page 49: Screen Diagnosis
Chapter 5 Diagnostics 5.1 Screen Diagnosis If you press [Screen] button, screens continuously change into diverse color with buzzer. After all screen for diagnosis pass. Then, Close button shows up with white ground. If you press Close button, the initial screen shows up. [Diagnosis screen] [Screen diagnosis] Display Sequence...
Page 50: Touch Diagnosis
Chapter 5 Diagnostics 5.2 Touch Diagnosis If you touch the screen, the touched location is displayed as follows. If pressing the [OK] button, you can quit the screen. Touch diagnosis If the touched location is not correct, reset the Touch setting. For detailed information, please refer to the Chapter 4.2 Touch Calibration.
Page 51: Backup Memory Diagnosis
Chapter 5 Diagnostics 5.3 Backup Memory Diagnosis If you press [Backup Memory] button, you can see the result of diagnosis in the result windows. [Completion of Backup Memory diagnosis] Remark (1) If ‘NVRAM Data Access … Fail’ error is occurred, please contact with customer service center. (2) If ‘BATTERY STATUS …...
Page 52: Flash Memory Diagnosis
Chapter 5 Diagnostics 5.4 Flash Memory Diagnosis If you press [Flash Memory] button, you can see the result of diagnosis in the result widows. [Completion of Flash Memory diagnosis] Remark If ‘Read Disk Information Error!’ occurs, please contact with Customer service center.
Page 53: Usb Memory Diagnosis
Chapter 5 Diagnostics 5.5 USB Memory Diagnosis If you press [USB Memory] button, the result of diagnosis shows up in the result windows. [Completion of USB Memory diagnosis] Remark If ‘Read Disk Information Error!’ occurs, remove it first and test it after inserting it again. If the error message shows up repeatedly, please contact with customer service center.
Page 54: Serial Communication Diagnosis
Chapter 5 Diagnostics 5.6 Serial Communication Diagnosis If you press [Serial] button, you can diagnose Serial ports which is equipped at XGT Panel. (In case of diagnosis purpose, you have to connect the loop-back terminal at each port.) [Serial port selection] [Completion of serial port diagnosis]...
Page 55 Chapter 5 Diagnostics The RS-232C port terminal should be made as follows. (Connect the No.2 and 3 pin) The RS-485 and RS-422/485 port terminal should be made as follows. (Only eXP40/60) Connect the RS-485 No.1 with RS-422/485 No.2 and No.4 Connect the RS-485 No.6 with RS-422/485 No.1 and No.3 ...
Page 56: Chapter 6 Viewing Information Of Plc Connection Status
Chapter 6 Viewing Information of PLC Connection Status Chapter 6 Viewing Information of PLC Connection Status PLC Information, it shows XGT Panel configuration, PLC CPU status and various records. ☜ Remark You can check the status of PLC connection after project data is transmitted into XGT Panel.
Page 57: Plc Communication Configuration Settings
Chapter 6 Viewing Information of PLC Connection Status 6.1 PLC Communication Configuration Settings You can select [Settings] button to change PLC communication settings [PLC information screen] [PLC Communication Configuration setting] Remark PLC Communication Configuration setting dialog box may look different depending on drivers. For further information about the settings, please refer to the PLC user manual.
Page 58: Connection Information
Chapter 6 Viewing Information of PLC Connection Status 6.2 Connection Information You can check the setting items for the connection with PLC such as vender of PLC, target device, connection type, ip address, connection information and timeout value in the XP-Builder. [PLC information screen] [PLC connection information] [Dialog box Description]...
Page 59: Plc Information
Chapter 6 Viewing Information of PLC Connection Status 6.3 PLC Information You can check CPU type of PLC, operation mode, state, version, and scan time. Remark The following PLC is available for view of PLC information. - MASTER-K CPU, FEnet, Cnet - GLOFA-GM CPU, FEnet, Cnet - XGK/XGB/XGI/XGR CPU, FEnet, Cnet 6.4 History of PLC Error...
Page 60: History Of Plc Mode Conversion
Chapter 6 Viewing Information of PLC Connection Status 6.5 History of PLC Mode Conversion You can check the history about our PLC’s RUN/STOP operation mode. Remark The following PLC is available for viewing PLC operation mode conversion history. - MASTER-K CPU doesn’t have the history about operation mode conversion. - GLOFA-GM CPU, FEnet, Cnet - XGK/XGB/XGI/XGR CPU, FEnet, Cnet 6.6 History of PLC Power...
Page 61: History Of Plc System
Chapter 6 Viewing Information of PLC Connection Status 6.7 History of PLC System You can check history about PLC system. Remark The following PLC is available for viewing history about system. - MASTER-K CPU doesn’t have the history about system. - Only GLOFA-GM CPU (GM4C) has the history about system.
Page 62: N:1 Settings
Chapter 6 Viewing Information of PLC Connection Status 6.8 N:1 Settings Using N:1 communication, it means communicate number of XGT Panel with single PLC. [PLC information screen] [N:1 settings dialog box] [Dialog box setting options] Name Description Use N:1 Communication The matter of performing N:1 communication is designated.
Page 63: Program Monitor
Chapter 6 Viewing Information of PLC Connection Status 6.9 Program Monitor The programs that adopt Ladder language of XGK series can be monitored. Remark Program Monitor driver can be downloaded from XP-Manager. Only support for XGK/XGB CPU, Cnet, Enet communication To enable the [Program Monitor] button, program monitor should be checked in which locates in the XP- Builder project property menu.
Page 64: Chapter 7 Storage Function
Chapter 7 Storage Function Chapter 7 Storage Function 7.1 General Introduction Downloading the user project made in XP-Builder from PC, uploading the project stored in the device to PC, updating the device and etc are available through connection with XGT Panel with Serial cable or Ethernet cable generally.
Page 65: Downloading Project Through The Storage Equipment
Chapter 7 Storage Function 7.2 Downloading Project through the Storage Equipment 1. If you touch [Project Download], the following dialog shows. 2. Please select the targeted external memory in “Select Source”. Following path is indicated depending on the selected external memory. - USB: \USB Storage\XP_Project\ In case of downloading the project by using storage equipment, the project should be saved in the one lower directory between those directories.
Page 66: Uploading Project Through The Storage Equipment
Chapter 7 Storage Function 7.3 Uploading Project through the Storage Equipment 1. If you touch [Project Upload], the following dialog shows. 2. Please select the targeted external memory in “Select Source”. Following path is indicated depending on the selected external memory - USB: \USB Storage\XP_Backup\ 3.
Page 67: Updating The Device Through Storage Equipment
Chapter 7 Storage Function 7.4 Updating the Device through Storage Equipment 1. If you touch [Project Upload], the following dialog shows. 2. Please select the targeted external memory in “Select Source”. Following path is indicated depending on the selected external memory - USB: \USB Storage\XP_Software\ In case of updating the device by using storage equipment, the XGT Panel Software project should be saved in the one lower directory between those directories.
Page 68: Chapter 8 Xgt Panel S/W Update
In order to return to the main screen, touch a “MENU” button or touch the screen for 3 seconds ☜ After downloading XGT Panel software from LSIS website, make a temporary folder and save it. Designate the folder where the software will be saved in the XP-Builder’s [XGT Panel Update] windows and update XGT Panel by [Send] menu.
Page 70: Chapter 9 File Backup Through External Storage Equipment
Chapter 9 File Backup through External Storage Equipment Chapter 9 File Backup through External Storage Equipment Describes on management function about external storage equipment saving backup data of logging, recipe, and screen image (1) XGT Panel can back up the logging, recipe, and screen image data at USB storage equipment according to setting in XP-Builder.
Page 71: Path Structure In Case Of File Backup
Chapter 9 File Backup through External Storage Equipment 9.1 Path Structure in case of File Backup Backup path structure of logging, recipe, and screen image is as follows. Root directory of CF or USB storage equipment Logging 1 (Logging Number) YYYY.MM.
Page 72 Chapter 9 File Backup through External Storage Equipment 1. Path structure in case of logging backup (1) Directory named ‘Logging’ is created under the root directory of USB equipment (2) The directory whose name is logging number is created under Logging directory. (3) The directory whose name is year, month is created under Logging number directory.
Page 73 Chapter 9 File Backup through External Storage Equipment 2. Path structure in case of recipe backup (1) Directory named ‘Recipe’ is created under USB storage equipment root directory. (2) Year, month directory is created under Recipe directory (3) The lower directory structure is same as that of logging backup path structure. (4) Name of recipe backup file includes the created hour, minute, second information.
Page 74 Chapter 9 File Backup through External Storage Equipment (a) Backup file will be created in JPG type. (b) File name starts with ‘STL’ that represents screen image, which includes data and hour information thereafter. (c) Live image can be stored up to 1,000 files. This number can be designated at the special device settings of XP-Builder.
Page 75: Operation Setting When There Is No Space For Backup
Chapter 9 File Backup through External Storage Equipment 9.2 Operation setting when there is no space for backup You can designate in the XP-Builder whether to cancel the backup or delete the oldest backup file and execute backup when there is no space in the storage equipment. [Project Property Setting ->...
Page 76 Chapter 9 File Backup through External Storage Equipment 9.3 Monitoring Connection Status of External Storage Equipment XGT Panels monitors connection status about external storage equipment designated when setting backup path in XP-Builder. The following figure is backup path specified in XP-Builder. In order to use this monitoring function, you have to set about system alarm window, and then the project should be downloaded.
Page 77 Chapter 9 File Backup through External Storage Equipment as USB storage equipment and downloading the project into device, the designated system alarm (HS951.1) is set. In case storage equipment is equipped again, alarm is reset. In case USB storage equipment is removed during operation after setting the path for saving Screen Image backup file as USB storage equipment and downloading the project into device, the designated system alarm (HS951.2) is set.
Page 78: Chapter 10 Installation And Wiring
Chapter 10 Installation and Wiring Chapter 10 Installation and Wiring 10.1 Installation 10.1.1 Installation environment This machine has high reliability regardless environment. But for reliability and stability, be careful the followings (1) Environment condition (a) Install at the panel which can protect this machine from water and dust. XGT Panel is designed by IP65 Standard in front parts and IP20 Standard in rear parts.
Page 79 Chapter 10 Installation and Wiring Remark (1) Waterproof & dustproof standards (a) IP65 Standards 1) The protection standards of XGT Panel have been designed to meet the IP65 test conditions, in accordance with the degrees of protection provided by enclosures of IEC60529. As this machine installed at the panel, it is not guaranteed with all installation environment even though its protection standards for the front parts are satisfied.
Page 80: Notice In Handling
Chapter 10 Installation and Wiring 10.1.2 Notice in handling It describes the notice from opening to installation. • Do not drop or cause heavy impact. • Do not disassemble voluntarily. When doing this, we are not responsible for the product. •...
Page 81 Chapter 10 Installation and Wiring (2) XGT Panel installation • Keep the distance of 100 mm between XGT Panel and panel per each direction. Unit: [mm] Remark (1) To be affected at a minimum by the electromagnetic waves (radial noise) or heat from other controllers, it needs to keep its distance as the above explanation.
Page 82 Chapter 10 Installation and Wiring Remark (1) Must be used the gasket to prevent dust or other contaminant ingress. (2) When mounting at the panel, if the surface of panel is uneven, water or dust can enter the machine through the gaps. As such problems can occur depending on the thickness and material (steel, aluminum, acrylic and etc.) of the panel, it is required to review the installation environment.
Page 83 Chapter 10 Installation and Wiring Remark (1) Remove the protection film attached to the front of this machine. Due to the deformation of the protection film, the touch malfunction or wrong input can occur. It is recommended to use a special protection sheet to protect the front sheet.
Page 84: Wiring
Chapter 10 Installation and Wiring 10.2 Wiring It describes the wiring that you should know when installing the XGT Panel. 10.2.1 Power wiring eXP Panel is the DC product. Power Name eXP20-TTA/DC, eXP20-TTA/DC,CERTI eXP30-TTA(B)/DC, eXP30-TTE/DC DC 24V eXP40-TTA(B)/DC, eXP40-TTE/DC eXP60-TTA(B)/DC Warning ►...
Page 85 Chapter 10 Installation and Wiring The power terminal should have the following specification. Type Cable specification (Unit: ㎟) Wire Type Thermal Resistance Screw Torque Power and protection 1.5(AWG16) ~ 2.5(AWG12) Copper 60℃ 0.51N•m ground Remark (1) For installations where there is voltage drop, it is recommended to use stranded wire with a cross sectional area greater than 2 ㎟.
Page 86 Chapter 10 Installation and Wiring Separate the XGT Panel power from the I/O device and main circuit device. Remark Separate the XGT Panel power supply cable from the main circuit cable (high voltage and current) and input/output cable. Maintain a minimum separation of 100mmbetween cables. Use a lightning surge protector to prevent damage from lightning strikes.
Page 87: Ground Wiring
Chapter 10 Installation and Wiring Use an insulation shielding transformer or noise filter when the electromagnetic interference occurs. Keep the stripped ends of the terminated cables twisted and as short as possible. When running the wiring avoid running the cables for the insulation shielding transformer or noise filter pass through the cable duct. When you use the magnetic lighting contactor (MC) for AC/DC, it is recommended to use a ferrite core close to the power terminals as shown below.
Page 88: Chapter 11 Maintenance
Chapter 11 Maintenance Chapter 11 Maintenance To keep the XGT Panel best, examine the XGT Panel. 11.1 Maintenance Because an error may be developed by environment, the periodic maintenance is needed. You should check the following categories once or twice every 6 months. Maintenance category Criterion Action...
Page 89: Periodical Maintenance
Chapter 11 Maintenance 11.3 Periodical Maintenance Check the followings once or twice every six months and take measure. Maintenance Maintenance category Criterion Action method Surrounding 0 ~ 50 °C Temperature Measure through Modify it to meet Surrounding Temperature the general standard. Environment 10 ~ 85%RH Humidity...
Page 90 Chapter 11 Maintenance Remark (1) Battery exchange time is expressed by alarm. System alarm is expressed when system alarm category is set at the XP-Builder as follows. (2) Replace Battery With Hitachi Maxell, Part No. CR2032 Only. Use of Another Battery May Present A Risk Of Fire or Explosion.
Page 92: Chapter 12 Emc Standard Certification
Chapter 12 EMC Standard Certification Chapter 12 EMC Standard Certification 12.1 Requirement for EMC Standard Certification EMC command is regulated on “It doesn’t produce the Strong electromagnetic waves: Emission” and “It is not affected by electromagnetic wave from external: Immunity”. The following is describing the contents to meet the EMC command when configuring the system by using the XGT Panel.
Page 93: Kc Standard Certification
Chapter 12 EMC Standard Certification 12.1.2 KC standard certification The XGT Panel acquire the electromagnetic fitness registration (KC specification) certified by wave laboratory under information-communication part. A grade device This device acquires KC for industrial use. If device is not purchased properly, exchange it to device for home use. 12.2 Requirement for Low Voltage Command Suitability It is required to get the needed Stability for the device operated at AC50~1000V, DC75~1500V’s power.
Page 94: Appendix 1 Troubleshooting
Appendix 1 Troubleshooting Appendix 1 Troubleshooting 1. Type of Problem It classifies problems from XGT Panel including an indicated figure, indication of the object, and problems appeared when downloading. Refer to the following chart. Classification of Description problem Malfunction when starting. Problem when starting ☞Please refer to the 2.
Page 95: Problem When Starting
Appendix 1 Troubleshooting 2. Problem when Starting  Why does black screen show up when turning on the device? Phenomenon: When turning on the device, black screen shows up and the booting is impossible. < Cause > (1) Because the device is not set as a booting mode. (2) Black screen may appear because of malfunction of backlight.
Page 96 Appendix 1 Troubleshooting  When the power is re-permitted, the USB storage device (or USB mouse) is not recognized. Phenomenon: When the USB storage device was initially installed, it was normally recognized. However, it is not recognized after the power is re-permitted. <Causes>...
Page 97: Problem After The Monitor On
Appendix 1 Troubleshooting 3. Problem after the Monitor on  When touching the screen it reacts in a different area or it may not react at all? Phenomenon: When touching the screen it reacts in a different area or it may not react at all. <...
Page 98 Appendix 1 Troubleshooting  After continuously adding projects to the screen, and adding/editing objects, the operation speed has been slowed down. Phenomenon: After adding projects to the screen and also adding/editing objects, it feels like the operation speed of XGT Panel gets slowed down. <Causes>...
Page 99: Display Problem Of Figure And Object
Appendix 1 Troubleshooting 4. Display Problem of Figure and Object  The shape of object is not shown or the number or character value which has to be shown is not shown. Phenomenon: The shape of object is not shown or the number or character value which has to be shown is not shown.
Page 100 Appendix 1 Troubleshooting Object type Phenomenon But if communication is set with other object in the same part screen, it can be shown by that object. Animation Animation is not shown. Graph is not shown. When designating the background image, image is shown as Bar Graph it is.
Page 101 Appendix 1 Troubleshooting  After switching the screen, the previous screen remains for a few minute. Phenomenon: After switching the screen, when there is no background or image in the part or number indication device, the previous screen remains for a few minute because of change of part. <...
Page 102: Communication Problem
Appendix 1 Troubleshooting 5. Communication Problem  It seems that communication does not work. Phenomenon: On the screen where the object is not many, communication works but when you move the screen where the object is many, timeout occurs. < Cause > (1) In the device setting, the communication time-out is set to be too short.
Page 103: Usb Removal Of Memory Card
Appendix 1 Troubleshooting 6. USB Removal of Memory Card  When removing the USB memory equipment, device is stopped for some times. Phenomenon: This happens when doing data backup including logging, recipe. < Cause > (1) This happens because memory card is removed when doing data backup. <Solution>...
Page 104: Error Message During Execution Of Program
Appendix 1 Troubleshooting 7. Error Message during Execution of Program In case that problems occur during execution of XGT Panel including the start of device, diagnosis of device and environment setting, project download, monitoring of control device, and error messages occur as type of box. At this time the message indicates the code made by 4 digit number.
Page 105 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Viewing Now, there is no downloaded project so No project in XGT device 0x03 0x01 you can’t see connection information. Panel Panel. information Download the project from XP-Builder. Because of update error or Flash disk Failed to Start engine.
Page 106 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Scheduler 0x22 None related Recipe 0x23 None related Logging 0x24 None related Data list 0x25 None Abnormal send- Communication status is abnormal. payload. Please 0x00 Check the connection of Panel...
Page 107 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address In case of not reading file where project property is included, download is Failed to get Project 0x06 stopped. If this problem is repeated, Builder Contact the near Customer Service Center.
Page 108 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Customer Service Center. In case that it fail to delete the sound Failed to delete Sound file of previous project because of error 0x0E File.
Page 109 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address When downloading, the alarm history in Failed to initialize the NV-RAM is initialized in case of RECIPE area in NV selecting the previous project’s monitor 0x16 RAM.
Page 110 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Failed to XGP Panel It can’t find software to reboot XGT startup program. 0x1D Panel. Panel Please update XGT Update the XGT Panel. Panel Software. The project data was not downloaded Project data is not normally because of communication...
Page 111 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address There is version information file but when it can’t read file normally because Cannot read XGT of the device error, downloading is 0x57 Panel software Panel stopped because it doesn’t know version.
Page 112 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address The project data file is not saved correctly. Save the project data file at Download file size is the USB again. When this symptom is 0x5E Panel invalid.
Page 113 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Downloaded font file is moved to the original storage location. But when it Cannot move new font 0x66 fails, the downloading is stopped. If this Panel files.
Page 114 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address In the present XGT Panel the new updated XGT Panel software’s name can not be changed. After rebooting the XGT Panel, update again. When rebooting, if you can’t start engine, delete Failed to rename 0x05...
Page 115 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address Because the each module version Failed to Create information can’t be read because of Panel/ 0x21 Initialized Module XGT Panel’s error, it failed to initialize. Version File.
Page 116 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address To reboot the engine is not available because of wrong file which is developed by downloading wrong module or communication error. Failed to Start Engine. Touch 0x28 Please update engine...
Page 117 Appendix 1 Troubleshooting Error code Occurrenc Object Error message Reason and measure e location Type Address XGT can’t be set as update mode because of XGT Panel error. After downloading new XGT Panel module through homepage, etc., copy UpdateNew.exe file among new module to the Failed to Initialize \\FlashDisk\LSISProduct\ directory of...
Page 118: Appendix 2 Dimension
Appendix 2. Dimension Appendix 2. Dimension (Unit: mm) 1. eXP20-TTA/DC, eXP20-TTA/DC,CERTI (126.5) (118.3) (128) App2-1...
Page 119 Appendix 2. Dimension 2. eXP30-TTA(B)/DC, eXP30-TTE/DC (163.5) (155.5) (165±0.2) (36.1±0.2) eXP30-TTA/DC (120) eXP30-TTE/DC App2-2...
Page 120 Appendix 2. Dimension 3. eXP40-TTA(B)/DC, eXP40-TTE/DC (191.5) (144.9) (208±0.2) eXP40-TTA/DC (166.5) eXP40-TTE/DC App2-3...
Page 121 Appendix 2. Dimension 4. eXP60-TTA(B)/DC (259.5) (107.6) (107.6) (276±0.3) (107.3) (127.3) App2-4...
Page 122: Appendix 3 Warranty And Environmental Policy
3. Since the above warranty is limited to HMI unit only, make sure to use the product considering the safety for system configuration or applications. Environmental Policy LSIS Co., Ltd supports and observes the environmental policy as below. Environmental About Disposal...
Page 123 Tel : 86-20-8328-6754/Fax : 86-20-8326-6287 e-mail : chenxs@lsis.com.cn ※ LS Industrial Systems constantly endeavors to improve its product so that 2016. 07 information in this manual is subject to change without notice. ⓒ LSIS Co., Ltd 2015 All Rights Reserved.
