Sensio SE21102C0 Installation Instructions

INSTALLATION
INSTRUCTIONS
IMPORTANT: please read these instructions before commencing installation and retain for future reference.
.
Components
1 x SE21102C0/W0 and Mounting Bracket

Important safety information

Please read these instructions carefully before attempting to
install this product. It is advisable to keep these instructions in a
safe place for further reference.
We recommend that you consult a qualified electrician. All
electrical installation must be carried out in accordance with
current IEE wiring regulations (BS7671)
These products must not be modified, if any modifications are
made, it may invalidate the warranty and may render the product
unsafe. These LED lights operate low voltage (24V).
Do not wire the individual LED light fittings directly to the mains.
This product is suitable for indoor use only.

Safety instructions

4. Before commencing installation or maintenance, isolate the main
electrical supply for the appropriate circuit at the fuse board.
5. This product is only suitable for connecting to a 24V DC supply.
6. The light should be mounted onto a secure surface using the
instructions provided.
7. Never exceed the total output of the LED Driver.
Waste Electrical & Electronic Equipment (WEEE)
The Symbol on the product, or on the document accompanying the product, the crossed out
wheelie bin symbol, indicated that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic waste.

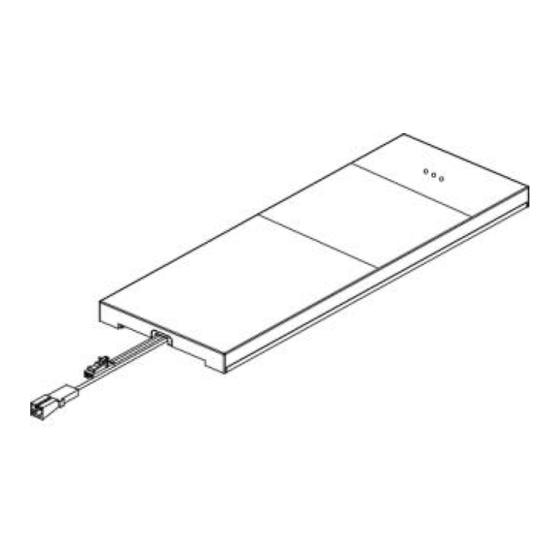

1 x LED PAD LIGHT
UNDER CABINET
WITH SENSOR
CODE: SE21102C0/W0
2 x Screws 1 x Fitting Instructions
 If in doubt installation must be carried out by a qualified
 Install on smooth flat surface(s) only
 Do not exceed or stretch the cable length of each LED wire.
 The wattage for each light is 4W.
Tools required
Ruler Pencil Screwdriver 9-11mm drill bit & Power Drill
electrician
1. Suitable for furniture lighting.
2. When the lamp expired the fitting must be replaced
3. Class III safety extra low voltage (SELV)
