Acard AEC-7732U Install Quick Manual

AEC-7732U Bridge Install Quick Guide
AEC-7732U Bridge Install Quick Guide
Chapter 1
Chapter 1
1.1 Overview
AEC-7732U is an internal SCSI-to-SATA-II ODD Bridge, which turns a
standard 5.25"SATA ODD into a 50-pin Ultra SCSI ODD. It is easy and
efficient for users to create or replace their old Ultra SCSI ODD.
1.2 Specification
Ultra SCSI interface for up to 20MB/sec data transfer rate.
On-chip high speed ACARD RISC micro-controller.
Supports SATA ODD.
Supports Windows 2000/XP/2003 Server/Vista, Linux.
On board flash ROM for easy firmware upgrade.
Selectable SCSI ID from 0 to 7.
Temperature:
Dimension: 12.5cm x 3.5cm x 2.6cm (L x W x H)
Chapter 2
Chapter 2

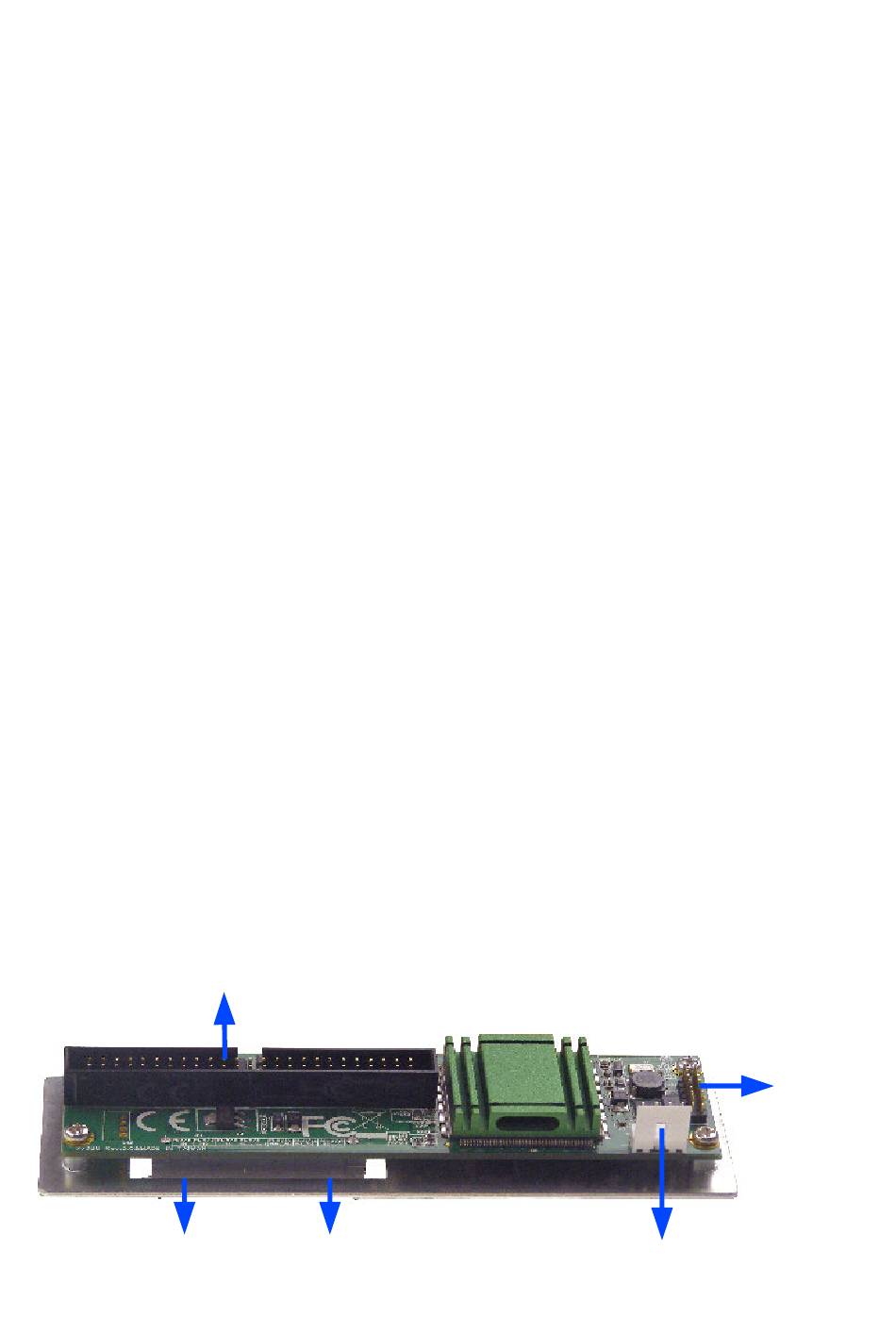

2.1 Connector introduction
CN1 ---- 4-pin power connector
CN2 ---- SATA connector (includes power and data bus)
CN5 ---- SCSI connector
JP1 ---- Jumpers, Refer to 2.2 for detail
CN2(power) CN2(data)
Introduction
Introduction
Operation --- 0 ° C to 45 ° C
Storage
Installation
Installation
CN5
--- -20 ° C to 70 ° C
1
Version 1.0
JP1
CN1
